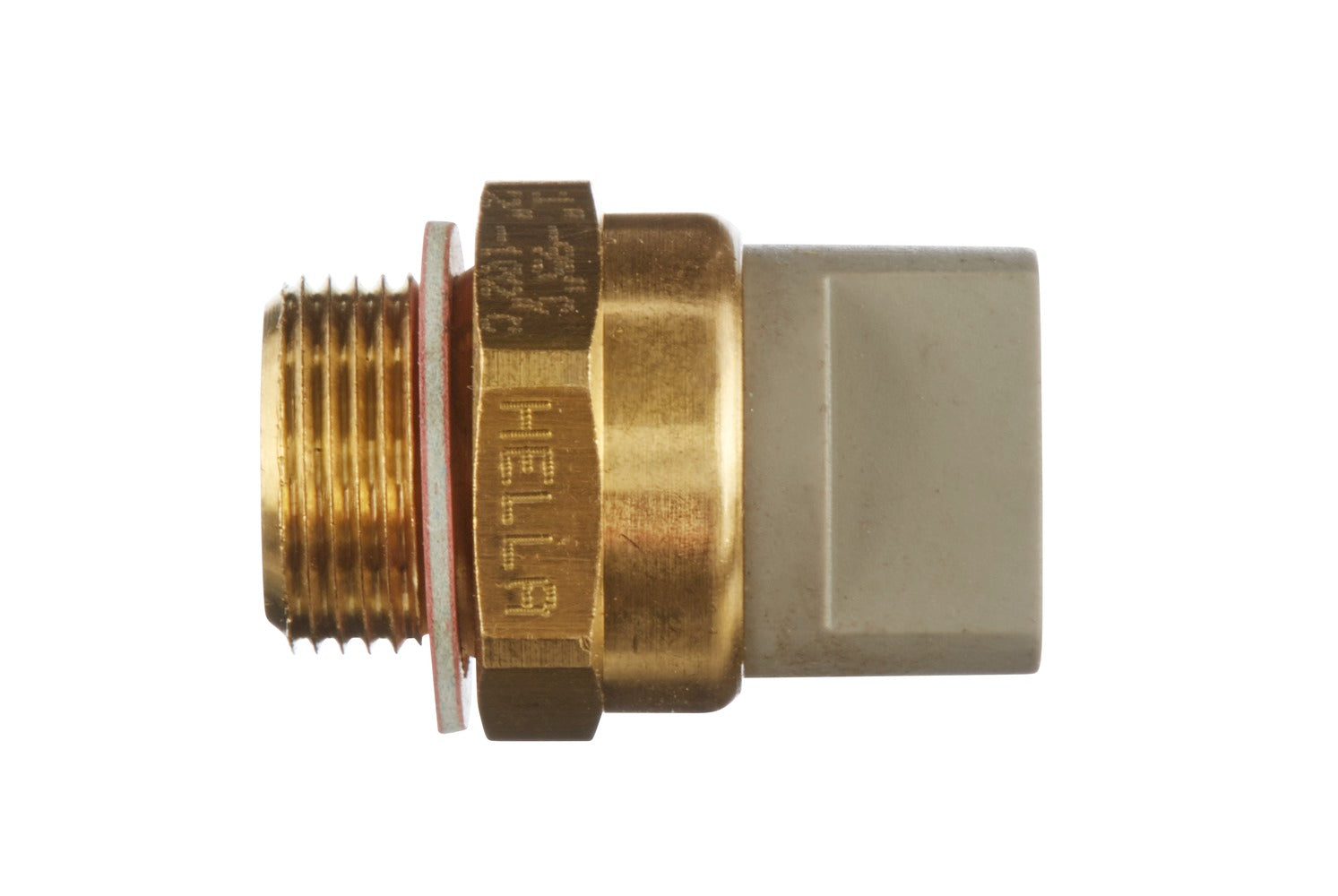

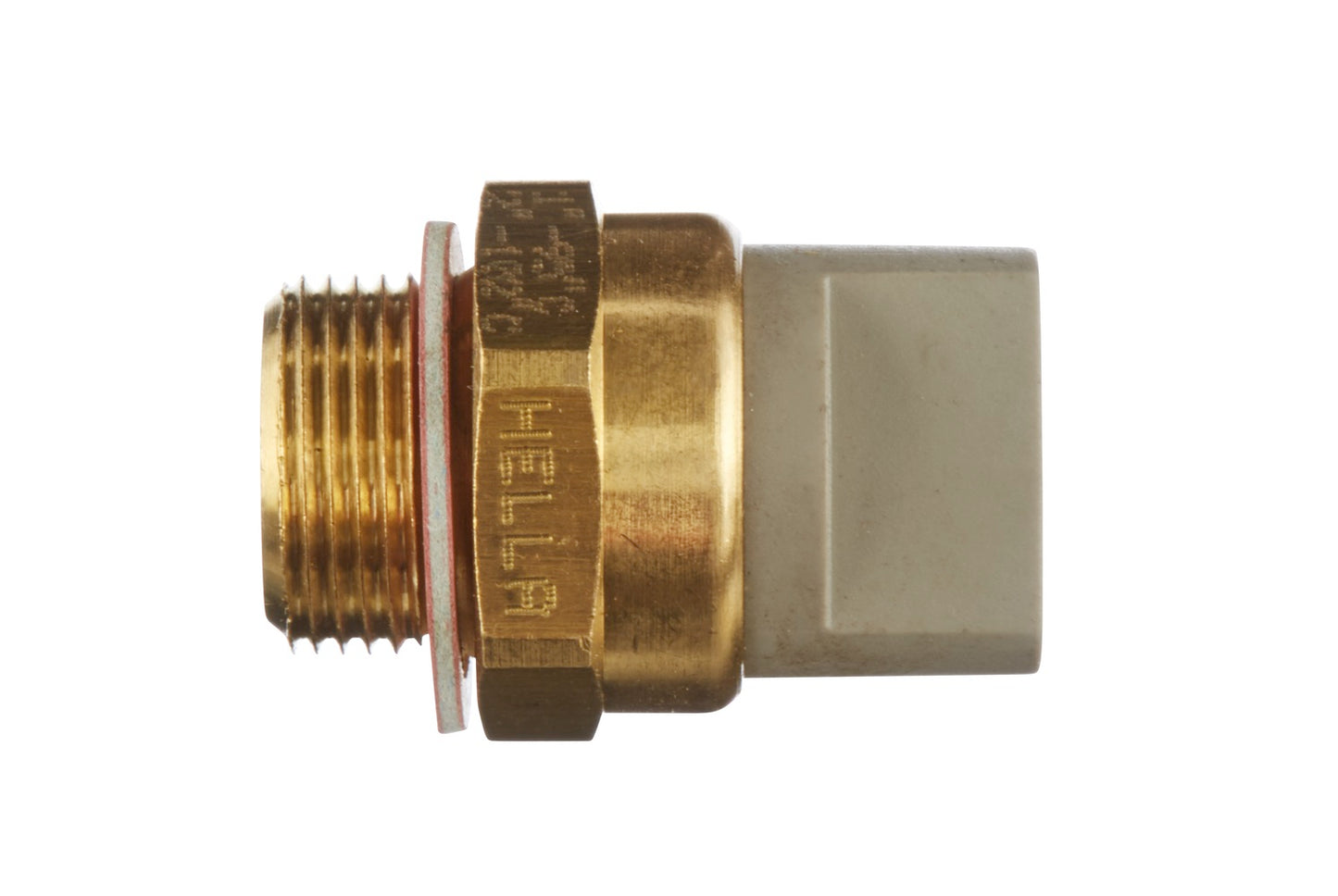

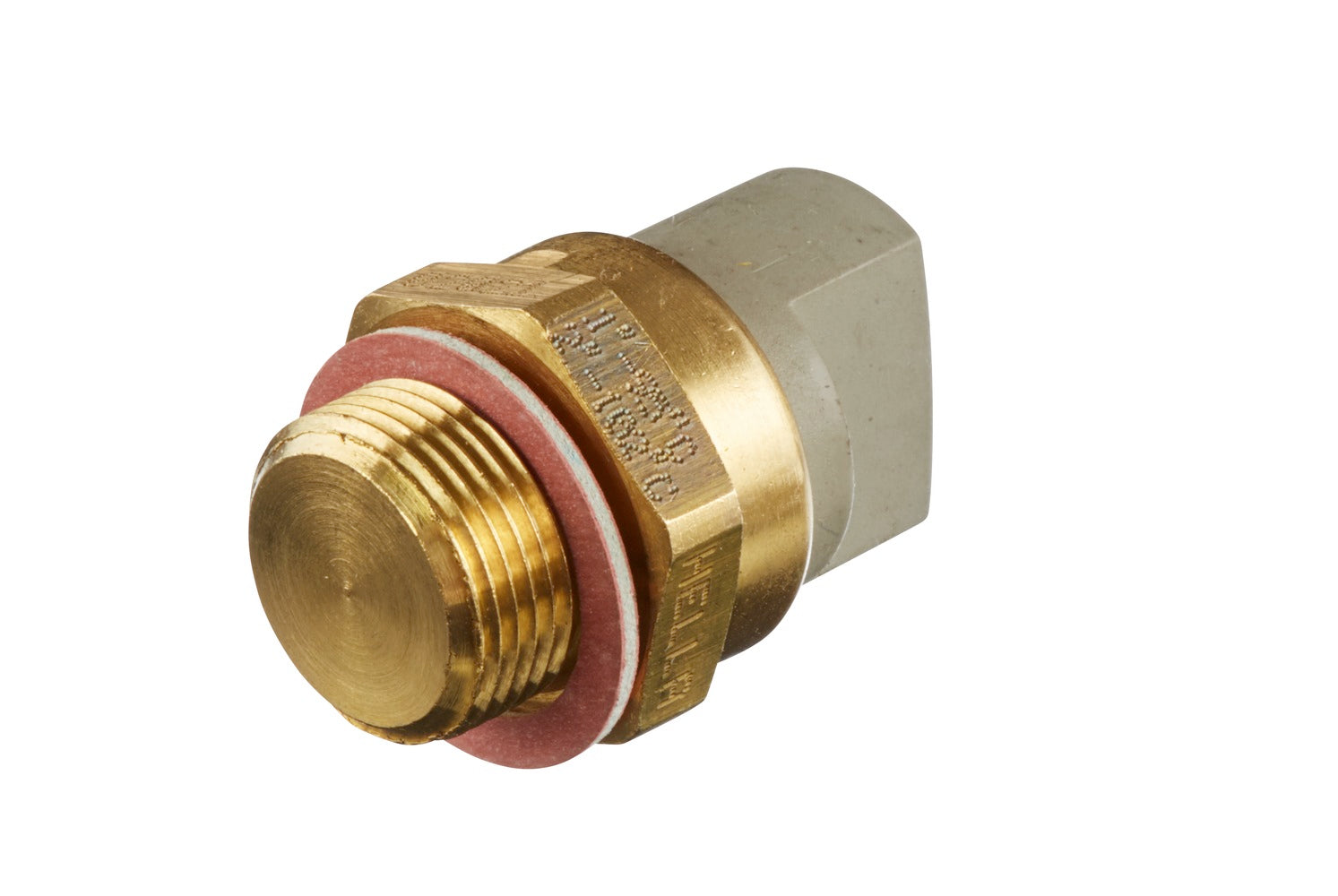

HELLA Temperature Switch, radiator fan - 12V - 3-pin connector - Blade Terminal 6ZT007802-021

Temperature Switch, radiator fan - 12V - 3-pin connector - Blade Terminal - Bolted - Normally Open Contact

At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.

• Switch point from: 85°C - Switch point to: 102°C
• Spanner size: 29 - with double thermal switch
• With double thermoswitch
• Mounting type screwed
• Thread size M22x1,5
• Width across flats 29
• Switching point from 85 °C to 102 °C

Item Attributes:
Mounting Type: Bolted
Switch point from: 85 °C
Switch point to: 102 °C
Voltage: 12 V

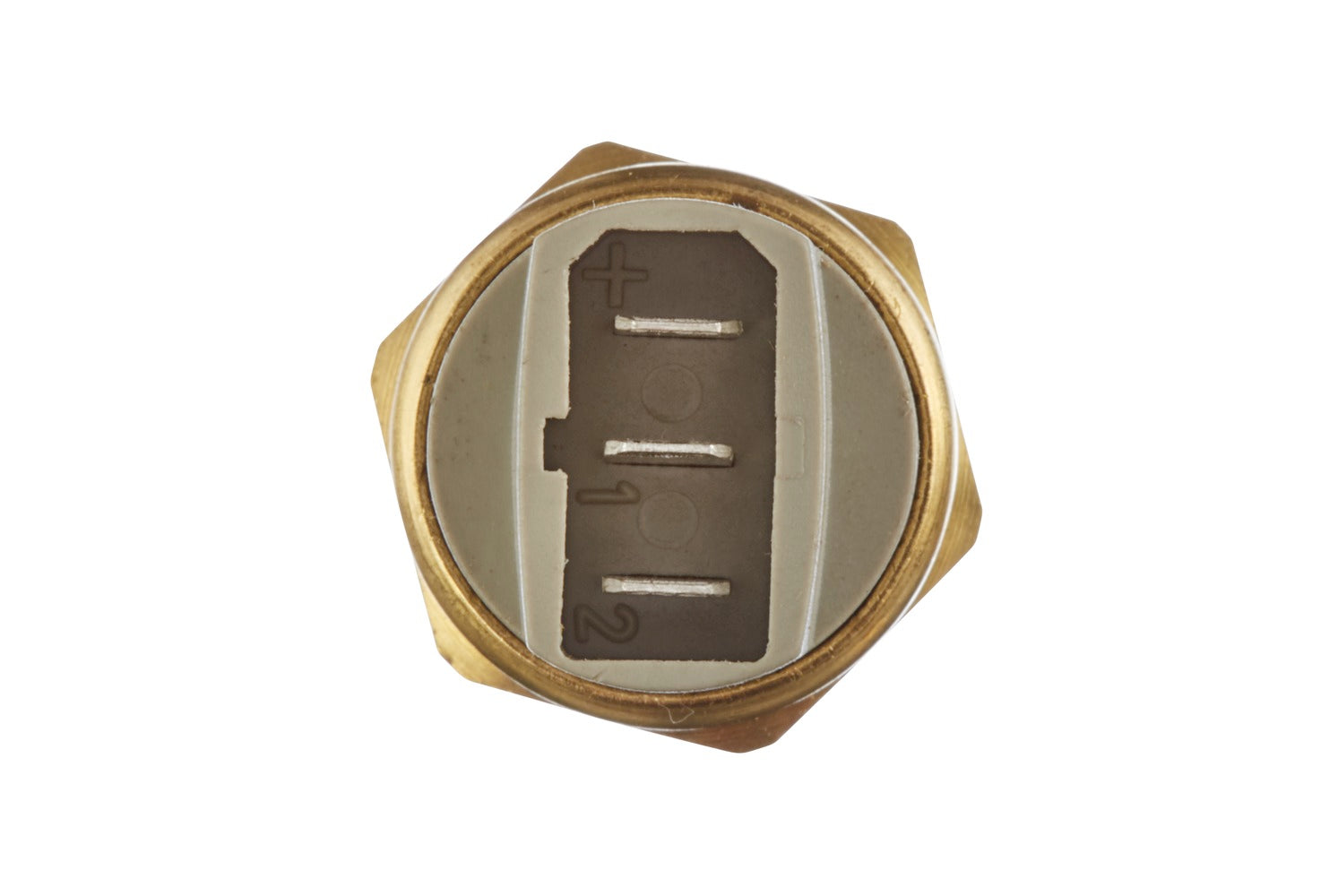

Number of pins: 3 -pin connector
Thread Size: M 22 x 1,5
Switch: with double thermal switch
Switch Function: Normally Open Contact
Spanner Size: 29
Plug: Blade Terminal
Assembly by qualified personnel required!

OE references: AUDI 191 959 481 A; AUDI 191 959 481 C; AUDI 6U 959 481; AUDI 6U 959 481 A; AUDI 6U0 959 481; AUDI 6U0 959 481 A; SEAT 191 959 481 A; SEAT 191 959 481 C; SEAT 6U0 959 481; SEAT 6U0 959 481 A; SEAT 6U9 594 81; SEAT 6U9 594 81A; SKODA 191 959 481 A; SKODA 191 959 481 C; SKODA 6U0 959 481; SKODA 6U0 959 481 A; SKODA 6U9 594 81; SKODA 6U9 594 81A; VW 191 959 481 A; VW 191 959 481 C; VW 6U 959 481; VW 6U 959 481 A; VW 6U0 959 481; VW 6U0 959 481 A
