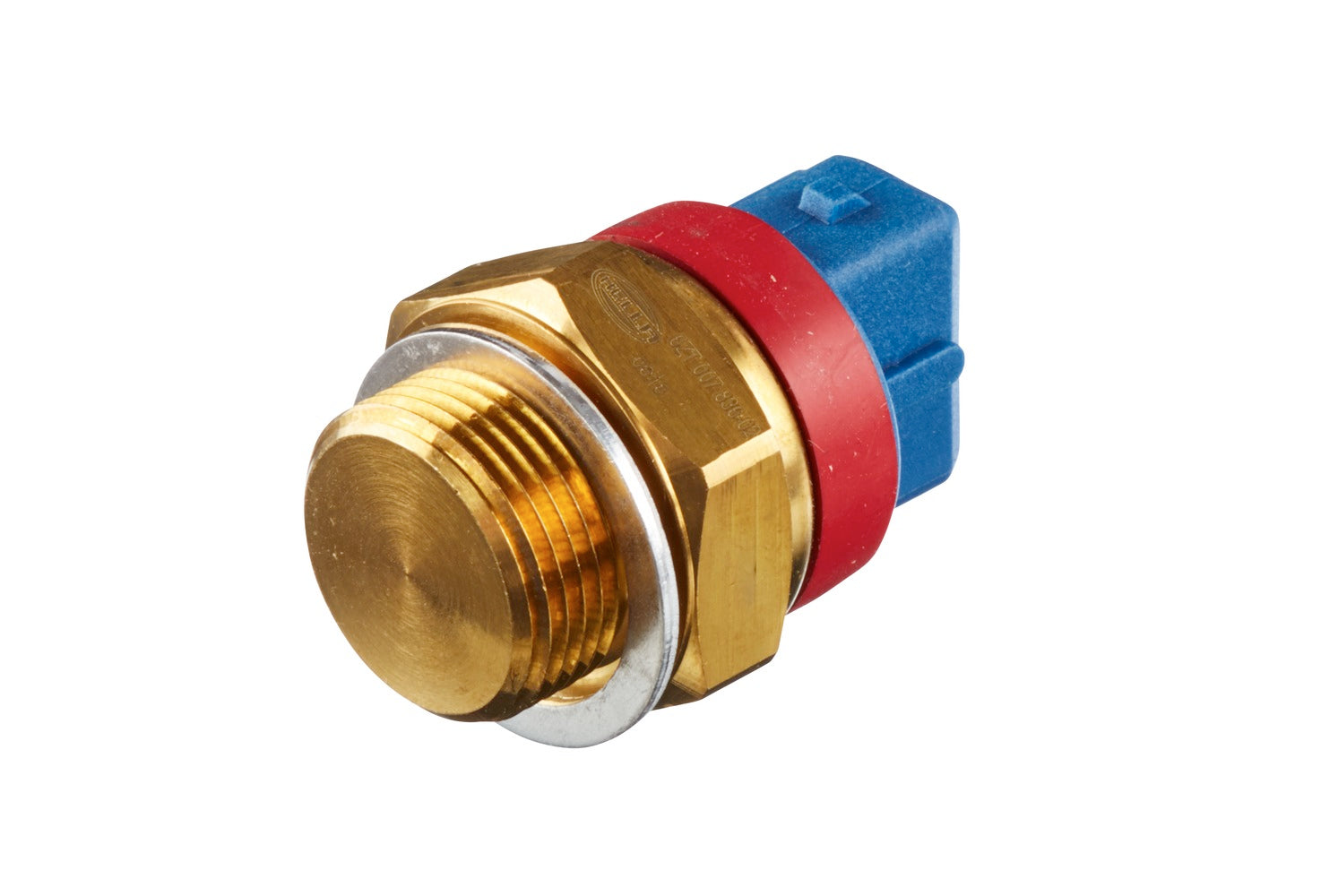

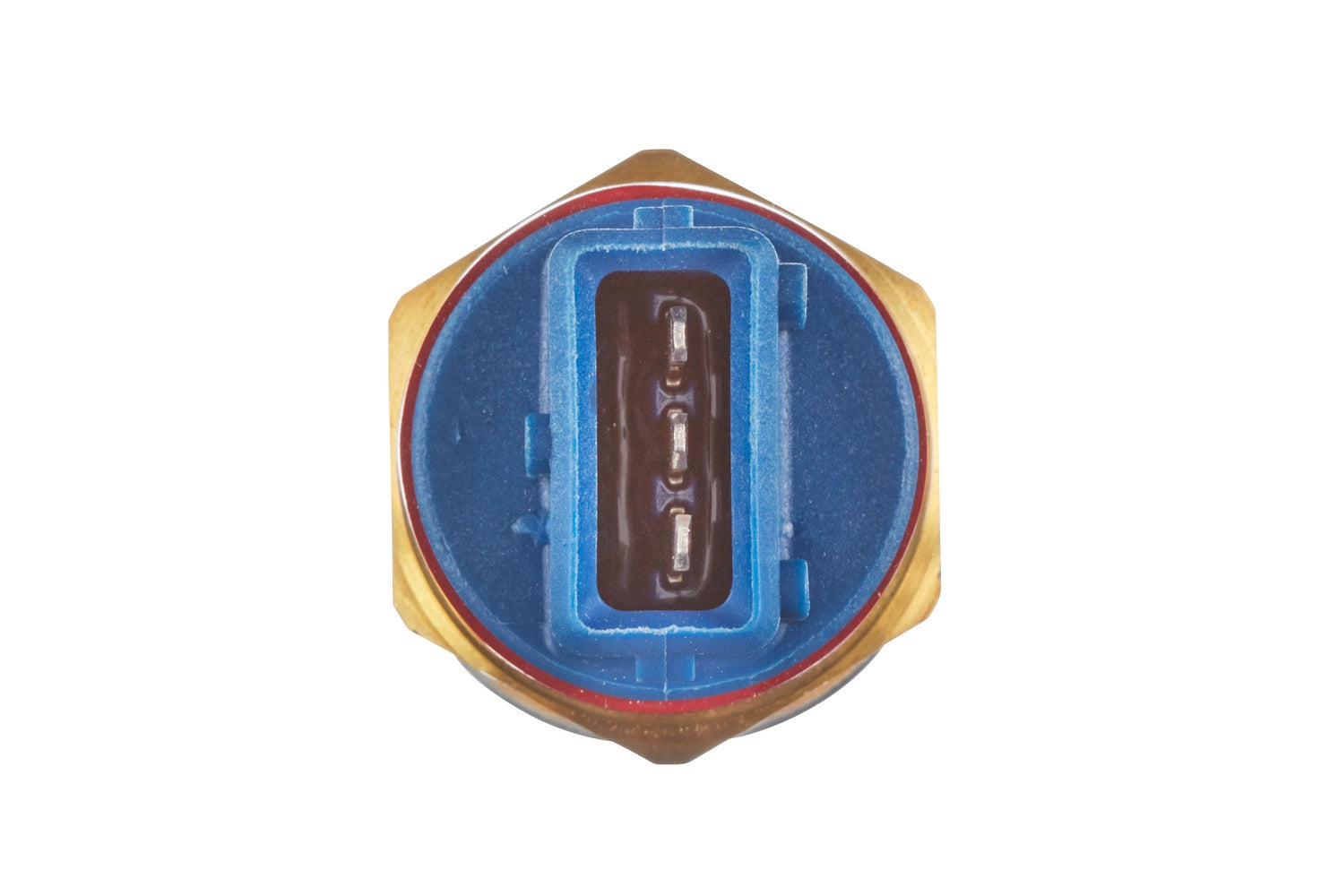

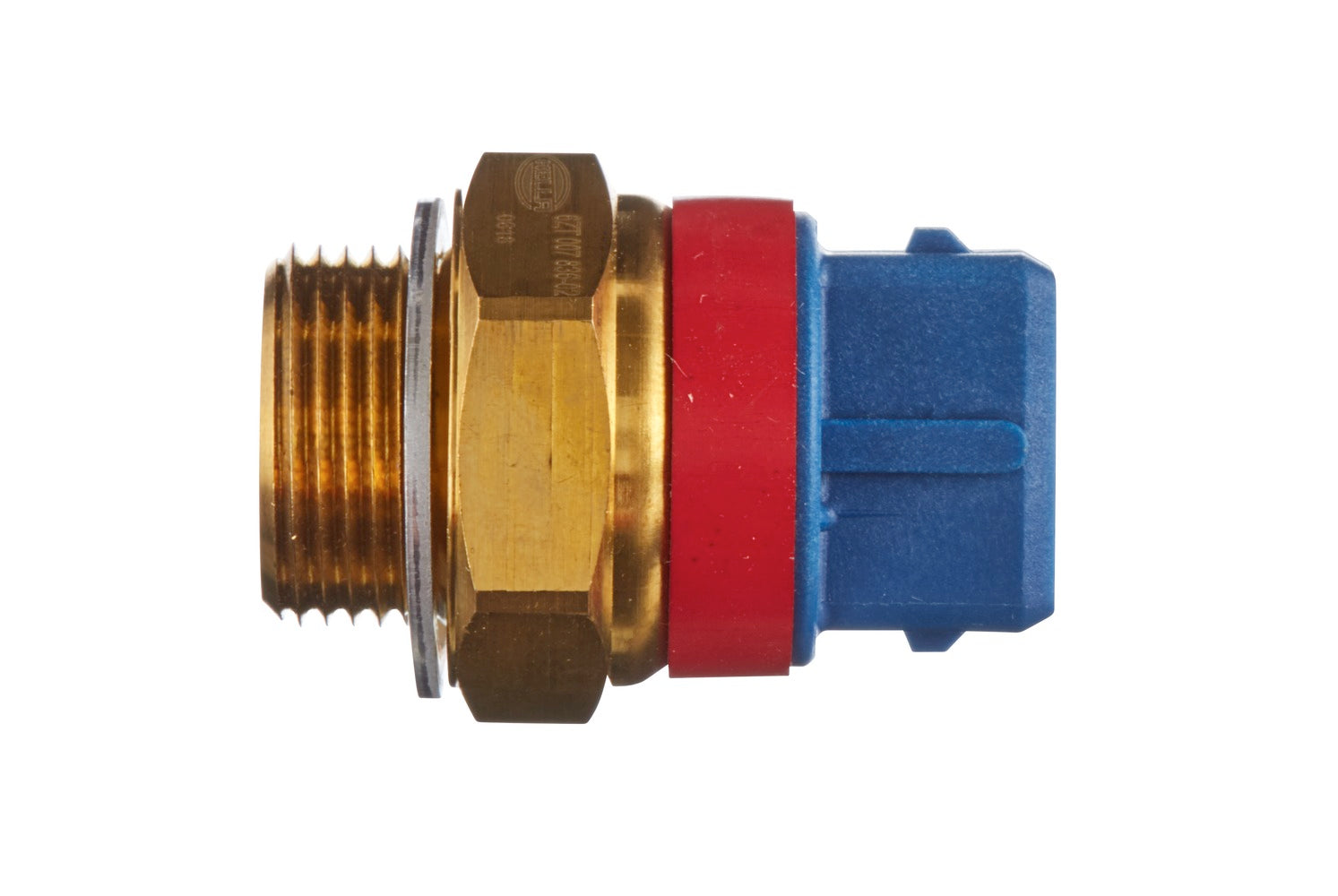

HELLA Temperature Switch, radiator fan - 12V - 3-pin connector - Blade Terminal 6ZT007836-021

Temperature Switch, radiator fan - 12V - 3-pin connector - Blade Terminal - Bolted - Dual Output/Normally Open Contact - Colour Coding: Red

At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.

• Switch point from: 87°C - Switch point to: 100°C
• Spanner size: 29 - with double thermal switch
• With double thermoswitch
• Mounting type screwed
• Thread size M22x1.5, thread type with metric thread
• Width across flats 29
• Switching point from 87 °C to 100 °C

Item Attributes:
Mounting Type: Bolted
Switch point from: 87 °C
Switch point to: 100 °C
Voltage: 12 V
Number of pins: 3 -pin connector
Colour Coding: red
Thread Size: M 22 x 1,5
Switch: with double thermal switch
Switch Function: Normally Open Contact / Dual Output
Spanner Size: 29
Plug: Blade Terminal
Assembly by qualified personnel required!

OE references: CITROËN 1264.25; CITROËN 1264.38; CITROËN 1264.45; FERRARI 940 6475 080; FIAT 9406475080; FIAT 9606475080; LANCIA 9406475080; PEUGEOT 1264.25; PEUGEOT 1264.38; PEUGEOT 1264.45
