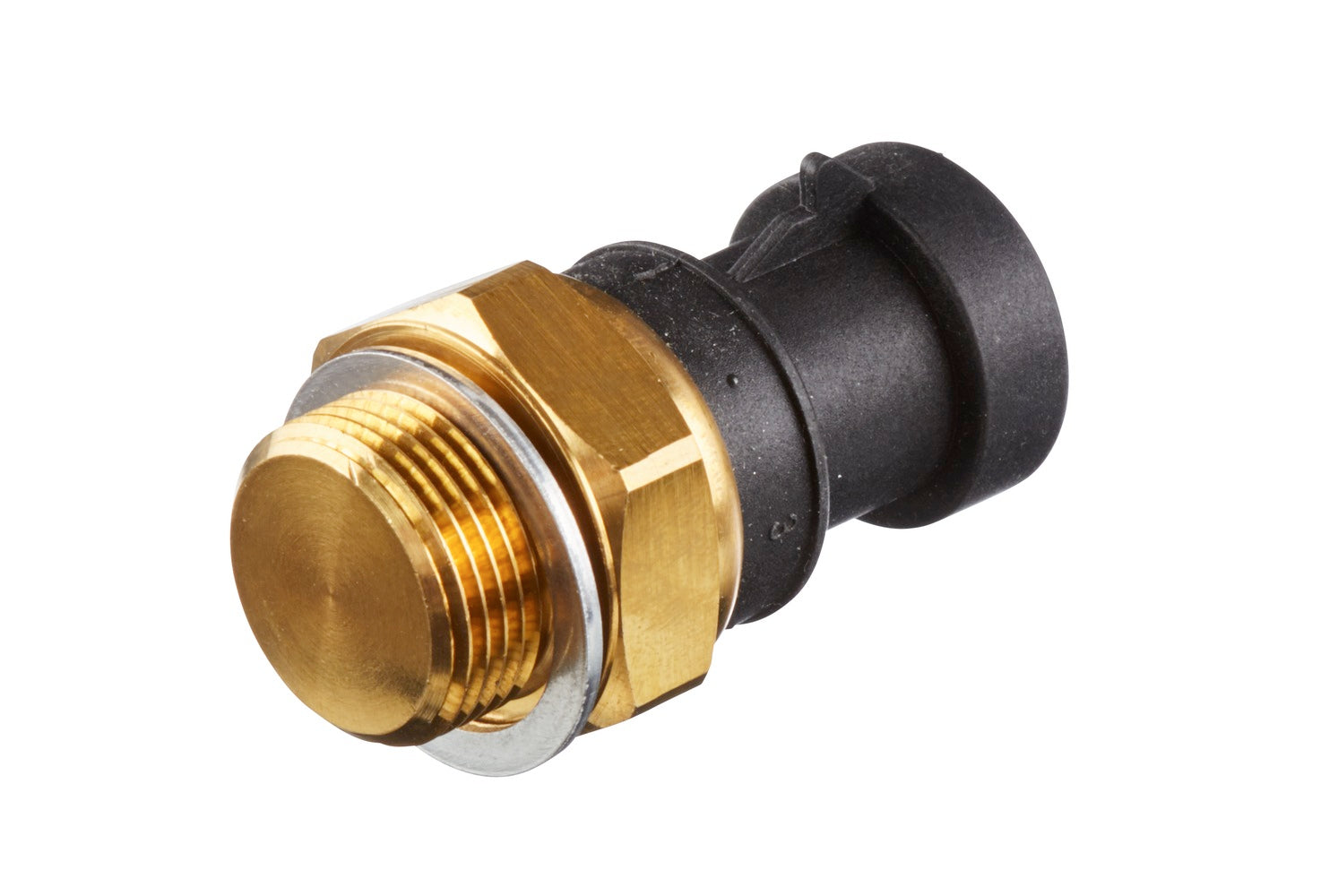

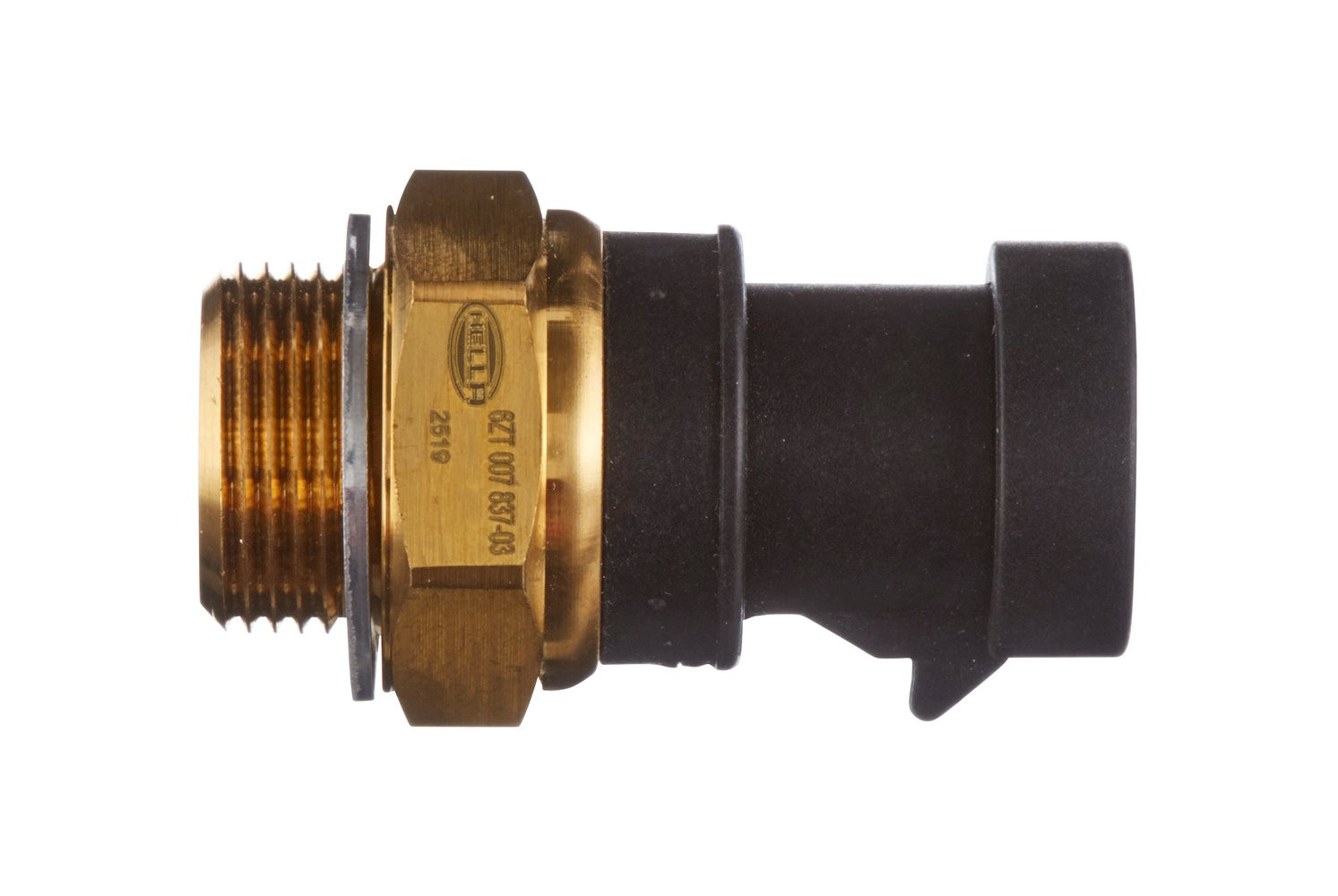

HELLA Temperature Switch, radiator fan - 12V - 3-pin connector - Blade Terminal 6ZT007837-031

Temperature Switch, radiator fan - 12V - 3-pin connector - Blade Terminal - Bolted - Dual Output/Normally Open Contact

At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.

• Switch point from: 82°C - Switch point to: 92°C
• Spanner size: 29 - with double thermal switch
• With double thermoswitch
• Mounting type screwed
• Thread size M22x1,5
• Width across flats 29
• Switching point from 82 °C to 92 °C

Item Attributes:
Mounting Type: Bolted
Switch point from: 82 °C
Switch point to: 92 °C
Voltage: 12 V

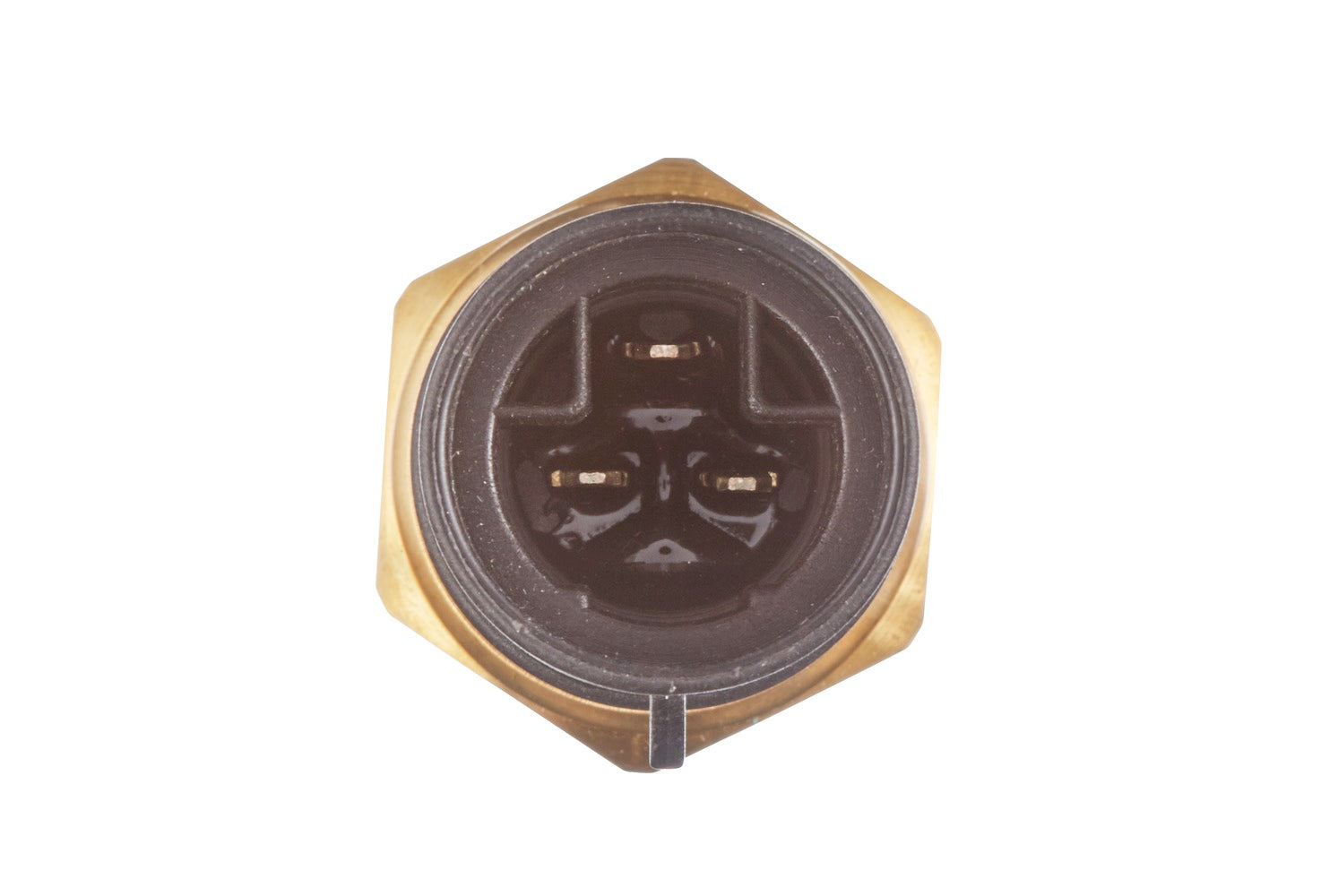

Number of pins: 3 -pin connector
Thread Size: M 22 x 1,5
Switch: with double thermal switch
Switch Function: Normally Open Contact / Dual Output
Spanner Size: 29
Plug: Blade Terminal
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: ALFA ROMEO 60809965; ALFA ROMEO 7738581; ALFA ROMEO 7738591; CITROËN 1264.34; FERRARI 773 8581; FIAT 60809965; FIAT 7738581; FIAT 7738591; LANCIA 7738581; LANCIA 7738591; PEUGEOT 1264.34
