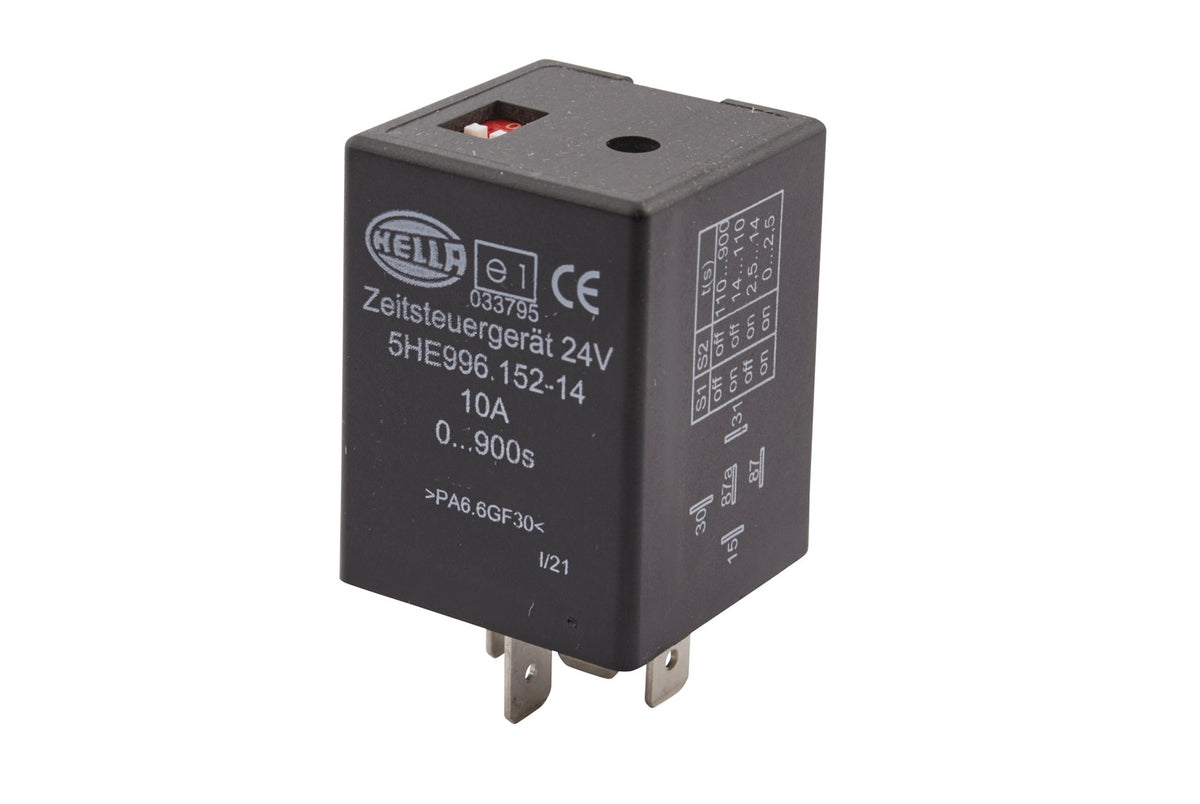

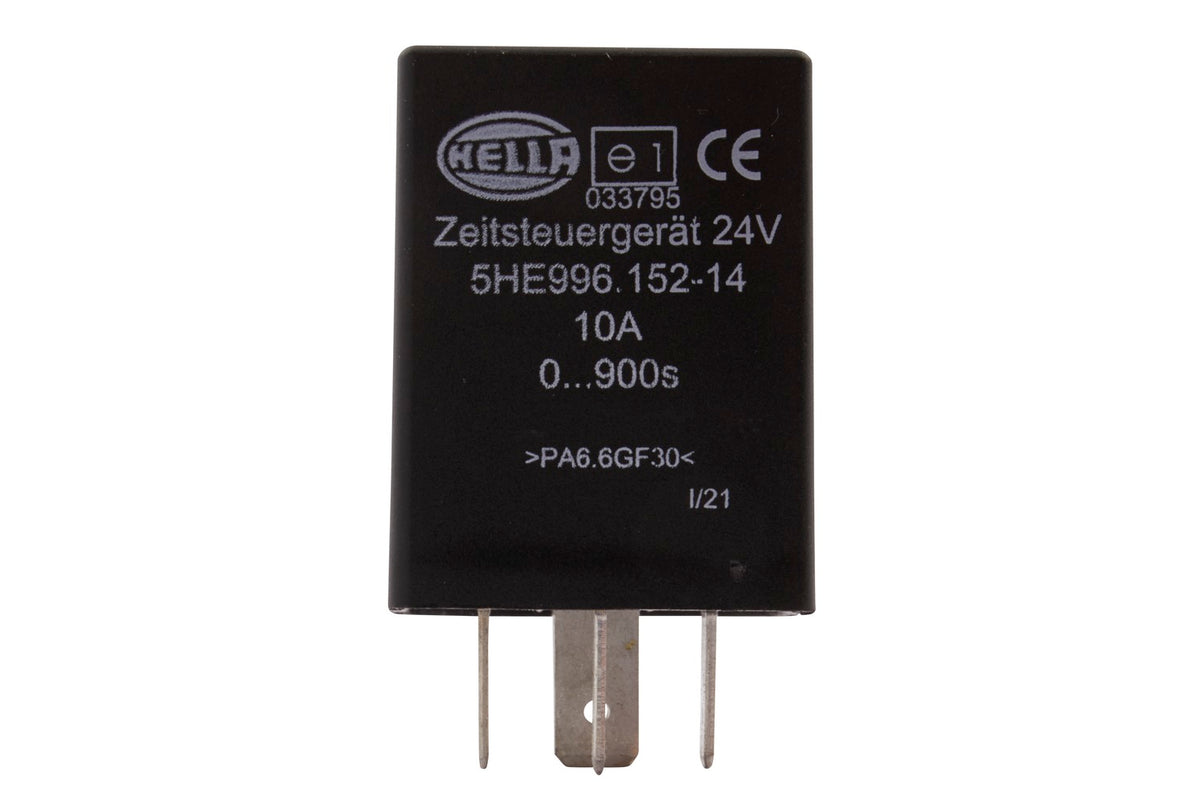

HELLA Time Relay - 24V - Number of connectors: 5 5HE996152-141

Time Relay - 24V - Number of connectors: 5 - Changeover Contact - ECE

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades. The areas of application are varied and include engine control units, headlight cleaning systems, starters, fuel pumps, fan motors, horns and fanfares. HELLA is also certified in various relevant areas, such as DIN EN ISO 9001:2008, ISO / TS 6949:2009, ISO 14001. HELLA relays also comply with the standards of ROHS (2002 / 95 / EC) and REACh. They are available in 12 V and 24 V.

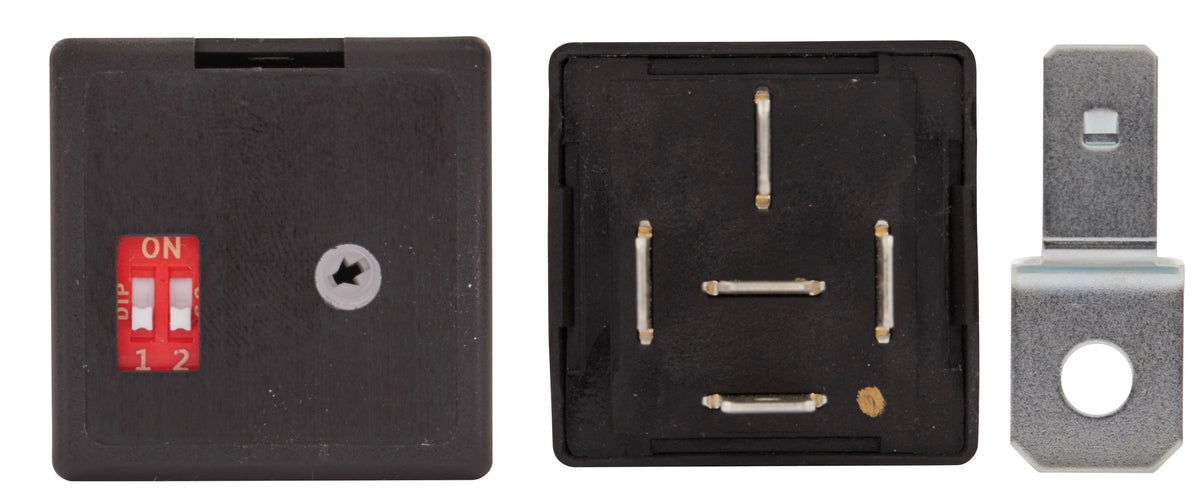

• Time control unit 24 V, 5-pole, with switch-off delay, with holder
• Duty cycle output: 0 to 900 ± 90 s
• Load current: min. 10 A, max. 20 A
• Temperature range from: -25°C - Temperature range to: +80°C - Adjustment Range from: 0s - Adjustment Range to: 900s
• Registration Type: ECE
• Switch-off delay

Item Attributes:
Supplementary Article/Supplementary Info 2: Switch-off delay
Adjustment Range from: 0 min
Adjustment Range from: 0 s
Adjustment Range to: 15 min
Adjustment Range to: 900 s
Registration Type: ECE
Voltage: 24 V
Temperature range from: -25 °C
Temperature range to: +80 °C
Number of connectors: 5
Switch Function: Changeover Contact
Assembly by qualified personnel required!

OE references: DEMAG 59976512; DOLL 7097610; JOHN DEERE F711369; JUNGHEINRICH 52040631; LIEBHERR 1 044 400 12; MAN 81.25902-0573; MAN ZF920006706; MANITOU 53009815; PUTZMEISTER 560043; PUTZMEISTER E560043; RENAULT TRUCKS 7422905089; SCANIA 2473043; SCHMITZ CARGOBULL 1026114; TEREX 5050247342; TEREX 59976512; TEREX 94759976512; VDL 30180597; VOLVO 14718413; WEIRO 27163; YANMAR 5050247342
