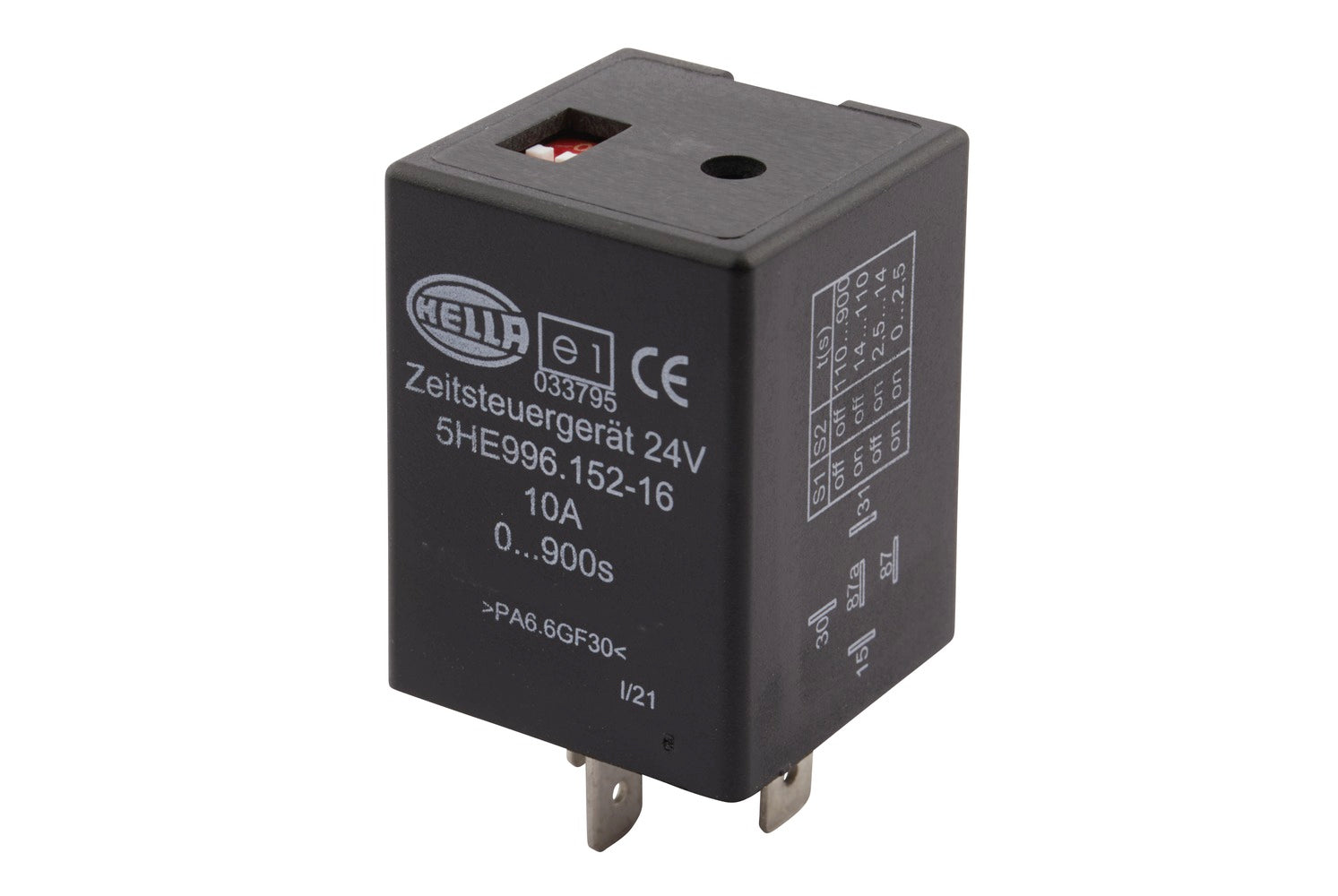

HELLA Time Relay - 24V - Number of connectors: 5 5HE996152-161

Time Relay - 24V - Number of connectors: 5 - Changeover Contact - ECE

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades. The areas of application are varied and include engine control units, headlight cleaning systems, starters, fuel pumps, fan motors, horns and fanfares. HELLA is also certified in various relevant areas, such as DIN EN ISO 9001:2008, ISO / TS 6949:2009, ISO 14001. HELLA relays also comply with the standards of ROHS (2002 / 95 / EC) and REACh. They are available in 12 V and 24 V.

• Time control unit 24 V, 5-pole, with switch-on delay, with holder
• Duty cycle output: 0 to 900 ± 90 s
• Load current: min. 10 A, max. 20 A
• Temperature range from: -25°C - Temperature range to: +80°C - Adjustment Range from: 0s - Adjustment Range to: 900s
• Registration Type: ECE
• Switch-on delay

Item Attributes:
Supplementary Article/Supplementary Info 2: Switch-on delay
Adjustment Range from: 0 min
Adjustment Range from: 0 s
Adjustment Range to: 15 min
Adjustment Range to: 900 s
Registration Type: ECE
Voltage: 24 V
Temperature range from: -25 °C
Temperature range to: +80 °C
Number of connectors: 5
Switch Function: Changeover Contact
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AEBI 1174052-9; ALEXANDER DENNIS 76640207; CASE IH 47375883; HYSTER 6993458; LIEBHERR 10008762; MAN 81.25902-0577; MAN ZF912010003; SCHMITZ CARGOBULL 1202727; VDL 31003982; VÖGELE 2270605; WEIRO 21841
