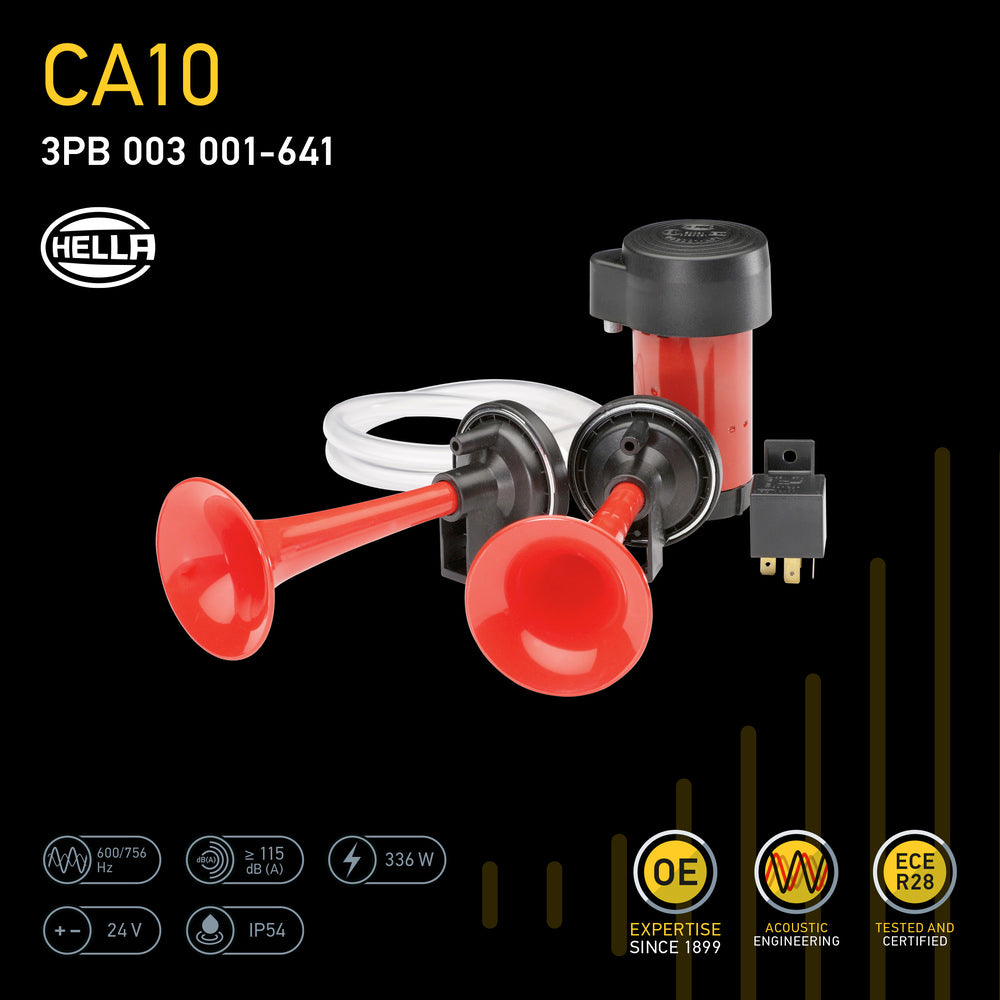

HELLA Trumpet Horn CA10 - 24V - 115dB(A) - High Tone/Low Tone - Quantity: 1 3PB003001-641

Trumpet Horn CA10 - 24V - 115dB(A) - 600Hz-756Hz - High Tone/Low Tone - Electric-pneumatic - ECE - Housing Colour: Red/Black - Quantity: 1

Horns are a mandatory part of the safety equipment of a vehicle. A particularly perceptible sound is necessary in order to be able to warn other road users optimally in dangerous situations. Our signal horns offer you a high level of functional reliability. Design and function: The sound is generated in the spiral horn by the vibration of two metal diaphragms set in vibration by the pressurized air produced by the electric compressor. The diaphragms that are positioned inside the acoustic chambers press on the sealing lip which forms the inlet of the acoustic duct. When a certain pressure is generated inside the acoustic chambers, the diaphragms move away from the lip resulting in passage of air and pressure drop, and then close again on the lip. The cyclic repetition of this phenomenon generates the sound waves.

• Red trumpet horns and a high performance compressor
• ABS plastic body and support in galvanized metal
• Mounting bracket included
• With flat connections of 6.3 mm, open, blade type
• Pressure Range: 0.6 bar
• Power consumption: 336W
• Registration Type: ECE - fulfils ECE standard: R28 - Prot.type (IP Code): IP54

Item Attributes:
Voltage: 24 V
Power consumption: 336 W
Sound Level: 115 dB(A)
Frequency range from: 600 Hz
Frequency range to: 756 Hz
Charging Rate: 14 A
Prot.type (IP Code): IP54
fulfils ECE standard: R28
Registration Type: ECE
Signal: High Tone / Low Tone
Housing Colour: red/black
Quantity: 1
Operating Mode: Electric-pneumatic
Supplementary Article/Supplementary Info: with accessories
Assembly by qualified personnel required!
