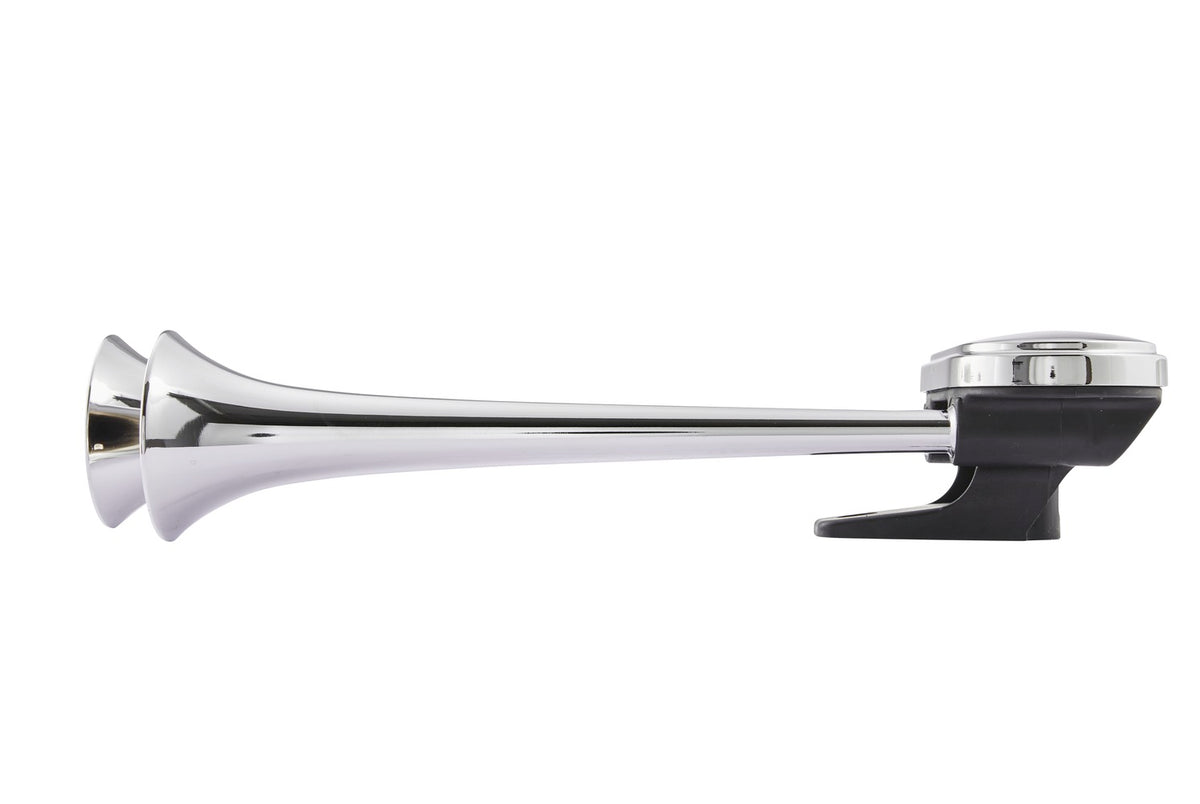

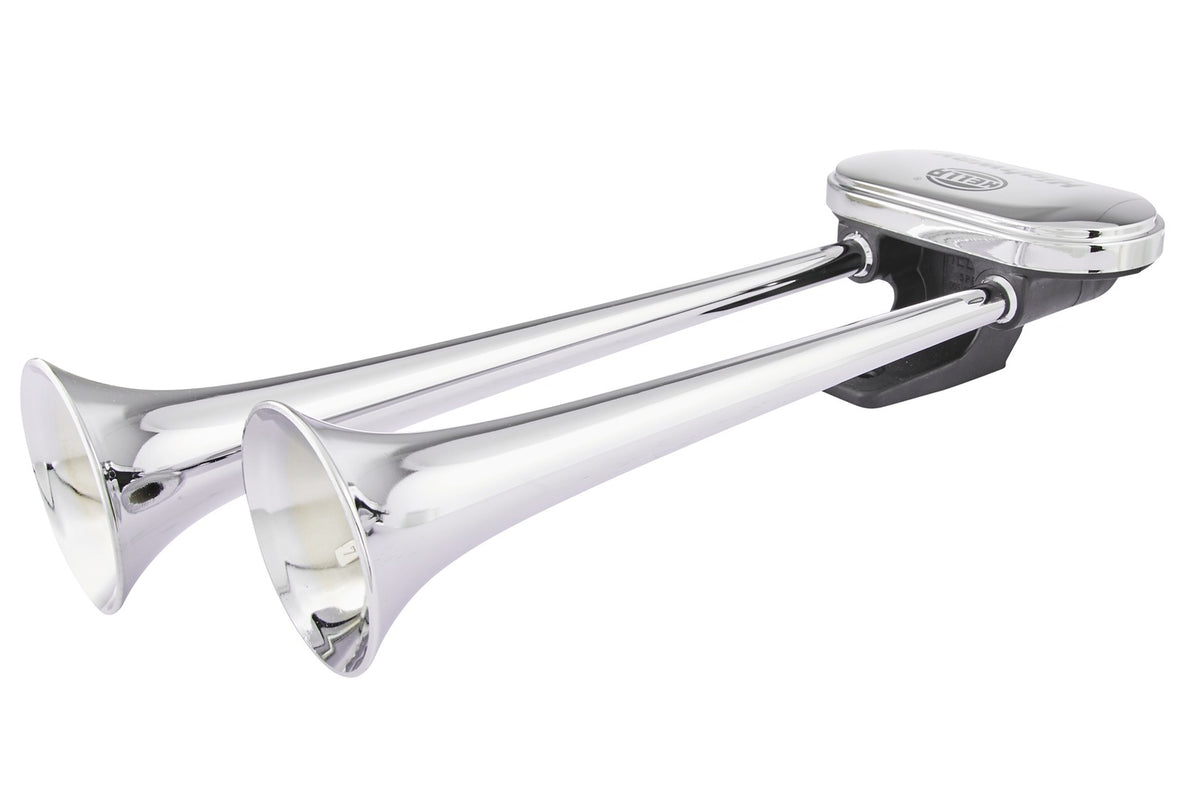

HELLA Trumpet Horn CA34 - 24V - 115dB(A) - Low Tone/High Tone - Quantity: 1 3PB005411-001

Trumpet Horn CA34 - 24V - 115dB(A) - 300Hz-350Hz - Low Tone/High Tone - Electric - ECE - Housing Colour: Chrome/Black - Pipe-neck - Plug: Blade Terminal - Quantity: 1

Over 120 years of experience in the development of horns & fanfares and continuous innovations through research - this is what distinguishes HELLA horns. Whether car, truck, bus, emergency or motorbike, our horns are used everywhere.

• Far-reaching sound for more safety. Piercing sound.
• Compressed air controlled pneumatic acoustic devices for vehicles with air brake system. Compressed air sector: 4 - 8.5 bar.

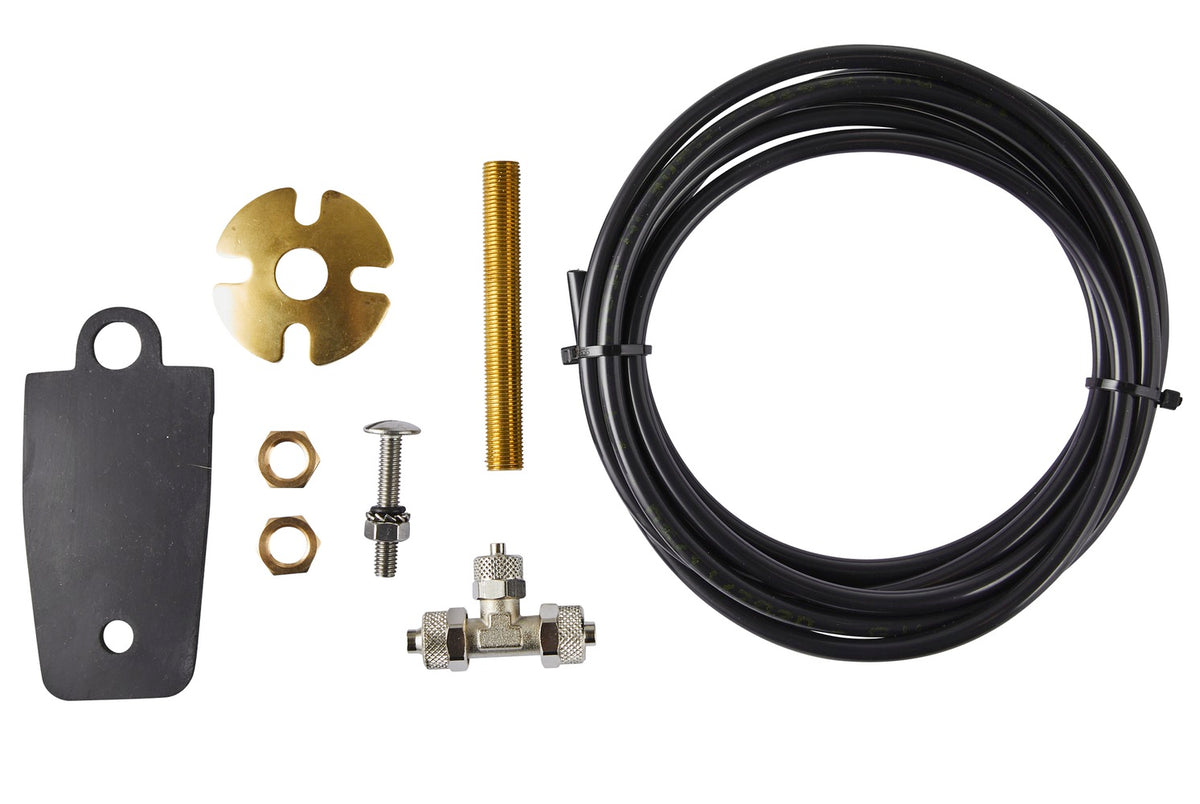

• Required accessories (CM34): Pull valve for manual operation 9XL 715 989-001 or solenoid valve 24V 9XL 715 991-001
• With 2 bells. 300 Hz (bell 295 mm long), 320 Hz (bell 340 mm long).
• Bonnet and bell chrome-plated, base matt black.
• from: 4.0bar - to: 8.5bar - Power consumption: 20W
• Length: 415mm - Width: 160mm - Height: 78mm - Overall Height: 80mm

Item Attributes:
Voltage: 24 V
Power consumption: 20 W
Sound Level: 115 dB(A)
Frequency range from: 300 Hz
Frequency range to: 350 Hz
fulfils ECE standard: R28
Registration Type: ECE
Signal: Low Tone / High Tone
Housing Colour: chrome/black
Quantity: 1
Operating Mode: Electric
Overall Height: 80 mm
Width: 160 mm
Height: 78 mm
Length: 415 mm
from: 4.0 bar
to: 8.5 bar
Mounting Type: Pipe-neck
Plug: Blade Terminal
Supplementary Article/Supplementary Info: with accessories
Supplementary Article/Supplementary Info 2: with E quality seal
Assembly by qualified personnel required!

OE references: AUWÄRTER 11029204; CLAAS 250 153.10; DAF 1350338; DEMAG 00032012; IKARUS 700.04-0001-005; IKARUS 70004-01005; KAMAG 350833; KAMAG 80350833; KÖGEL 350833; KÖGEL 80350833; MACK 4381 85118; MAFI 000,580,2437; NEOPLAN 1102 920 4; ROSENBAUER 70734B; SCANIA 20223586; TEREX 00032012; TEREX 94700032012; VAN HOOL 10835444; VDL 10835444
