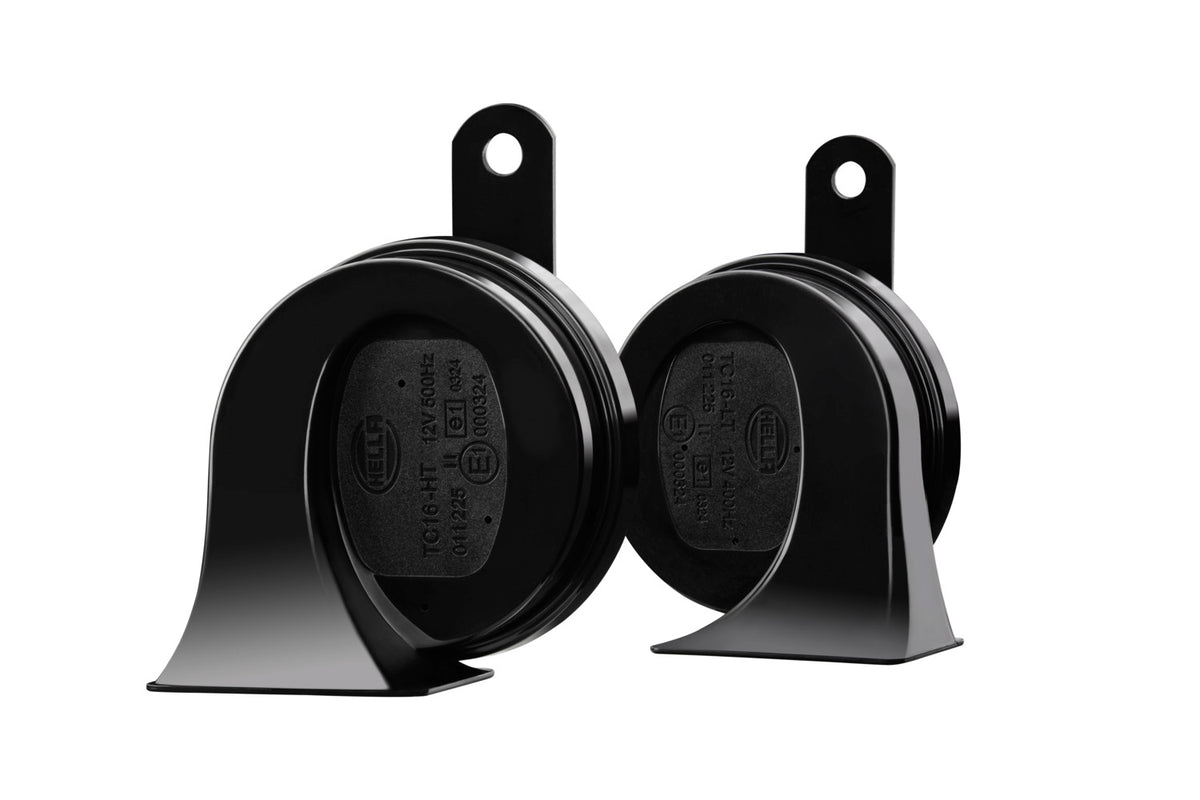

HELLA Trumpet Horn - HELLA ESSENTIAL HORN TE20 SET - 12V - 110dB(A) - High Tone/Low To 3FH011225-831

Trumpet Horn - HELLA ESSENTIAL HORN TE20 SET - 12V - 110dB(A) - 400Hz-500Hz - High Tone/Low Tone - Electric - ECE - Housing Colour: Black - Quantity: 2

Horns are a mandatory part of the safety equipment of a vehicle. A particularly perceptible sound is necessary in order to be able to warn other road users optimally in dangerous situations. Our signal horns offer you a high level of functional reliability. Design and function: The driver presses the “horn” on the steering wheel. The signal is sent via a relay, thus activating the electromagnet. The diaphragm of the horn is now attracted by the magnet, separating the Minus Pole from the battery so that the magnet loses its power – consequently, the diaphragm returns back to its rest position. However, this will reconnect the Minus pole, so this process will be repeated as long as the horn is pressed. When the horn is pressed, the vibrations are very fast and so produce the loud sound.

• Black ABS housing with glossy finished
• Project a wide sound emission for safe driving on the road
• Wide range of sounds when you install a set of low and high tones
• With 6.3 mm blade terminal contacts, open
• Bracket on horn for M8 fixing screw
• Power consumption: 72W
• Registration Type: ECE - fulfils ECE standard: R28 - Prot.type (IP Code): IP65

Item Attributes:
Voltage: 12 V
Power consumption: 72 W
Sound Level: 110 dB(A)
Frequency range from: 400 Hz
Frequency range to: 500 Hz
Charging Rate: 6 A
Prot.type (IP Code): IP65
fulfils ECE standard: R28
Registration Type: ECE
Signal: High Tone / Low Tone
Housing Colour: black
Quantity: 2
Operating Mode: Electric
Assembly by qualified personnel required!

OE references: AUDI 171 951 223; AUDI 176 951 113; AUDI 176 951 113A; AUDI 191 951 221; AUDI 191 951 223; AUDI 431 951 221A; AUDI 893 951 221; AUDI 893 951 223; BMW 3 002 778; BMW 3 002 779; BMW 5A327A2-02; BMW 61 33 7 245 422; BMW 61 33 7 245 423; BMW 6907044-07; BMW 6941129; BMW 6968441-02; BMW 6968442-02; BMW 6968442-03; BMW 7 245 422; BMW 7 245 423; BMW 7159420; BMW 7159420-06; BMW 7159421; BMW 7159421-06; BMW 7163973; BMW 7163974; BMW 7163975; BMW 7163976; BMW 7163977; BMW 7163978; BMW 7163979; BMW 7163980; BMW 7163981; BMW 7163984; BMW 7163985-01; BMW 7163991; BMW 7163992; BMW 7163993; BMW 7163995; BMW 7163996; BMW 7163997; BMW 7163998; BMW 7163999; BMW 7164000; BMW 7171749; BMW 7171750; BMW 7184480; BMW 7184481; BMW 7191718; BMW 7191719; BMW 7191719-03; BMW 7192035; BMW 7192036; BMW 7192038; BMW 7192039; BMW 7193996; BMW 7193997; BMW 7193997-03; BMW 7214930-06; BMW 7214931-06; BMW 7217702-03; BMW 7295681-04; BMW 7332594-05; BMW 7332594-08; BMW 7332605-05; BMW 7332605-08; BMW 7340363-01; BMW 7340364-04; BMW 7375704-02; BMW 7389373-02; BMW 7389374-02; BMW 7394072; BMW 7394075; BMW 7401575-02; BMW 7407778; BMW 7407779; BMW 7410478-01; BMW 7410917; BMW 7410918; BMW 7410919; BMW 7477379-03; BMW 7477380-03; BMW 7492205; BMW 7492206; BMW 7492885-02; BMW 7492891-02; BMW 7838655; BMW 7932349-03; BMW 7932350-03; BMW 7933222-04; BMW 7933223-04; BMW 8492760; BMW 8492761; BMW 8492762-01; BMW 8492763-01; BMW 8495328; BMW 8495329; BMW 8496203-06; BMW 8496204-06; BMW 8497395-01; BMW 8497396-01; BMW 8497397-01; BMW 8737035-01; BMW 8737036-01; BMW 8737037-01; BMW 9451506-01; BMW 9466246-02; BMW 9466247-02; BMW 9807170; BMW 9807170-04; BMW 9807173; BMW 9807173-04; BMW V20770310; MERCEDES-BENZ 004 542 3420; MERCEDES-BENZ 004 542 35 20; MERCEDES-BENZ 004 542 3620; MERCEDES-BENZ 004 542 39 20; MERCEDES-BENZ 004 542 42 20; MERCEDES-BENZ 004 542 56 20; MERCEDES-BENZ 203 542 02 20; MERCEDES-BENZ A 004 542 3420; MERCEDES-BENZ A 004 542 35 20; MERCEDES-BENZ A 004 542 3620; MERCEDES-BENZ A 004 542 39 20; MERCEDES-BENZ A 004 542 42 20; MERCEDES-BENZ A 004 542 56 20; MERCEDES-BENZ A 203 542 02 20; SEAT 171 951 223; SEAT 3B0 951 221; SEAT 3B0 951 223; SEAT 893 951 223; SKODA 171 951 223; SKODA 3B0 951 221; SKODA 3B0 951 223; SKODA 893 951 223; VW 171 951 223; VW 171951223 SBV; VW 176 951 113; VW 176 951 113A; VW 191 951 221; VW 191 951 223; VW 3B0 951 221; VW 3B0 951 223; VW 431 951 221A; VW 893 951 221; VW 893 951 223
