Description

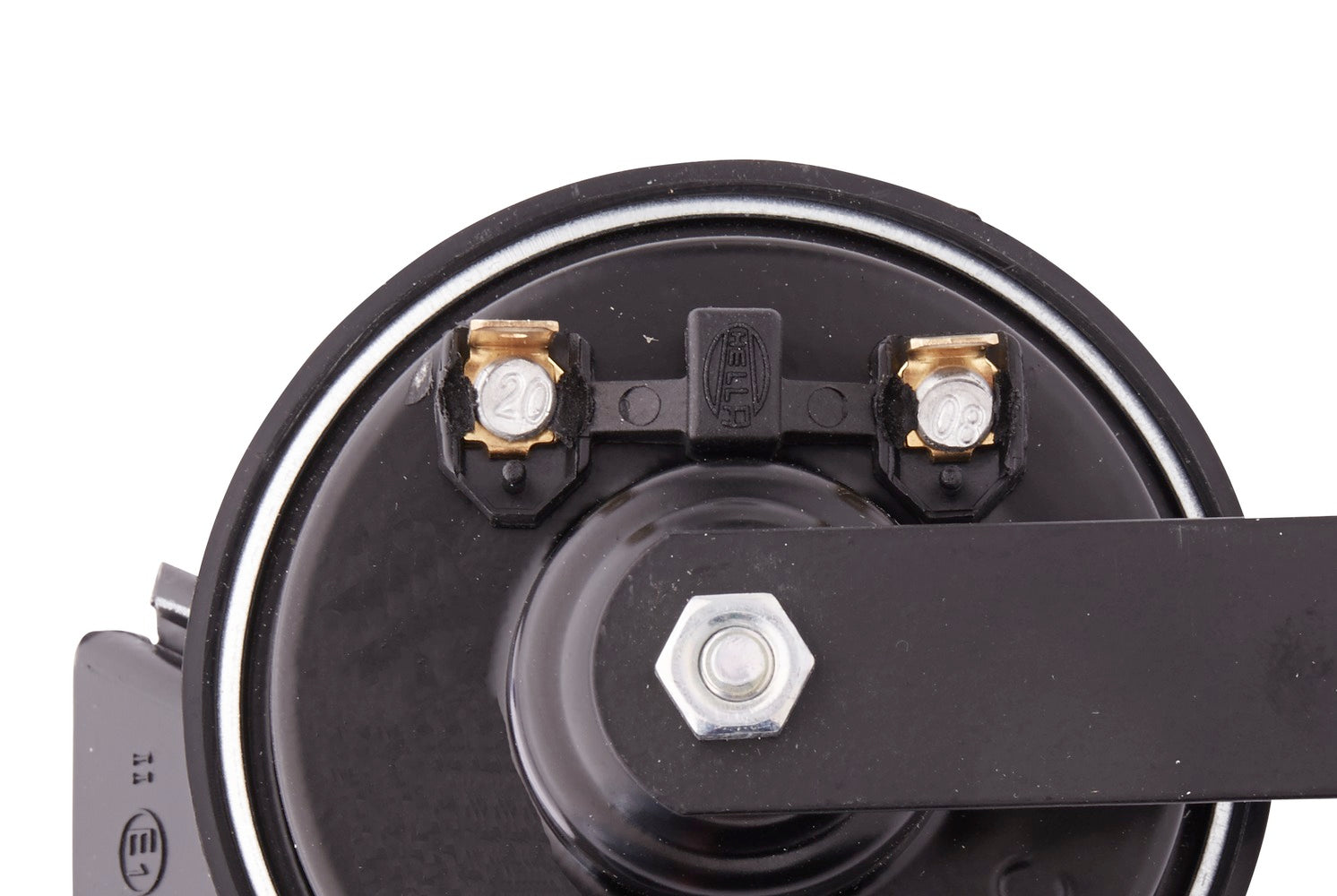

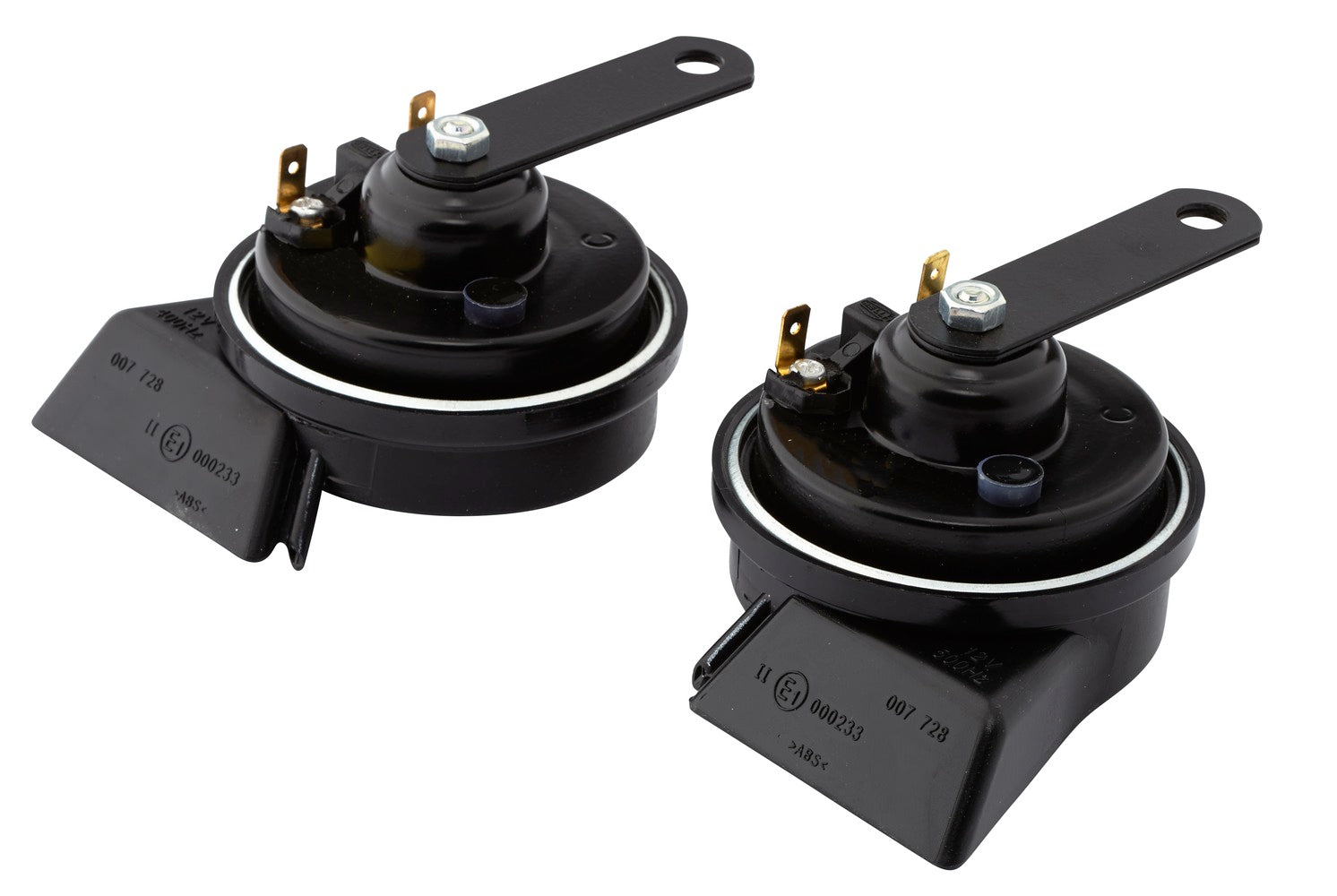

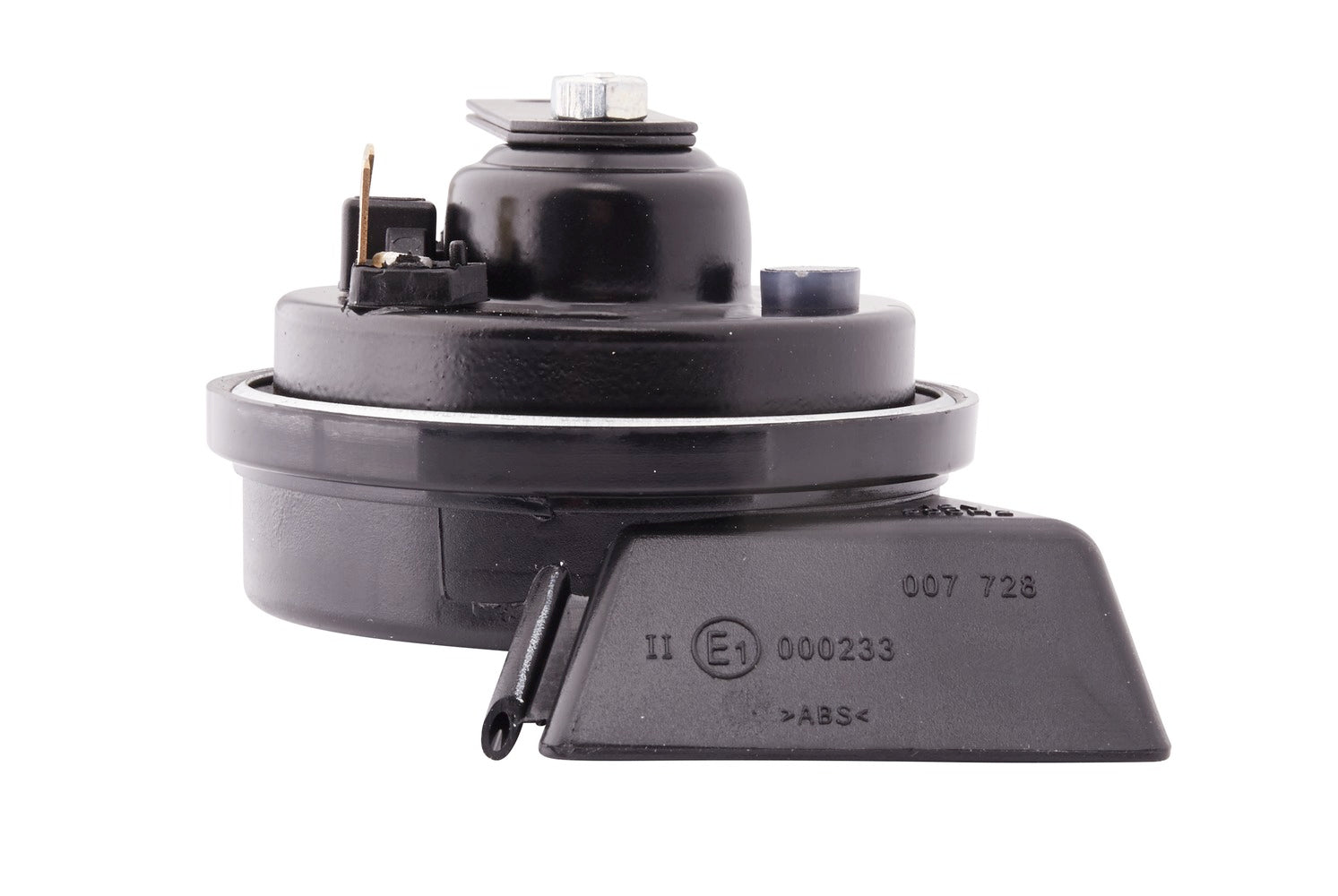

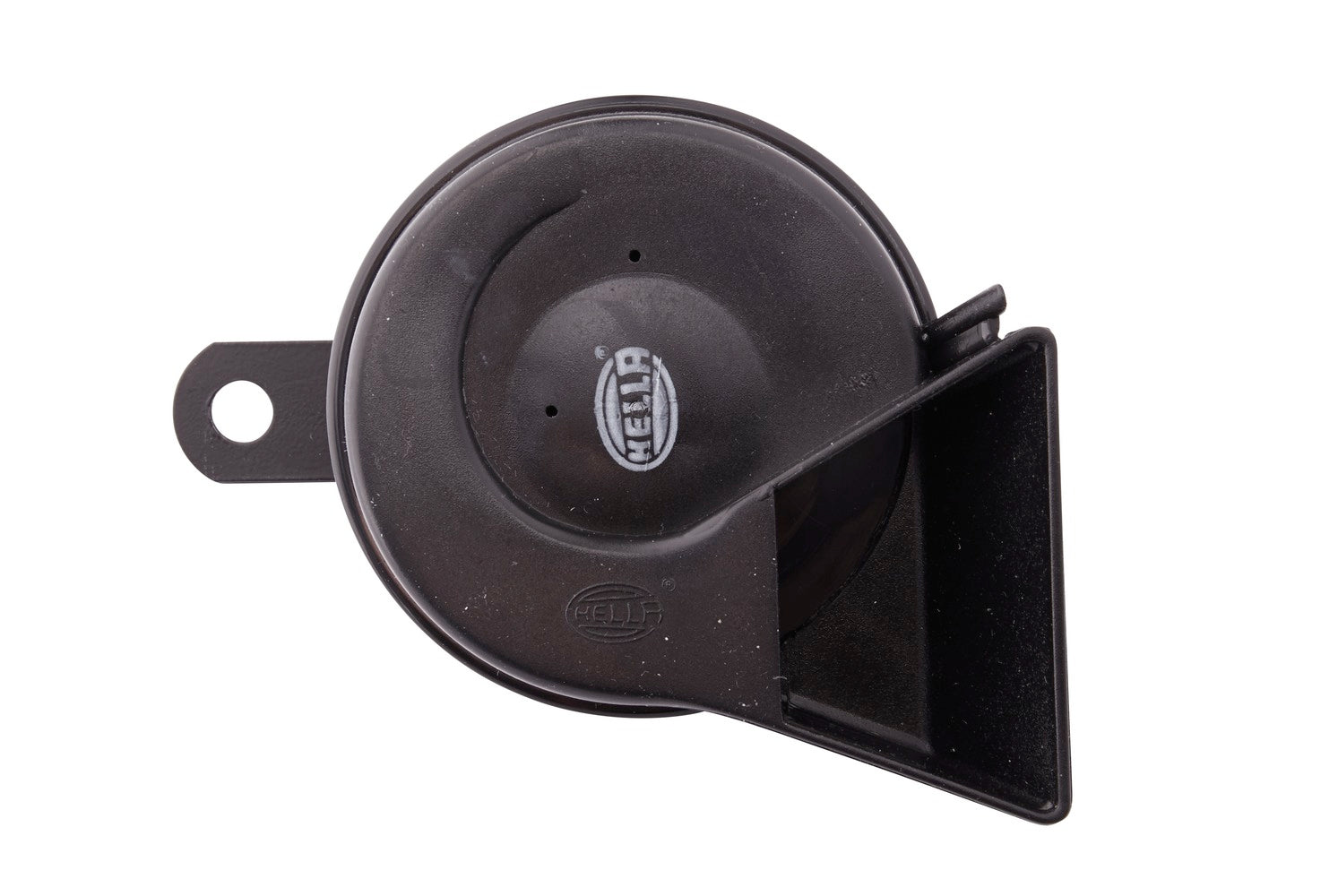

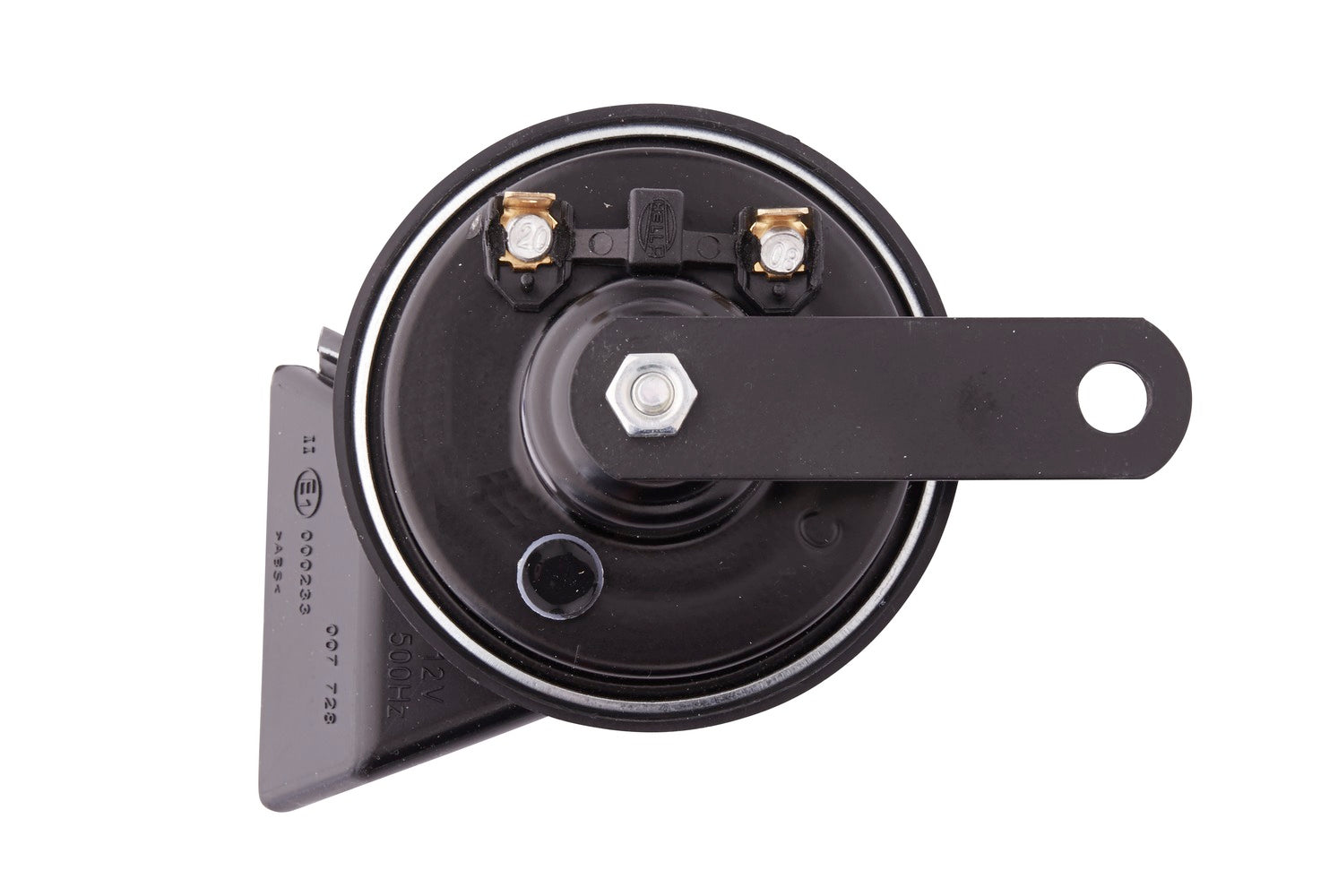

Trumpet Horn - HELLA ESSENTIAL HORN TE22 SET - 12V - 110dB(A) - 400Hz-500Hz - High Tone/Low Tone - Electric - ECE - Housing Colour: Black - Flat Plug-in Connector - Quantity: 2
Over 120 years of experience in the development of horns & fanfares and continuous innovations through research - this is what distinguishes HELLA horns. Whether car, truck, bus, emergency or motorbike, our horns are used everywhere.
- ABS plastic housing and black galvanised metal holder
- Sound pressure level at 2 m distance: 110 dB(A); power consumption: 72 W
- Holder for fixing screw M8
- Operating temperature: -40 °C to 90 °C (-40 °F to 194 °F)
- With 6.3 mm tab terminals, open; approval: ECE
- Temperature range from: -40°C - Temperature range to: +80°C - Power consumption: 72W
- Width: 82mm - Height: 93mm - Depth: 64mm
Item Attributes:
Voltage: 12 V
Power consumption: 72 W
Sound Level: 110 dB(A)
Frequency range from: 400 Hz
Frequency range to: 500 Hz
Charging Rate: 6 A
Prot.type (IP Code): IP65
fulfils ECE standard: R28
Registration Type: ECE
Housing Colour: black
Signal: High Tone / Low Tone
Quantity: 2
Operating Mode: Electric
Width: 82 mm
Height: 93 mm
Depth: 64 mm
Temperature range from: -40 °C
Temperature range to: +80 °C
Mounting Type: Flat Plug-in Connector
Supplementary Article/Supplementary Info 2: with E quality seal
Assembly by qualified personnel required!
OE references: MERCEDES-BENZ 006 542 07 20; MERCEDES-BENZ A 006 542 07 20
