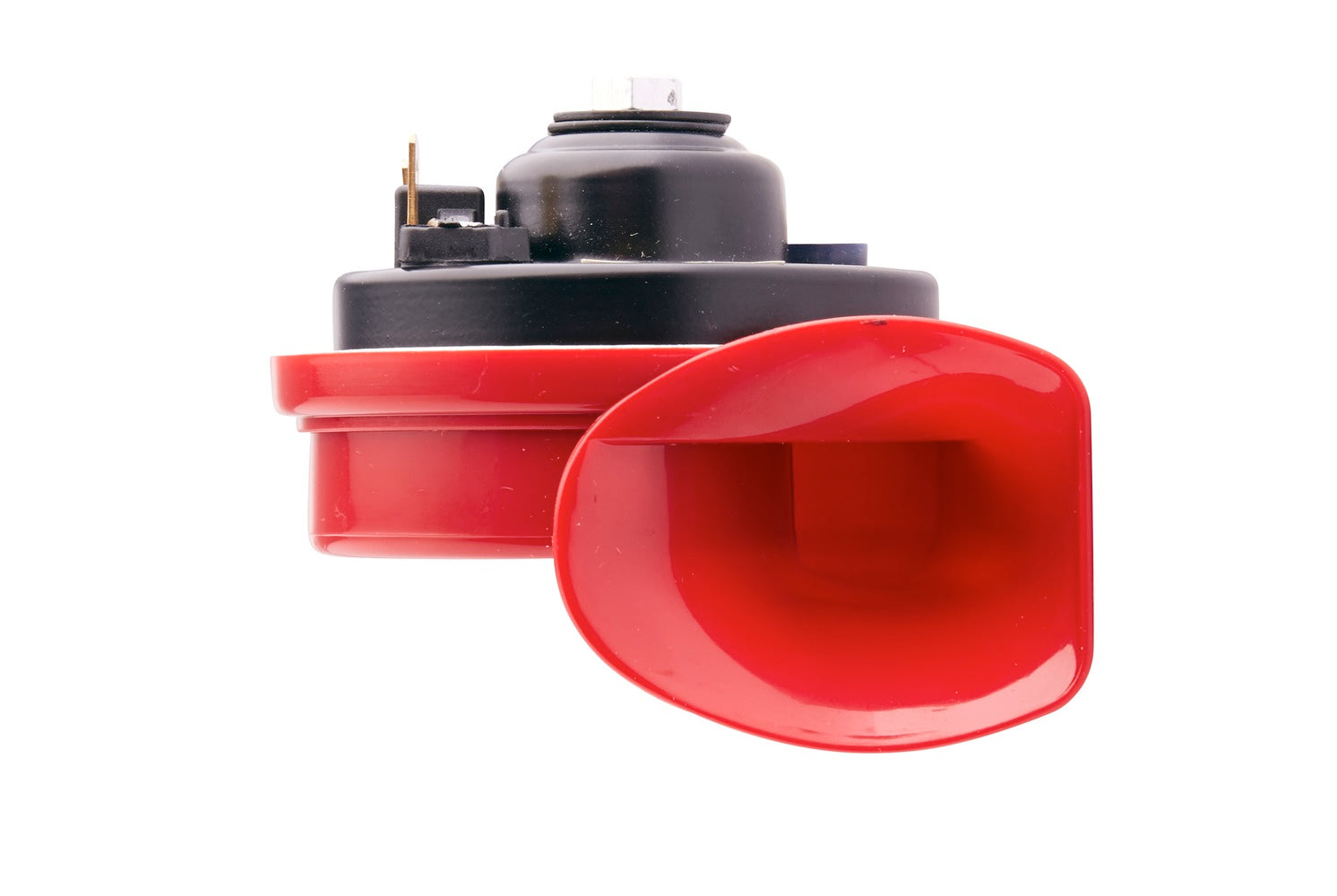

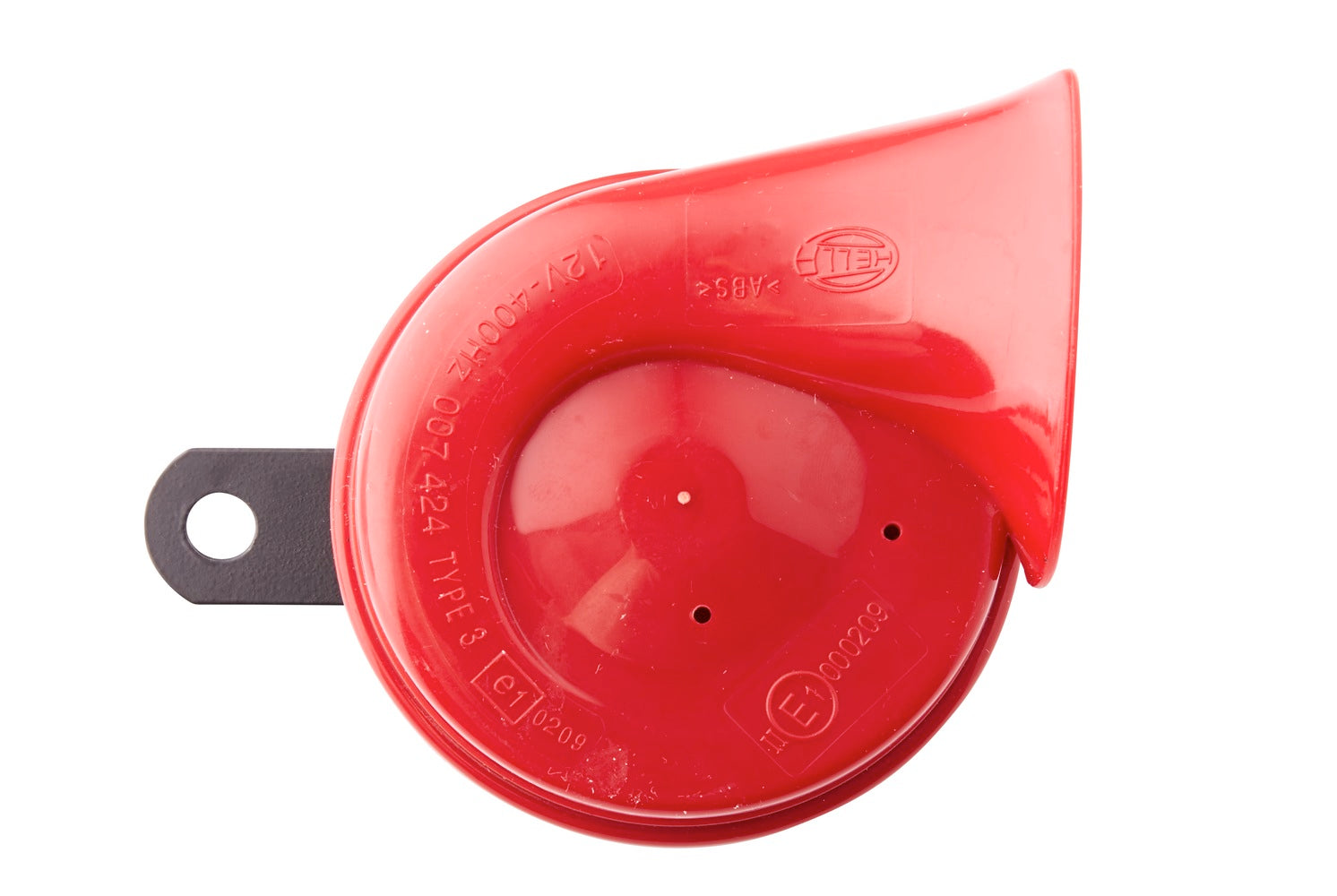

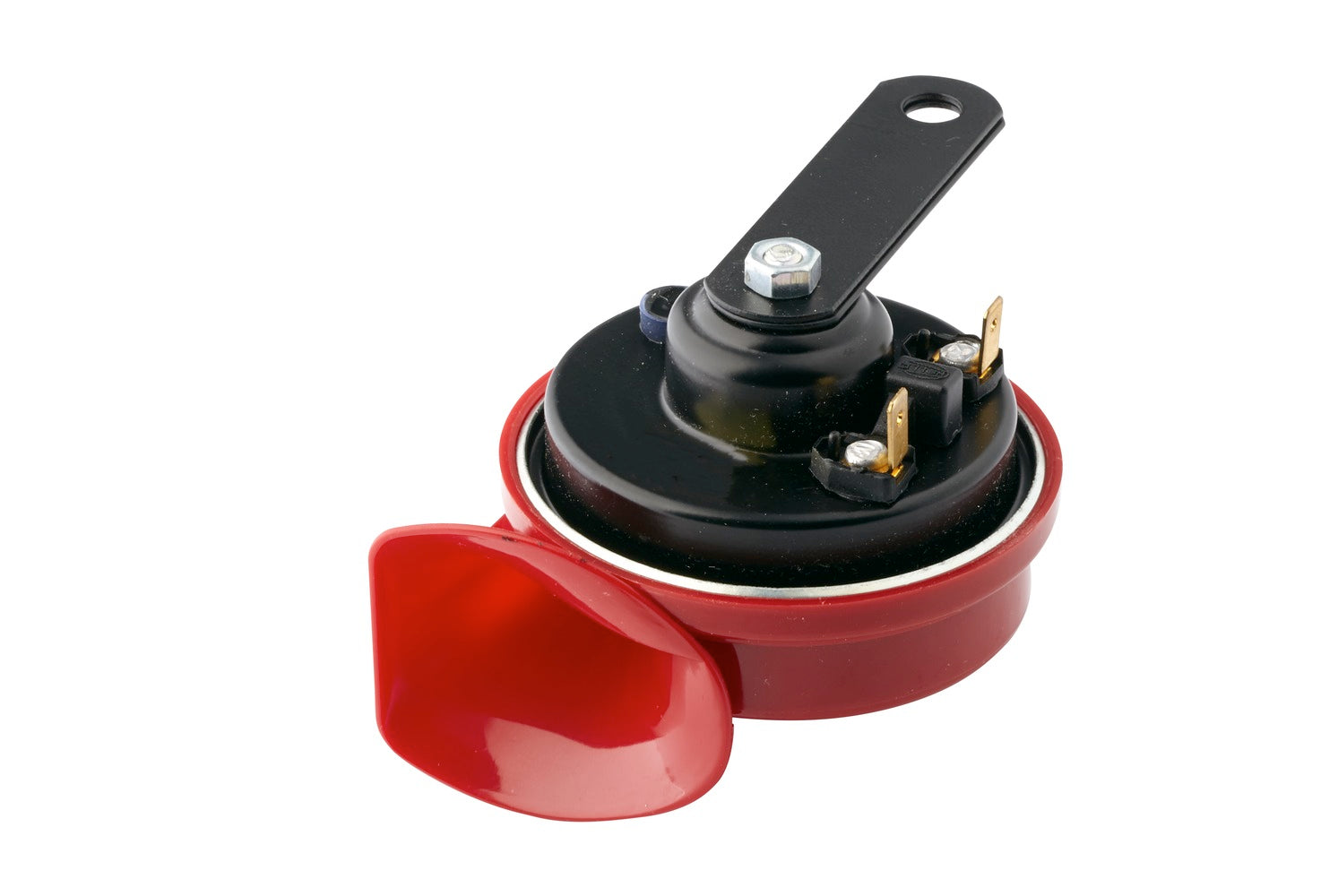

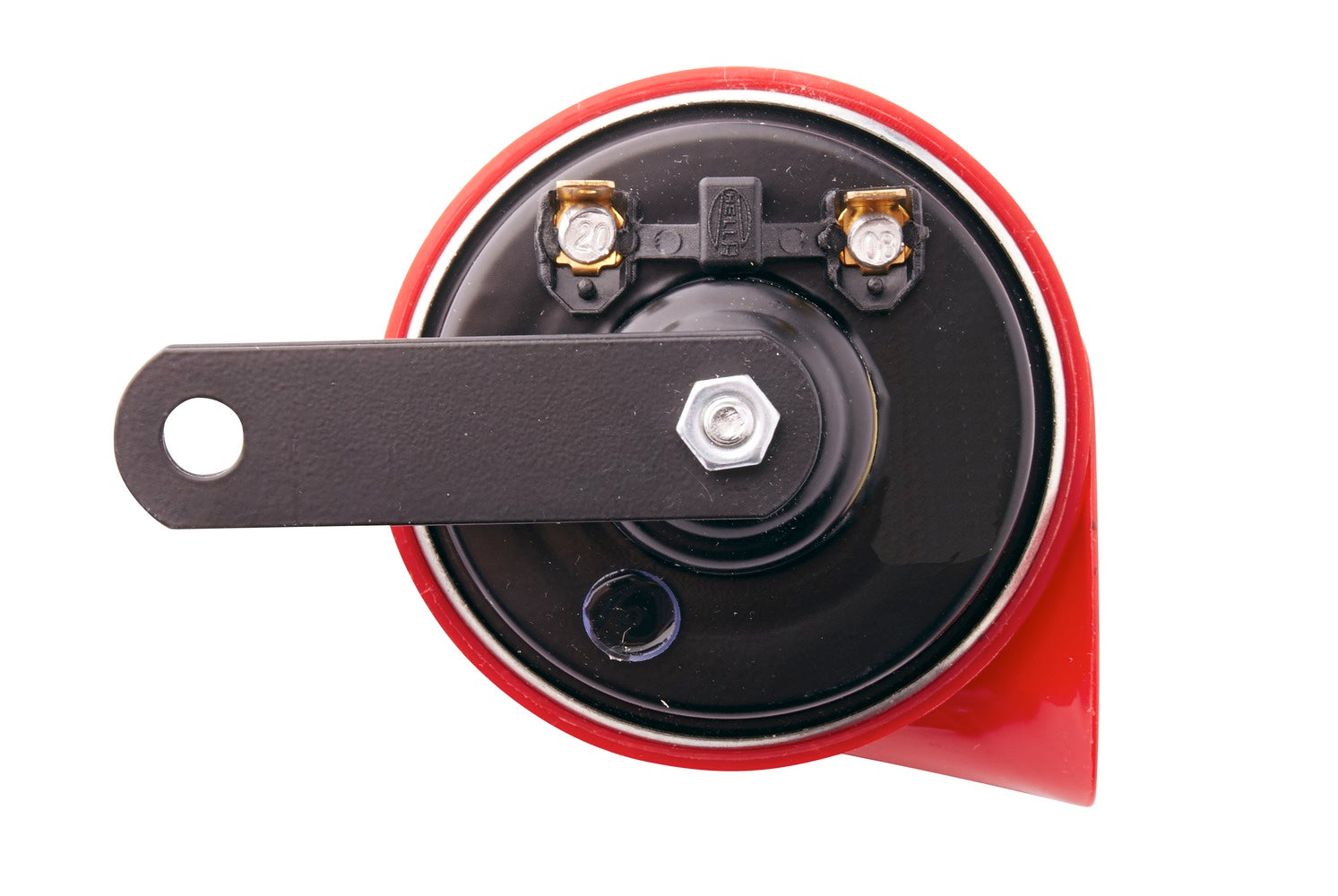

HELLA Trumpet Horn - HELLA STYLE HORN TE24 - 12V - 110dB(A) - High Tone - Quantity: 1 3FG007424-001

Trumpet Horn - HELLA STYLE HORN TE24 - 12V - 110dB(A) - Frequency Range: 400Hz - High Tone - Electric - ECE - Housing Colour: Red/Black - Flat Plug-in Connector - Quantity: 1

Over 120 years of experience in the development of horns & fanfares and continuous innovations through research - this is what distinguishes HELLA horns. Whether car, truck, bus, emergency or motorbike, our horns are used everywhere.

• 110 dB(A) Sound pressure level at 2 m distance
• 72W Power consumption per fanfare
• Full, harmonious sound and wide sound dispersion
• Sporty design
• Style Range - a harmonious combination of style and content
• Temperature range from: -40°C - Temperature range to: +80°C - Frequency Range: 400Hz - Power consumption: 72W
• Width: 109mm - Overall Height: 89mm - Depth: 80mm

Item Attributes:
Voltage: 12 V
Power consumption: 72 W
Sound Level: 110 dB(A)
Frequency Range: 400 Hz
Charging Rate: 6 A
Prot.type (IP Code): IP65
fulfils ECE standard: R28
Registration Type: ECE
Signal: High Tone
Housing Colour: red/black
Quantity: 1
Operating Mode: Electric
Overall Height: 89 mm
Width: 109 mm
Depth: 80 mm
Temperature range from: -40 °C
Temperature range to: +80 °C

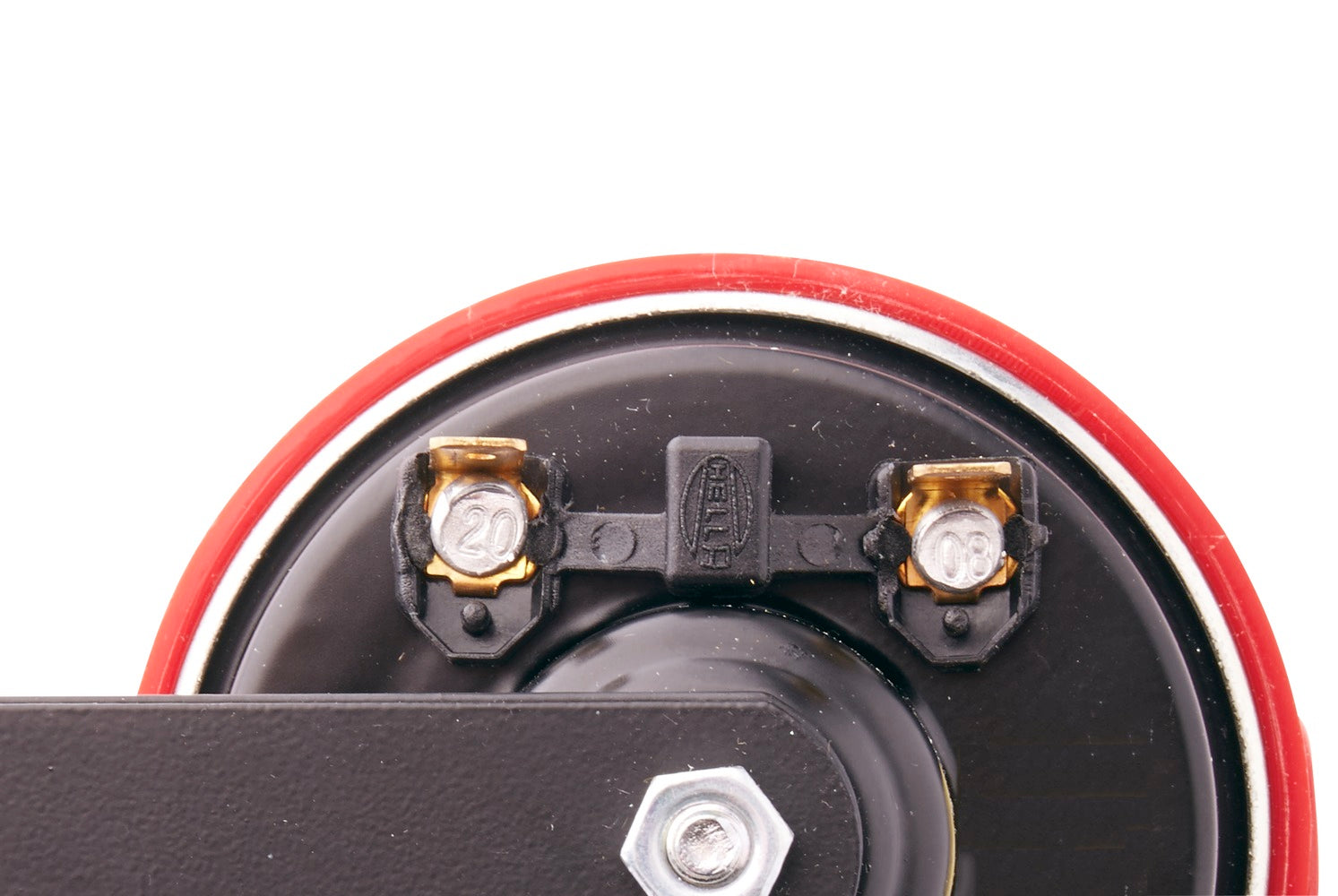

Mounting Type: Flat Plug-in Connector
Assembly by qualified personnel required!

OE references: AGCO 83103900; AGCO V83103900; ARTEGA 80-933-001-00; ARTEGA 80-933-002-00; ATLAS COPCO 800001103; BMW 1 374 440; BMW 61 33 1 374 440; CASE IH 21.52737; FENDT V 831 039 00; JUNGHEINRICH 51097258; MACK 4381 85101; MACK 4381 85102; MACK 4381 85104; MCLAREN 16MB361CP
