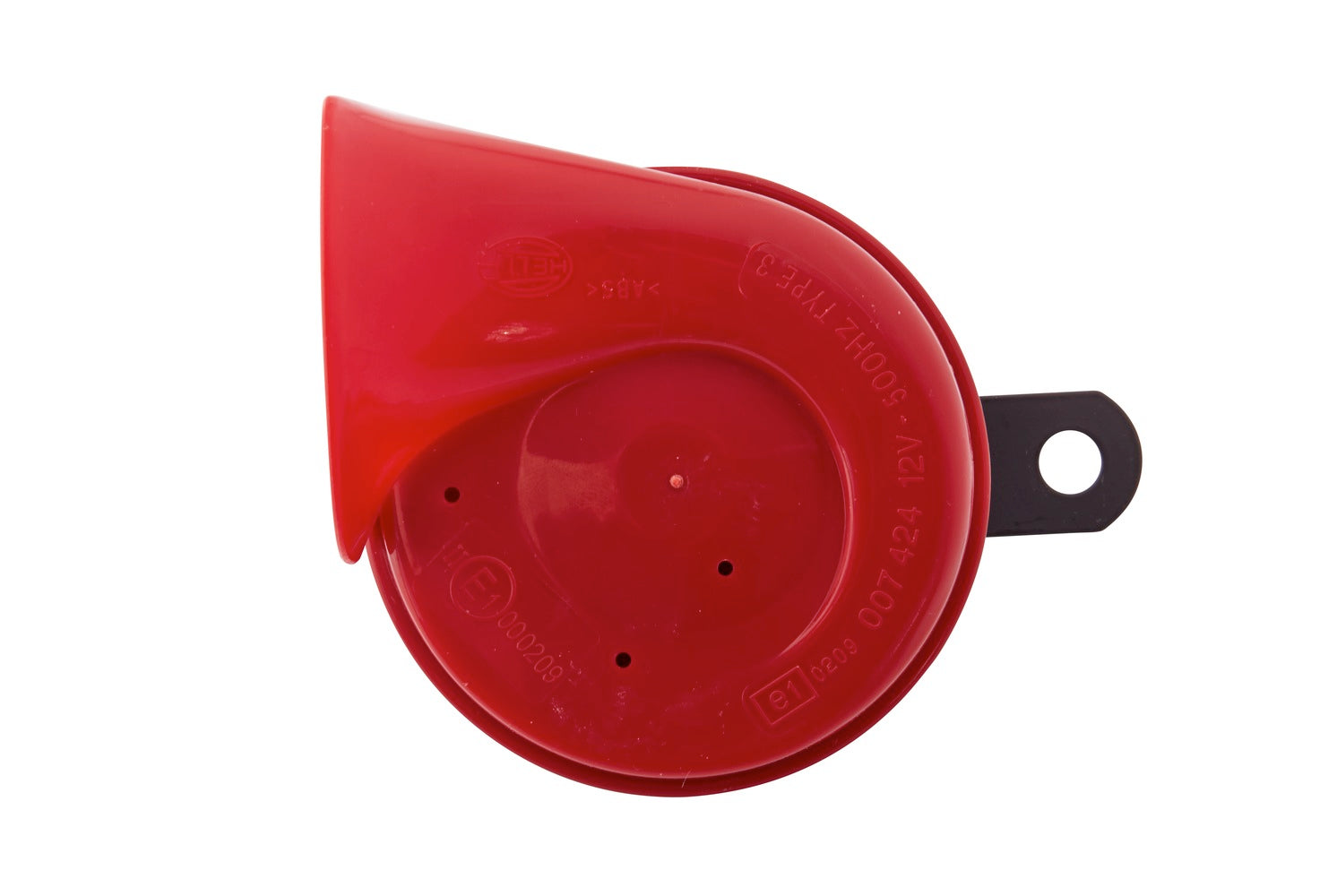

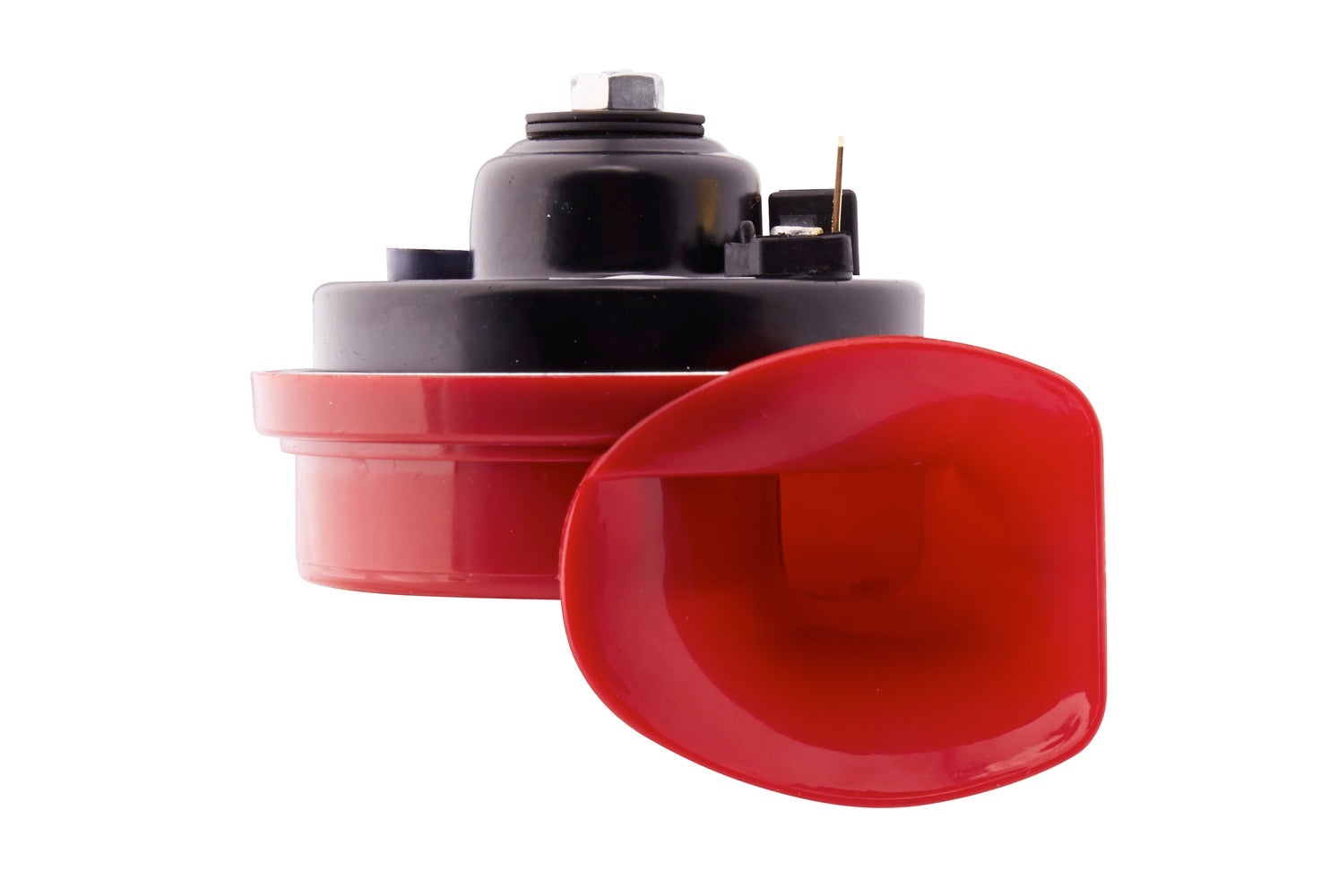

HELLA Trumpet Horn - HELLA STYLE HORN TE24 SET - 12V - 110dB(A) - Low Tone/High Tone - 3FH007424-801

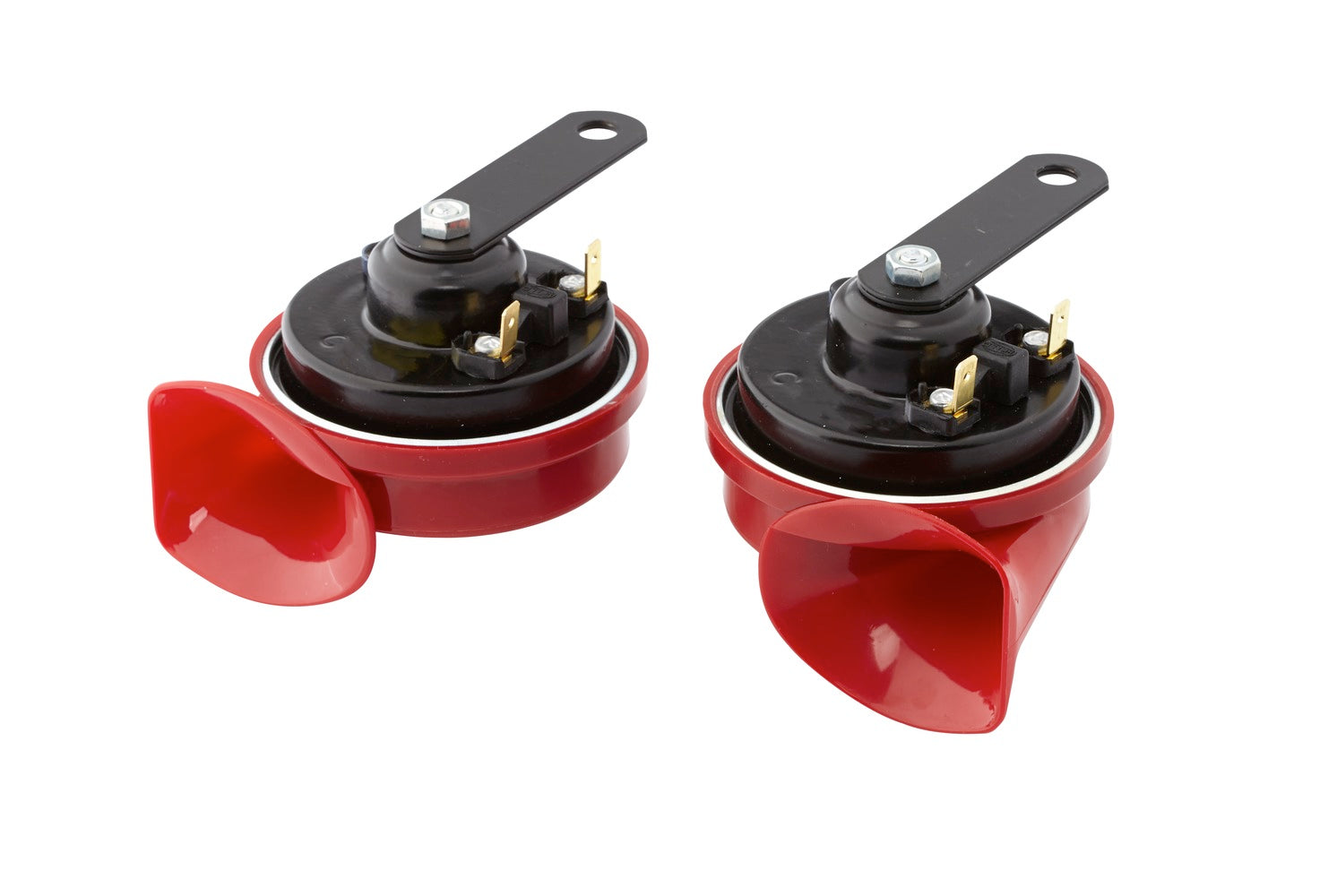

Trumpet Horn - HELLA STYLE HORN TE24 SET - 12V - 110dB(A) - 400Hz-500Hz - Low Tone/High Tone - Electric - ECE - Housing Colour: Red/Black - Flat Plug-in Connector - Quantity: 2

Over 120 years of experience in the development of horns & fanfares and continuous innovations through research - this is what distinguishes HELLA horns. Whether car, truck, bus, emergency or motorbike, our horns are used everywhere.

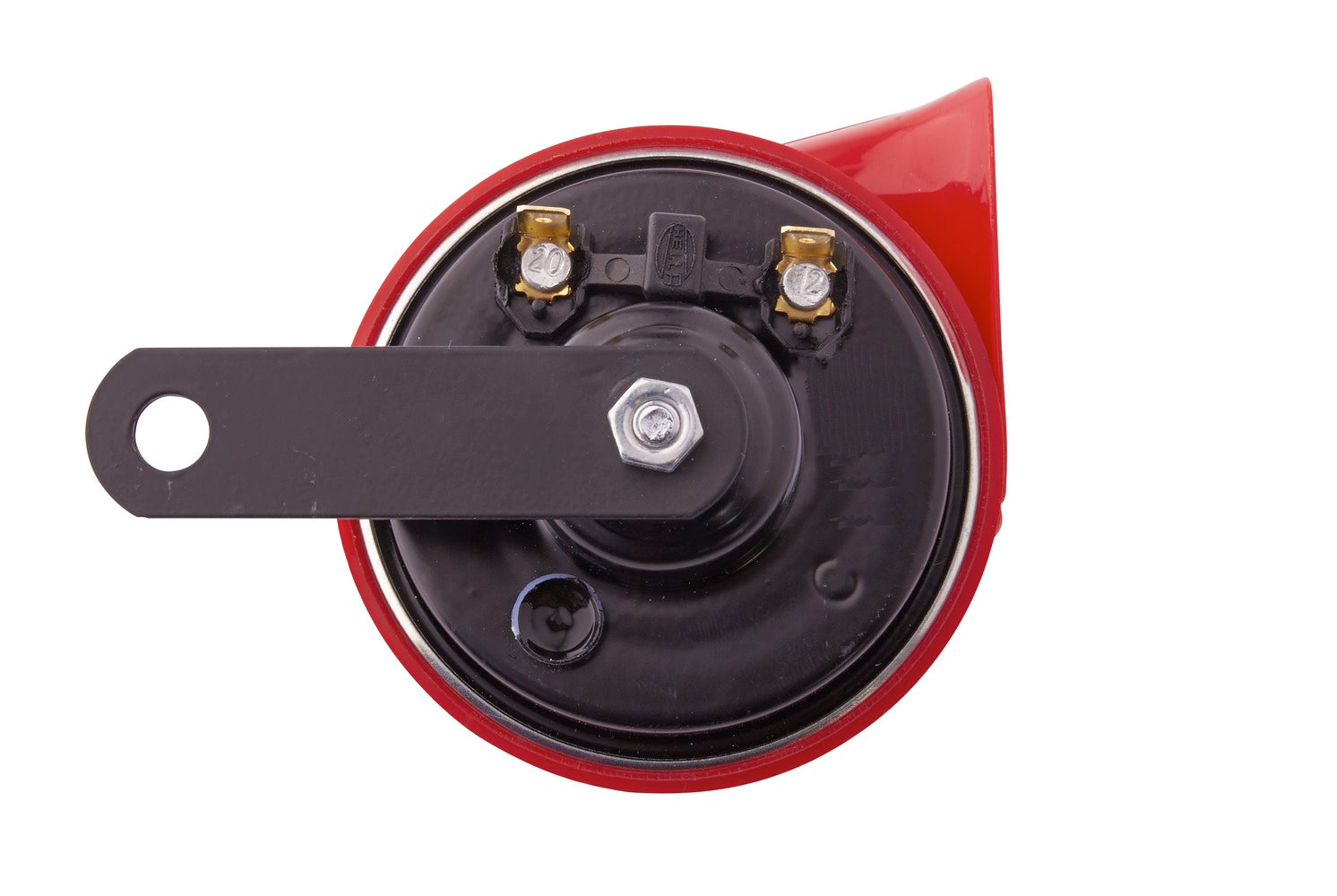

• ABS plastic housing and black galvanised metal holder
• Sound pressure level at 2 m distance: 110 dB(A); power consumption: 72 W
• Holder for fixing screw M8
• Operating temperature: -40 °C to 90 °C (-40 °F to 194 °F)

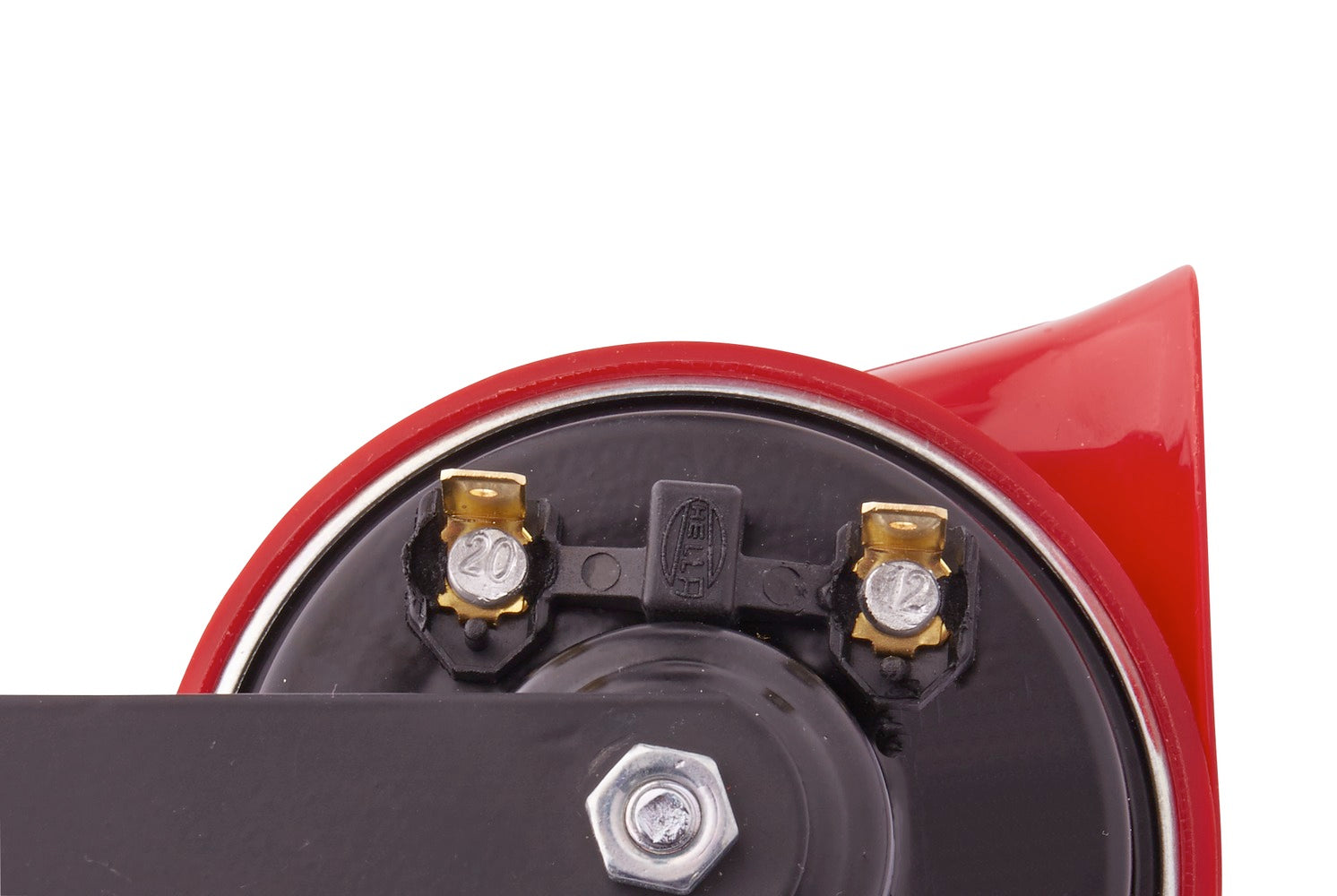

• With 6.3 mm tab terminals, open; approval: ECE; With 12 V relay
• Temperature range from: -40°C - Temperature range to: +80°C - Power consumption: 72W
• Width: 109mm - Overall Height: 89mm - Depth: 80mm

Item Attributes:
Voltage: 12 V
Power consumption: 72 W
Sound Level: 110 dB(A)
Frequency range from: 400 Hz
Frequency range to: 500 Hz
Charging Rate: 6 A
Prot.type (IP Code): IP65
fulfils ECE standard: R28
Registration Type: ECE
Signal: Low Tone / High Tone
Housing Colour: red/black
Quantity: 2
Operating Mode: Electric
Overall Height: 89 mm
Width: 109 mm
Depth: 80 mm
Temperature range from: -40 °C
Temperature range to: +80 °C
Mounting Type: Flat Plug-in Connector
Supplementary Article/Supplementary Info: with accessories
Supplementary Article/Supplementary Info 2: with E quality seal
Assembly by qualified personnel required!

OE references: AGCO 83103900; AGCO V83103900; ARTEGA 80-933-001-00; ARTEGA 80-933-002-00; ATLAS COPCO 800001103; BMW 1 374 440; BMW 61 33 1 374 440; CASE IH 2152737; FENDT V 831 039 00; JUNGHEINRICH 51097258; MACK 4381 85101; MACK 4381 85102; MACK 4381 85104; MCLAREN 16MA209CP; MCLAREN 16MB361CP
