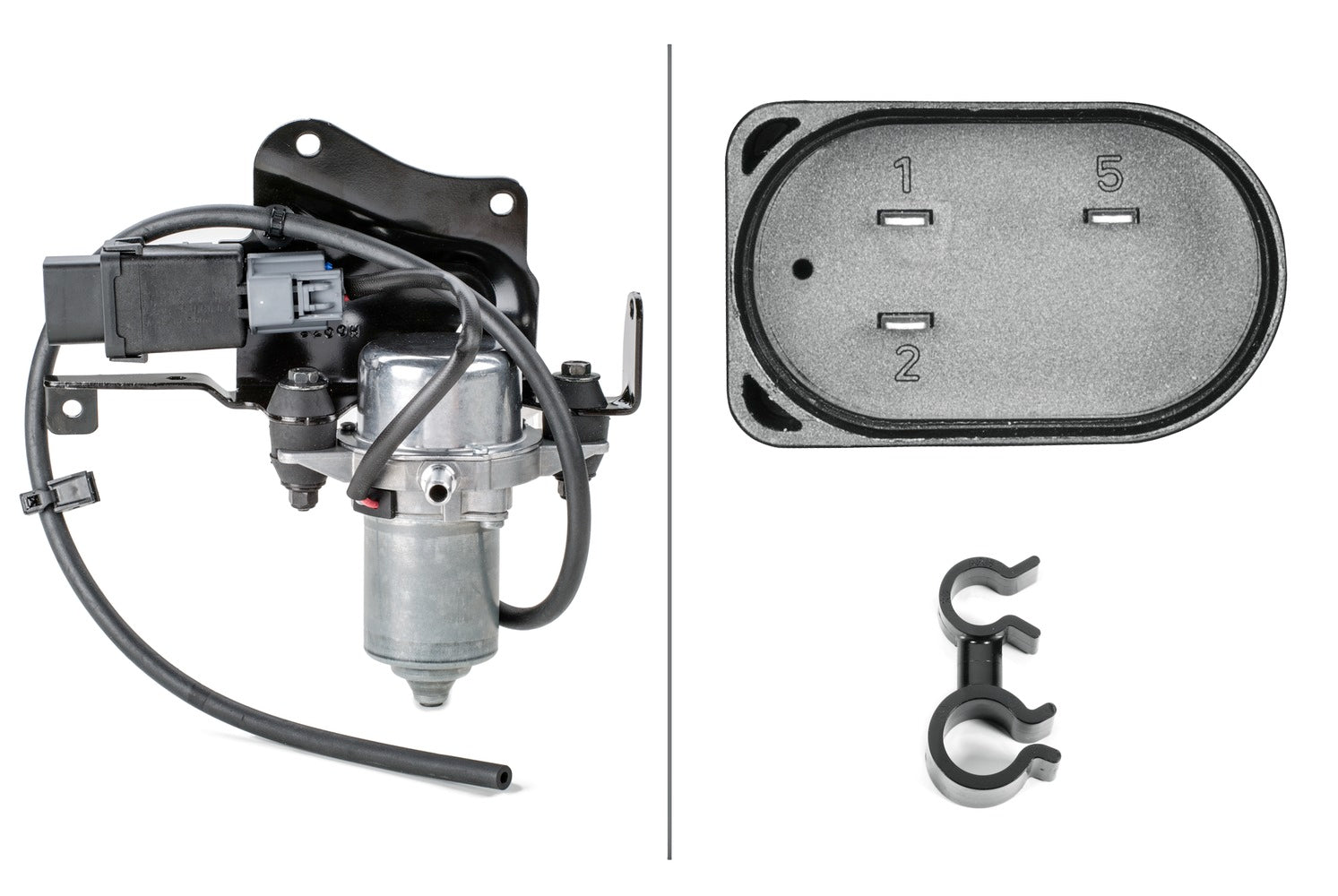

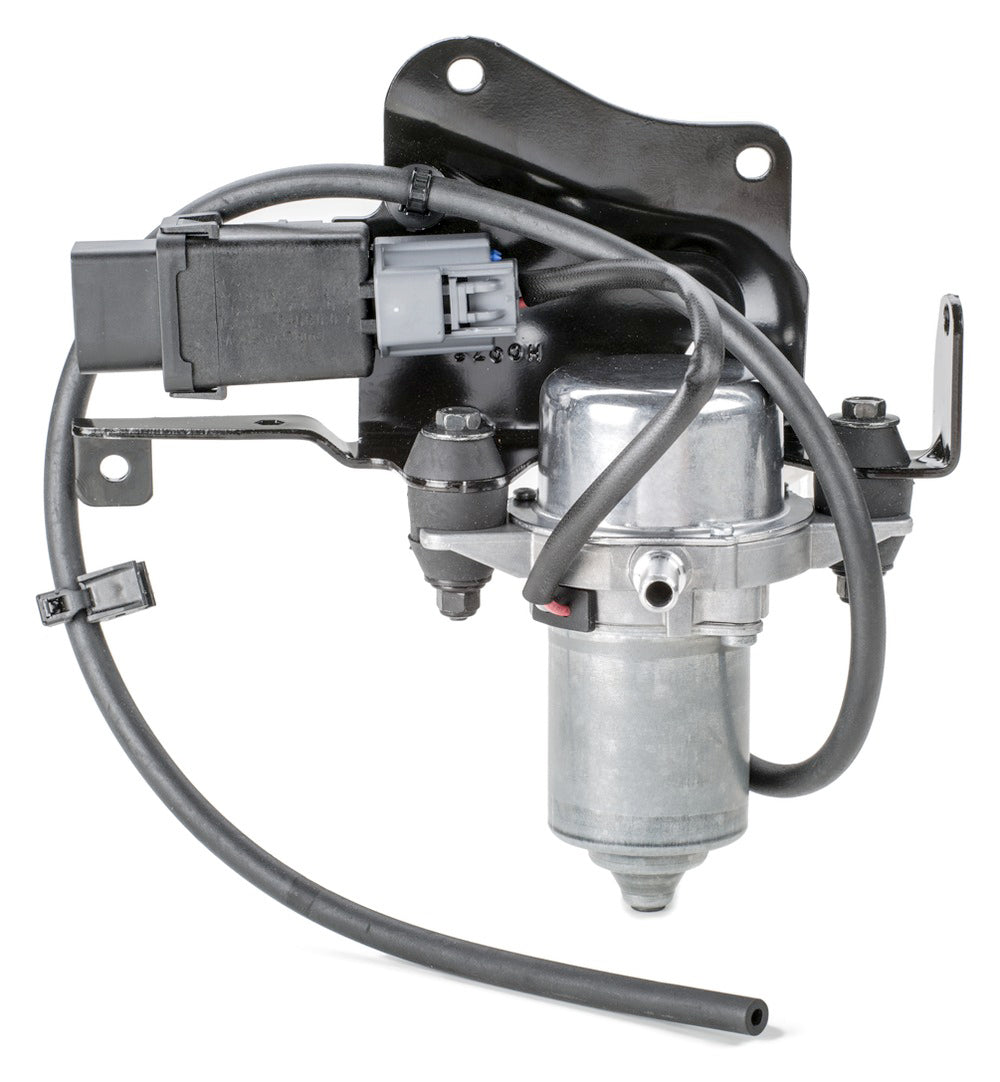

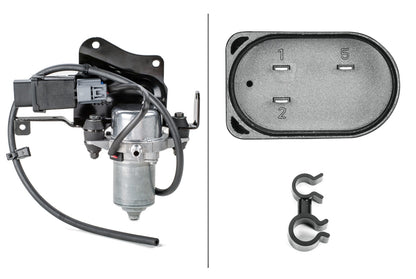

HELLA Vacuum Pump, braking system - 12V - 3-pin connector - Electric - with holder 8TG009428-401

Vacuum Pump, braking system - 12V - 3-pin connector - Electric - with holder

The electric vacuum pump is used to support or solely generate the vacuum for the pneumatic brake boosting system. It is applicable to all engine concepts, as well as electric motors and hybrid drives. The electrical contact between the vacuum pump and the control unit is made via a cable with engine compartment plug or relay box with integrated plug connection located on the pump. The vacuum pumps are maintenance-free.

• fits e.g. Opel Insignia Mk I (A) Hatchb. (G09) (please check exact vehicle application)
• with holder - with damping
• The UP 28 supports the existing vacuum supply of the brake boosting system ("add on" system) in the add-on mode
• Rotor and pump chamber fixed eccentrically
• 5-wing technology
• Smaller pump with 600 h service life
• Typical for support application

Item Attributes:
Supplementary Article/Supplementary Info 2: with damping
Supplementary Article/Supplementary Info: with holder
Voltage: 12 V
Operating Mode: Electric

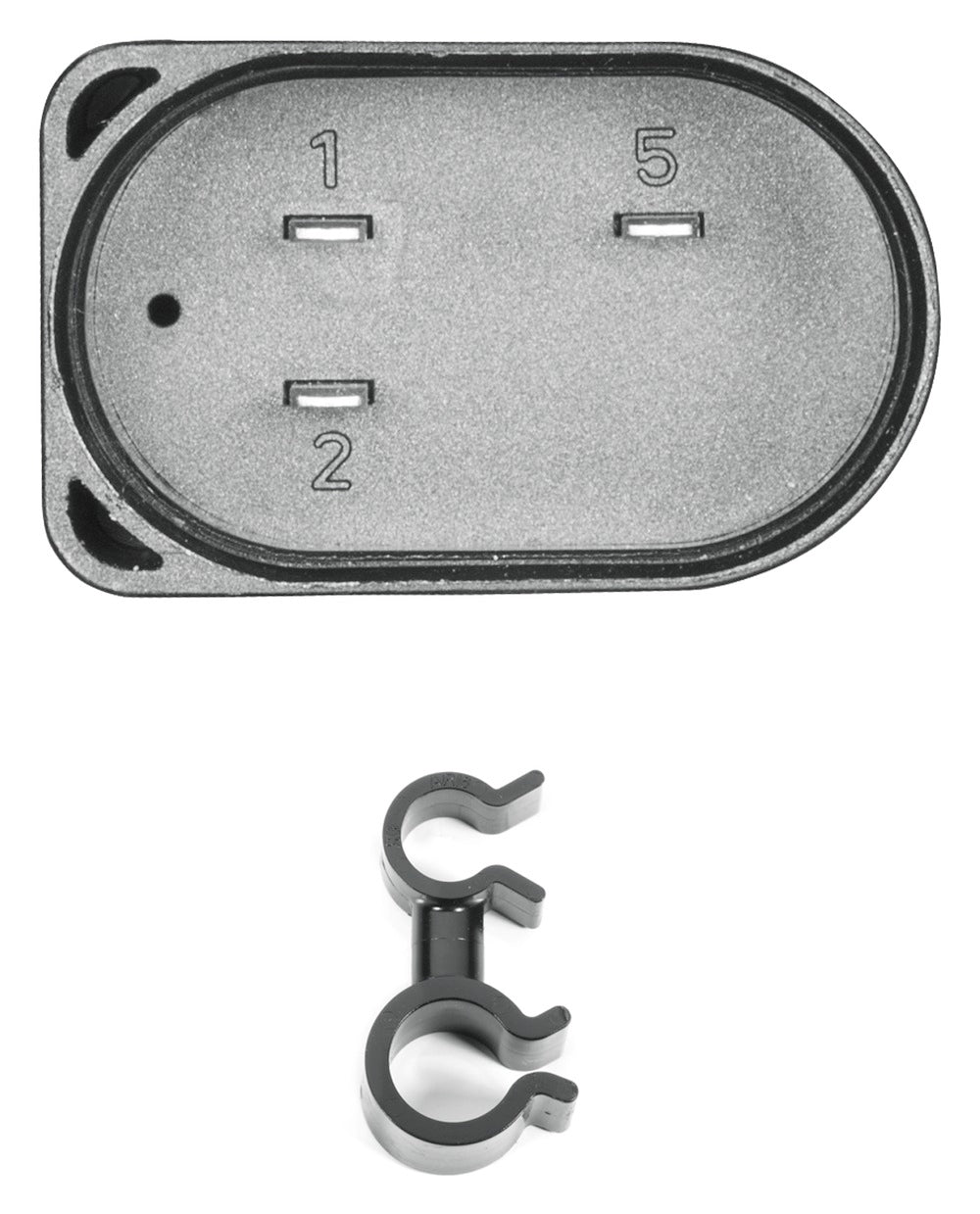

Number of pins: 3 -pin connector
Assembly by qualified personnel required!

OE references: GENERAL MOTORS 13275079; GENERAL MOTORS 20914522; OPEL 0545105; OPEL 13275080; OPEL 13311625; OPEL 20914524; OPEL 22804041; OPEL 22804112; OPEL 23258870; OPEL 5 45 052; OPEL 5 45 053; VAUXHALL 05 45 271; VAUXHALL 0545105; VAUXHALL 13275079; VAUXHALL 20 91 4522; VAUXHALL 22804112
