Description

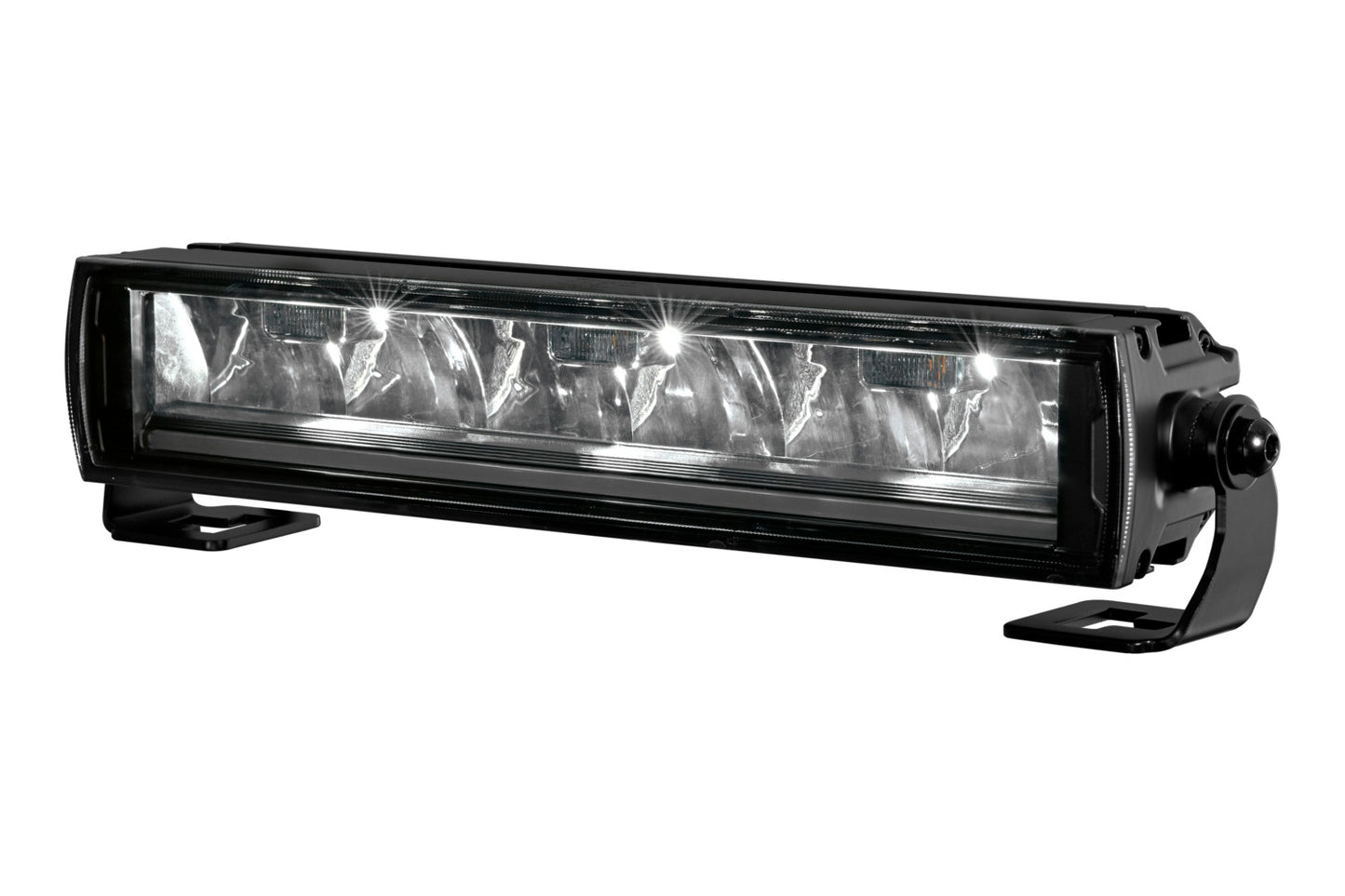

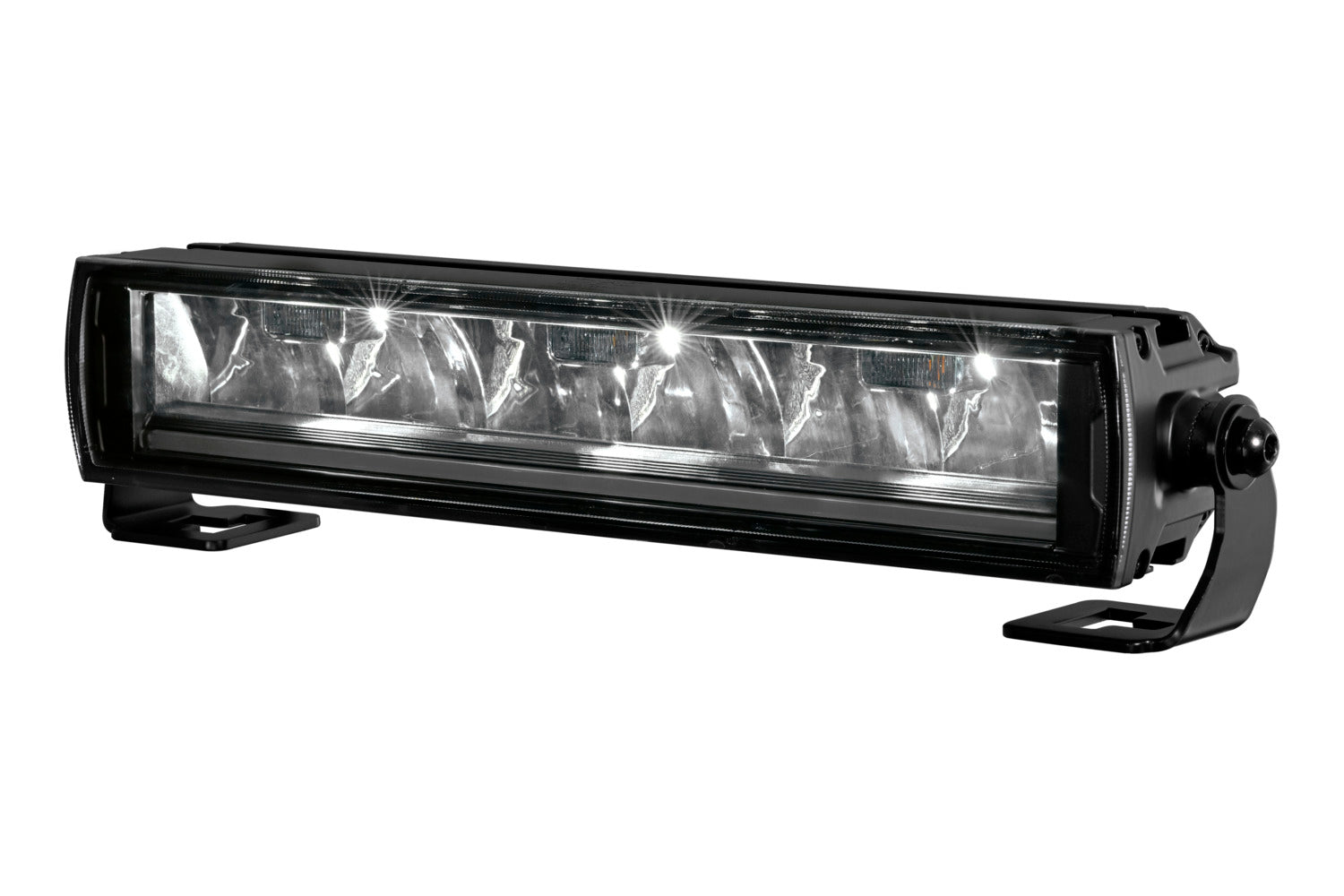

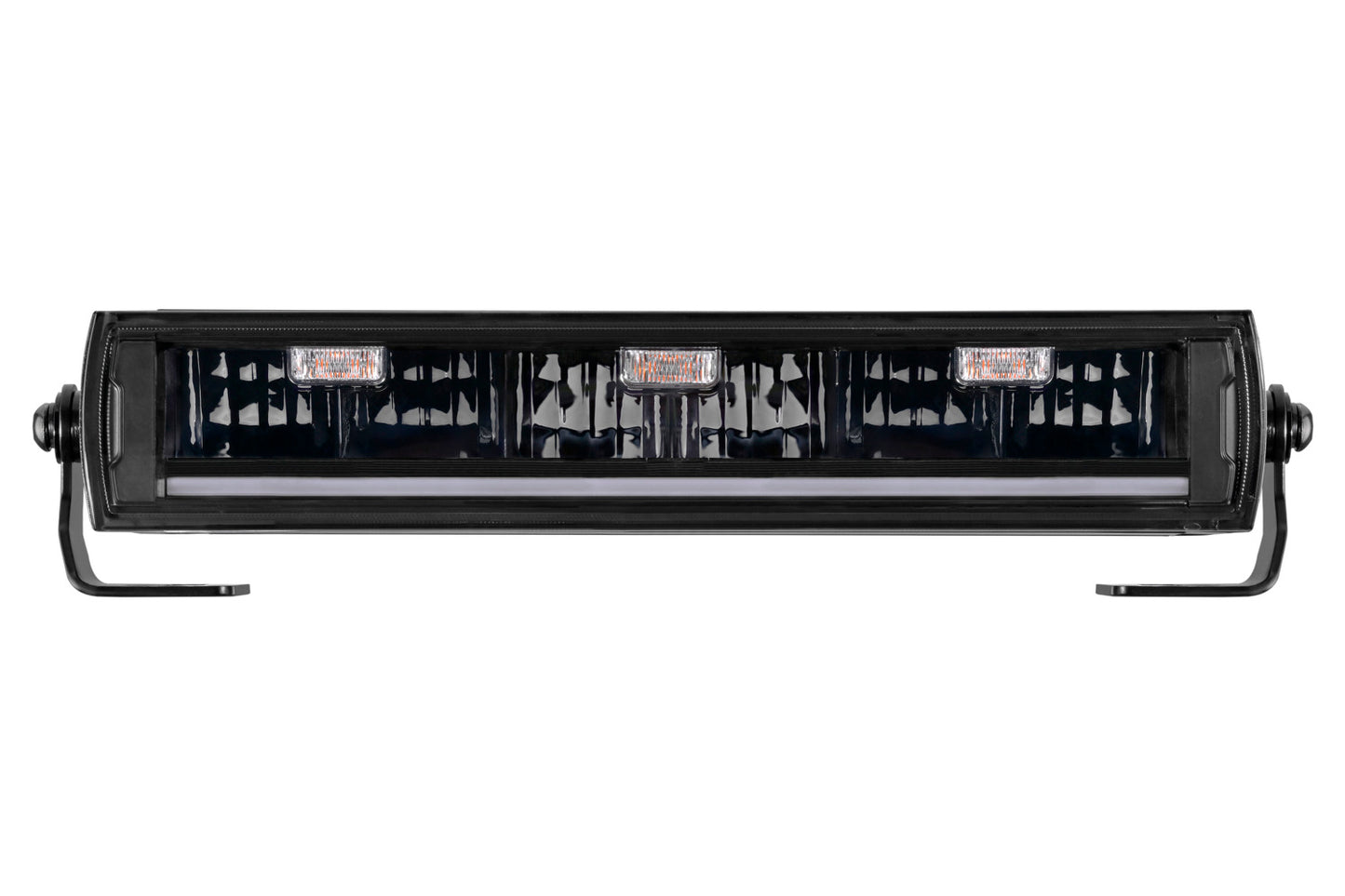

LED-Lightbar - LBE 2 310FL - 12/24V - 3800lm - slim - Reference number: 30 - ECE - Clear diffusing lens - white - Light colour: white/yellow (amber) - Cable: 1000mm - Front
- The HELLA ValueFit LBE 2 light bar 310 FL offers a light output of a powerful 4,000 lumens.

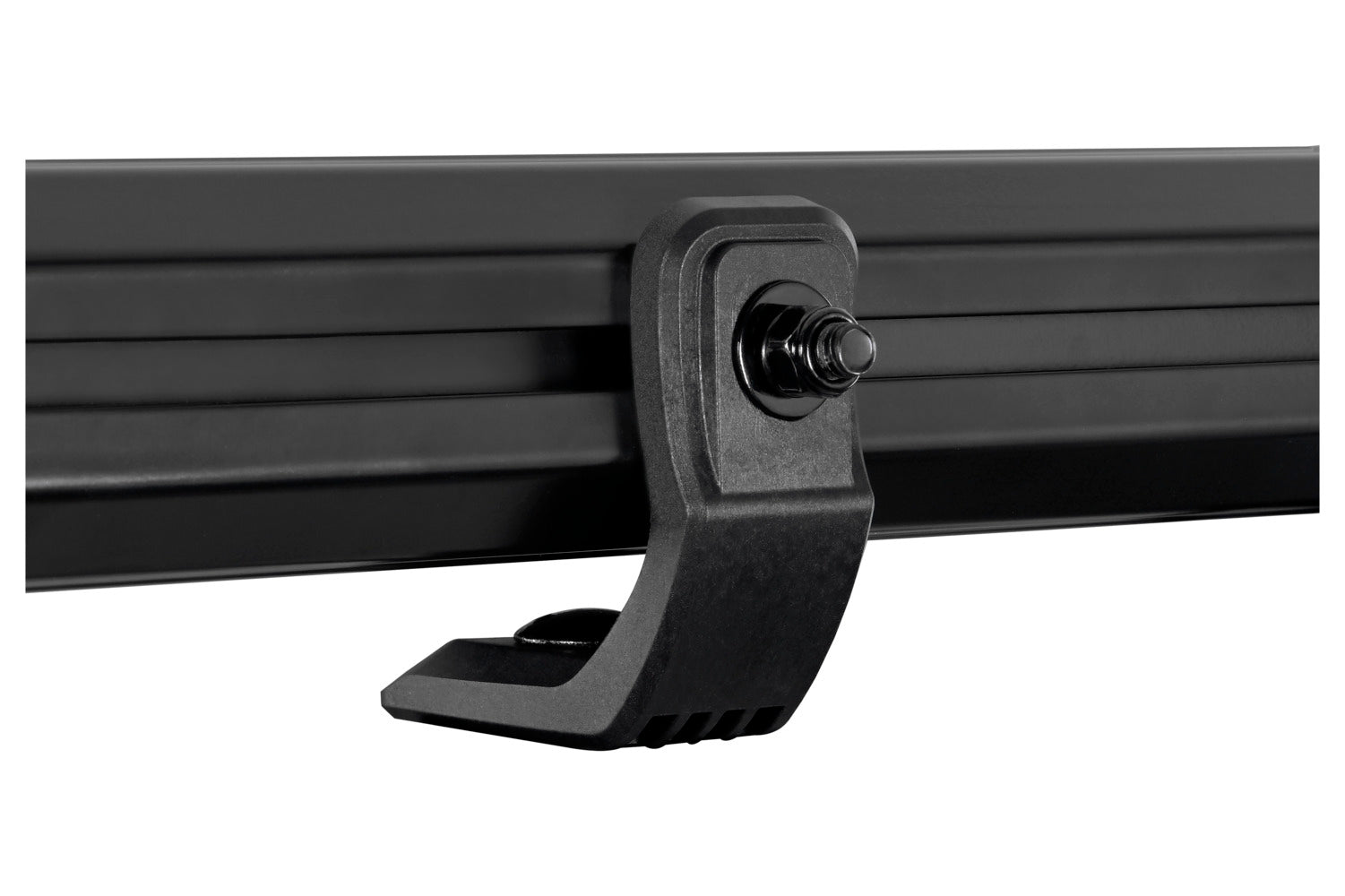

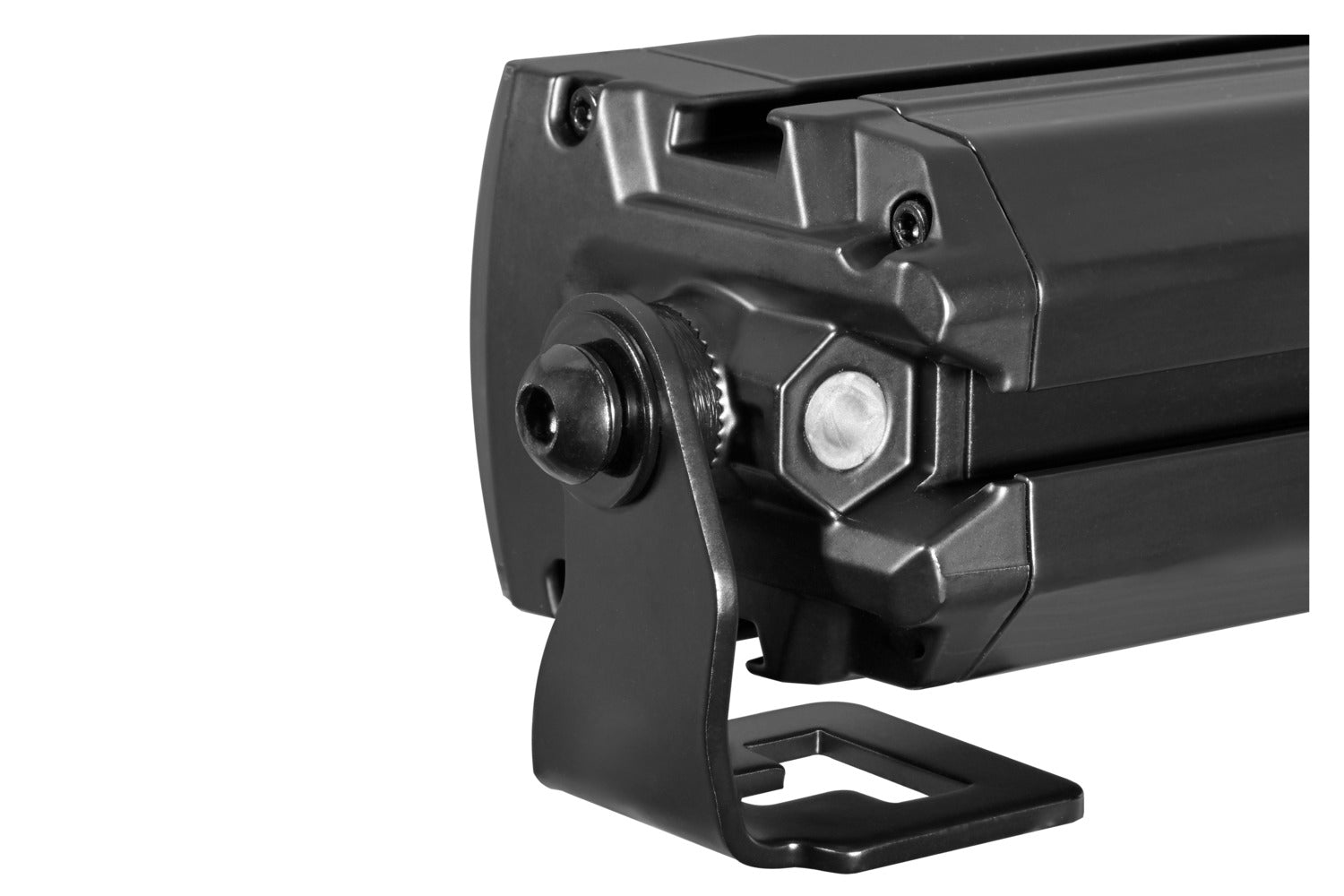

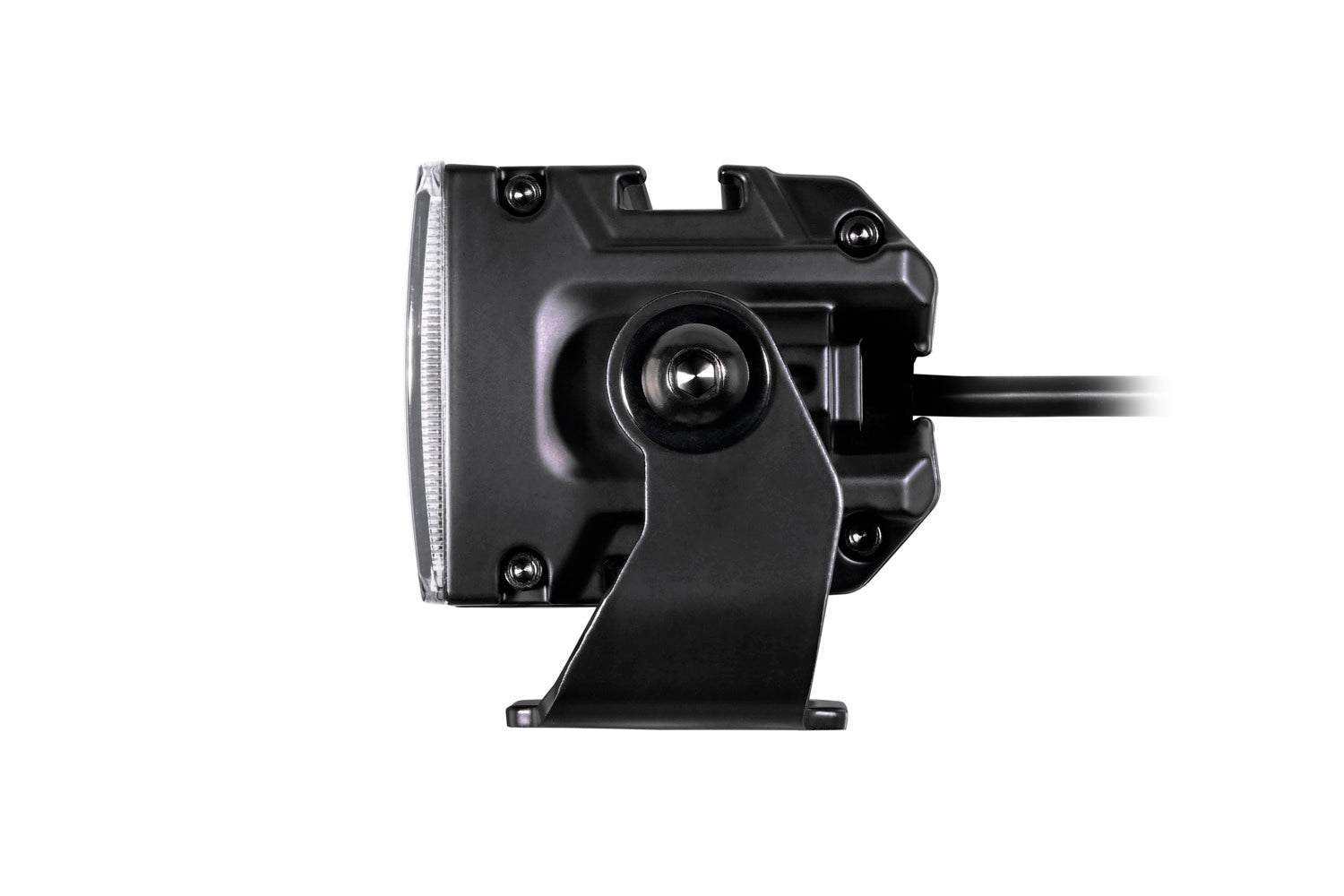

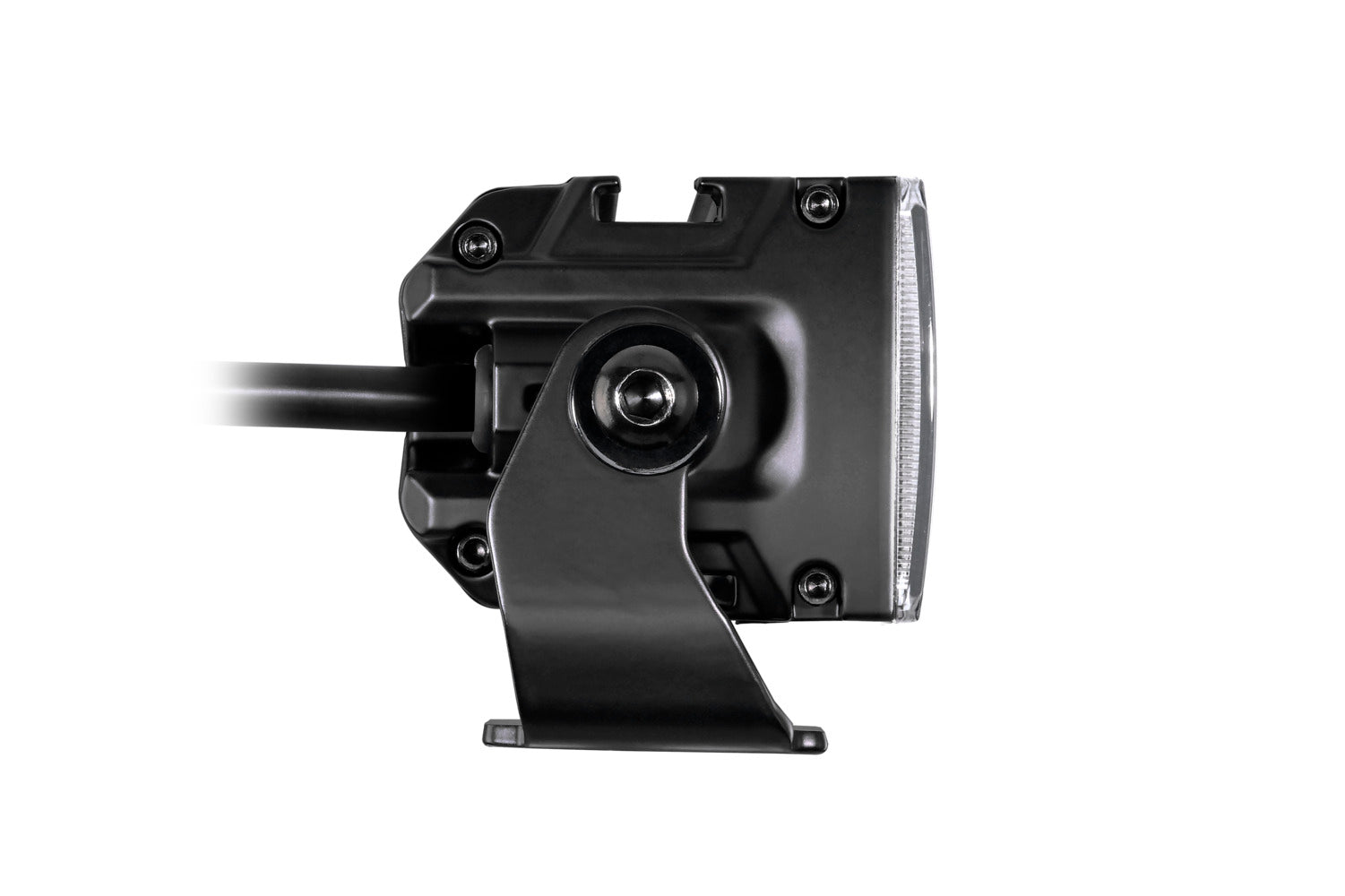

- The scope of delivery includes 2 fastening brackets for side or rear mounting and DT connector.

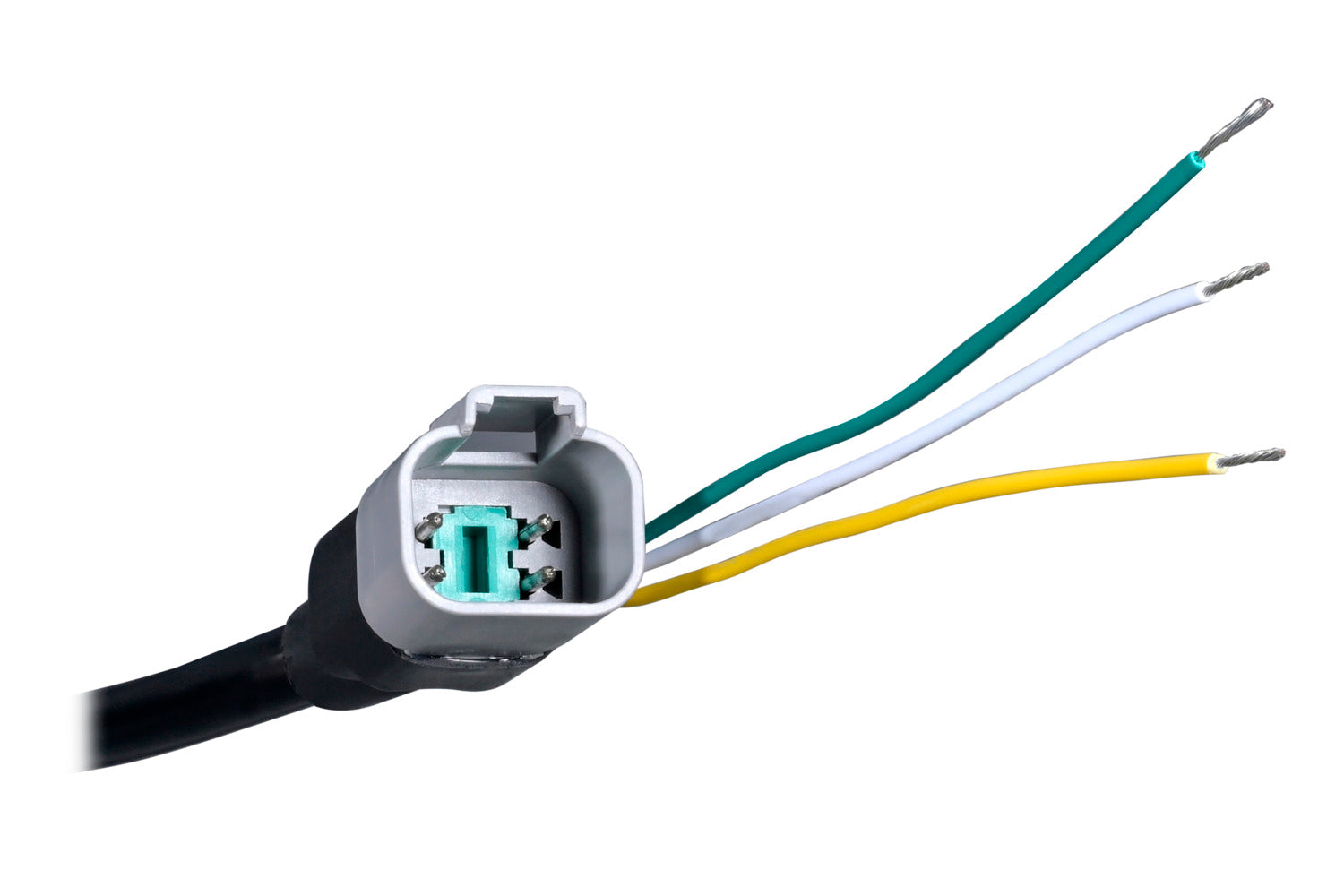

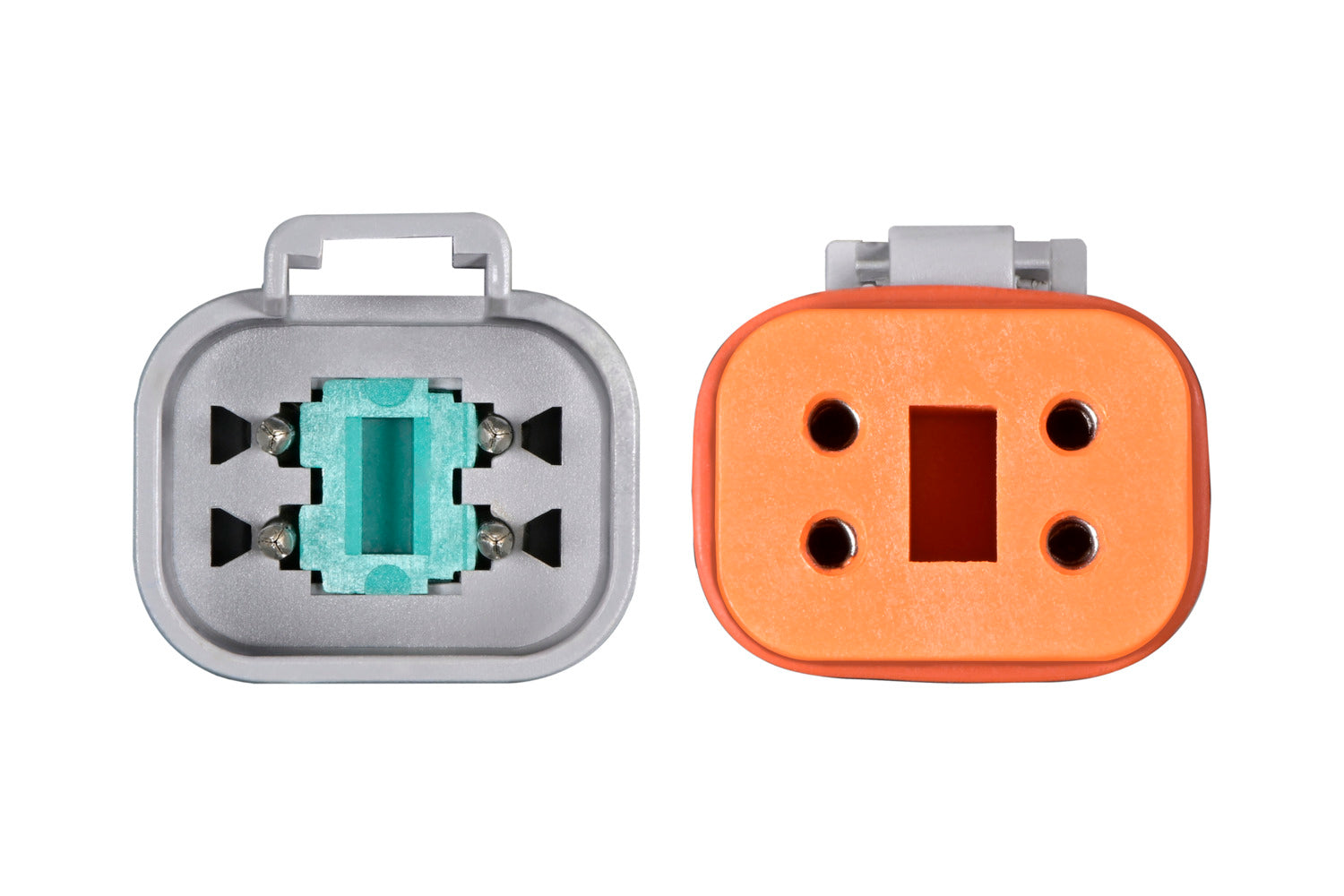

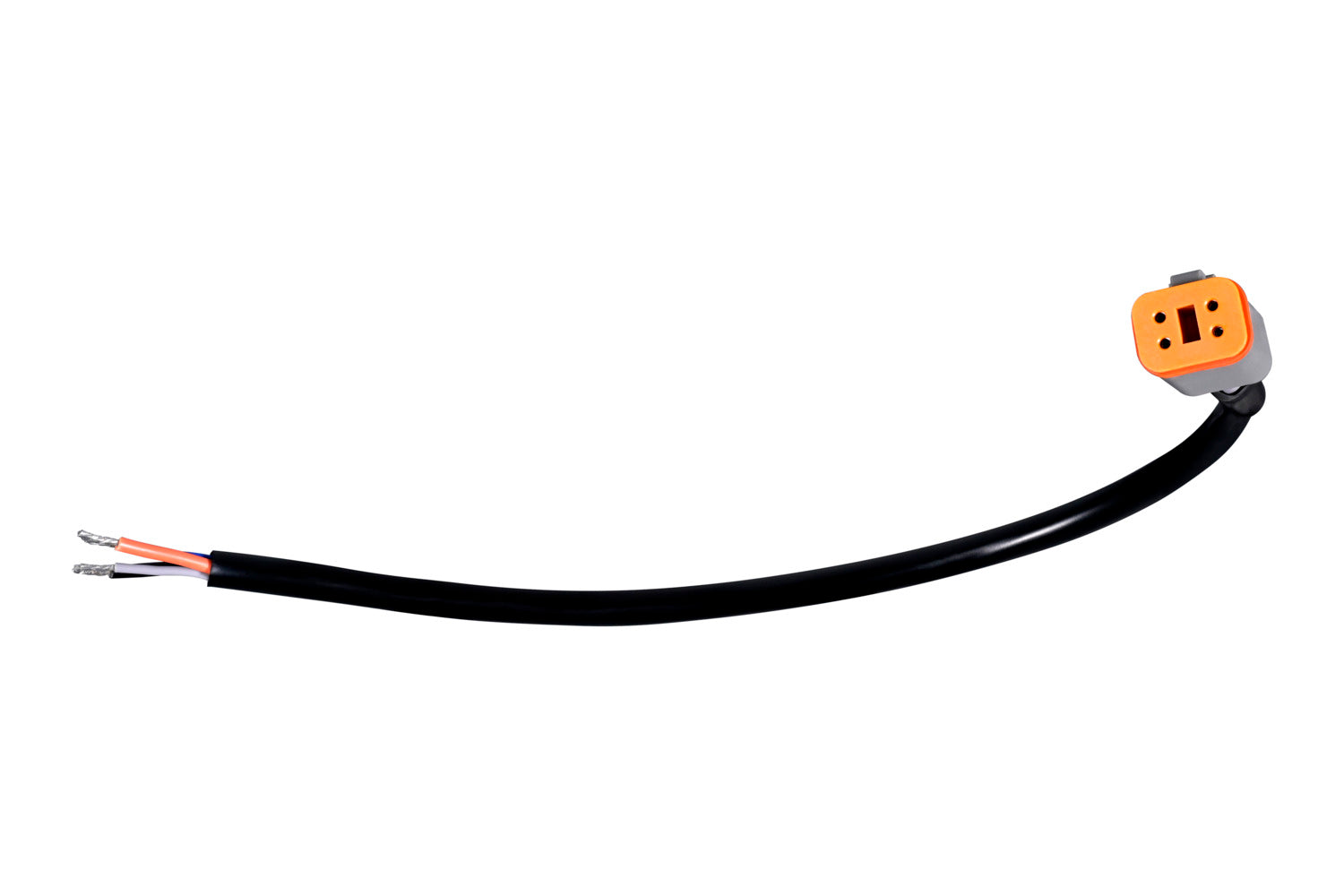

- ECE R10 (EMC), ECE R149 (high beam headlamp), ECE R148 (position light, white), housing: Aluminium, lens: PC (polycarbonate), 1,000 mm cable with 4-pin DT connector.

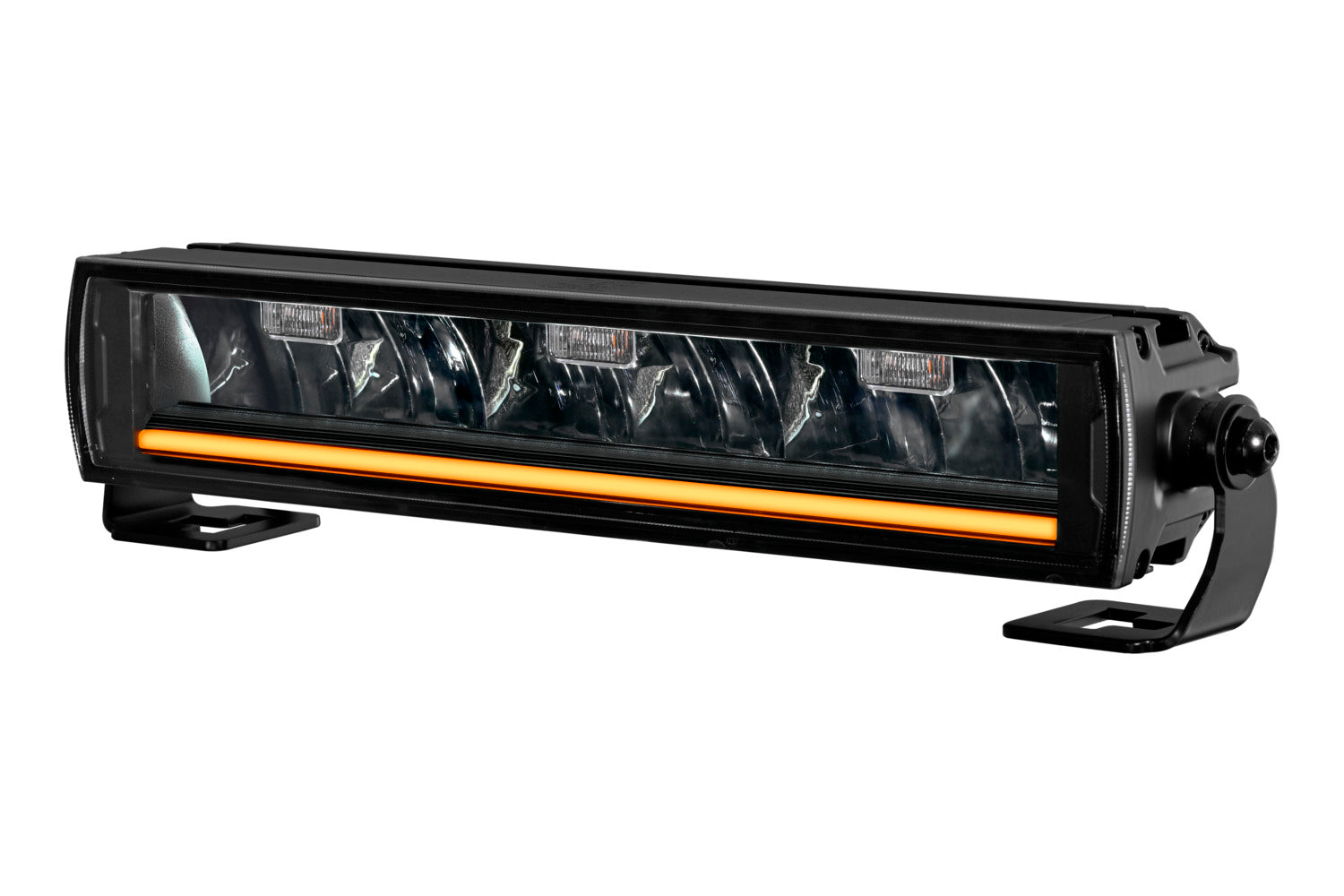

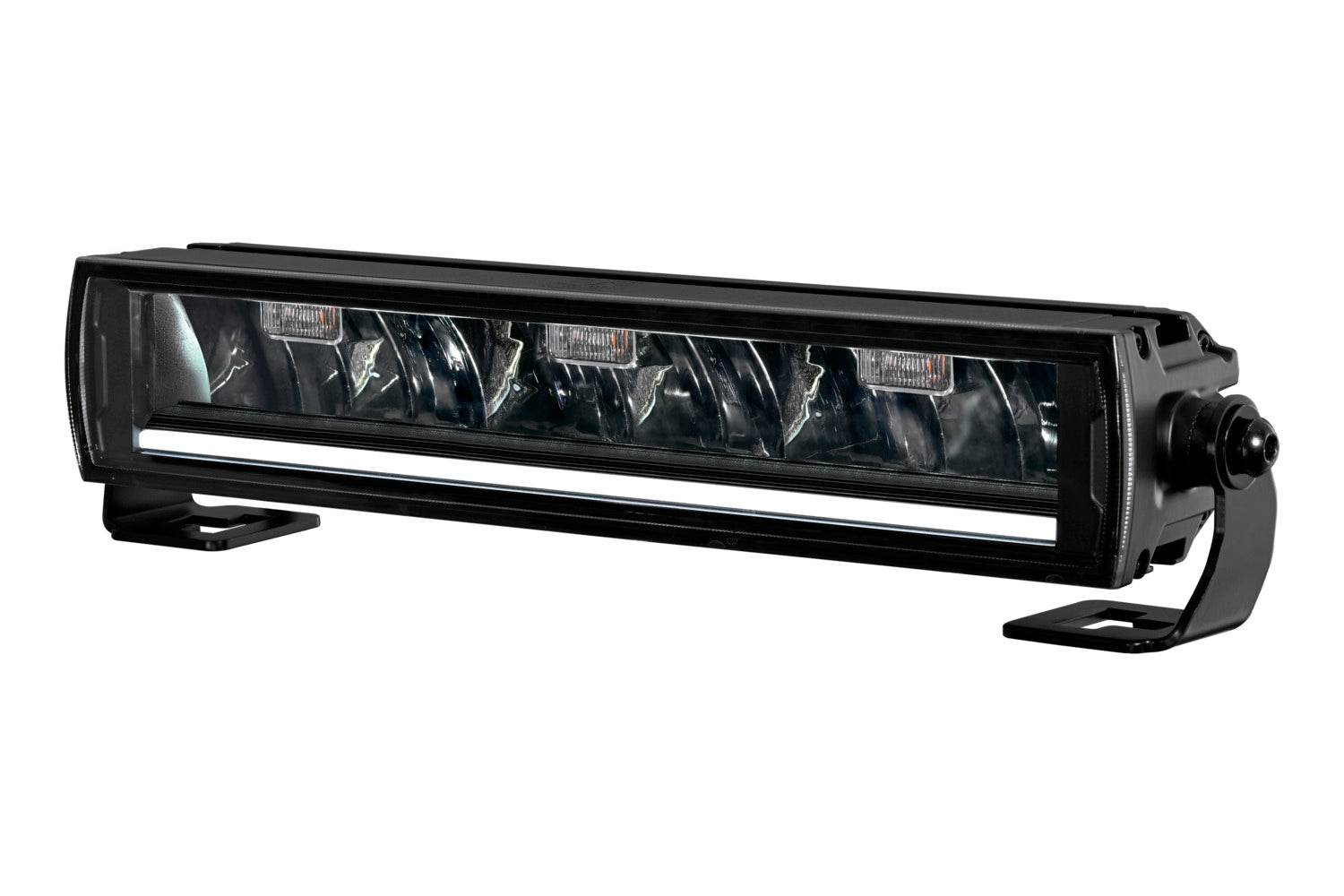

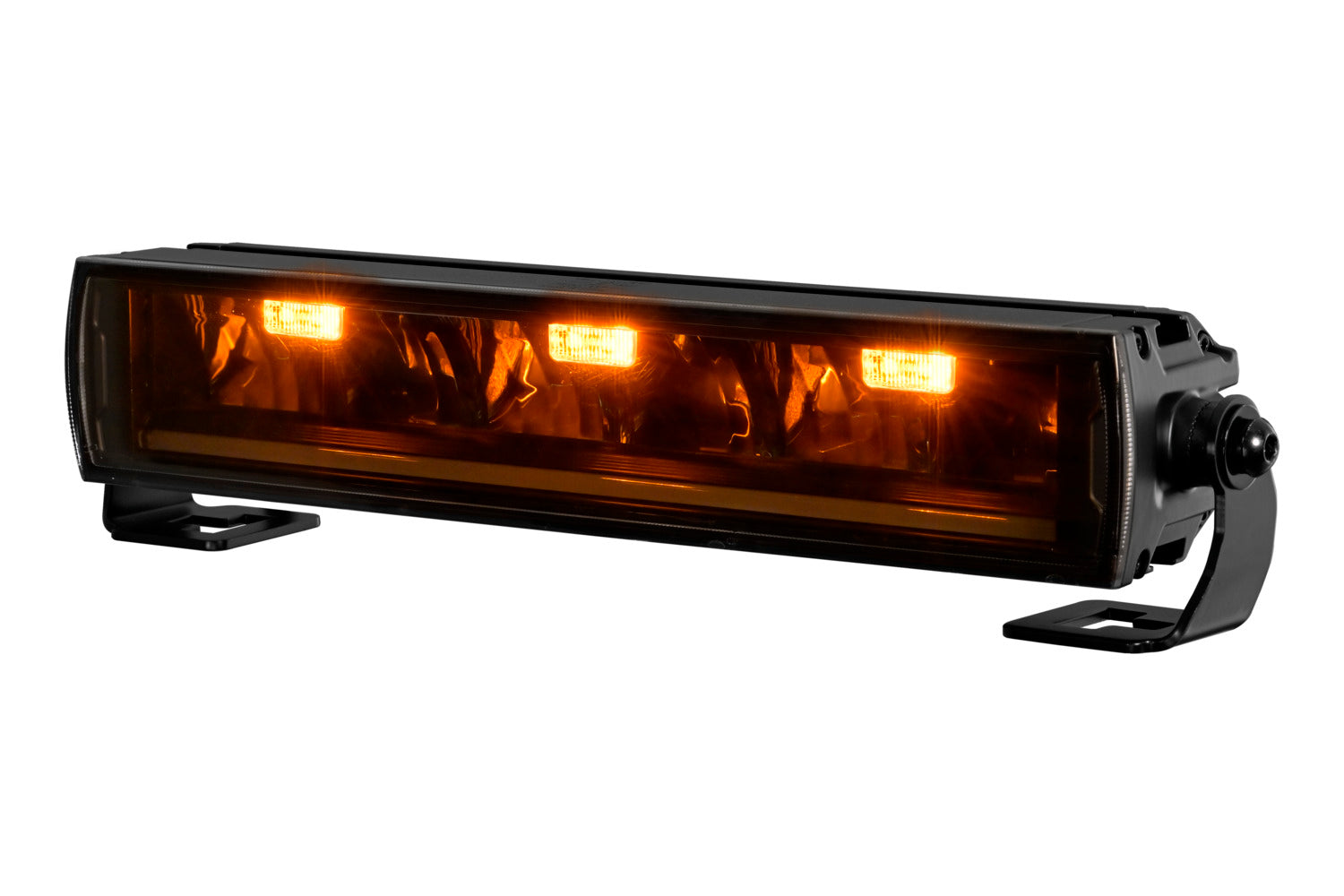

- White position light (ECE R148), amber, on trend function light: (Off-road application only), with additional flashing light function (various light patterns).
- Please observe the relevant country-specific, legal requirements and guidelines for motor vehicles listed up in the installation instructions.

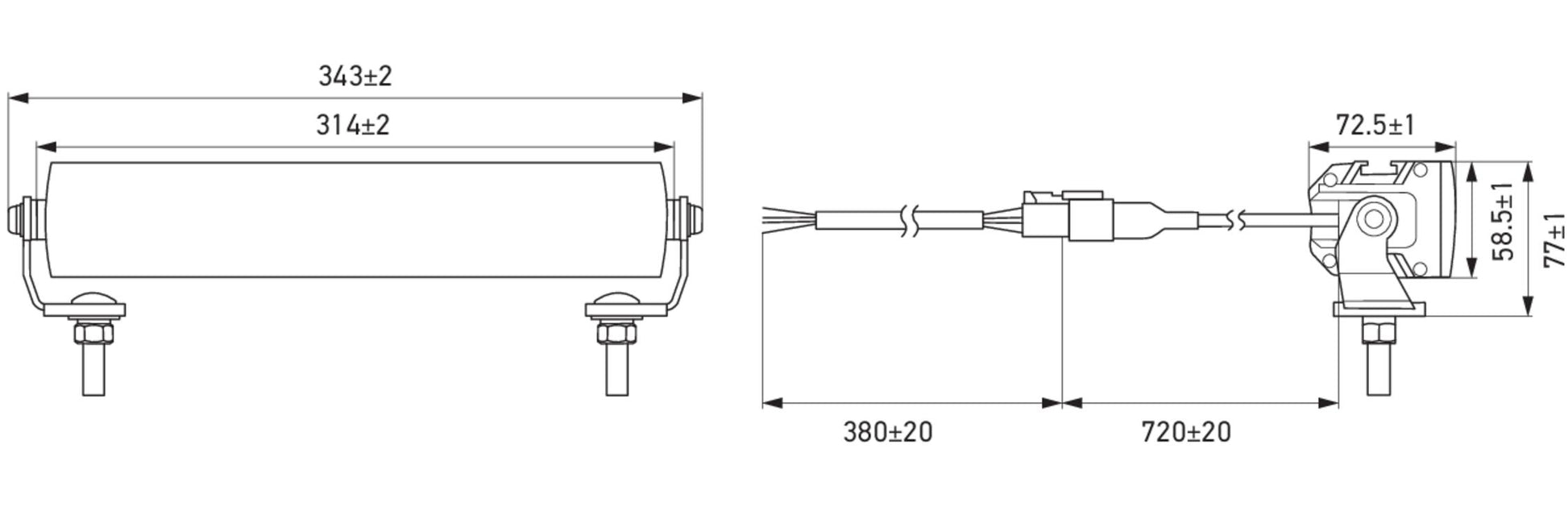

- Length: 314mm - Height: 59mm - Depth: 73mm - Overall Height: 77mm - Lamp Type: LED - Number of LEDs: 66
- Light functions: 3 - with high beam (LED)/with position light (LED)/With flashing warning signal
Item Attributes:
Fastening Type: Screw connection
Lamp Type: LED
Light Design: LED
Voltage: 24 V / 12 V
Rated Power: 100 W
Voltage from: 10 V
Voltage to: 30 V
Temperature range from: -40 °C
Temperature range to: +85 °C
Fitting Position: Front
Overall Height: 77 mm
Length: 314 mm
Depth: 73 mm
Height: 59 mm
Light Function: with high beam (LED) / With flashing warning signal / with position light (LED)
Light functions: 3
Number of LEDs: 66
Light colour: yellow (amber) / white
Cable: 1000 mm
Luminous Flux: 3800 lm
Theoretical luminous flux: 6000 lm
Colour Temperature: 5700 K
Frame Colour: black
Shape: slim
Lens Colour: white
Housing Colour: black
Housing material: Aluminium
Diffusing Lens Type: Clear diffusing lens
Diffusing Lens Material: PC (Polycarbonate)
fulfils EMC/CISPR standard: Class 3
Registration Type: ECE
fulfils ECE standard: R65 / R10 / R148 / R149
Prot.type (IP Code): IP67 / IP69K
Reference number: 30
Weight: 1400 g
Assembly by qualified personnel required!
