Description

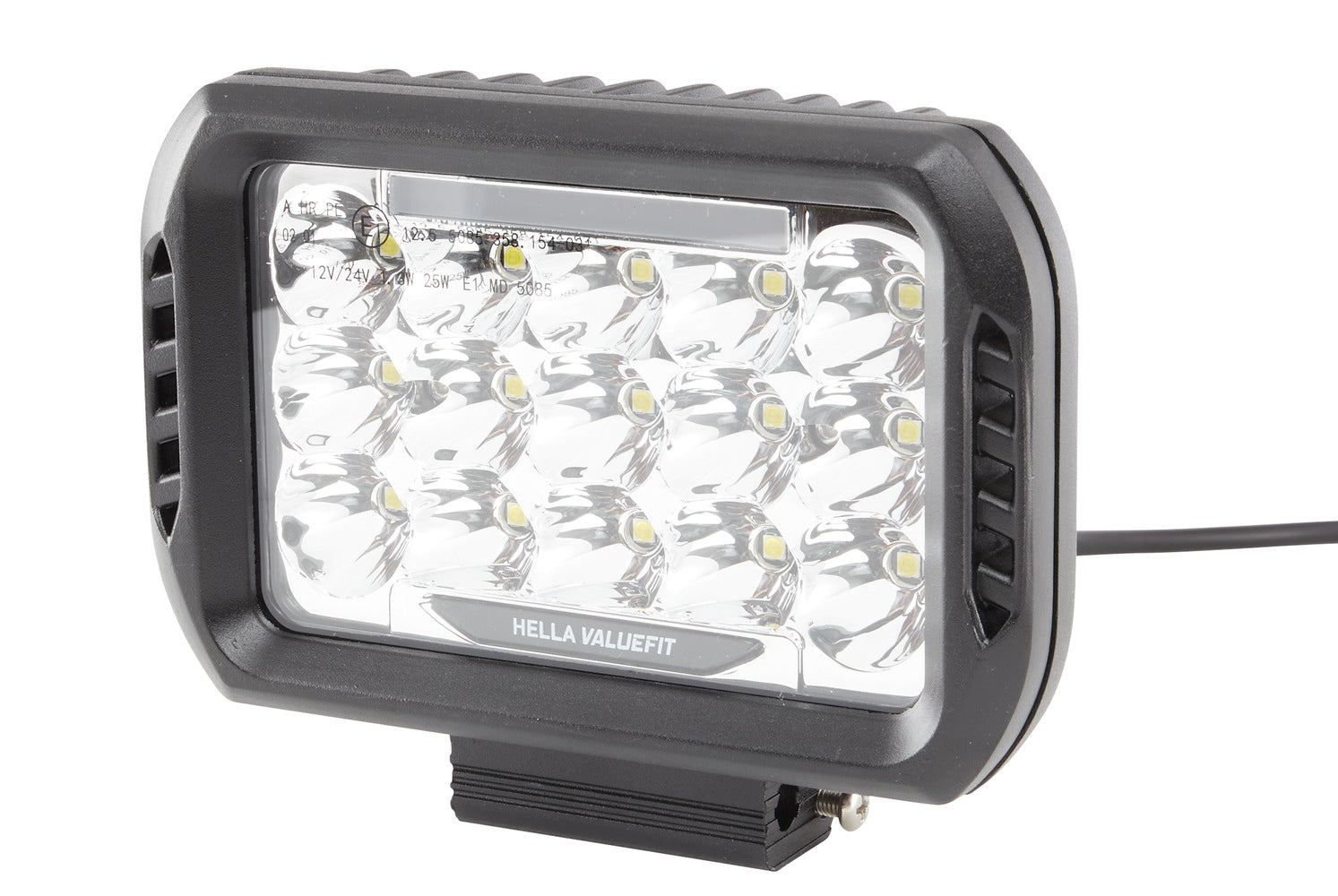

LED-Spotlight 450 - 12/24V - rectangular - Reference number: 12.5 - Clear diffusing lens - Crystal clear - Cable: 800mm - left/right

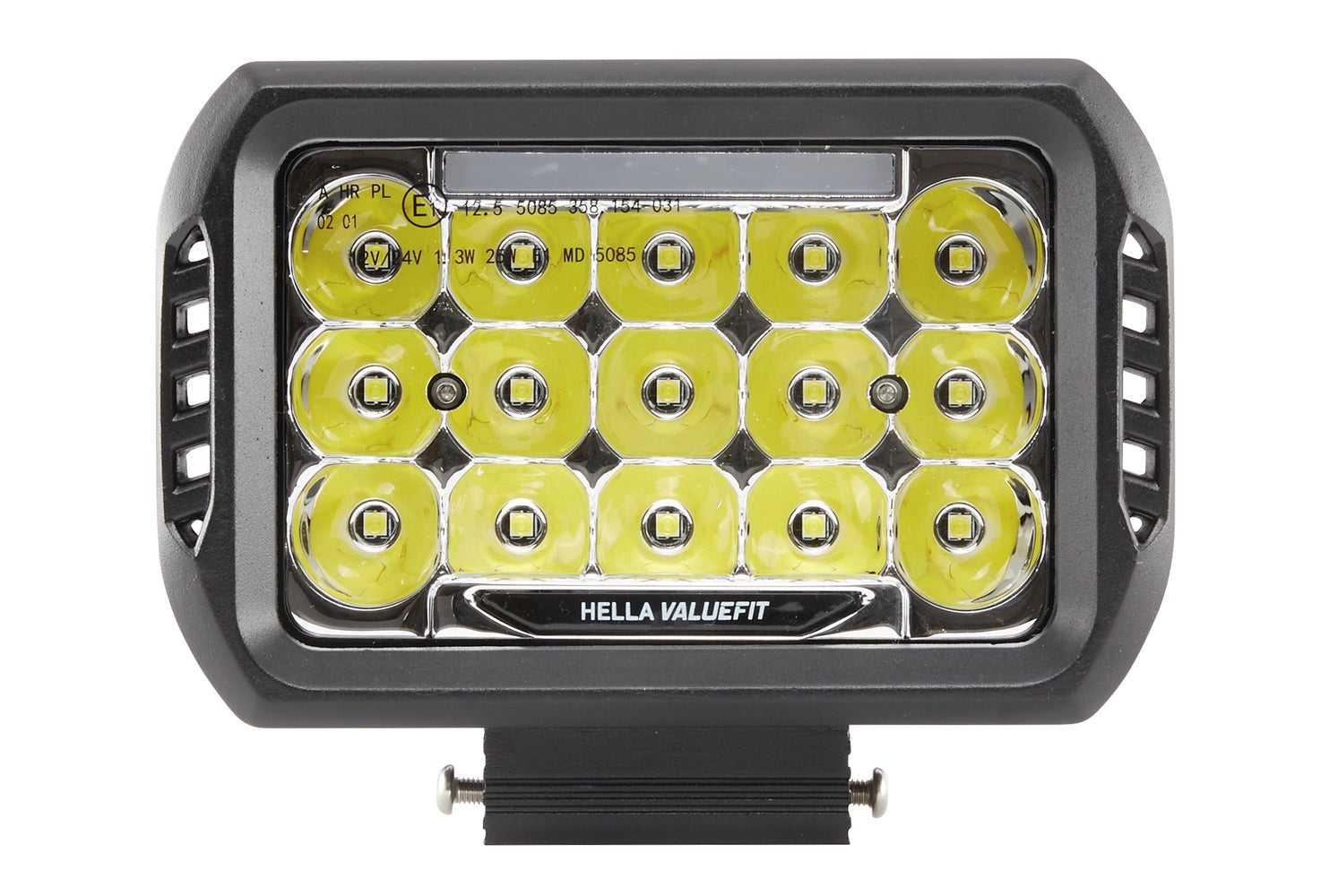

- 15 light-intensive high-performance LEDs and the full-surface facetted reflector ensure homogeneous illumination
- LED spotlight including LED position light in linear form
- The LED spotlight is designed in such a way that its compact dimensions make it suitable for small installation spaces

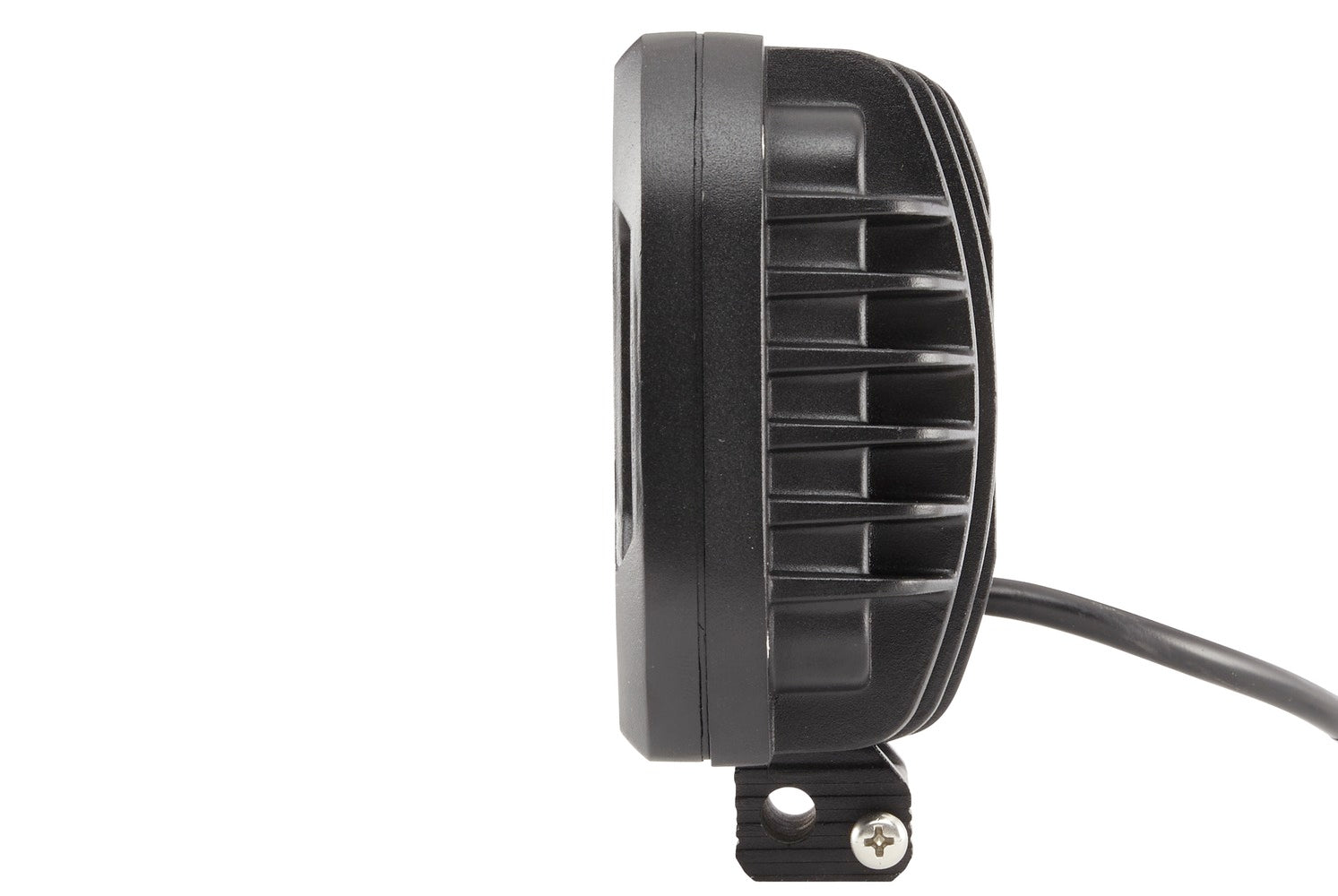

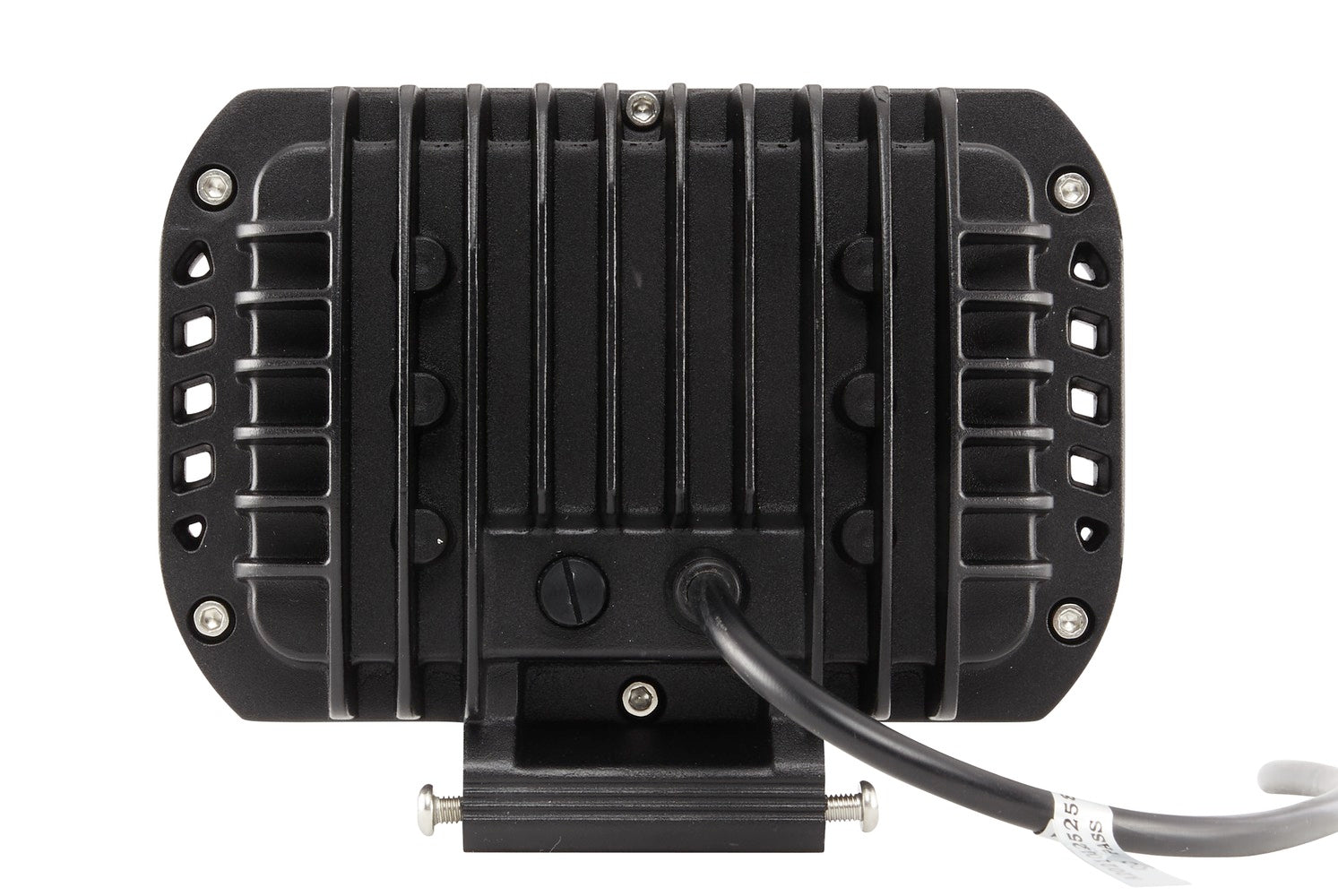

- The robust die-cast aluminium housing is equipped with cooling fins for heat dissipation of the high-performance LEDs

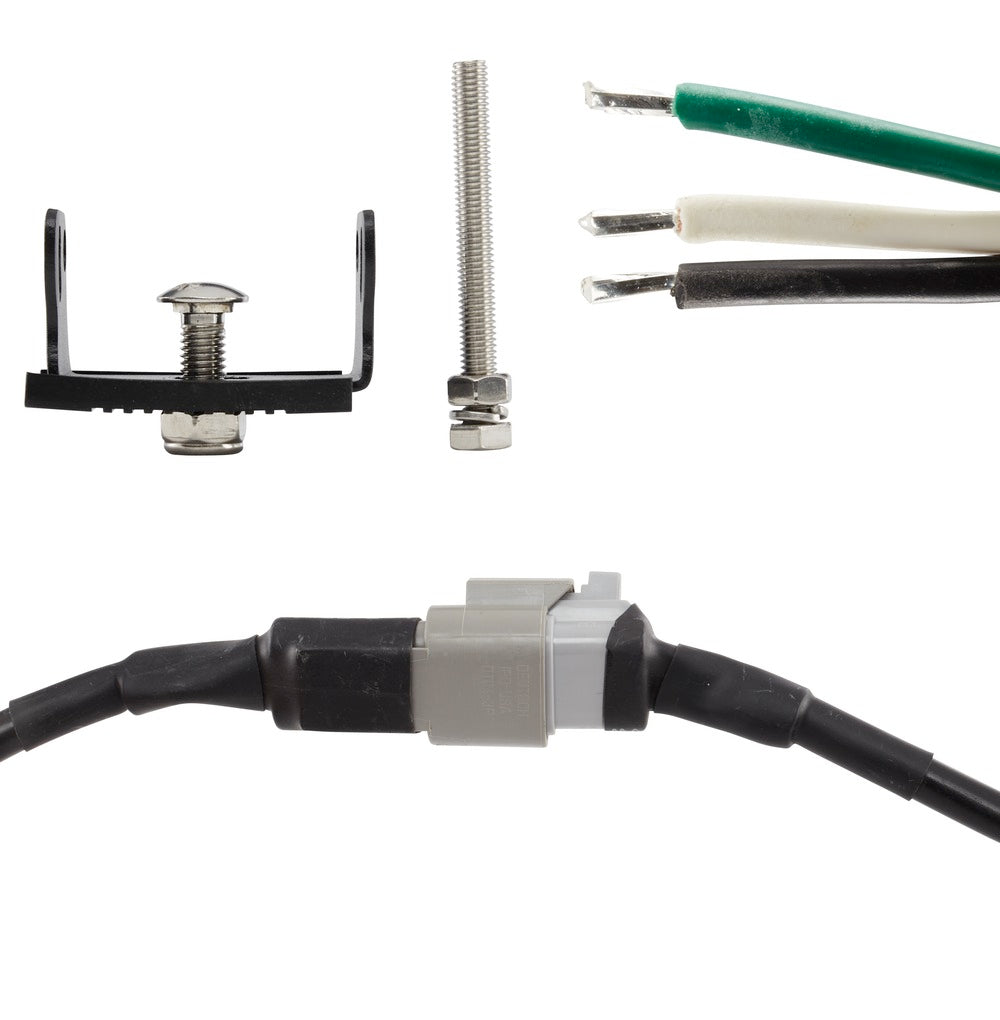

- Sturdy stainless steel mounting bracket for optimum vibration-resistant hold
- Width: 162mm - Height: 107mm - Depth: 57mm - Fitting Depth: 32mm - Overall Height: 149mm - Lamp Type: LED - with LED - without top
- Light functions: 2 - with position light (LED)/with high beam (LED)
Item Attributes:
Mounting Type: Bolted / mounting
Fastening Type: Vertical / Swivelling Mounting Bracket
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Fitting Position: left / right
Height: 107 mm
Overall Height: 149 mm
Width: 162 mm
Depth: 57 mm
Fitting Depth: 32 mm
Light Function: with position light (LED) / with high beam (LED)
Light functions: 2
fulfils ECE standard: R10 / R7 / R112
Reference number: 12.5
Cable: 800 mm
Housing Colour: black
Lens Colour: Crystal clear
Frame Colour: black
Shape: rectangular
Housing Type: Metal Housing
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info 2: without top
Supplementary Article/Supplementary Info: with LED
Assembly by qualified personnel required!
