Description

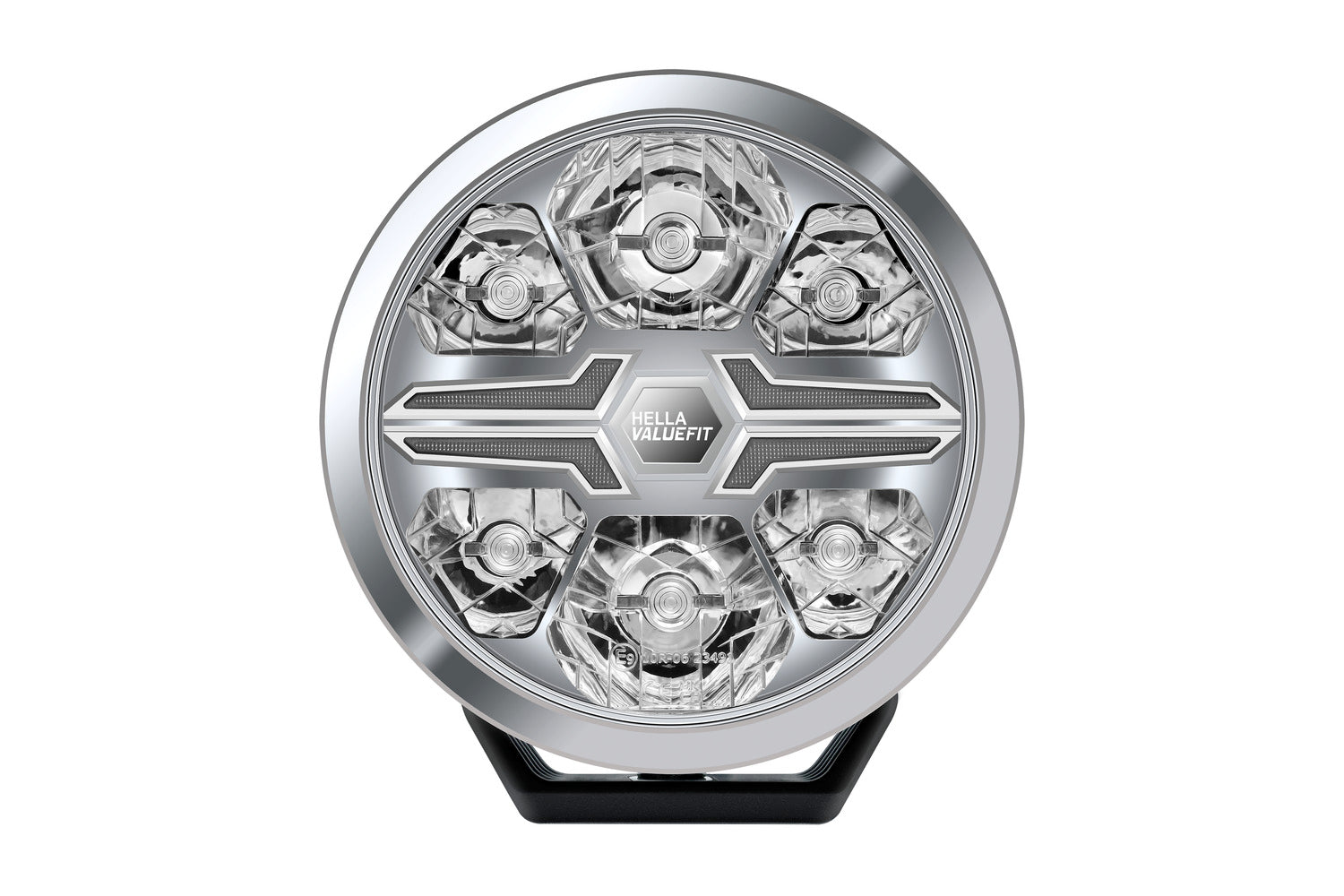

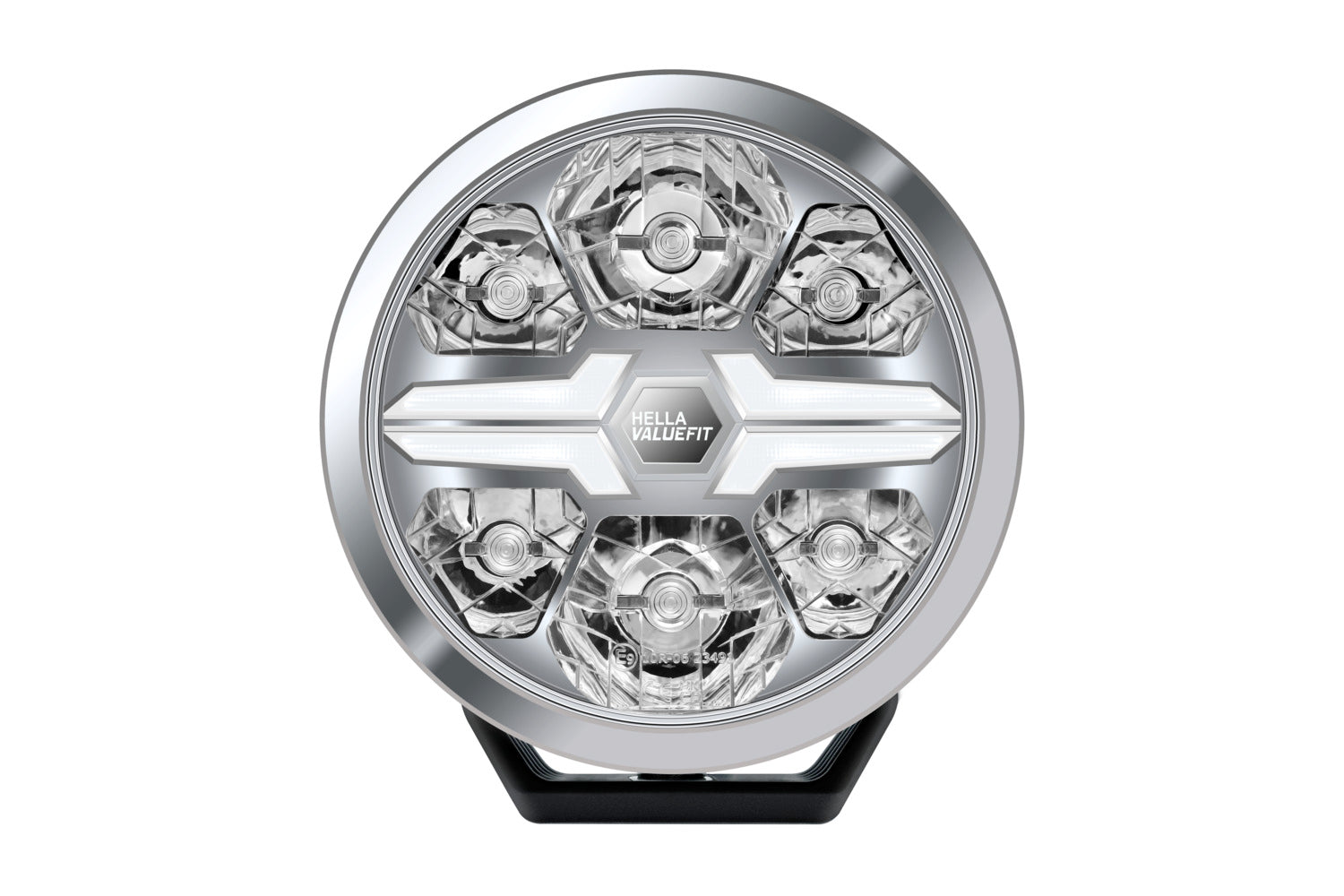

LED-Spotlight - Blade Chrom 7" - 12/24V - 1670lm - round - Reference number: 25 - ECE - Clear diffusing lens - Crystal clear - Light colour: white - Cable: 500mm - frontal sided

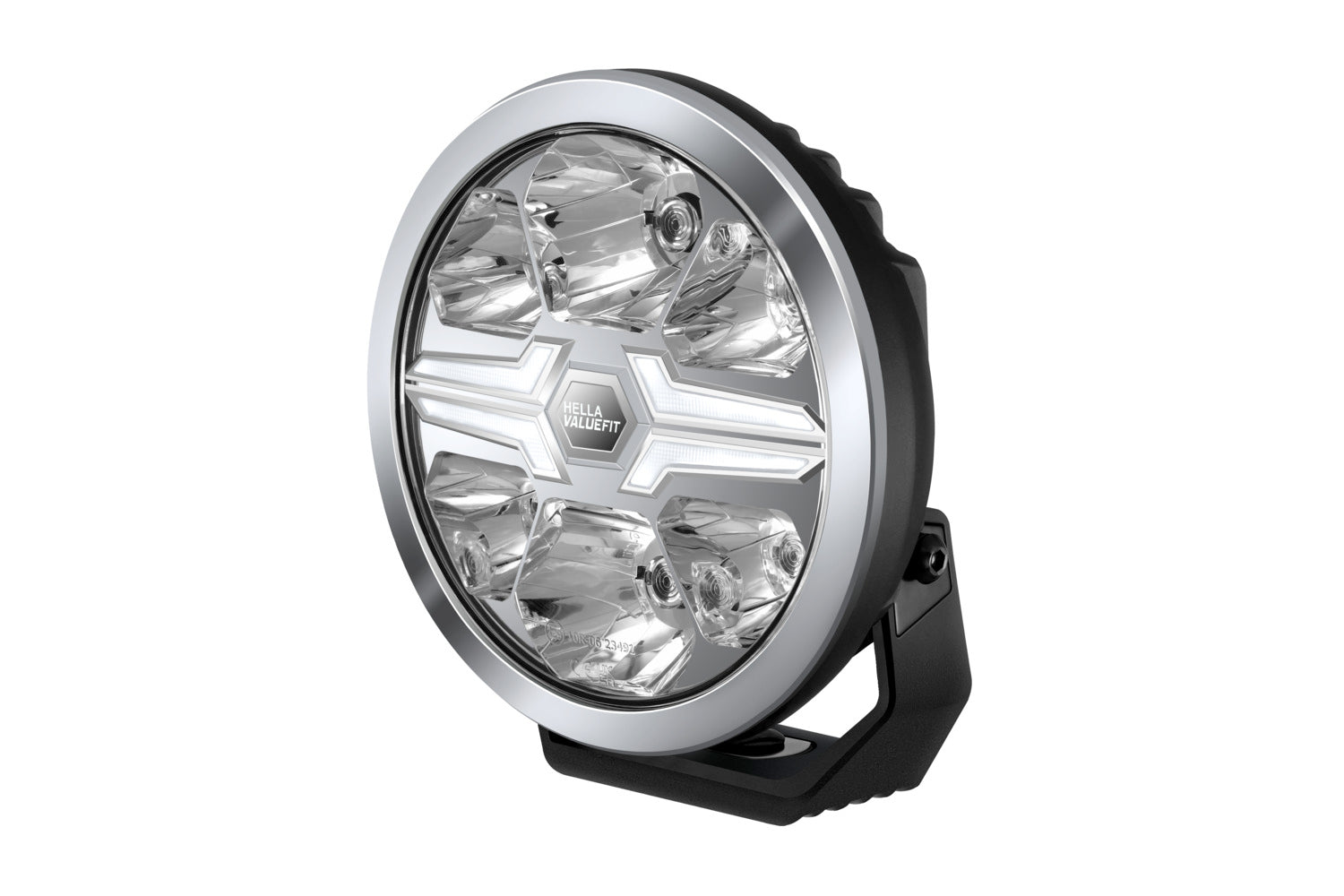

The powerful auxiliary headlights of the HELLA ValueFit Blade series make a statement on any vehicle. The innovative design of the LED position light with razor-sharp contour supports the characteristic look of the new Blade series. The robust auxiliary headlights are characterised by a high-quality look. The housing is made of aluminium and the holder of glass fibre (PAA + GF). Multivoltage: suitable for 12 V and 24 V nominal voltage.

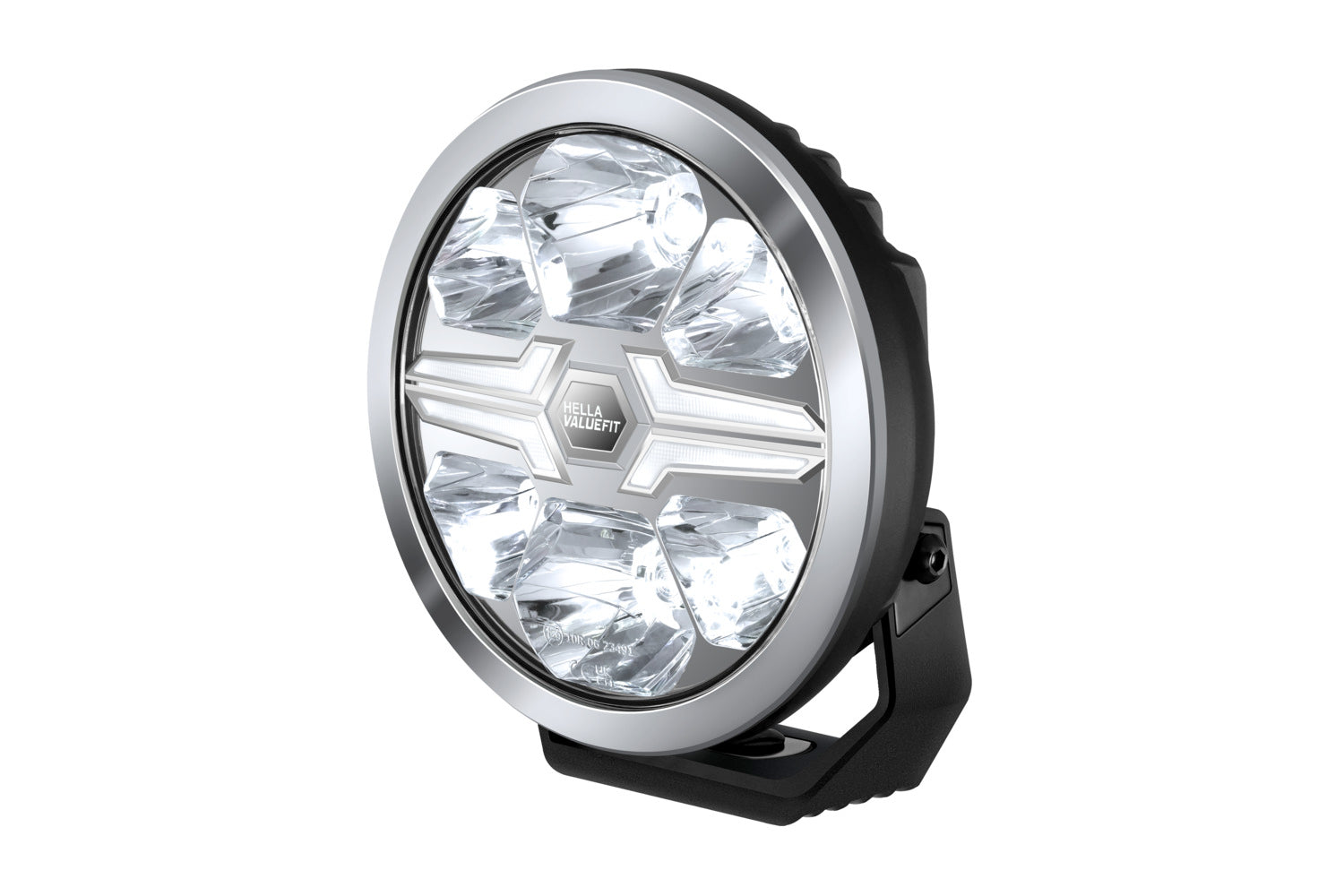

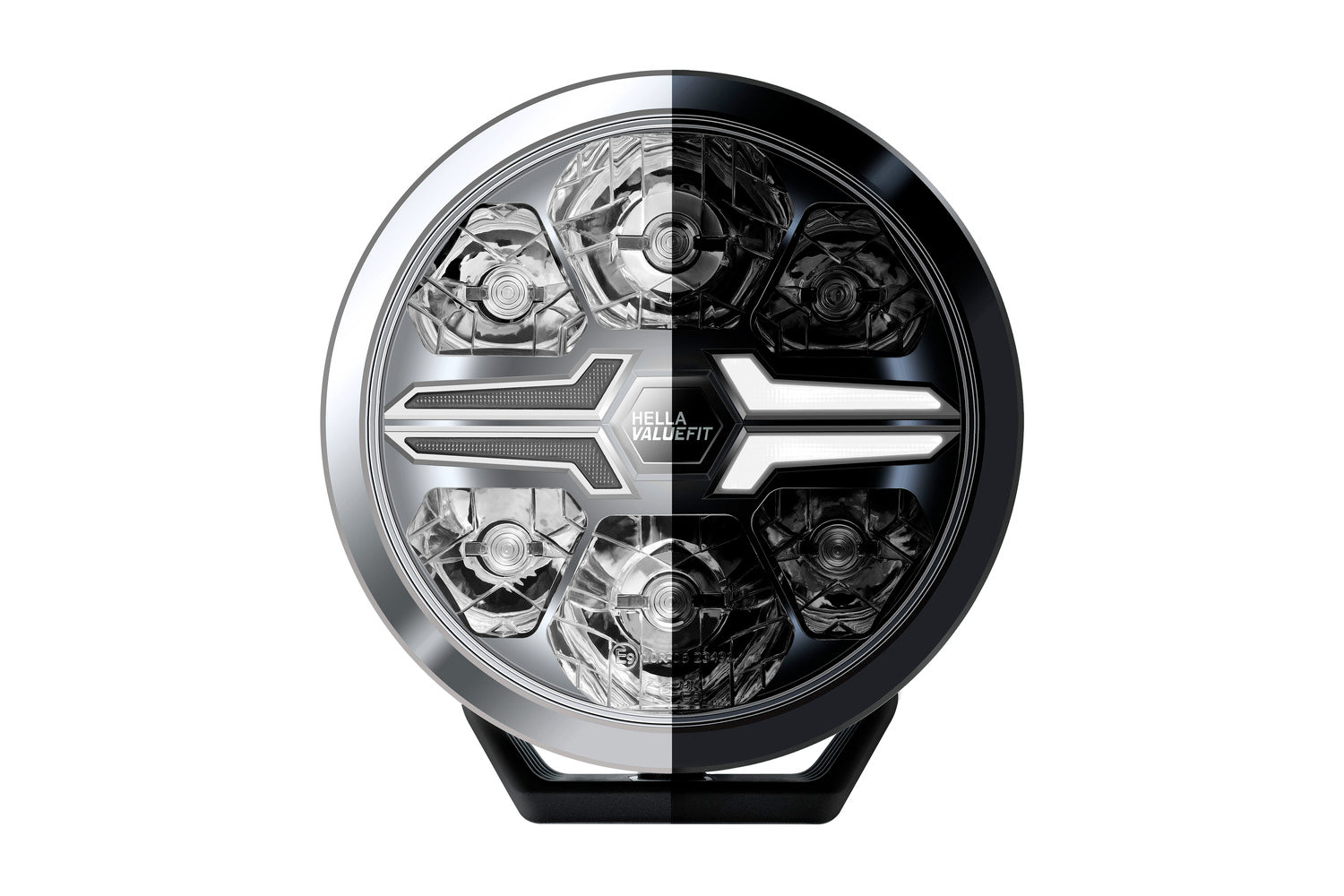

- Round auxiliary headlamp with innovative LED position light design with razor-sharp contour. Position light colour: white.

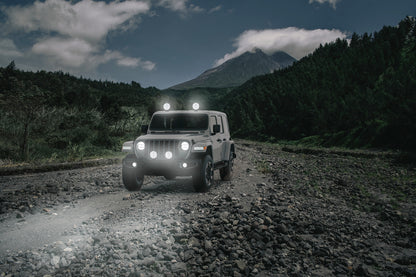

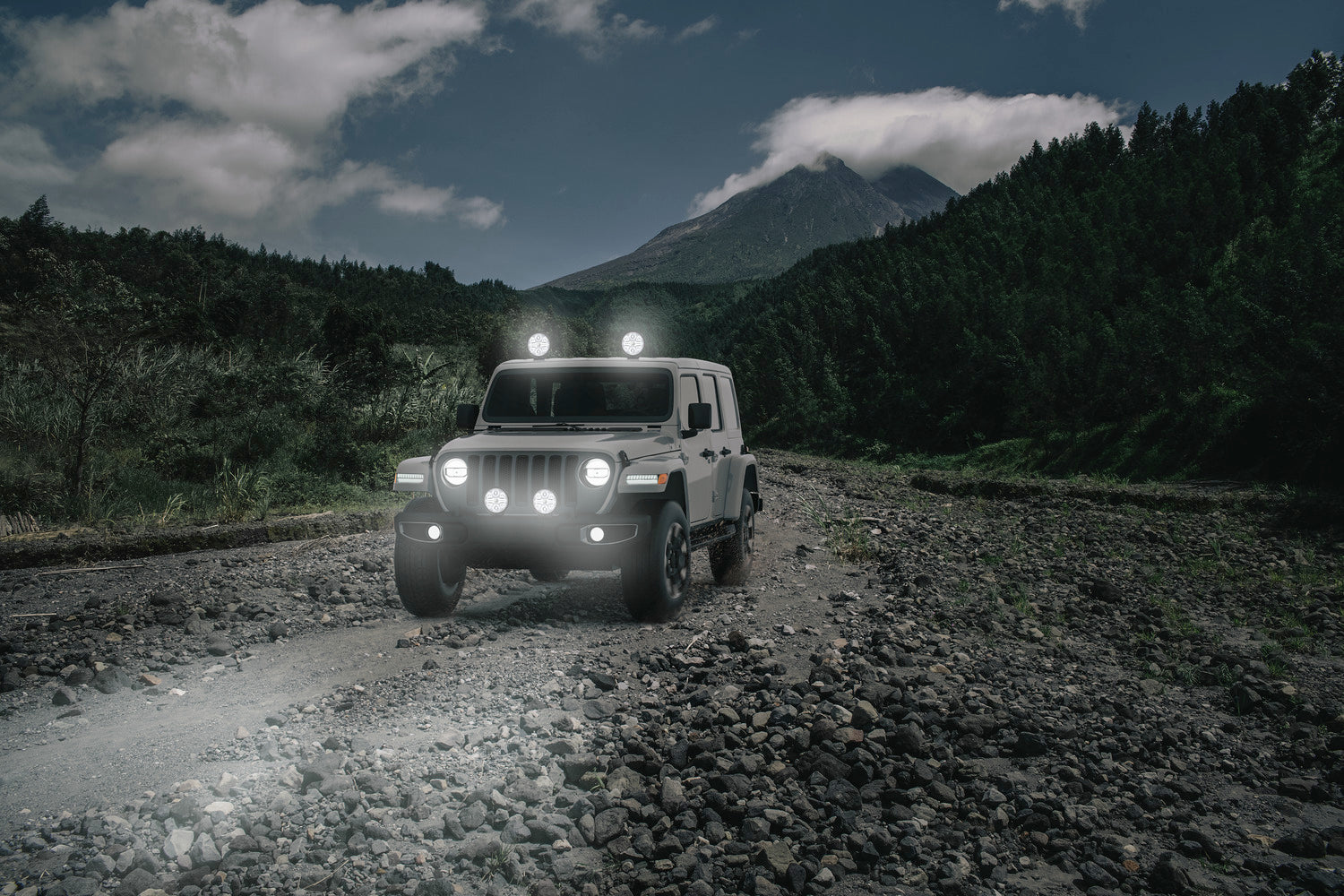

- 7" version with chrome design ring and ECE ref. 25. Ideal for upright mounting on off-road vehicles and SUVs.

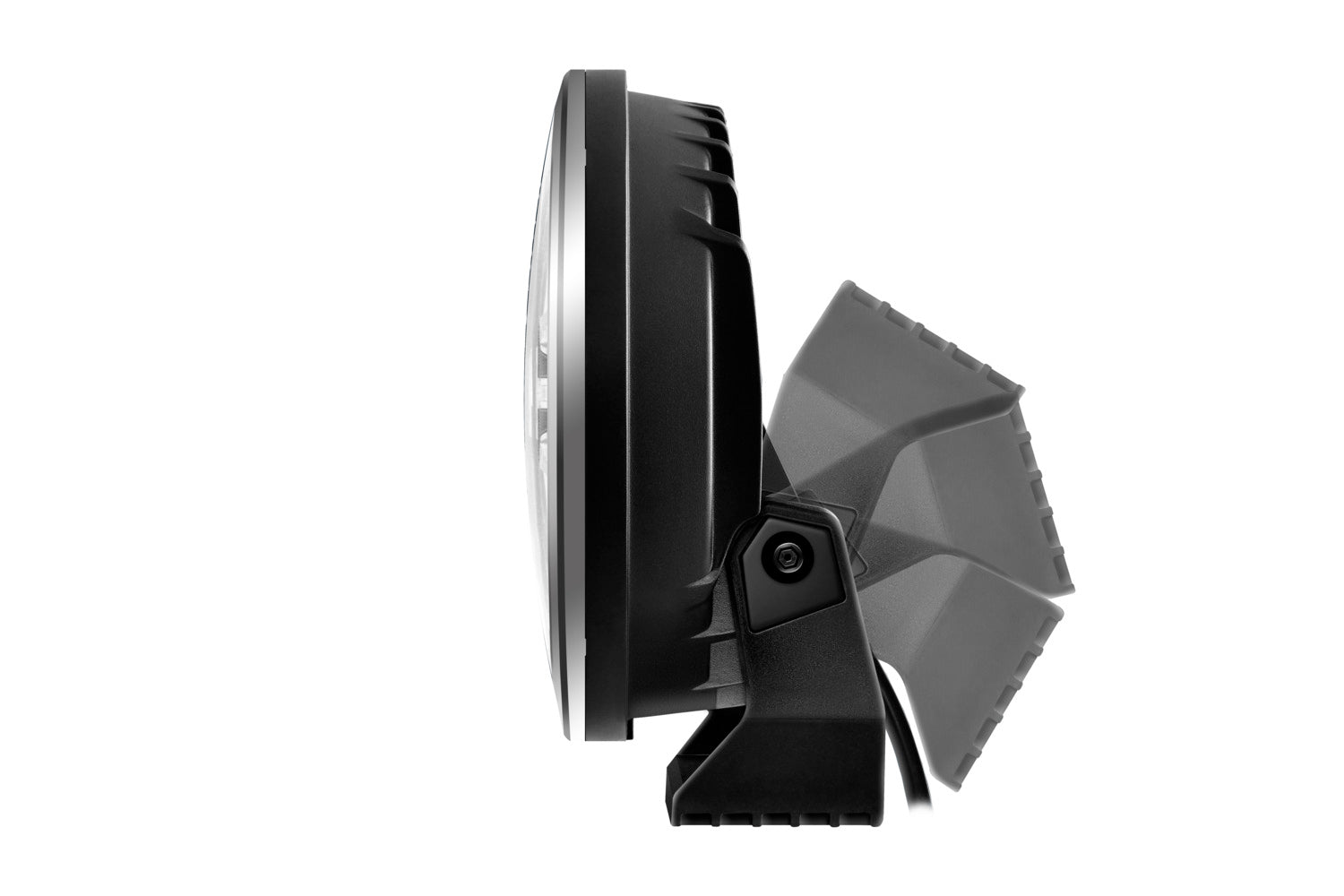

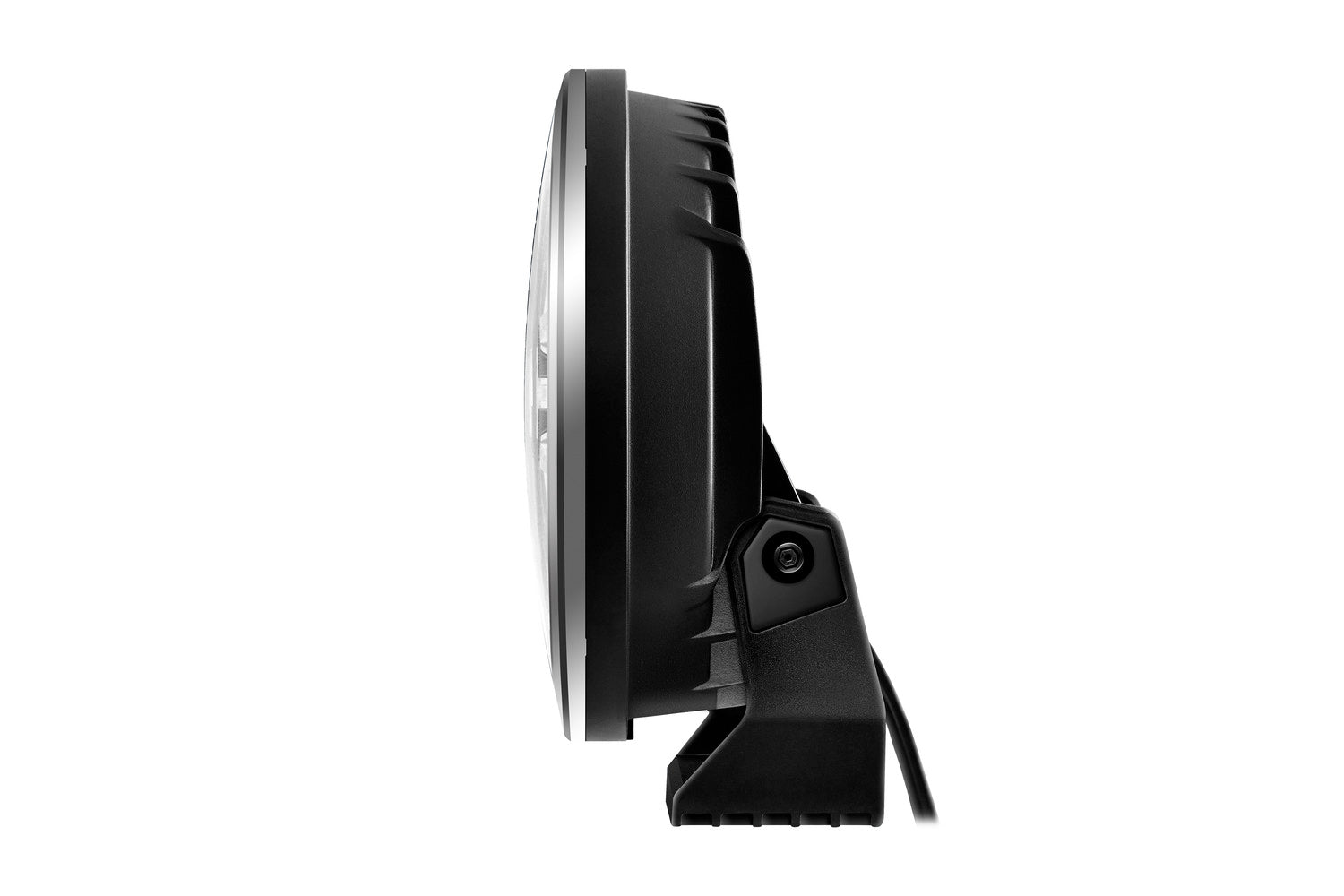

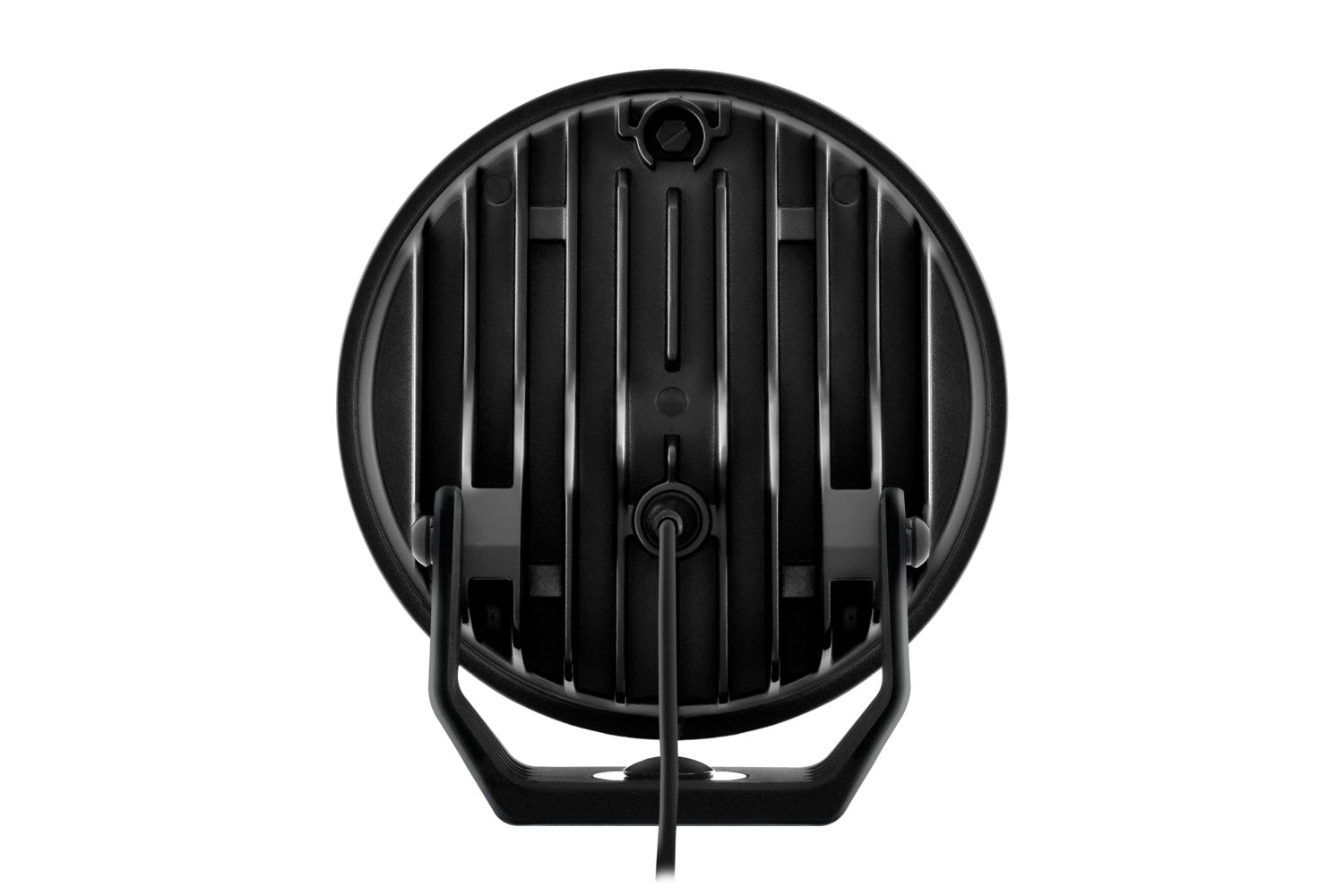

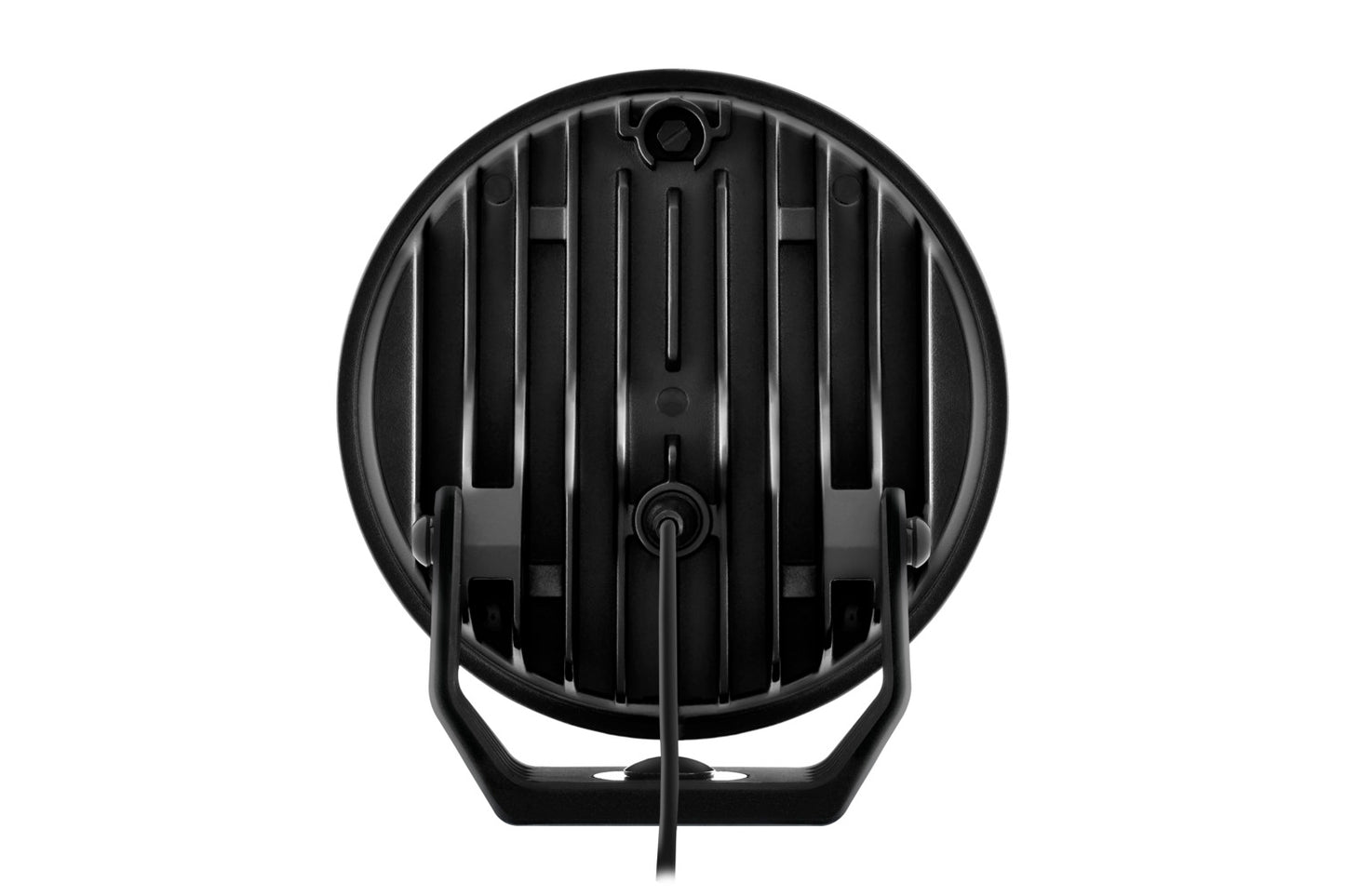

- High-quality robust auxiliary headlamp with aluminium housing and holder made of glass fibre (PA66 + GF). The low mounting depth of 95 mm allows flexible mounting in numerous mounting positions.
- ECE type-approved (ECE-R149 high beam, ECE-R148 position light (white position light).
- White position light for use as an auxiliary driving lamp in public road traffic. Available separately: Protective cap 7" round, article no. 8XS 358 198-001

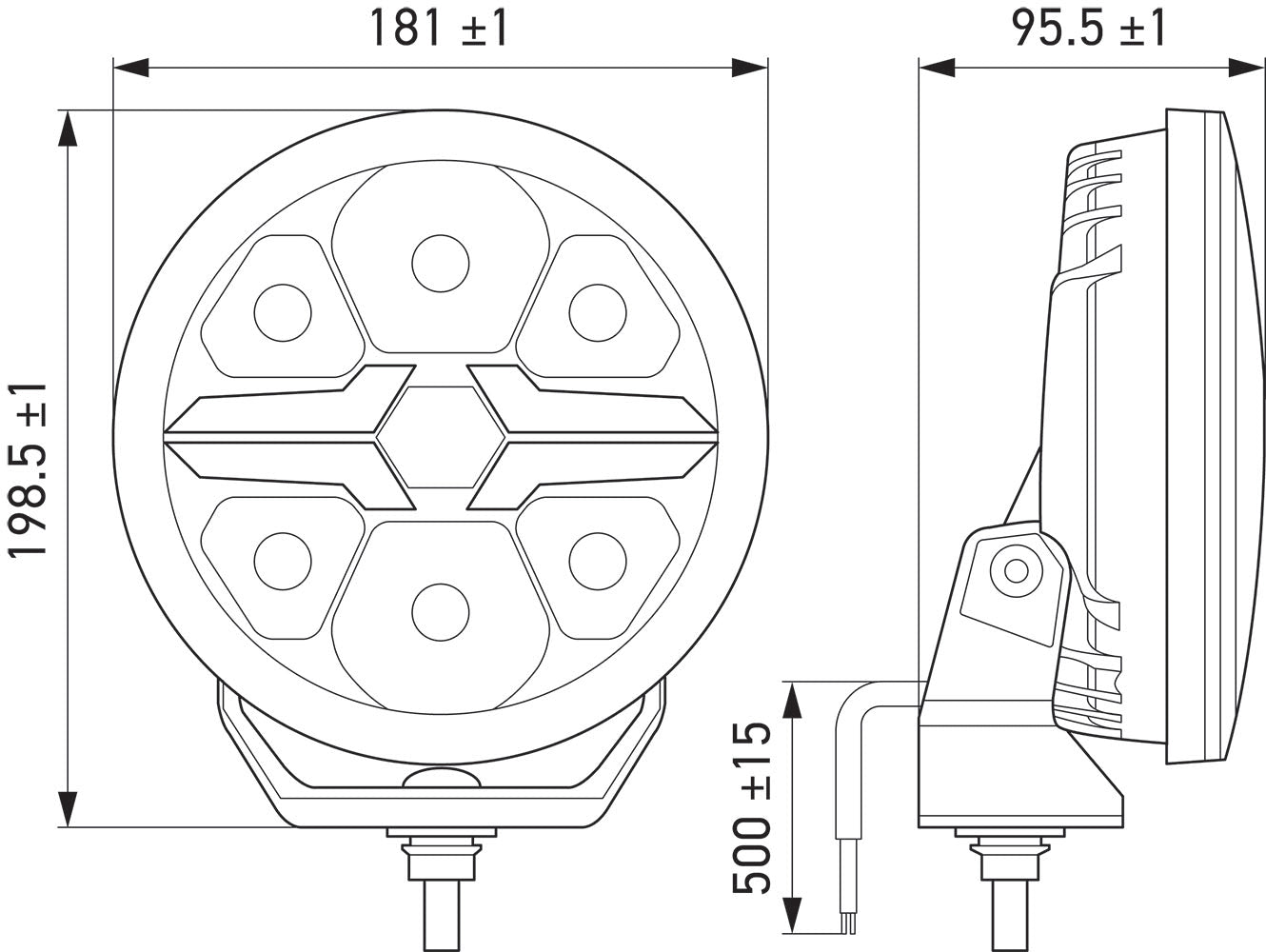

- Width: 181mm - Height: 181mm - Depth: 96mm - Fitting Depth: 96mm - Overall Height: 199mm - Lamp Type: LED - Number of LEDs: 6 - with LED
- Light functions: 2 - with high beam (LED)/with position light (LED)
Item Attributes:

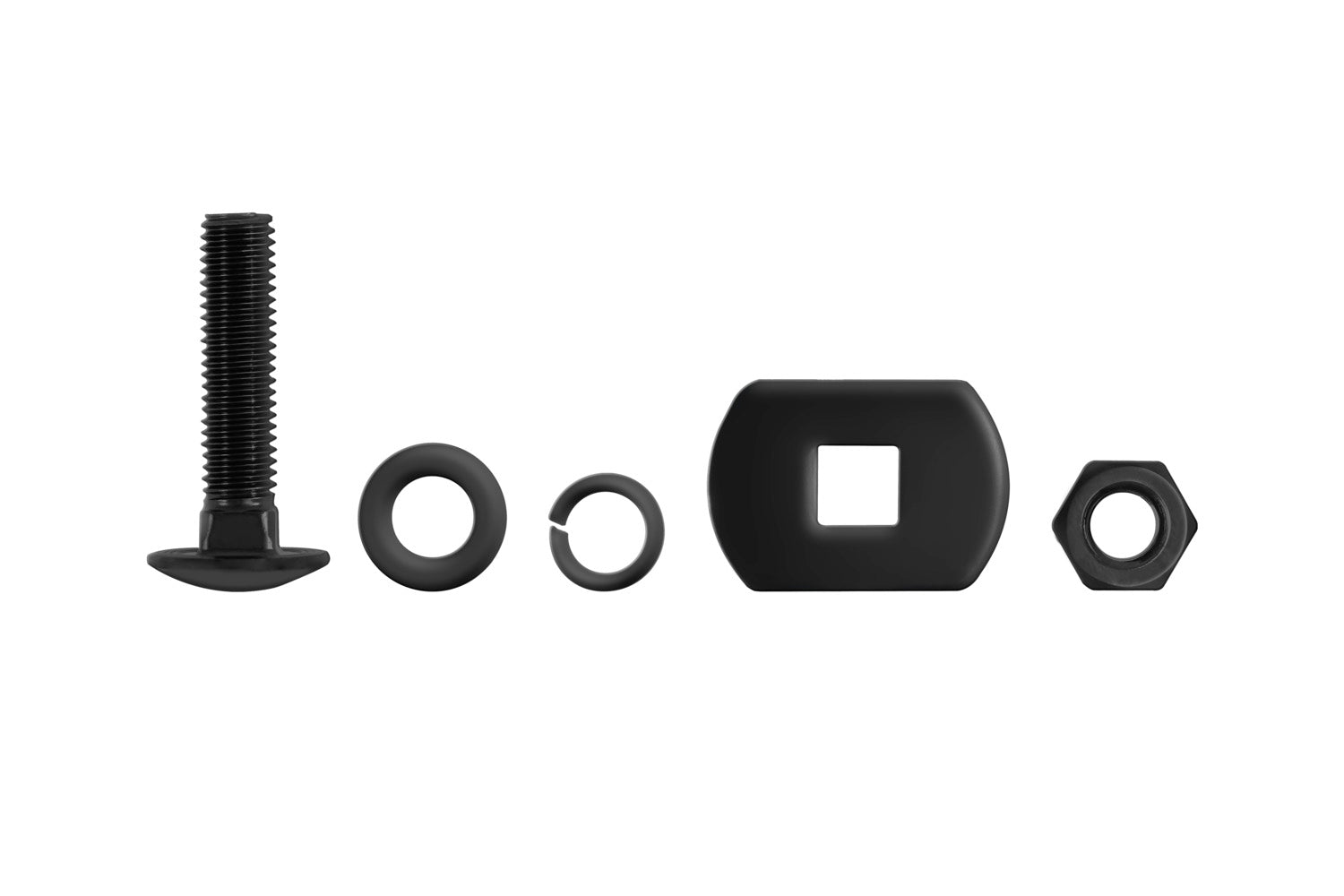

Mounting Type: Bolted
Fastening Type: Screw-on
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Fitting Position: frontal sided
Width: 181 mm
Height: 181 mm
Overall Height: 199 mm
Depth: 96 mm
Length: 7 "
Fitting Depth: 96 mm
Light Function: with position light (LED) / with high beam (LED)
Light functions: 2
Light colour: white
Colour: chrome
Reference number: 25

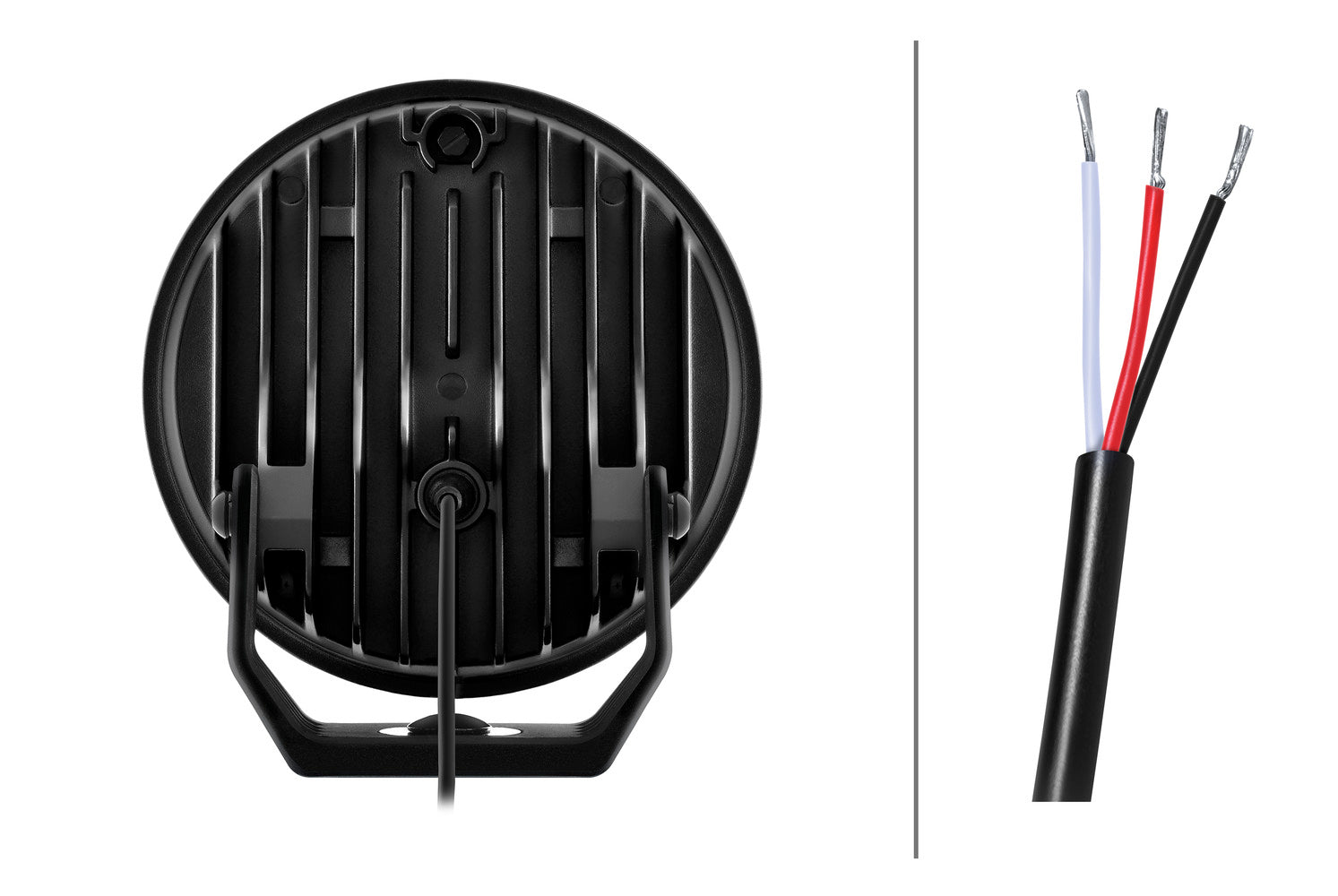

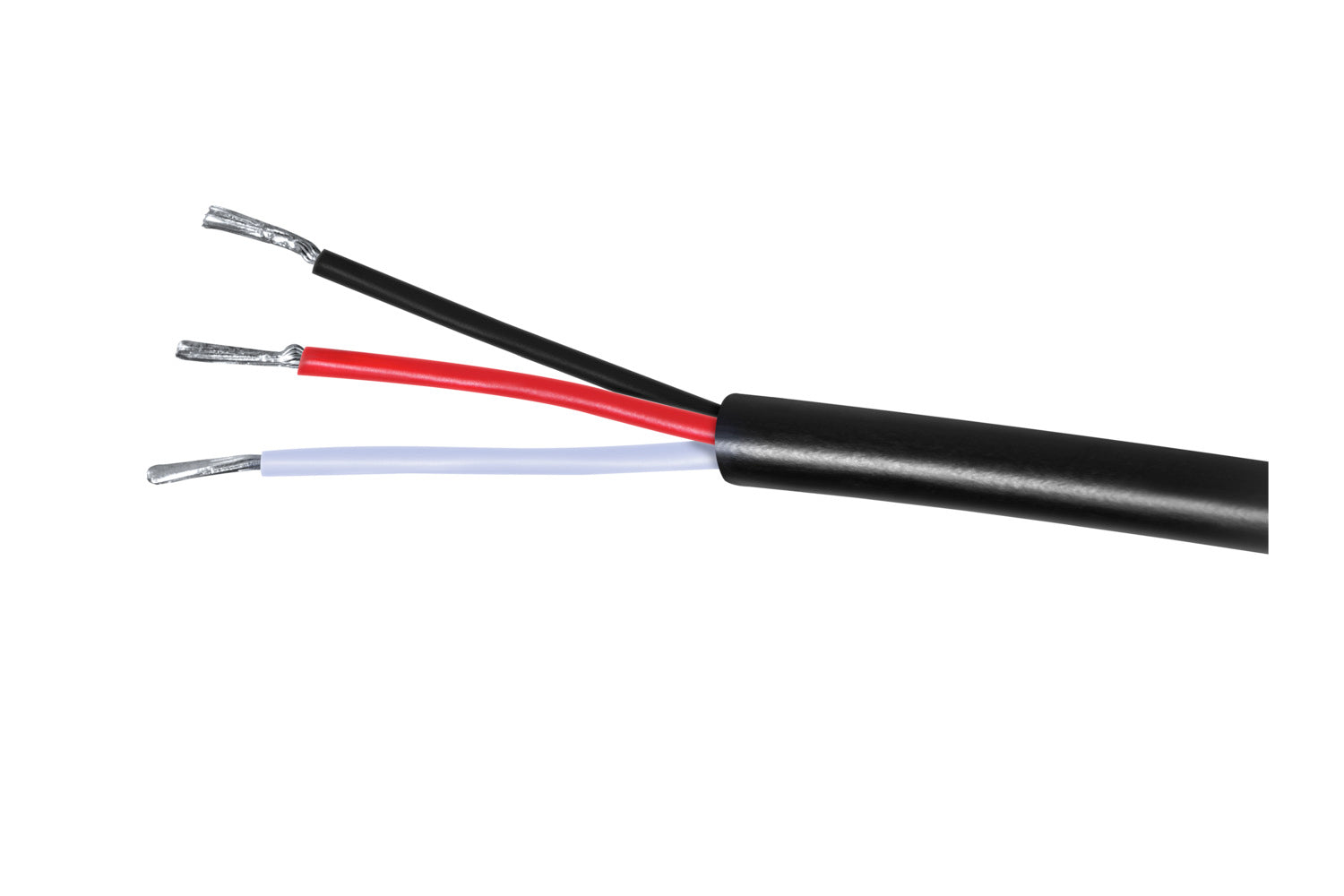

Cable: 500 mm
Diffusing Lens Type: Clear diffusing lens
Lens Colour: Crystal clear
Frame Colour: chrome
Shape: round
Number of LEDs: 6
Supplementary Article/Supplementary Info: with LED
Housing Colour: black
Housing material: Aluminium
Prot.type (IP Code): IP69K / IP67
Registration Type: ECE
SVHC: 7439-92-1; Lead
fulfils ECE standard: R10 / R149 / R148
Power consumption: 36 W / 22 W
Colour Temperature: 6000 K

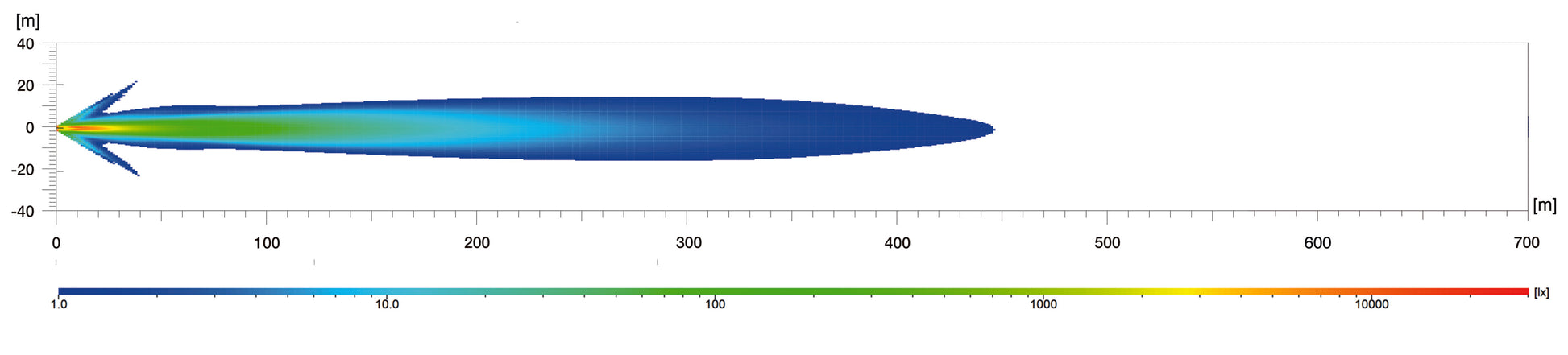

Luminous Flux: 1670 lm
Weight: 1200 g
Assembly by qualified personnel required!
OE references: DAF 1551447
