Description
LED-Spotlight - Blade Chrome RE 9" - 12/24V - 2600lm - rectangular - Reference number: 25 - ECE - Clear diffusing lens - Crystal clear - Light colour: white/yellow (amber) - Cable: 500mm - frontal sid

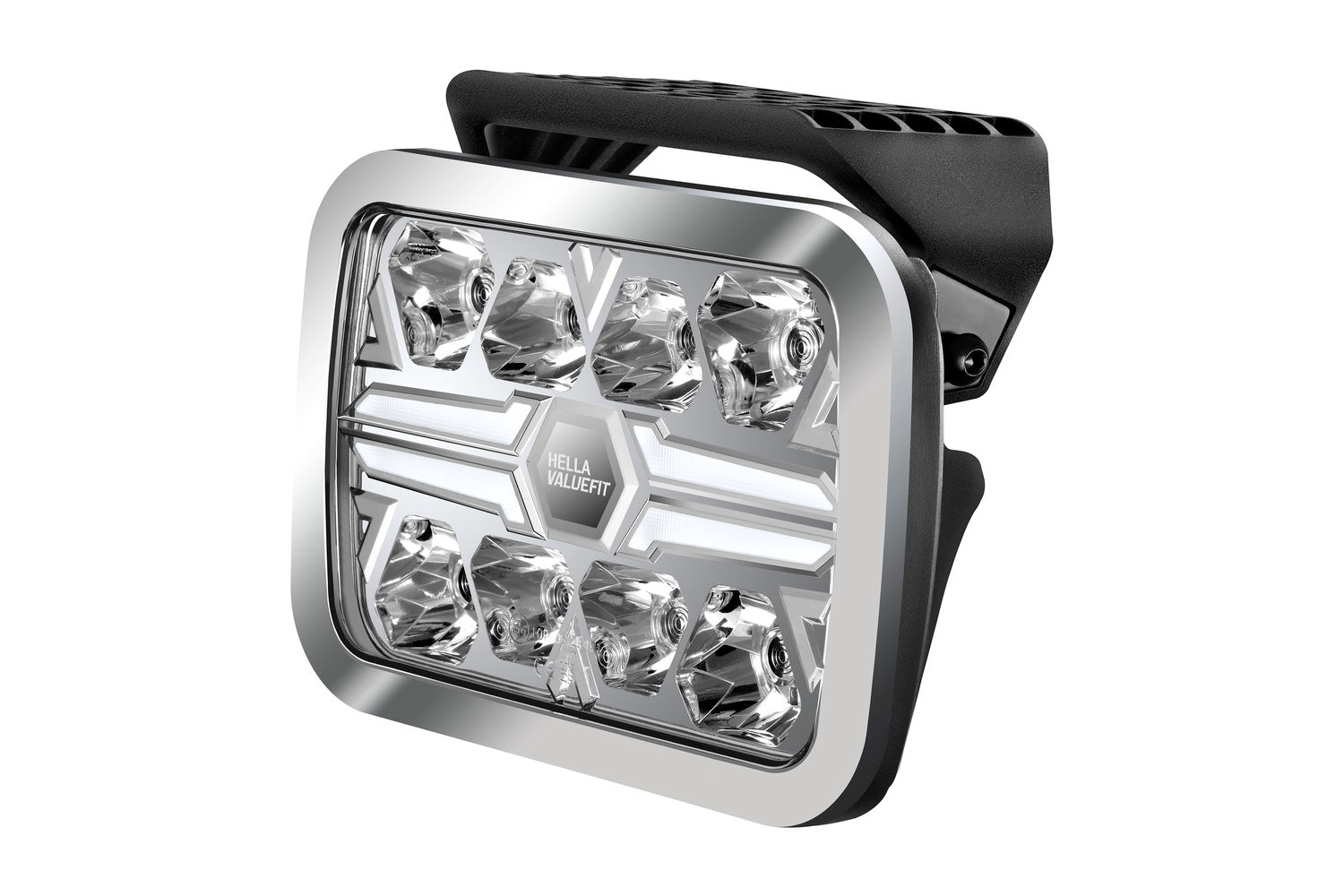

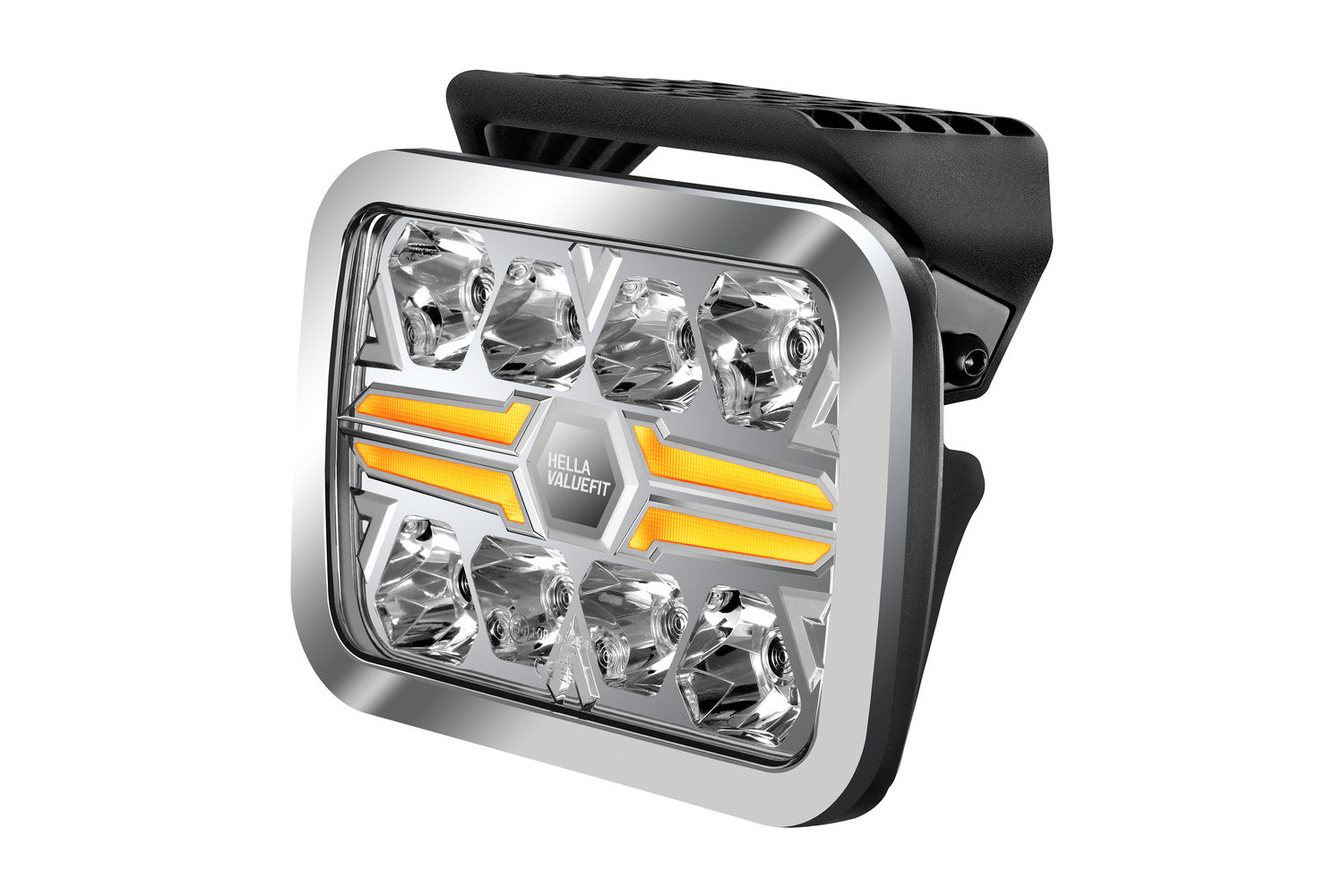

The powerful auxiliary headlights of the HELLA ValueFit Blade series make a statement on any vehicle. The innovative design of the LED position light with razor-sharp contour supports the characteristic look of the new Blade series. The colour of the position light is optionally white or yellow. The robust auxiliary headlights are characterised by a high-quality look. The housing is made of aluminium and the holder of glass fibre (PAA + GF). Multivoltage: suitable for 12 V and 24 V nominal voltage.

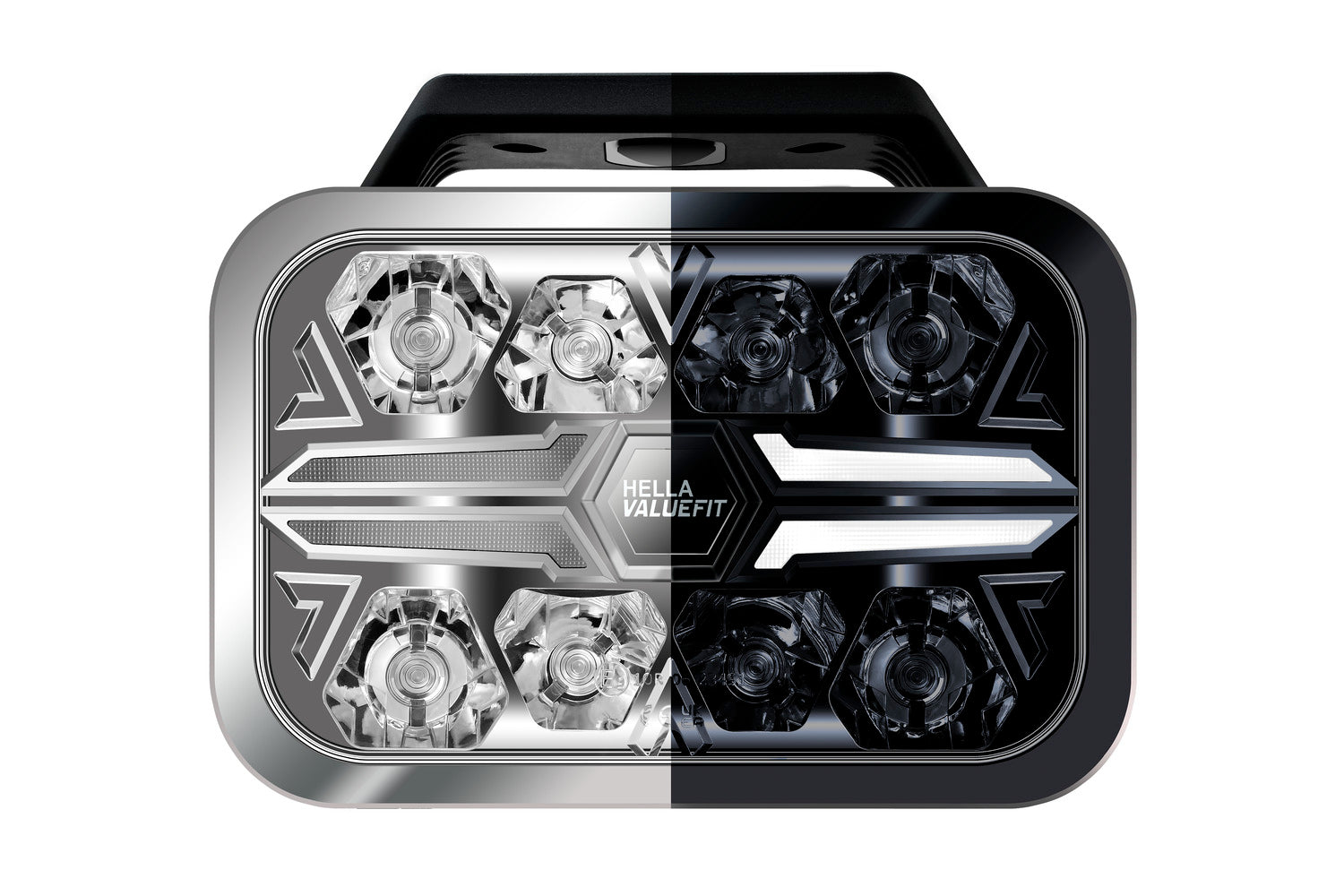

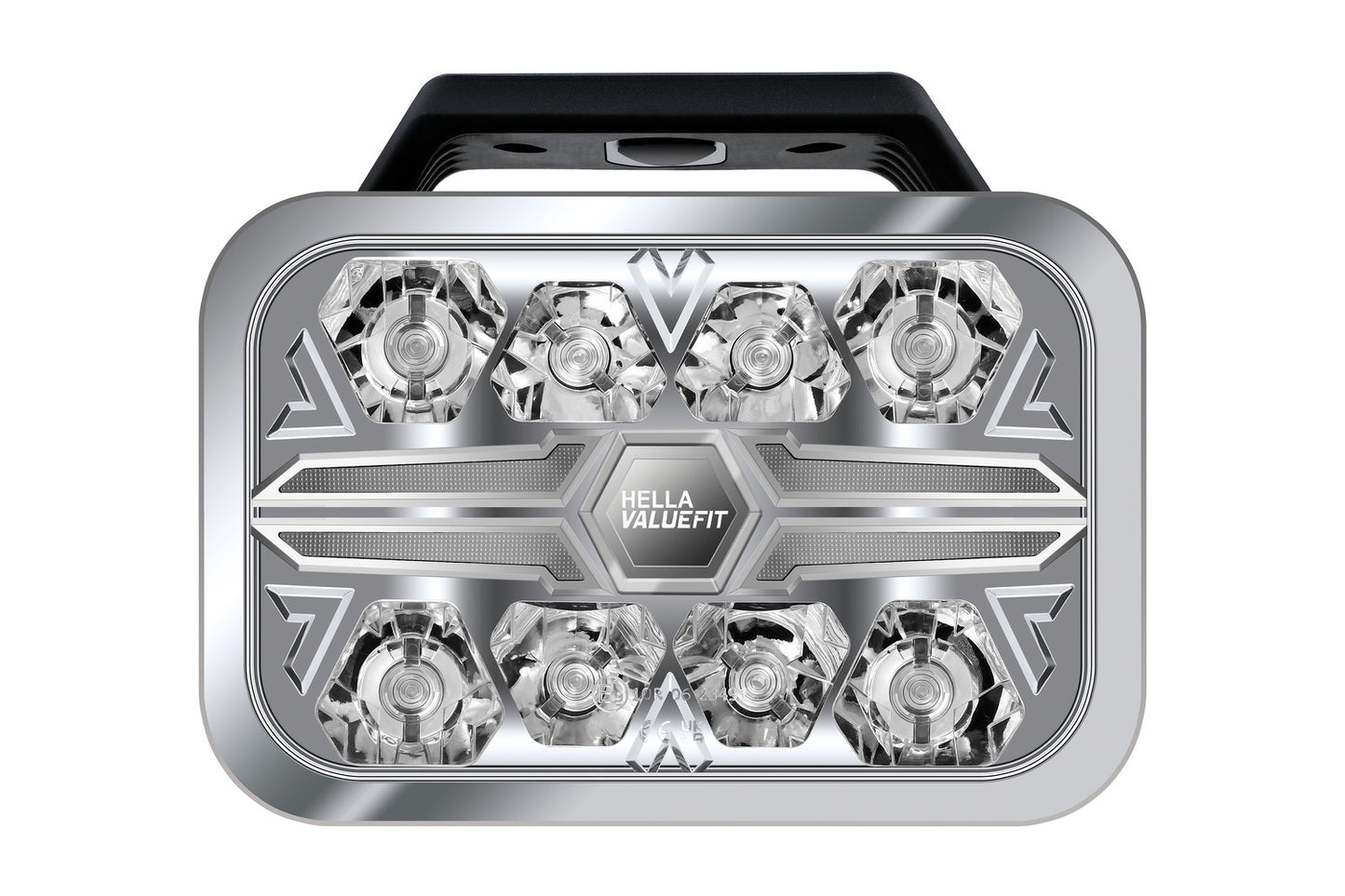

- Rectangular auxiliary headlight with innovative LED position light design with razor-sharp contour. Position light colour: white or yellow (connection optional)

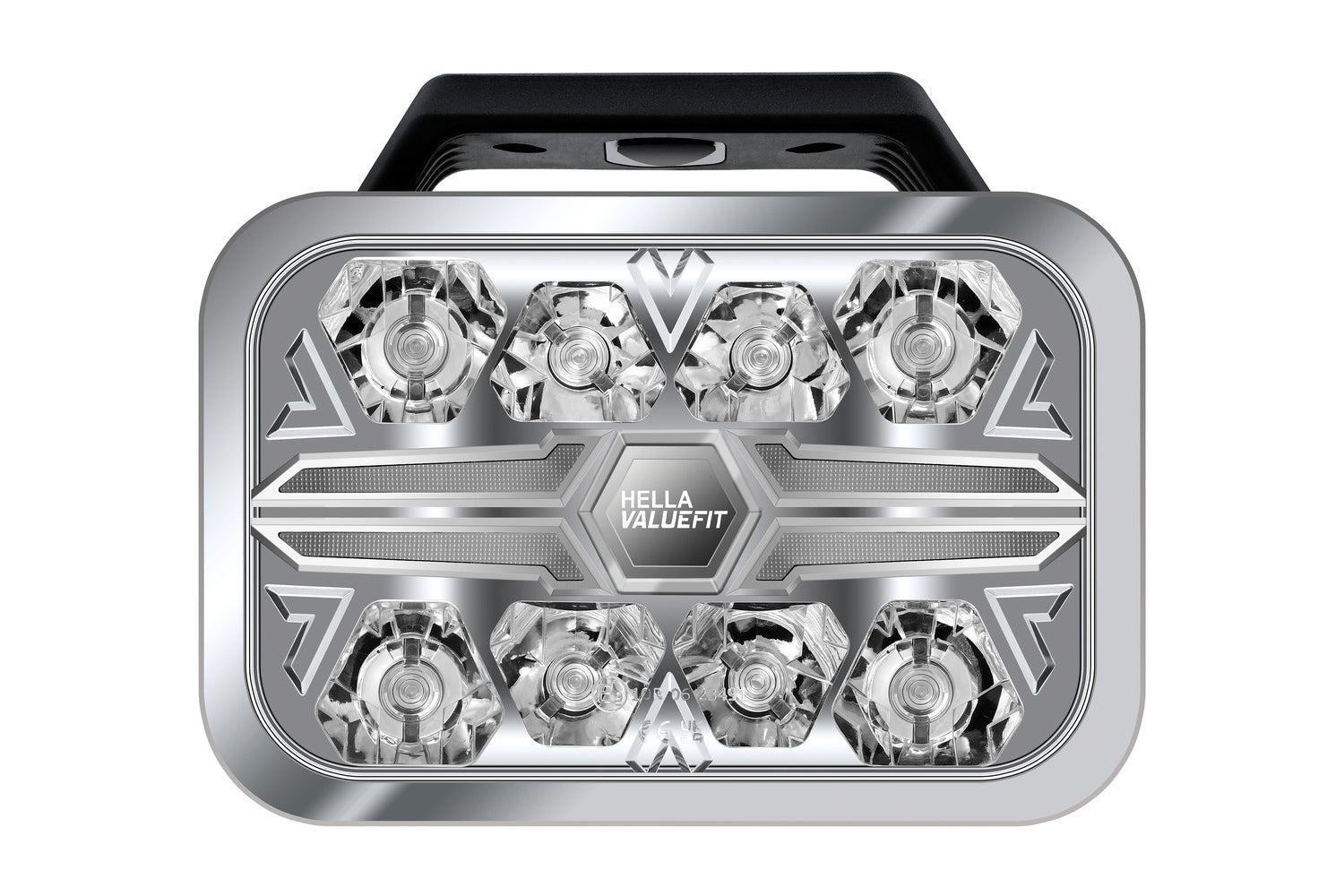

- 9" version with chrome design ring and ECE ref. 25. Ideal for hanging mounting on classic vehicles, off-road vehicles and SUVs.

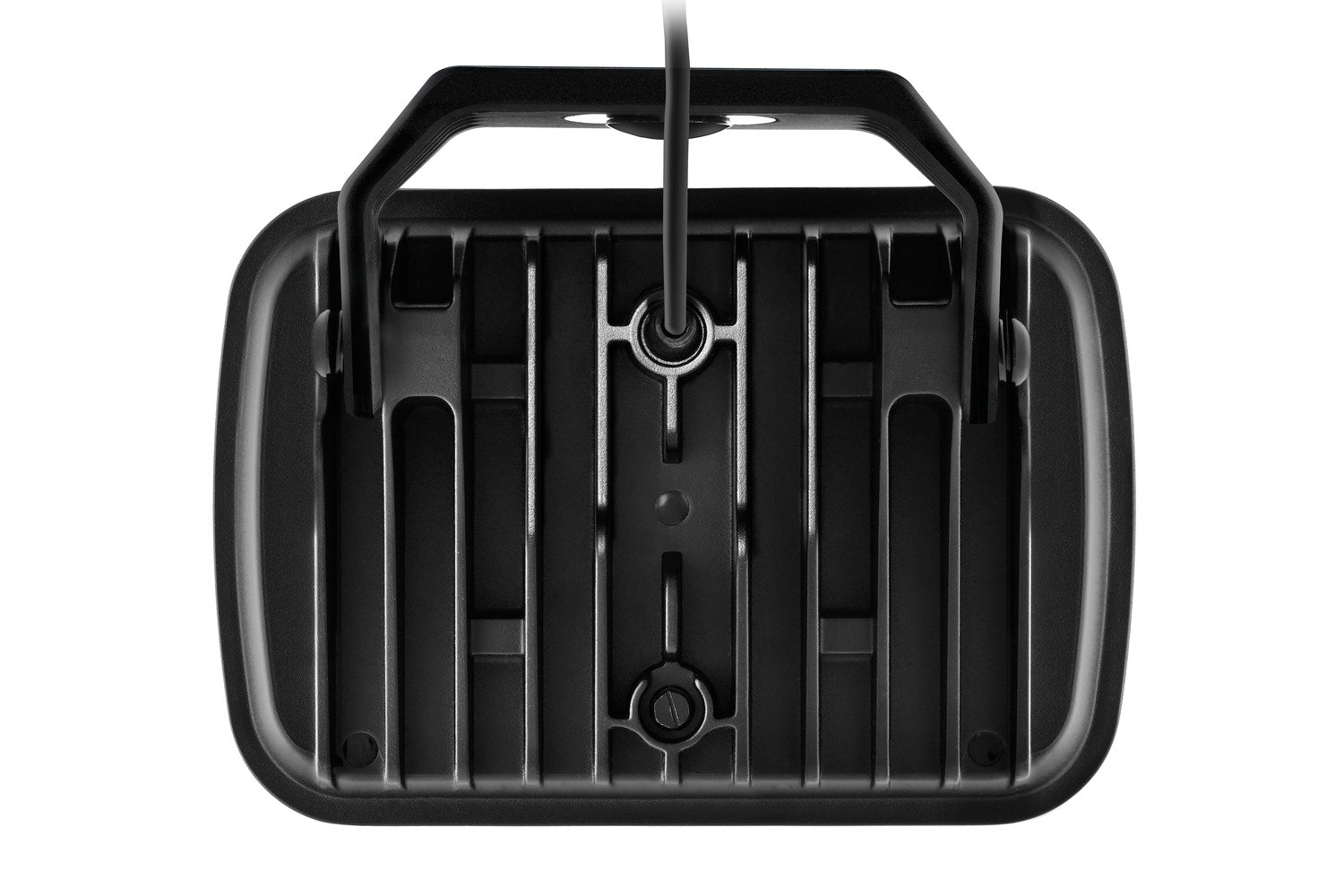

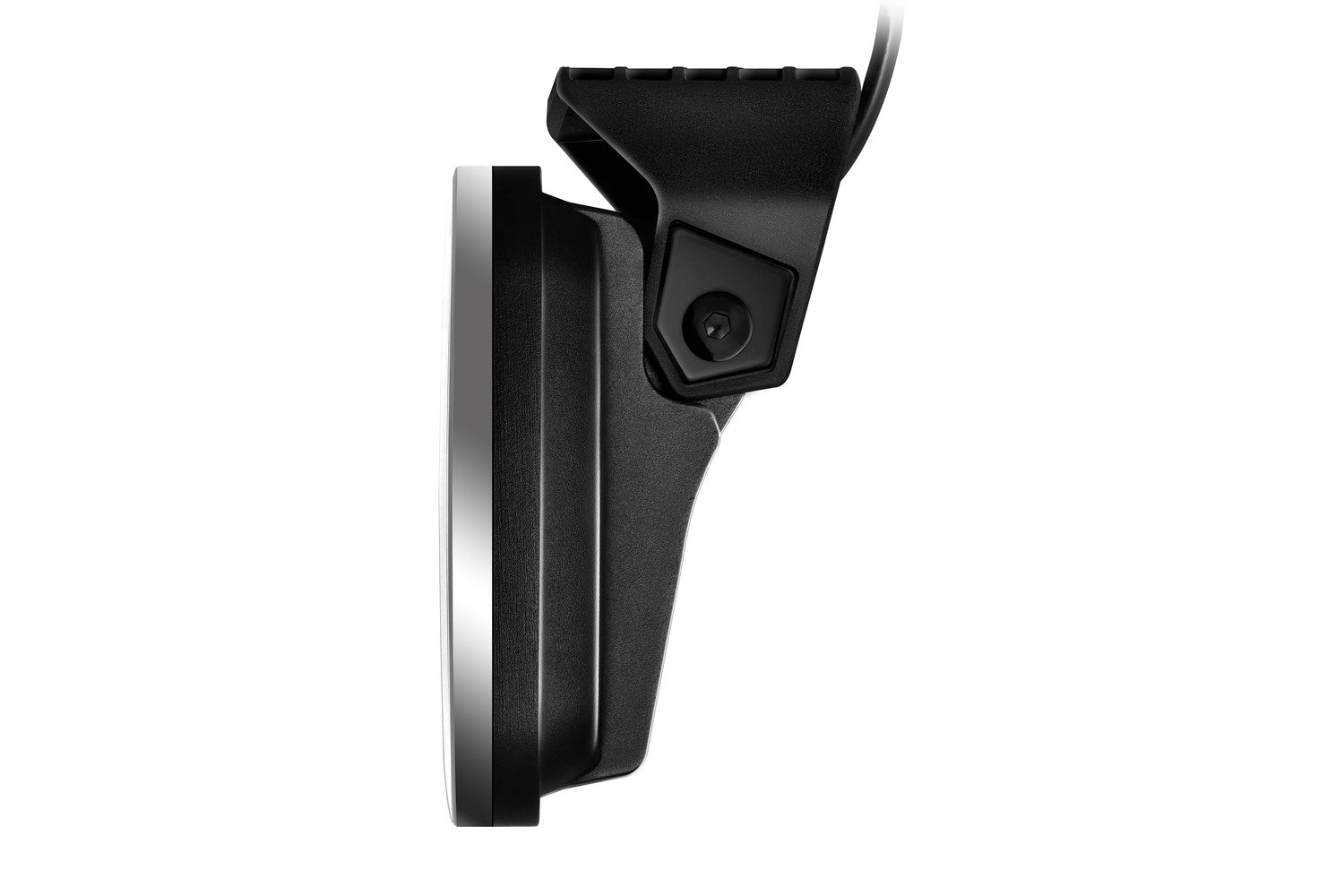

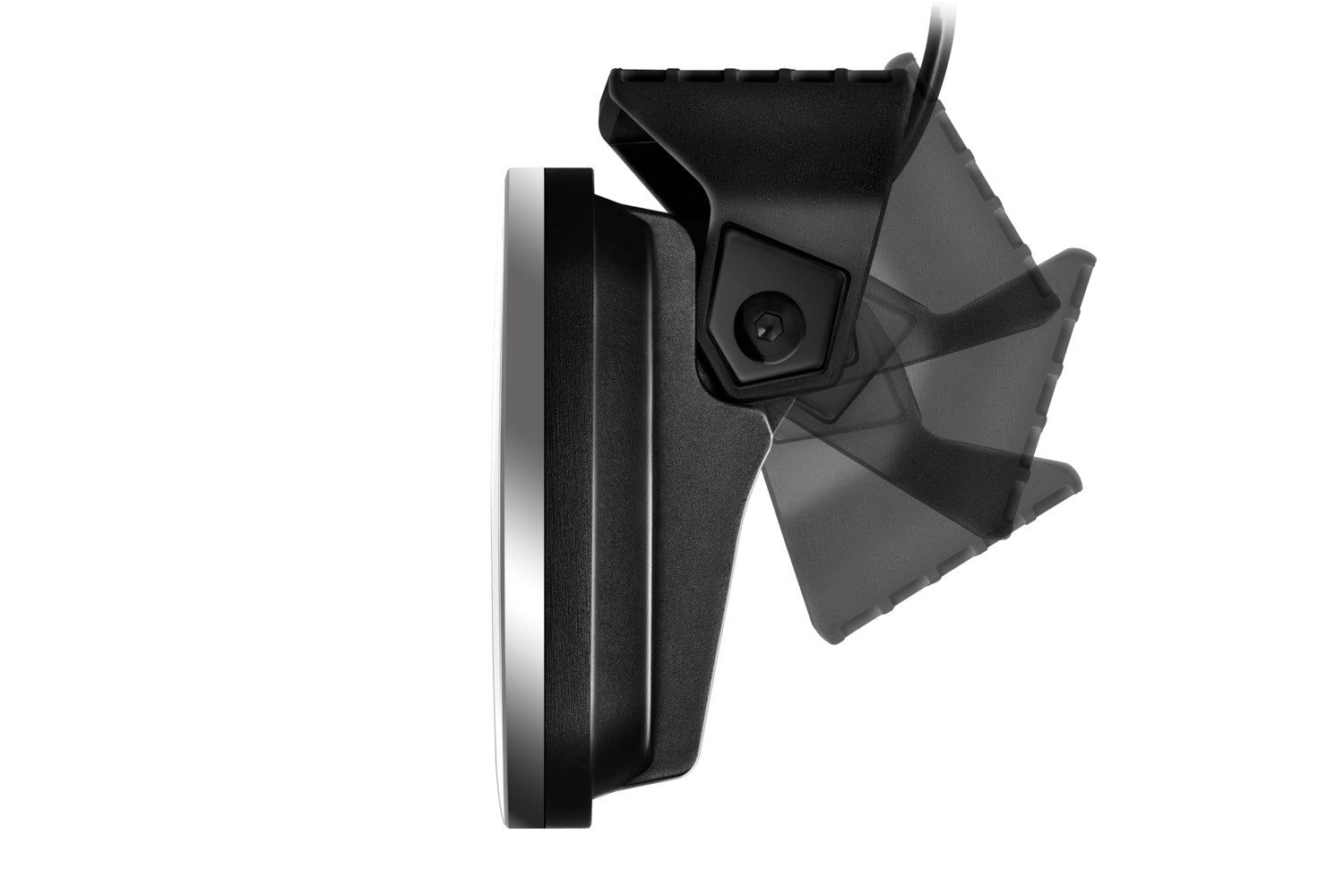

- High-quality robust auxiliary headlamp with aluminium housing and holder made of glass fibre (PA66 + GF). The low mounting depth allows flexible mounting in numerous mounting positions.
- ECE type-approved (ECE-R149 high beam, ECE-R148 position light (white position light), yellow position light is not ECE type-approved)
- The YELLOW position light does not have ECE approval: its use may be restricted to off-road areas outside of road traffic in accordance with local regulations (see installation instructions). Available separately: Protective cap 9" rectangular

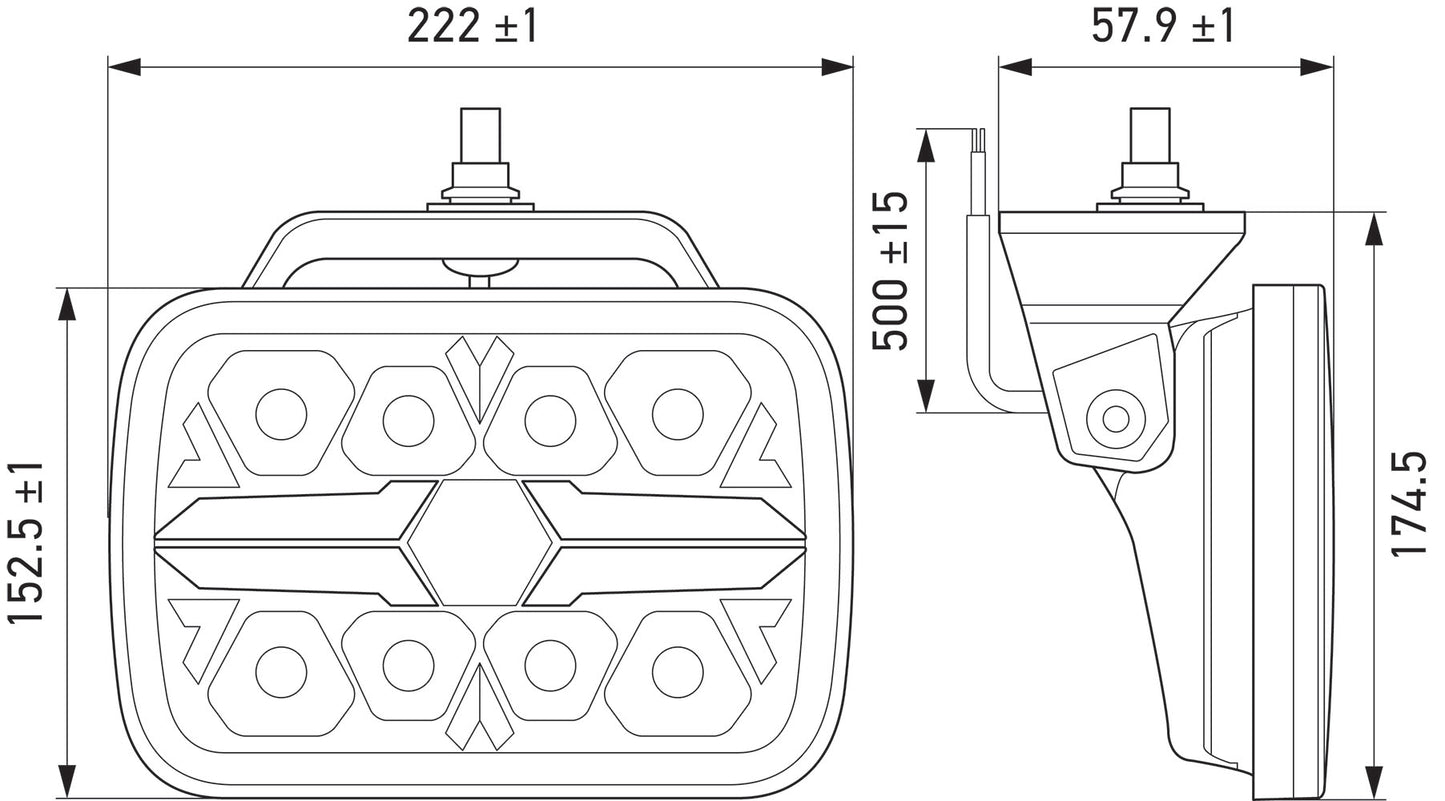

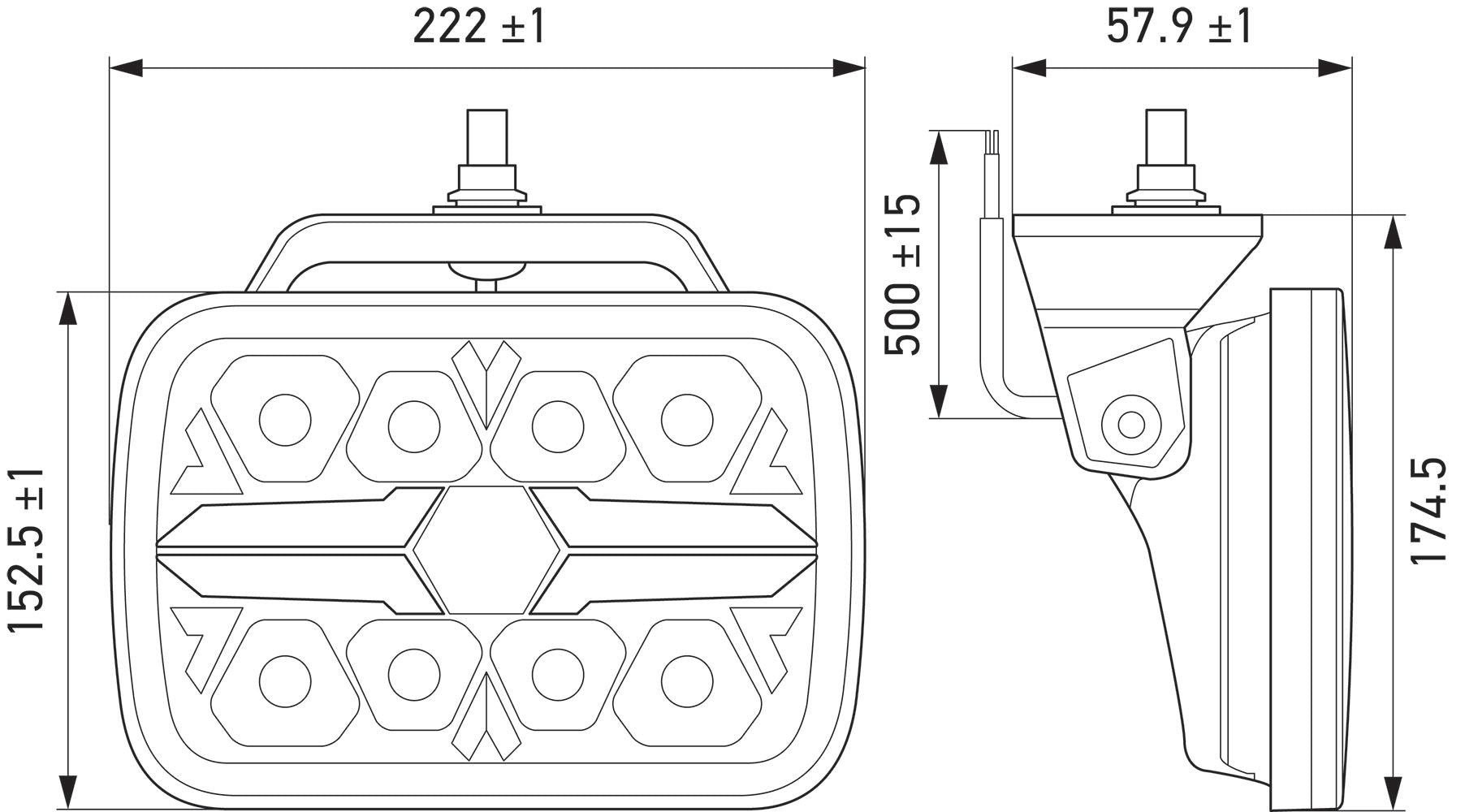

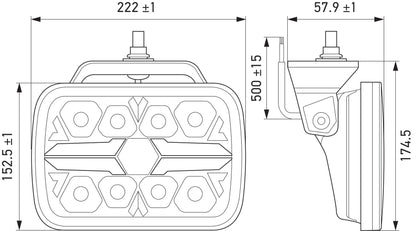

- Width: 222mm - Height: 153mm - Depth: 58mm - Fitting Depth: 99mm - Overall Height: 175mm - Lamp Type: LED - Number of LEDs: 6 - with LED
- Light functions: 2 - with high beam (LED)/with position light (LED)
Item Attributes:
Mounting Type: Bolted
Fastening Type: Suspended / Screw-on
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Fitting Position: frontal sided
Width: 222 mm
Height: 153 mm
Overall Height: 175 mm
Depth: 58 mm
Fitting Depth: 99 mm
Light Function: with high beam (LED) / with position light (LED)
Light functions: 2
Light colour: yellow (amber) / white
Colour: chrome
Supplementary Article/Supplementary Info: with LED
Number of LEDs: 6
fulfils ECE standard: R149 / R148 / R10
Reference number: 25

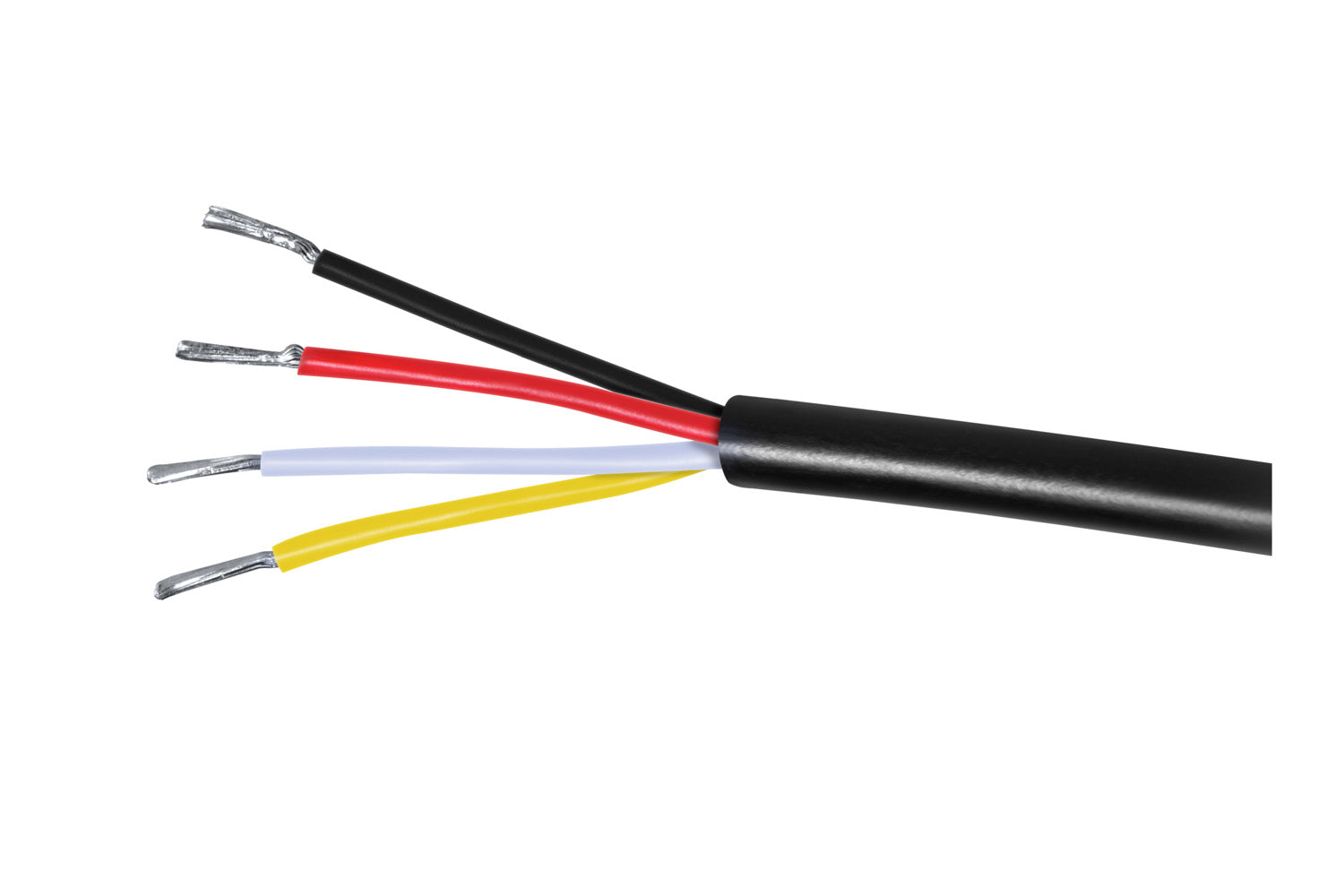

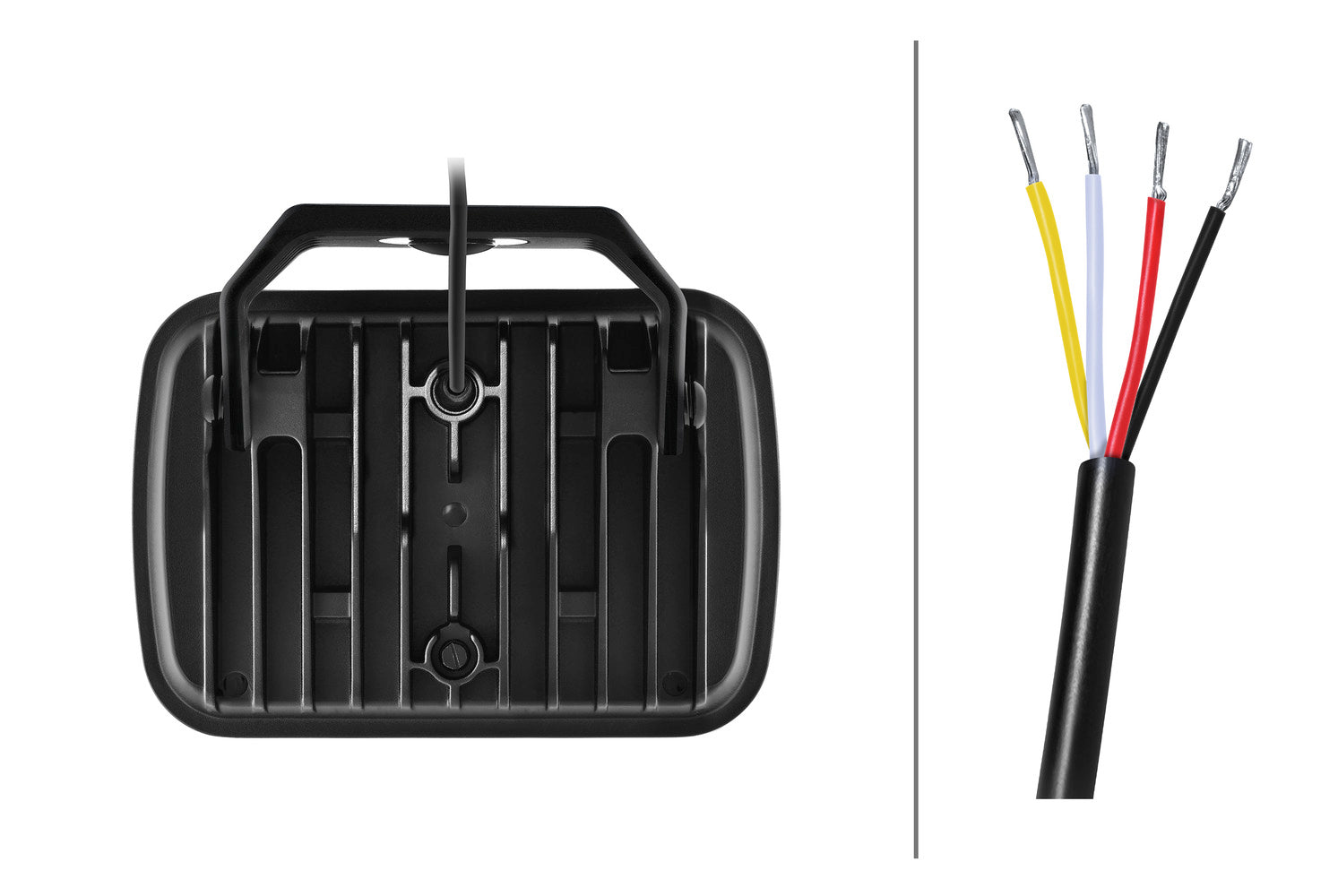

Cable: 500 mm
Lens Colour: Crystal clear
Diffusing Lens Type: Clear diffusing lens
Frame Colour: chrome
Shape: rectangular
Housing Colour: black
Length: 9 "
Housing material: Aluminium
Prot.type (IP Code): IP67 / IP69K
Colour Temperature: 6000 K
Registration Type: ECE
Luminous Flux: 2600 lm
Power consumption: 36 W
Weight: 1550 g
Assembly by qualified personnel required!
OE references: DAF 1551465
