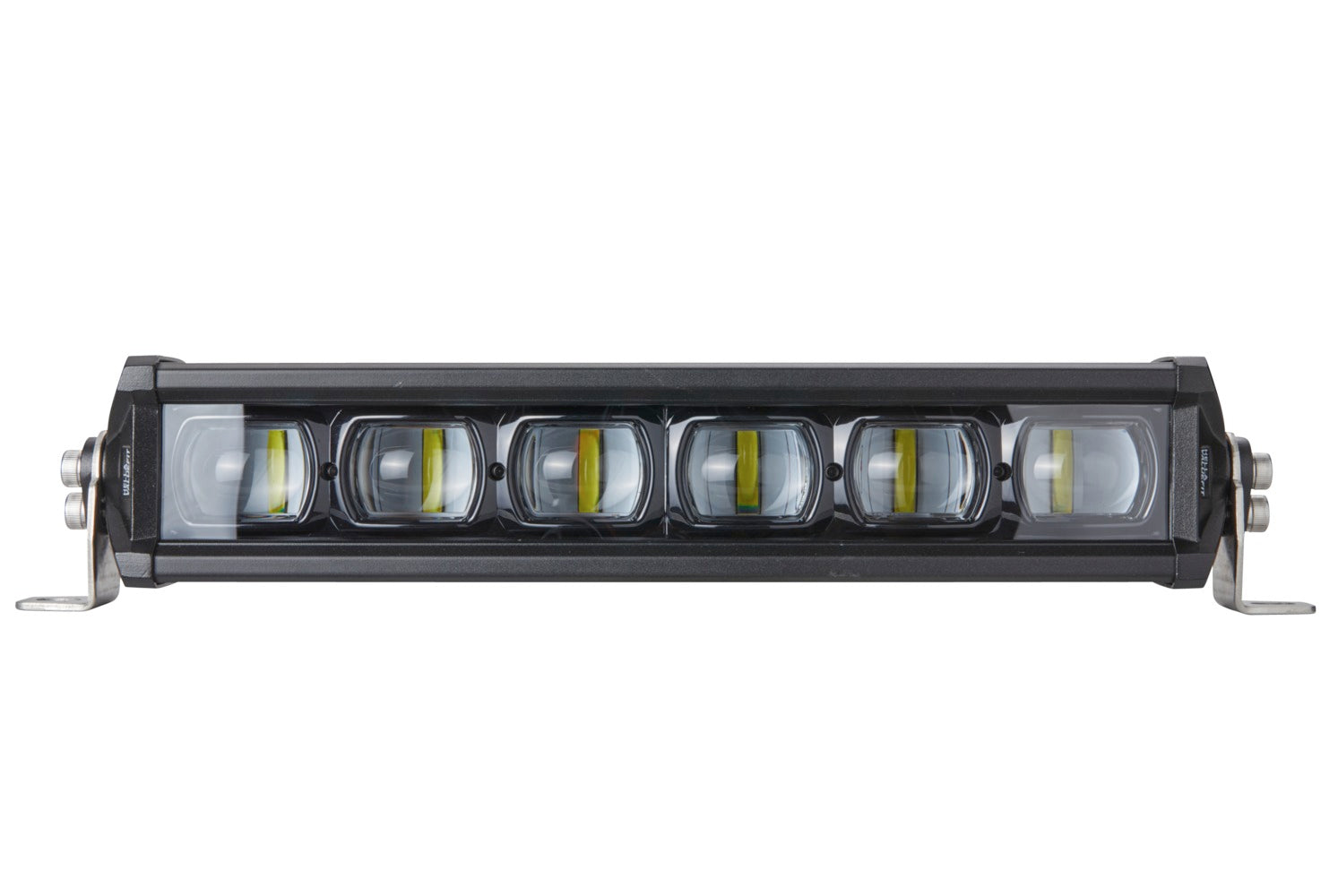

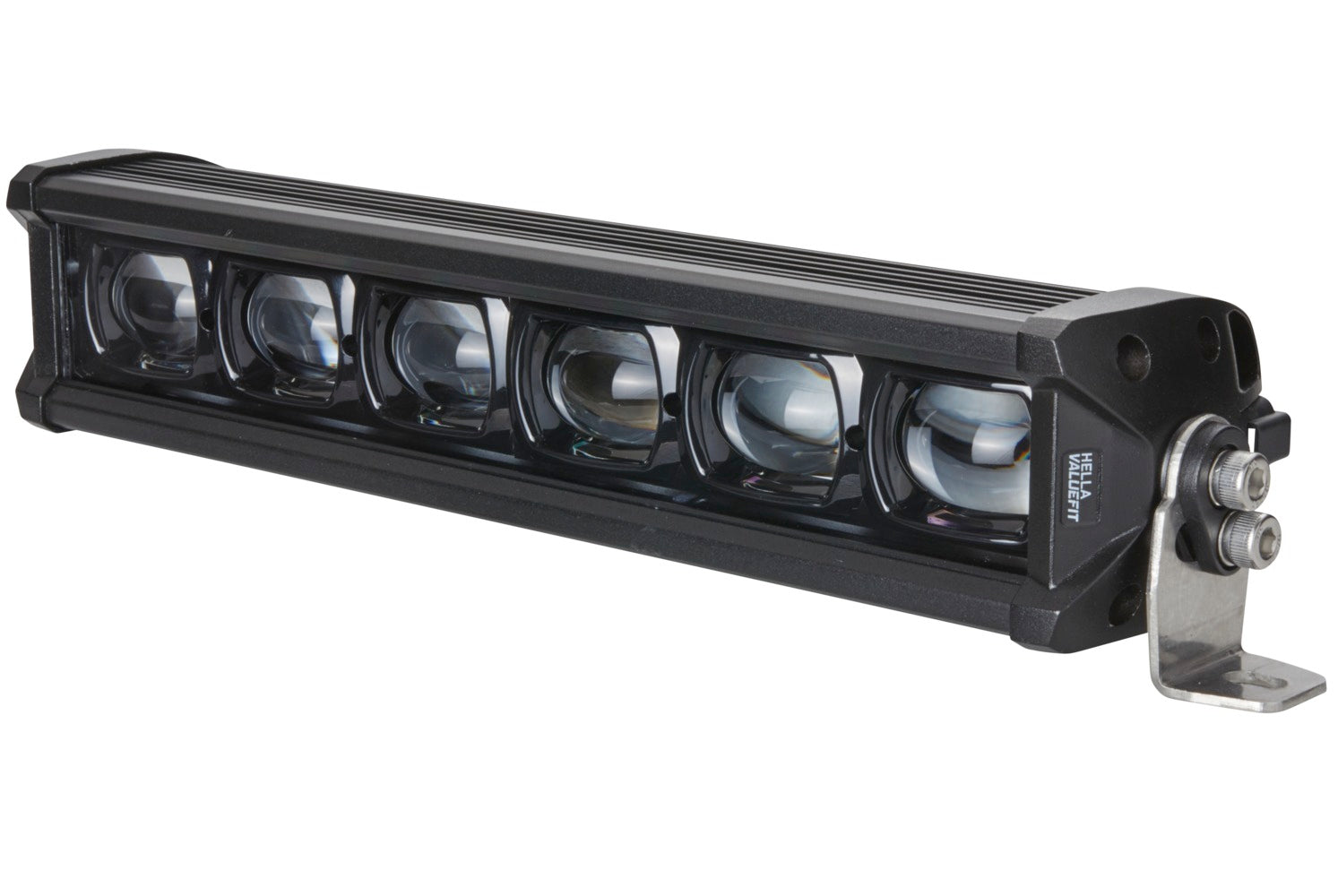

HELLA VALUEFIT LED-Worklight Lightbar LBX-380 - 24/12V 1GJ360001-002

LED-Worklight Lightbar LBX-380 - 24/12V - 2000lm - mounting/Bolted - Vertical/Suspended - Short-Range Illumination - Cable: 2000mm - Plug: DEUTSCH plug

The new light bar series includes four worklights in an elongated design in different lengths and light intensities. Cooling fins on the back of the aluminium housing ensure the necessary heat dissipation of the high-power LEDs. The innovative lens technology of the LBX Lightbars creates homogeneous illumination for both near-field and far-field illumination. The light intensity starts with the LBX 220 LED at 1,000 lumens and extends to the powerful LBX 720 LED with an effective light output of 5,500 lumens. For optimal illumination, a low mounting height of between 0.50 and 1.50 metres is recommended. This distributes the light over a large area and evenly into the workspace, significantly improving working conditions at night. The longer LBX 540 and LBX 720 versions offer the combination of wide-beam lenses for the near-field area and narrow-beam lenses in the centre for long-range illumination. The perfect combination for large-area illumination in front of the vehicle.

• The innovative lens technology of the LBX Lightbars creates a homogeneous illumination for both close-range and close-range illumination.

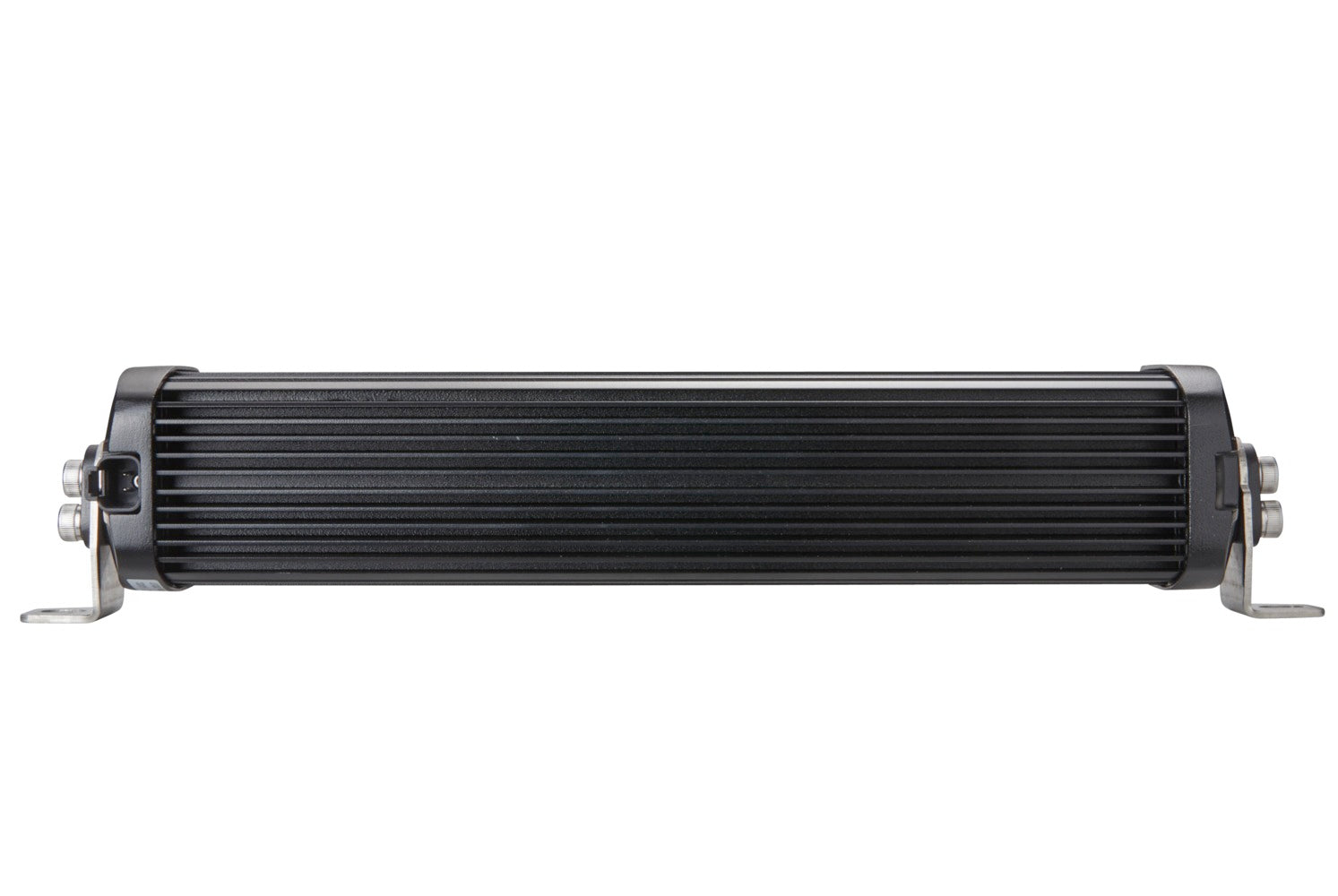

• Cooling fins on the back of the aluminium housing ensure the necessary heat dissipation of the high-power LEDs.
• The light is distributed extensively and evenly over a large area in the working area and ensures a significant improvement in working conditions at night.
• Lamp Type: LED - Number of LEDs: 6 - Power consumption: 44W - Colour Temperature: 6500K
• Patterned diffusing lens
• fulfils ECE standard: R10 - Prot.type (IP Code): IP6K9K/IP6K7
• Aluminium Housing - Housing Colour: Black - Diffusing Lens Material: Glass

Item Attributes:

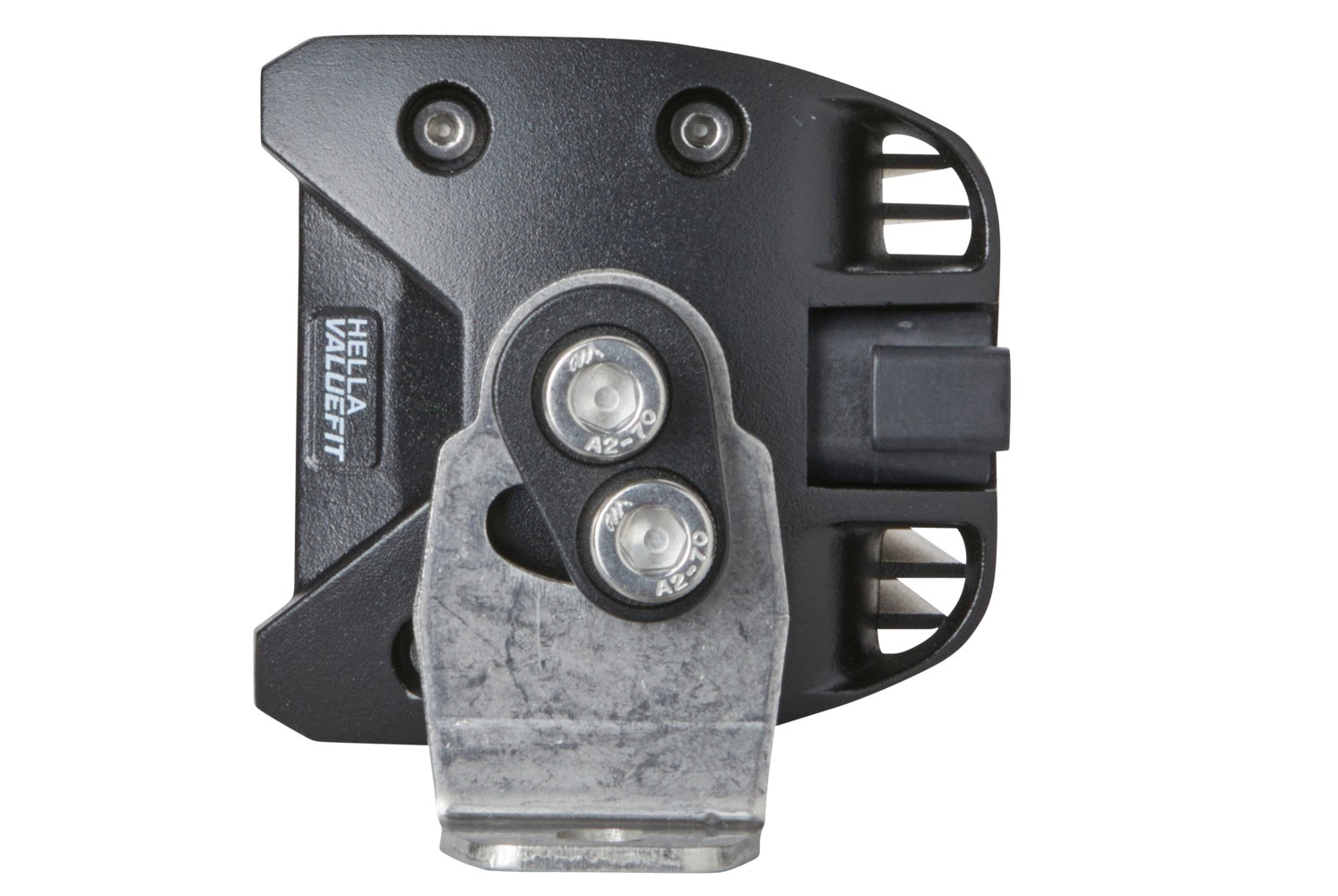

Mounting Type: Bolted / mounting
Fastening Type: Suspended / Vertical
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Height: 86 mm
Width: 374 mm
Depth: 80 mm
Light Distribution: Short-Range Illumination
fulfils ECE standard: R10

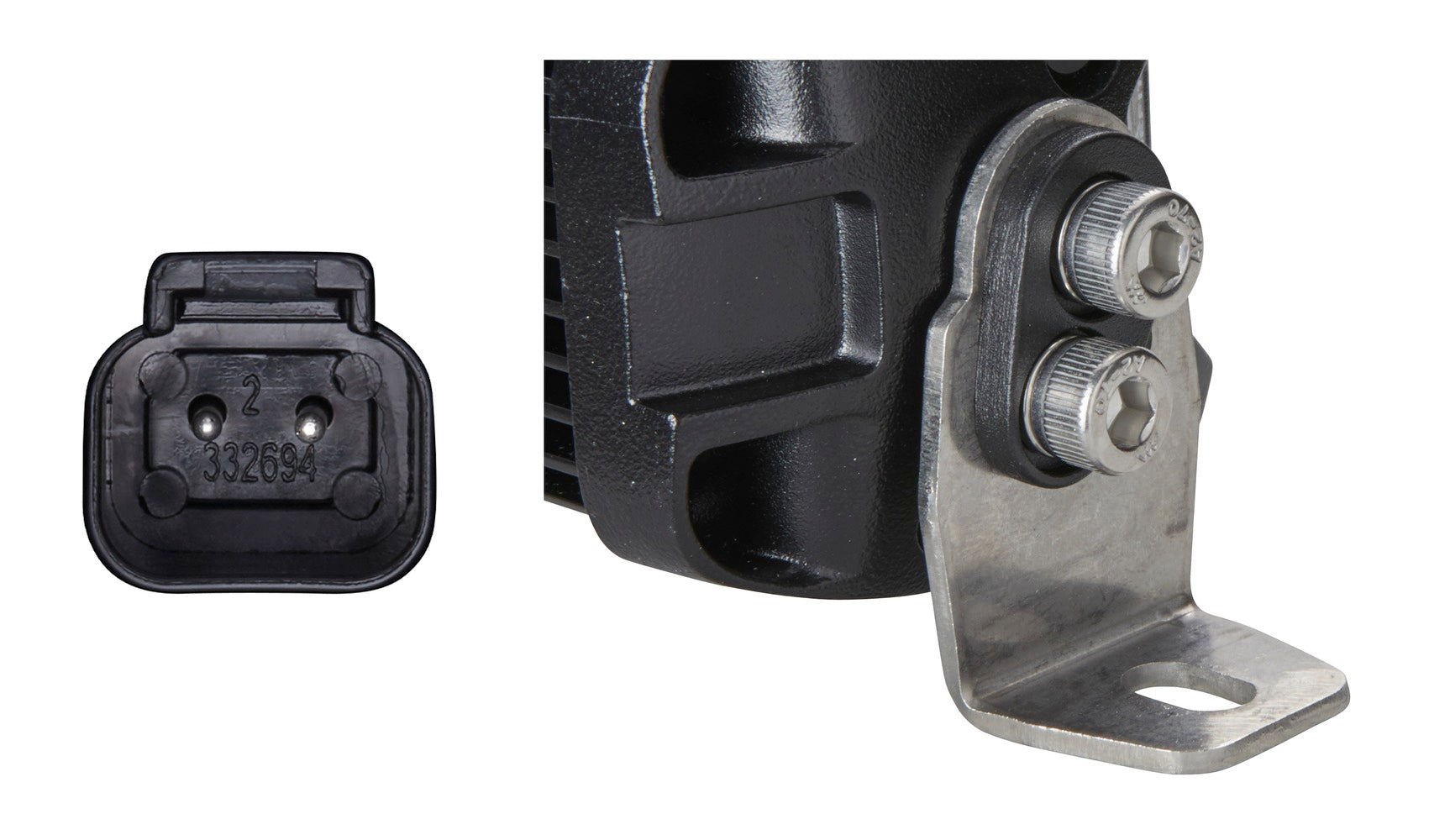

Plug: DEUTSCH plug
Prot.type (IP Code): IP6K7 / IP6K9K
Luminous Flux: 2000 lm
Colour Temperature: 6500 K
Number of LEDs: 6
Power consumption: 44 W
Cable: 2000 mm
Housing Type: Aluminium Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!
