Description

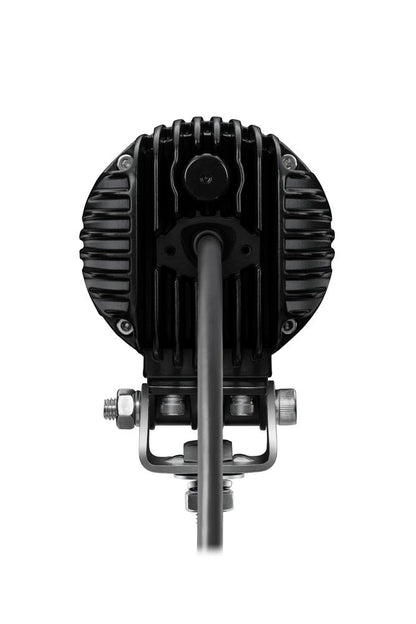

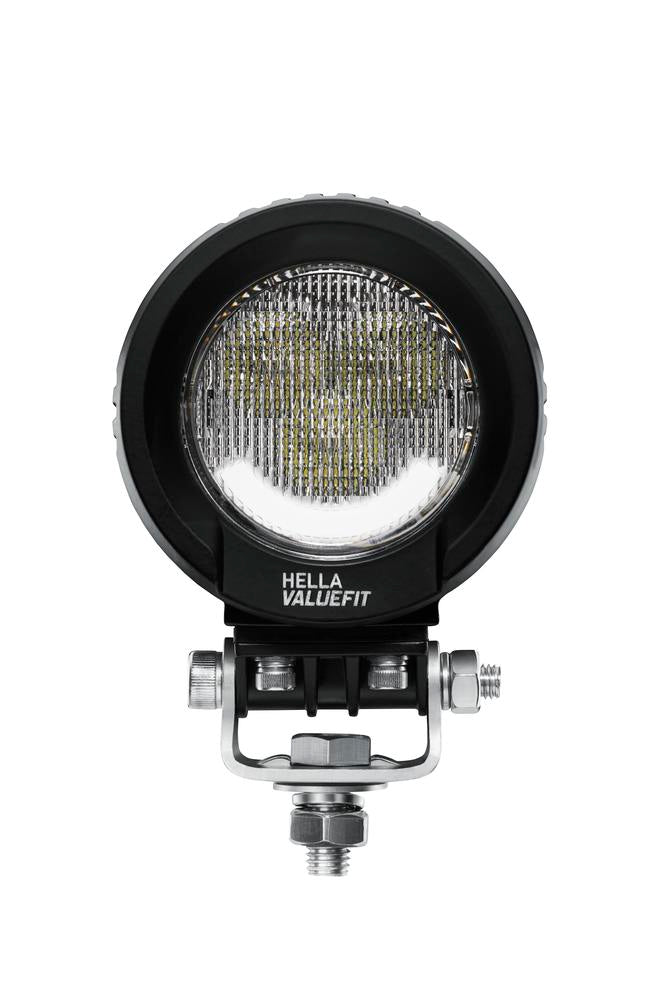

LED-Worklight R2100 2.0 - 12/24V - 2100lm - Bolted - Bracket system - Short-Range Illumination - Cable: 800mm - Plug: DEUTSCH plug - Quantity: 1

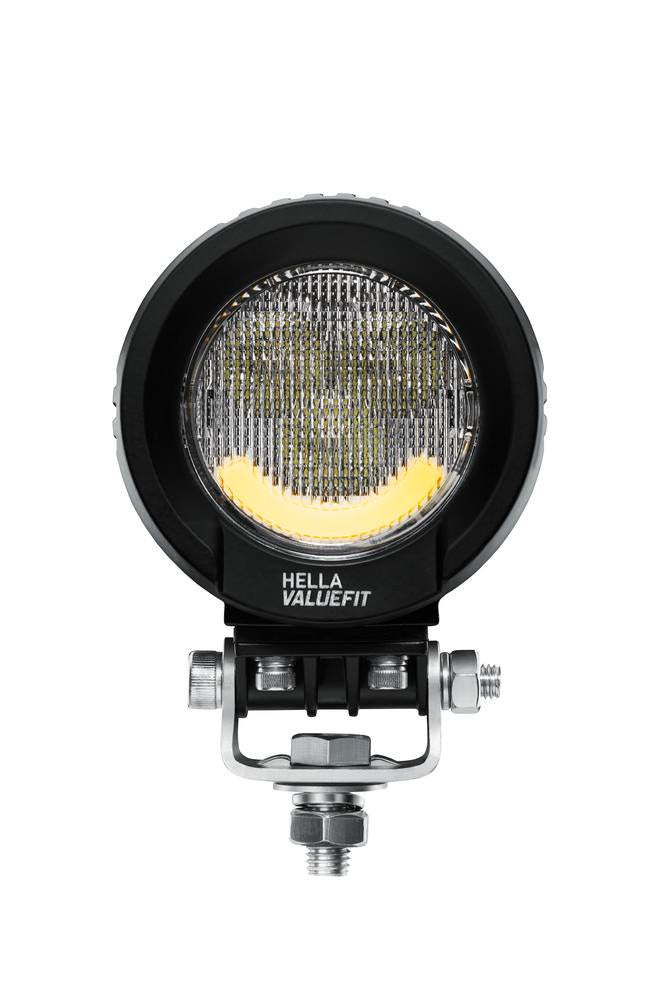

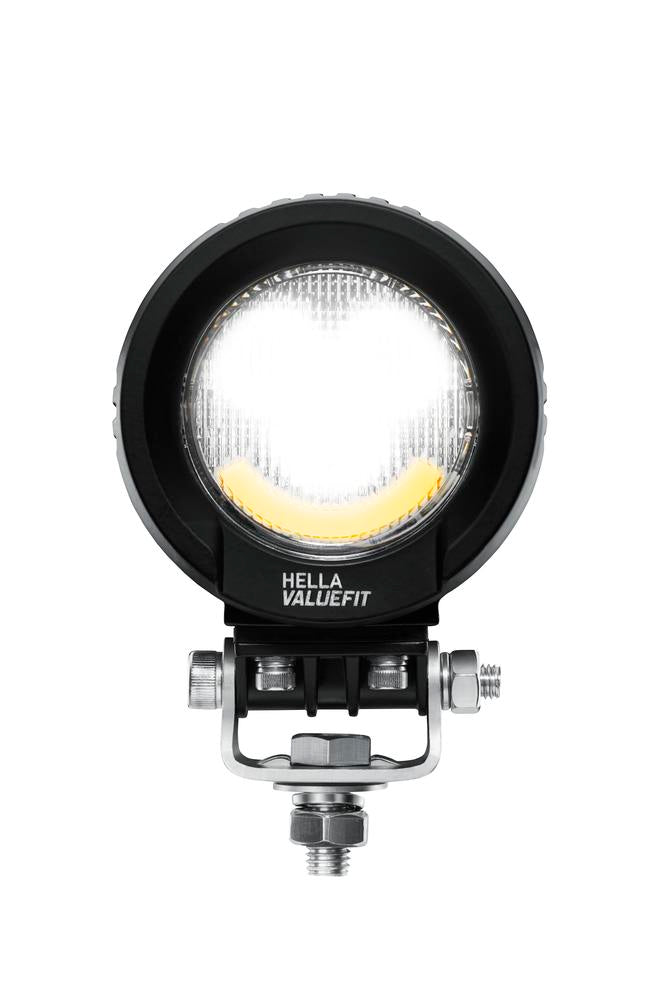

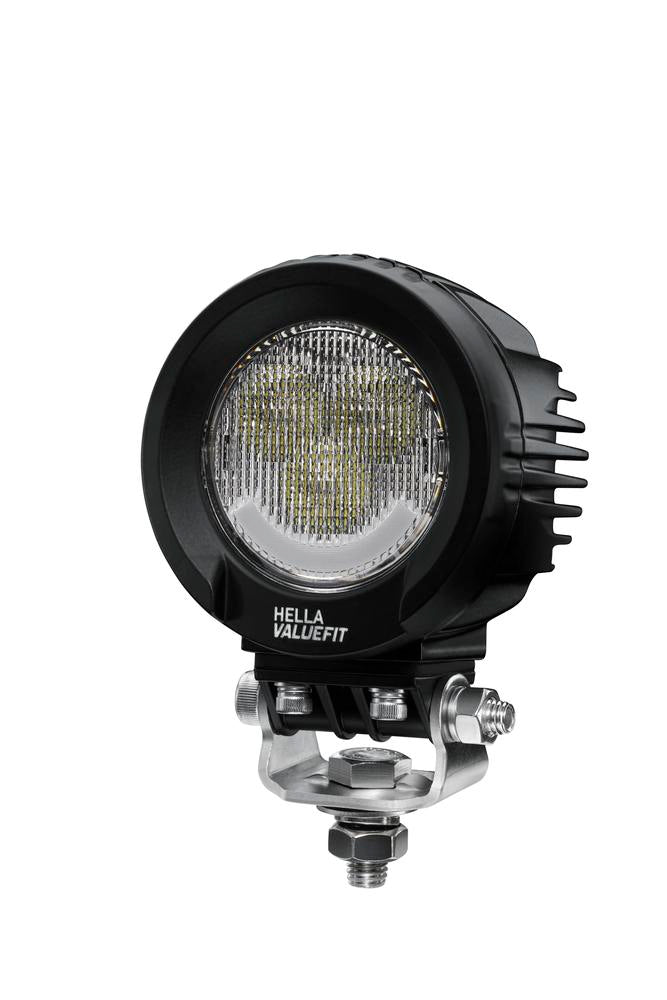

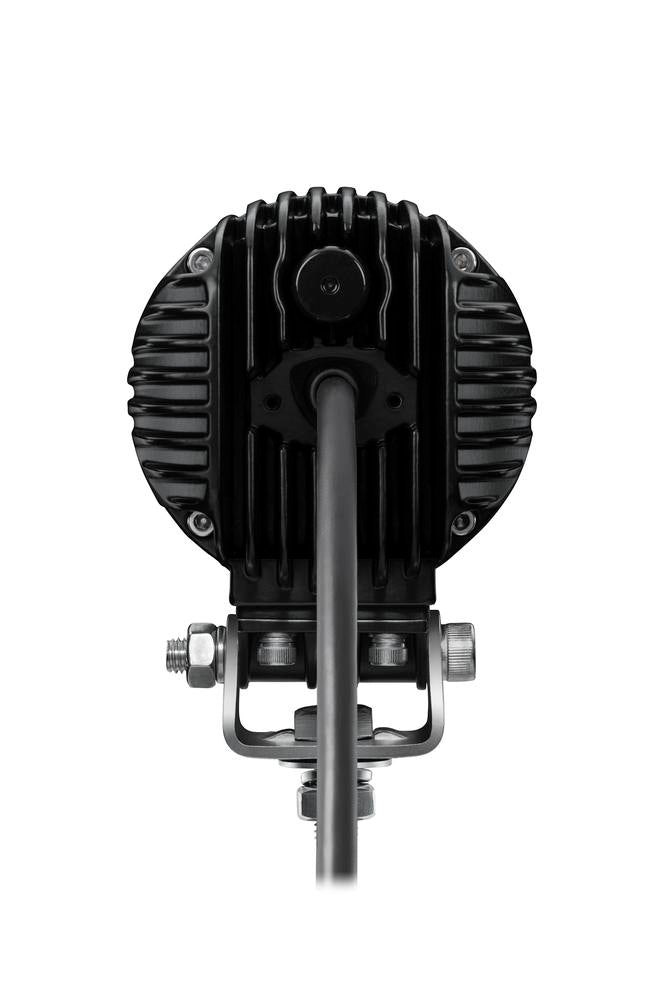

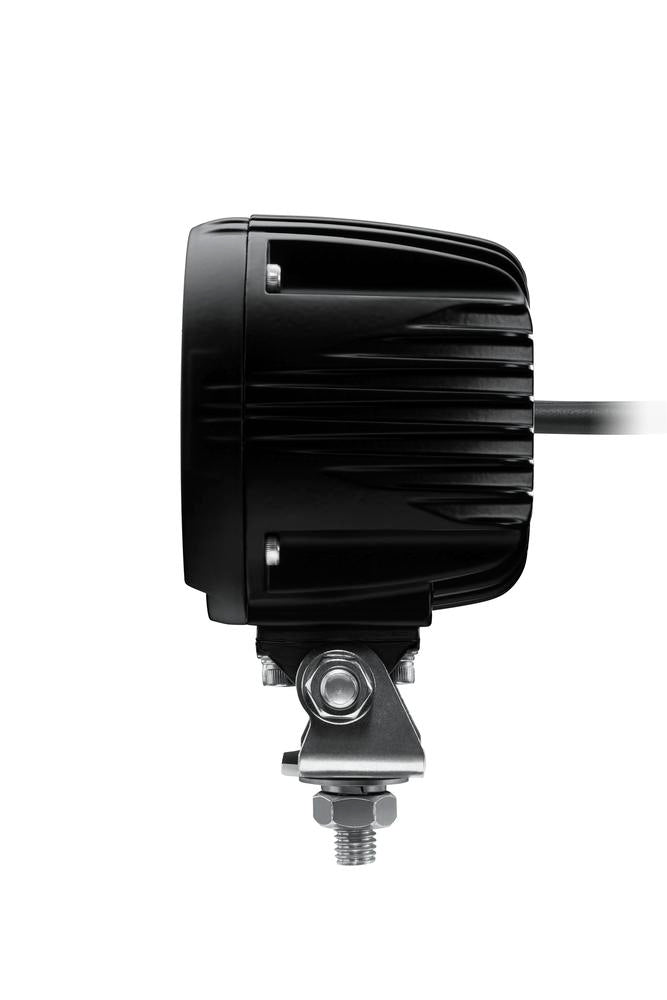

The HELLA ValueFit R2100 LED work lamp series has on offer round work lamps for close-range illumination. These compact lamps with a diameter of 91 mm were developed to meet the requirements of diverse working environments. A light performance of 2,100 lumens and an attractive design have been married together in these compact LED work lamps. The R2100 2.0 version allows the vehicle's lighting upgrade to be combined with the possibility of customising the vehicle design. These work lamps have an additional position light function that can be installed with either a white or amber position light. The white position light is homologated in accordance with ECE R148 and can be used in road traffic situations. The amber position light can only be used off-road and it creates a veritably striking feature.
- Universal LED work lamp for close-range illumination

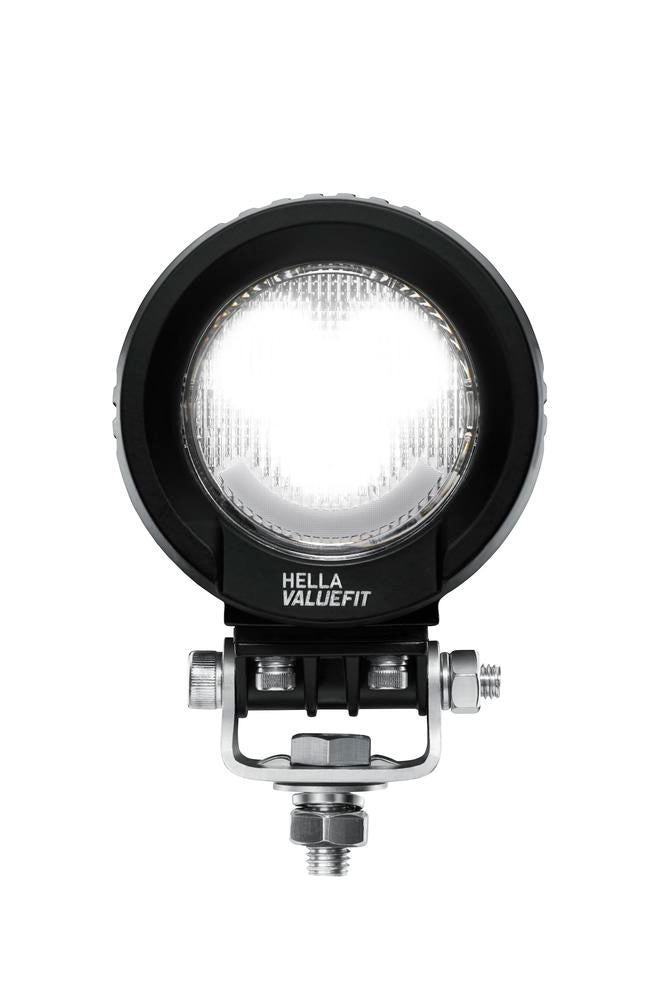

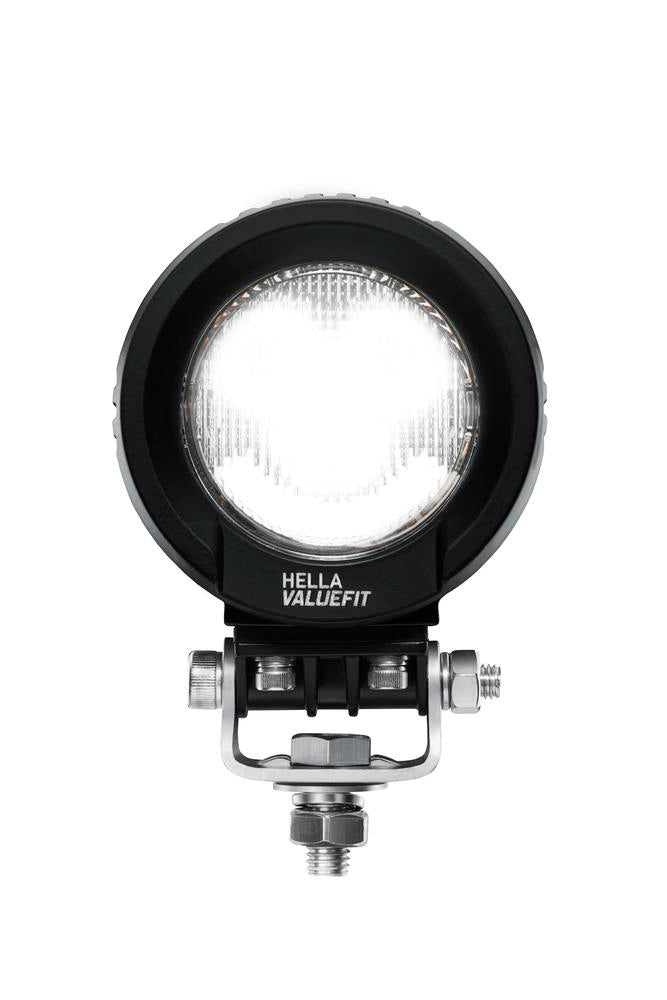

- Position light in white (ECE R148) or amber (only for off-road use)

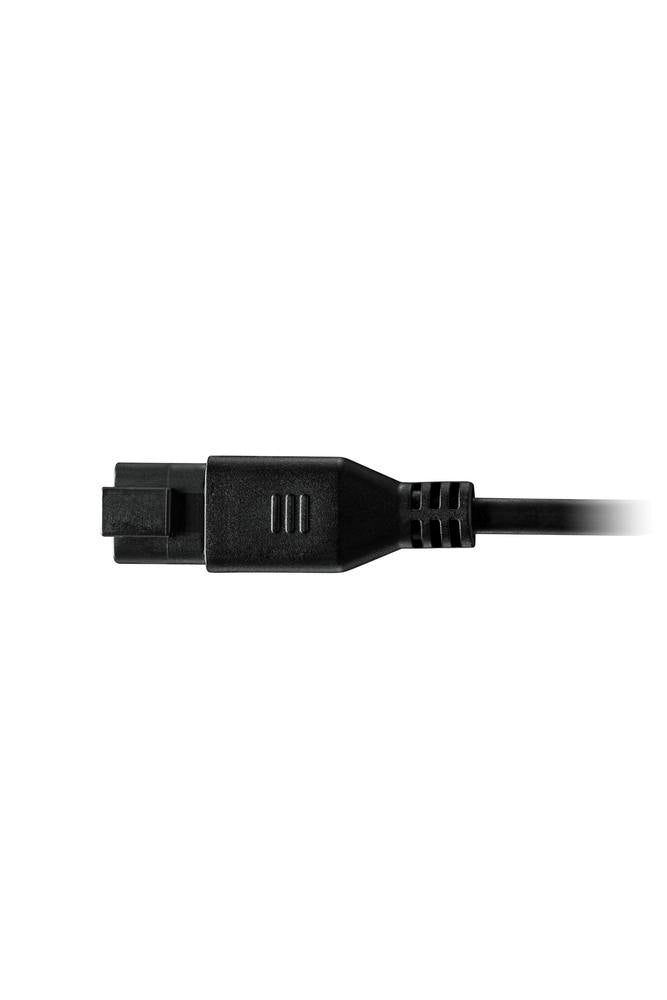

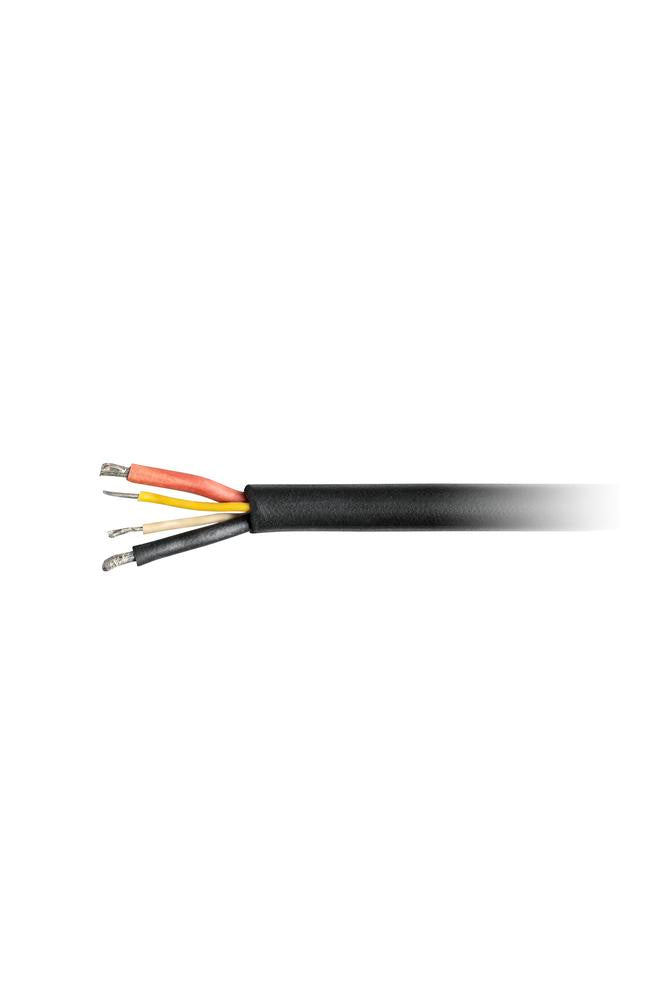

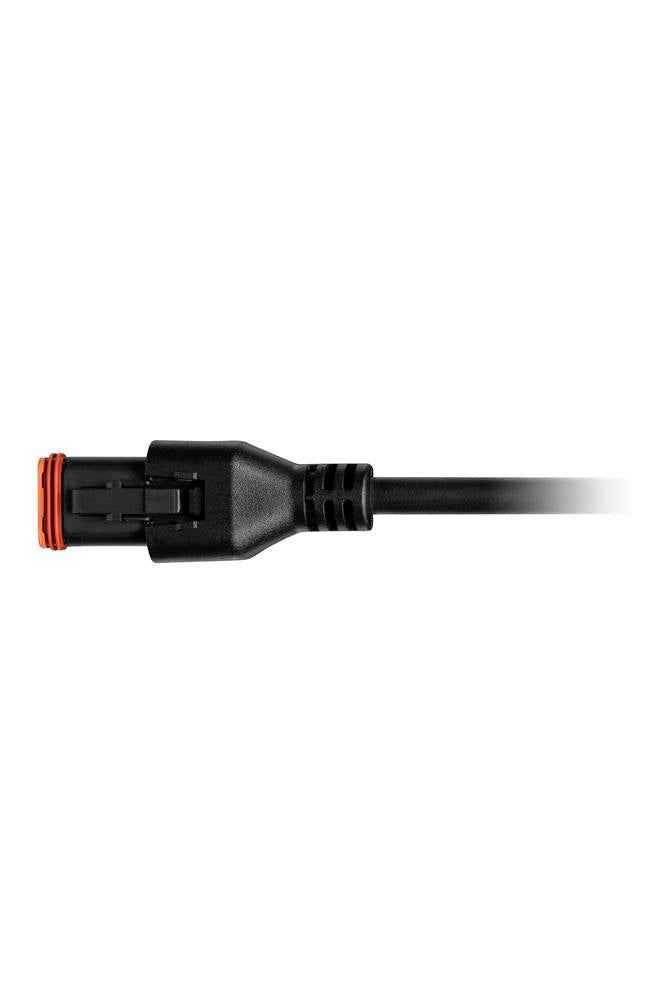

- Lens: special plastic, housing: aluminium, bracket: stainless steel, 300 mm harness with 4-pin DEUTSCH DT connector with 500 mm cable
- Mounting: upright; for use in road traffic, this work lamp with its white position light is to be mounted without any angle of inclination (0°). Max. mounting height: 400 – 2,500 mm
- The AMBER position light does not have ECE approval: use is limited to off-road areas away from road traffic on public highways (see installation instructions).
- Lamp Type: LED - Number of LEDs: 4 - Power consumption: 27W - Colour Temperature: 6500K
- with position light (LED) - Patterned diffusing lens
Item Attributes:
Mounting Type: Bolted
Fastening Type: Bracket system
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Voltage from: 12 V
Voltage to: 24 V
Light Function: with position light (LED)
Height: 123 mm
Width: 91 mm
Depth: 75 mm
Light Distribution: Short-Range Illumination
fulfils ECE standard: R10 / R148
Prot.type (IP Code): IP67
Luminous Flux: 2100 lm
Colour Temperature: 6500 K
Number of LEDs: 4
Power consumption: 27 W
Supplementary Article/Supplementary Info 2: with adapter
Cable: 800 mm
Housing Colour: black
Diffusing Lens Material: PC (Polycarbonate)
Diffusing Lens Type: Patterned diffusing lens
Theoretical luminous flux: 2700 lm
Housing material: Die-Cast Aluminium
Plug: DEUTSCH plug
Registration Type: ECE
Temperature range from: -40 °C
Temperature range to: +65 °C
Quantity: 1
Weight: 784 g
Assembly by qualified personnel required!
