Description

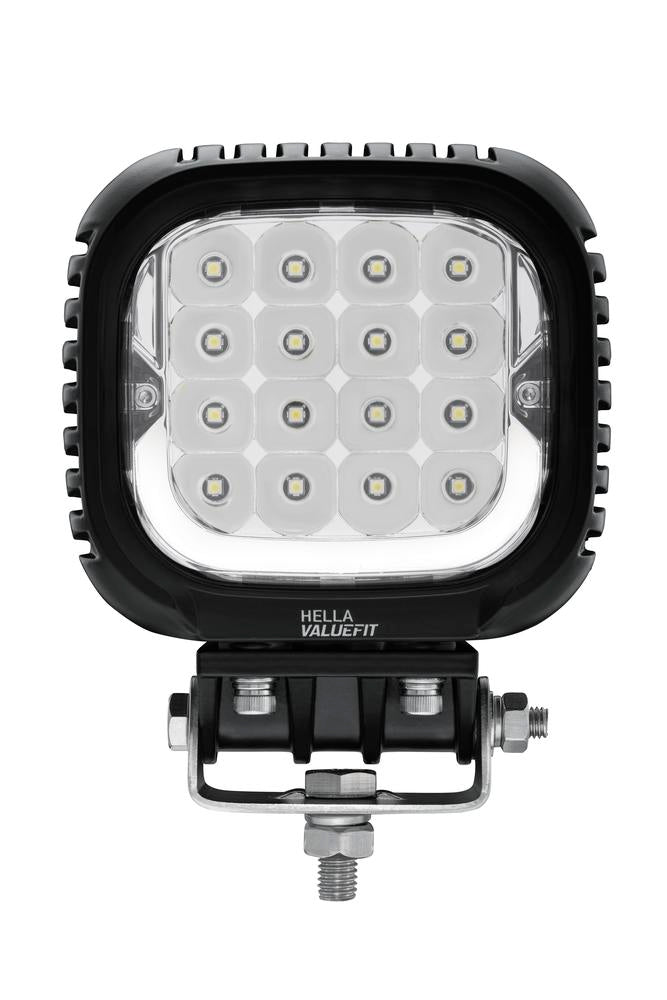

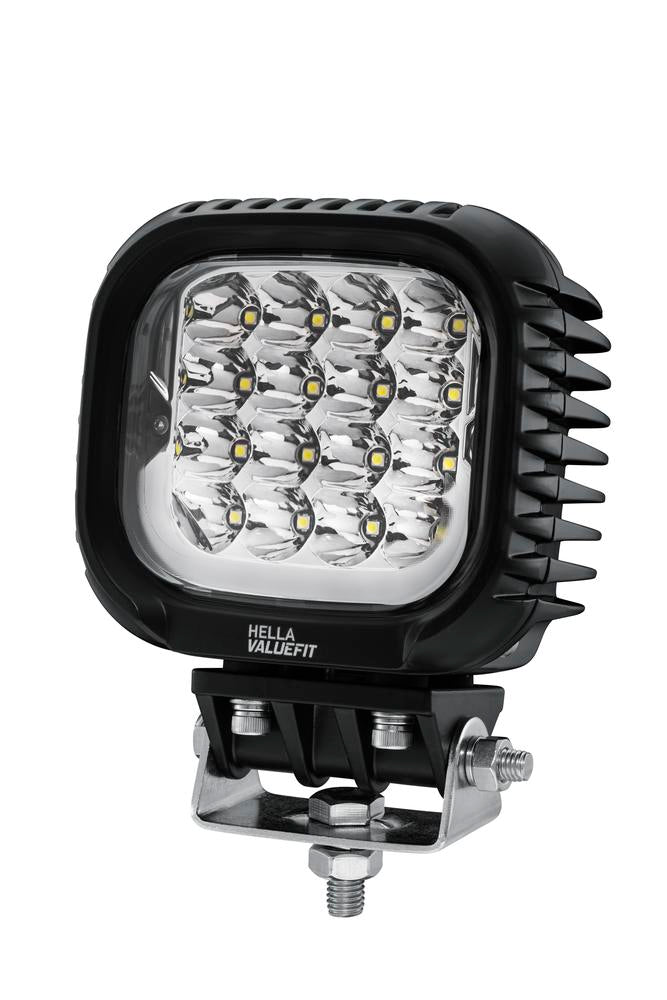

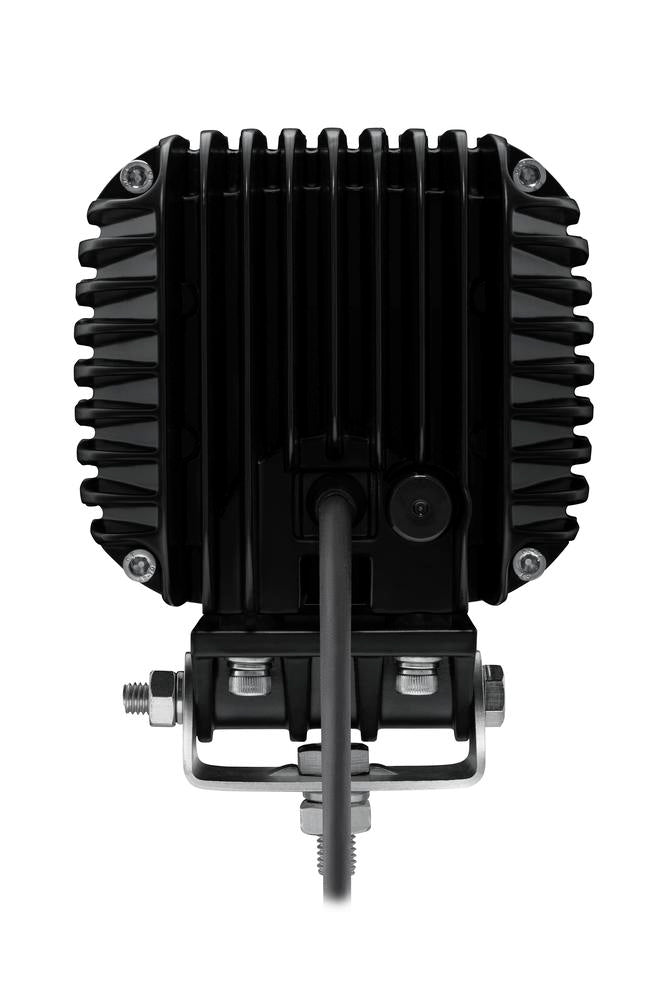

LED-Worklight S5000 2.0 - 12/24V - 5000lm - Bolted - Bracket system - Long-range illumination - Cable: 800mm - Plug: DEUTSCH plug - Quantity: 1

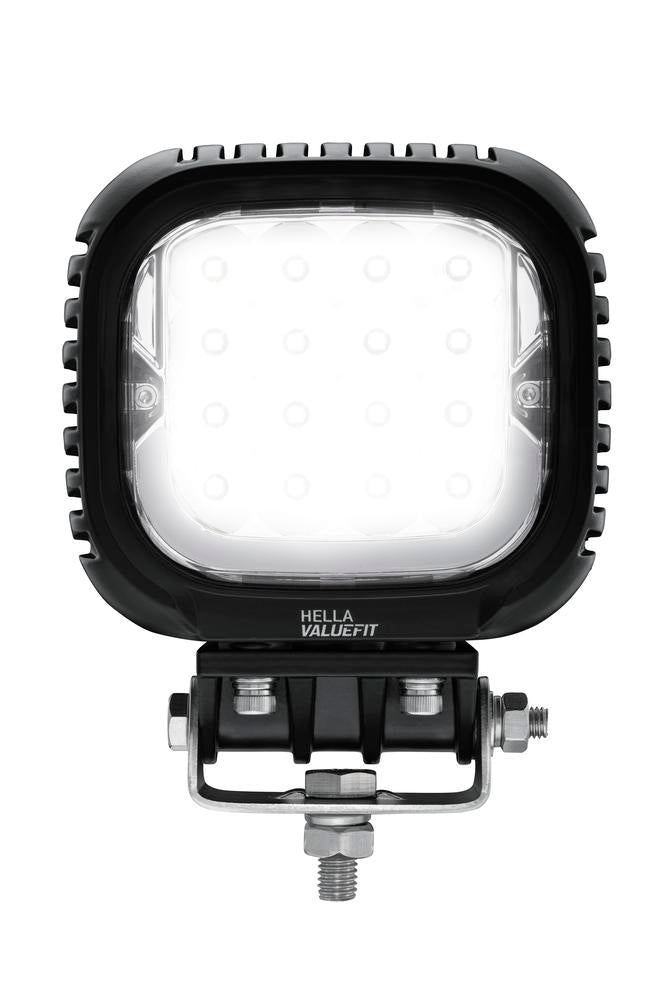

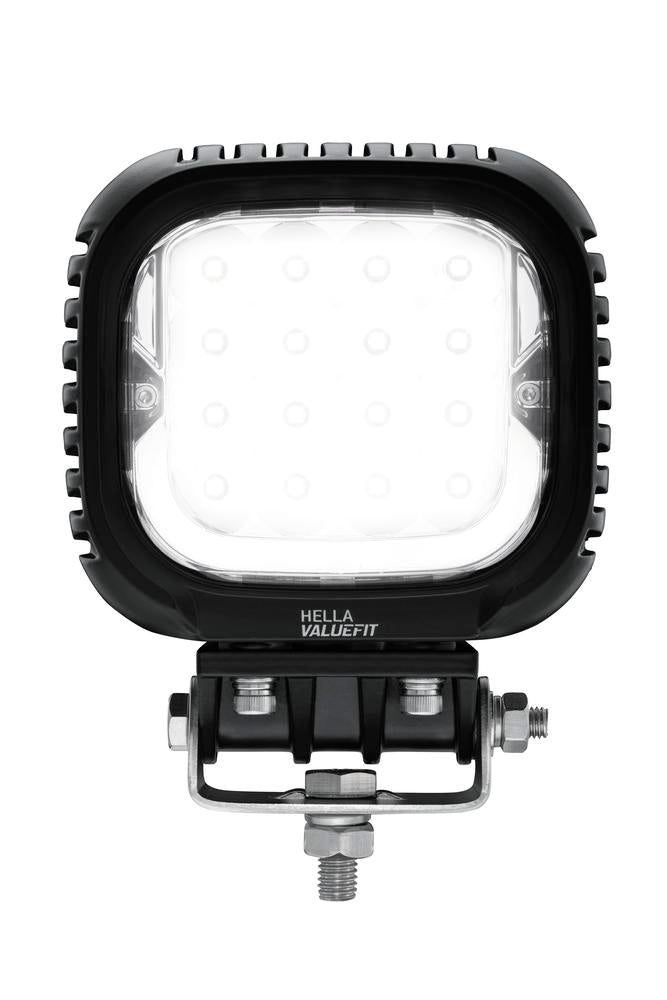

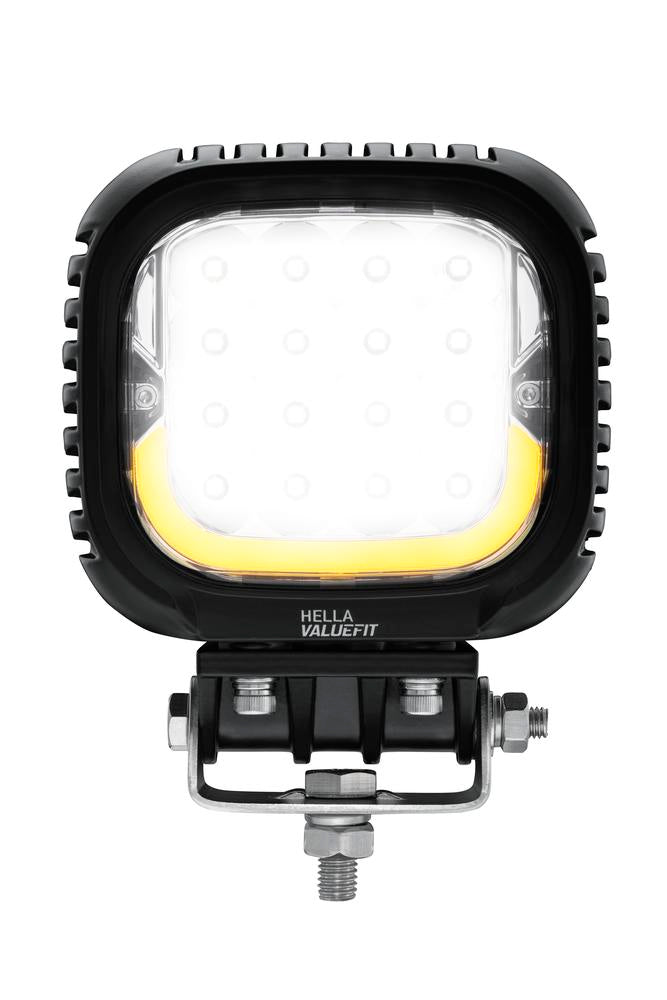

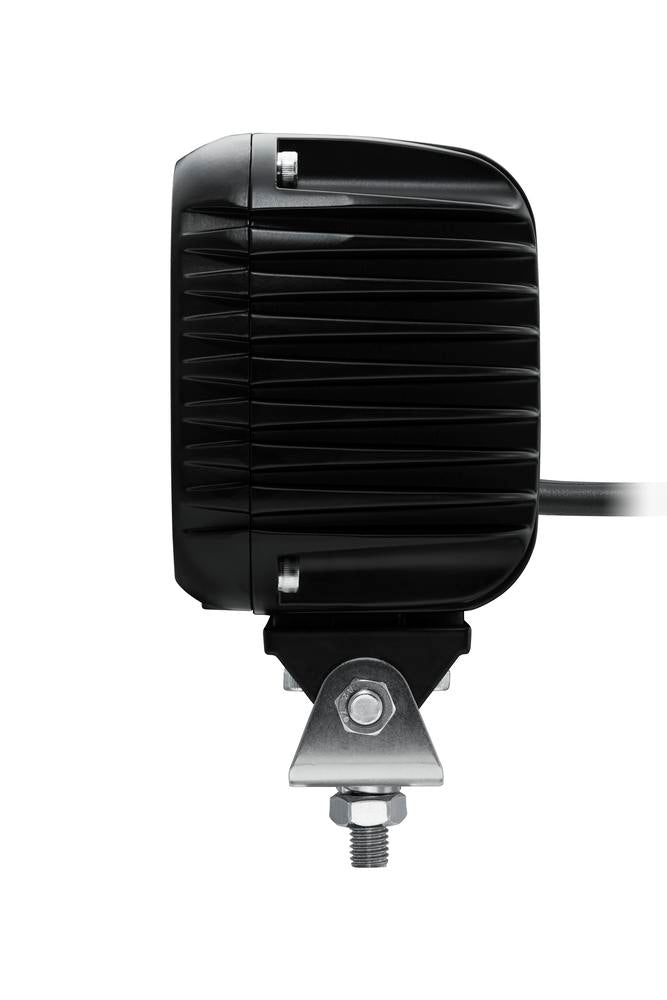

The HELLA ValueFit S5000 2.0 LED work lamp with long-range illumination provides a light output of 5,000 lumens. The compact lamp with its attractive design was developed to meet the requirements of diverse working environments. The S3000 2.0 version allows the vehicle's lighting upgrade to be combined with the possibility of customising the vehicle design. These work lamps have an additional position light function that can be installed with either a white or amber position light. The white position light is homologated in accordance with ECE R148 and can be used in road traffic situations. The amber position light can only be used off-road and it creates a veritably striking feature.
- Universal LED work lamp for long-range illumination

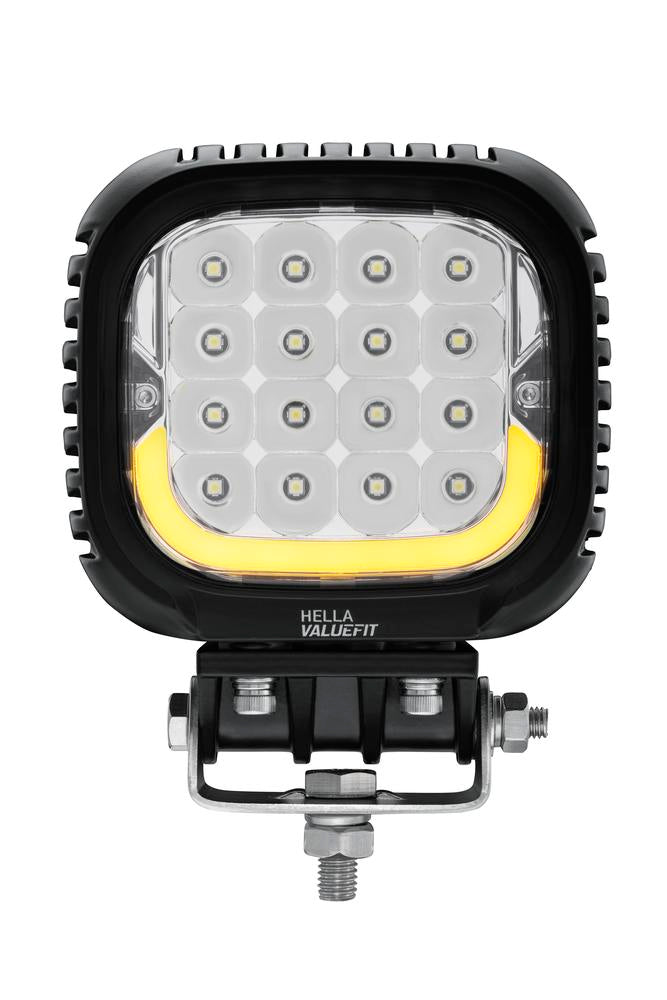

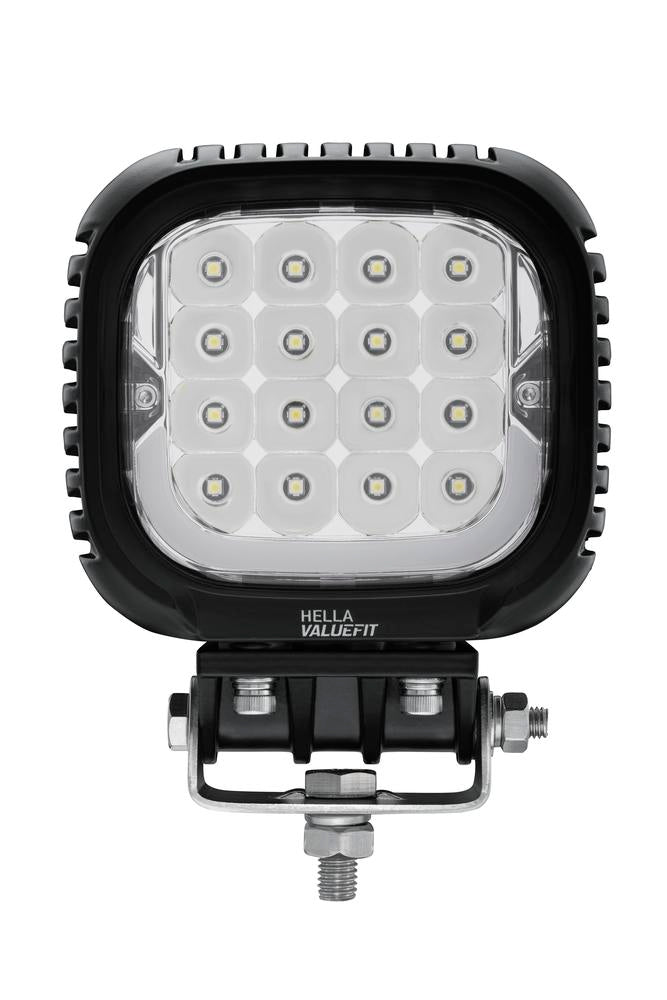

- Position light in white (ECE R148) or amber (only for off-road use)

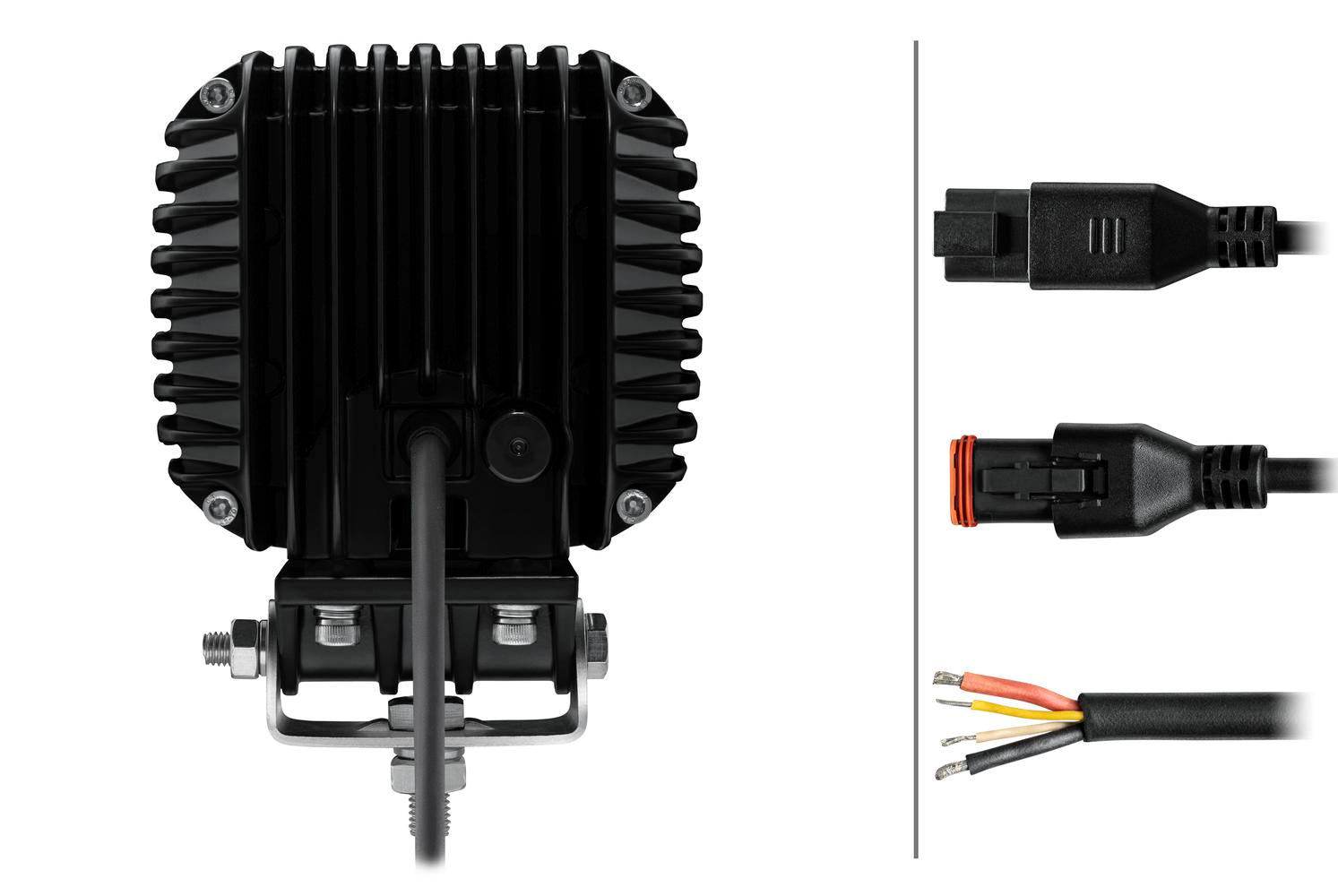

- Lens: special plastic, housing: aluminium, bracket: stainless steel, 300 mm harness with 4-pin DEUTSCH DT connector with 500 mm cable
- Mounting: upright; for use in road traffic, this work lamp with its white position light is to be mounted without any angle of inclination (0°). Max. mounting height: 400 – 2,500 mm
- The AMBER position light does not have ECE approval: use is limited to off-road areas away from road traffic on public highways (see installation instructions).
- Lamp Type: LED - Number of LEDs: 16 - Power consumption: 84W - Colour Temperature: 6500K
- with position light (LED) - Clear diffusing lens
Item Attributes:
Mounting Type: Bolted
Fastening Type: Bracket system
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Voltage from: 12 V
Voltage to: 30 V
Power consumption: 84 W
Light Function: with position light (LED)
Height: 158 mm
Width: 125 mm
Depth: 88 mm
Light Distribution: Long-range illumination
Registration Type: ECE
fulfils ECE standard: R148 / R10
Prot.type (IP Code): IP6K7 / IP6K9
Luminous Flux: 5000 lm
Colour Temperature: 6500 K
Number of LEDs: 16
Cable: 800 mm
Supplementary Article/Supplementary Info 2: with adapter
Housing Colour: black
Diffusing Lens Material: PC (Polycarbonate)
Diffusing Lens Type: Clear diffusing lens
Plug: DEUTSCH plug
Temperature range from: -40 °C
Temperature range to: +65 °C
Theoretical luminous flux: 11200 lm
Housing material: Die-Cast Aluminium
Quantity: 1
Weight: 1500 g
Assembly by qualified personnel required!
