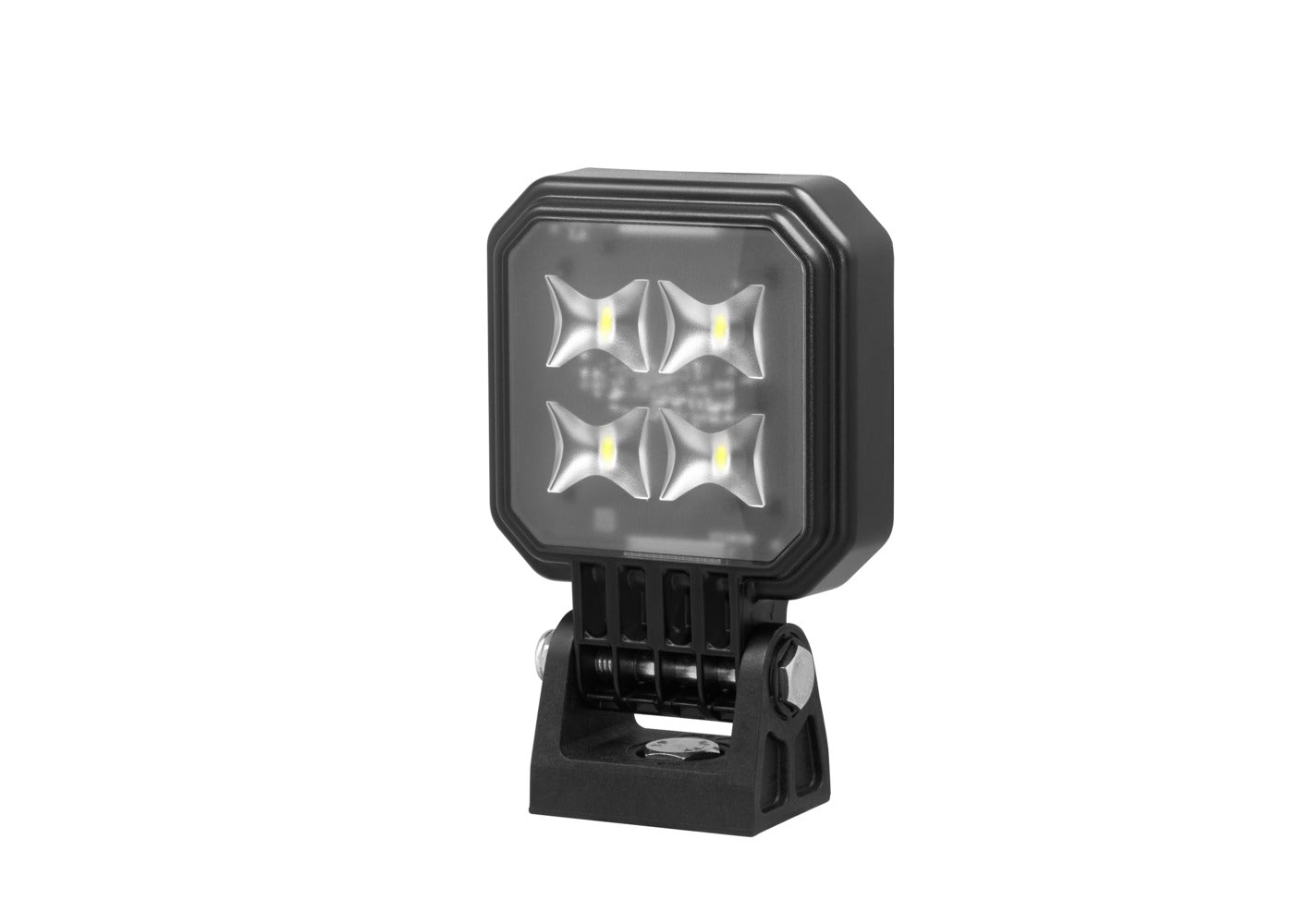

LED-Reverse Light - Q110R Q110R - 12/24V 2ZR996285-501

LED-Reverse Light - Q110R Q110R - 12/24V - 1150lm - Fitting - Bracket system - Ground Illumination - Cable: 1000mm - Plug: DEUTSCH plug - 2-pin connector

The new Q110R reverse lamp combines modern design with a high degree of functionality. Its dark housing gives it a sophisticated look, while the robust design has been optimised for use in demanding conditions. With a light output of 1,150 lumens at just 11 watts, the reverse lamp impresses with its high energy efficiency and excellent illumination. Thanks to the plastic bracket and housing, the Q110R offers high corrosion resistance, making it particularly durable and resistant. It is ADR / GGVSEB certified, which makes it ideal for use when transporting hazardous goods. In addition, the 20° inclination enables, comparatively speaking, particularly space-saving mounting. Whether off-road or on the public highway – this reverse lamp ensures reliable lighting and a safe environment for every application.

• Outstanding lumen/watt efficiency
• Ideal for use in the transport of hazardous goods thanks to ADR/GGVSEB certification
• High corrosion resistance and robust design
• Reverse lamp, LED, multi-voltage 10-32 V, upright and pendant mounting, DEUTSCH DT connector 2-pin
• Particularly space-saving installation thanks to the 20° inclination
• Lamp Type: LED - Number of LEDs: 4 - Power consumption: 11W - Colour Temperature: 5700K
• Light functions: 1 - with reverse light (LED) - Clear diffusing lens - Lens Colour: Crystal clear - Fitting Position: Rear Fitting

Item Attributes:
Mounting Type: Fitting
Fastening Type: Bracket system
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Power consumption: 11 W
Voltage from: 10 V
Voltage to: 32 V
Fitting Position: Rear Fitting

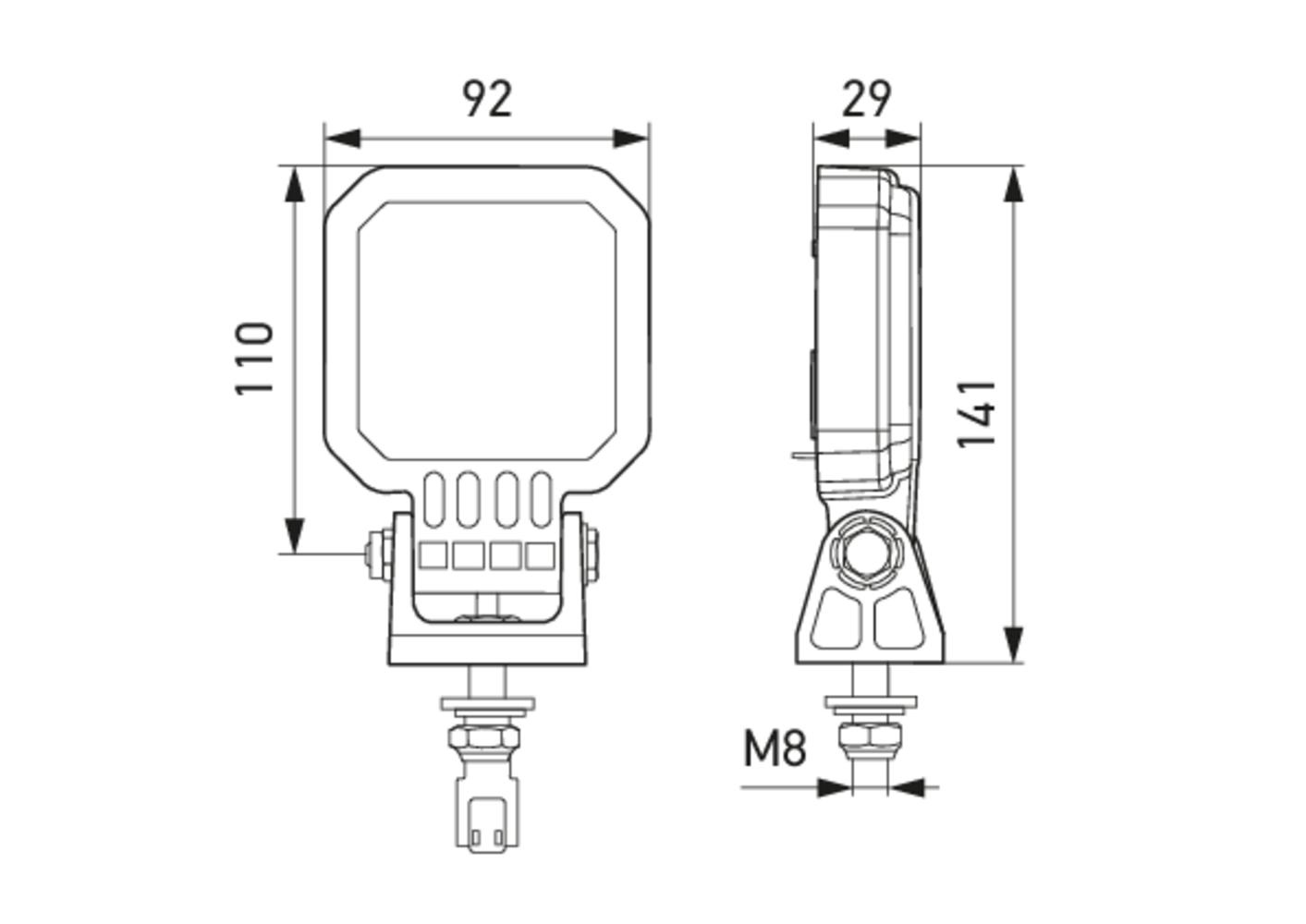

Length: 110 mm
Width: 92 mm
Ø: 92 mm
Height: 141 mm
Depth: 29 mm

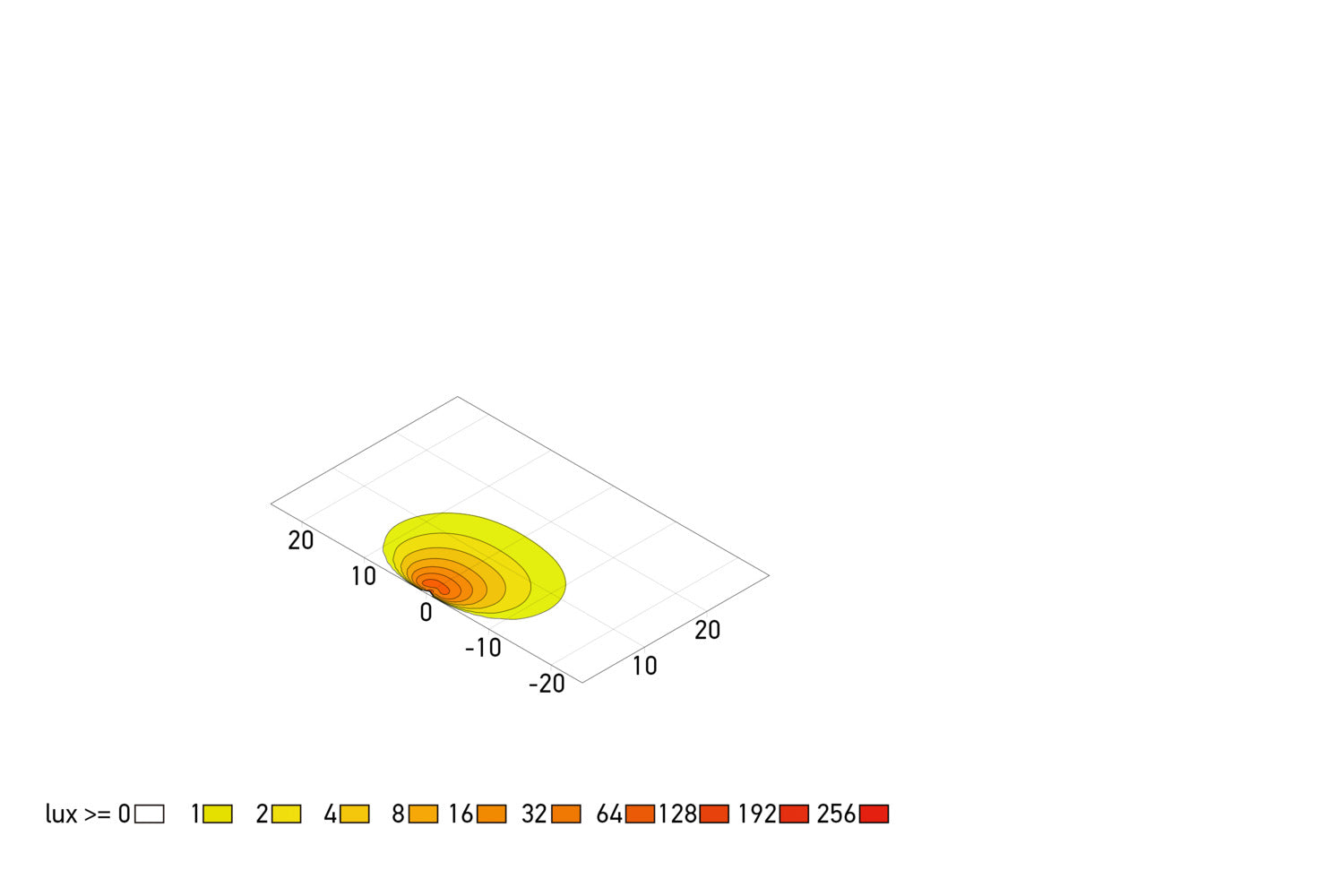

Light Distribution: Ground Illumination
Light Function: with reverse light (LED)
Light functions: 1
Housing Type: with housing
Registration Type: RCM / ADR/GGVS / ECE
fulfils ECE standard: R148 / R10
Prot.type (IP Code): IP6K9K / IP6K7K
Plug: DEUTSCH plug
Luminous Flux: 1150 lm
Cable: 1000 mm
Lens Colour: Crystal clear
Diffusing Lens Type: Clear diffusing lens
Colour Temperature: 5700 K
Number of LEDs: 4
Housing Colour: black
Number of pins: 2 -pin connector
Theoretical luminous flux: 1437 lm
Housing material: Plastic
Diffusing Lens Material: PC (Polycarbonate)
Temperature range from: -40 °C
Temperature range to: +85 °C
Weight: 550 g
Assembly by qualified personnel required!
