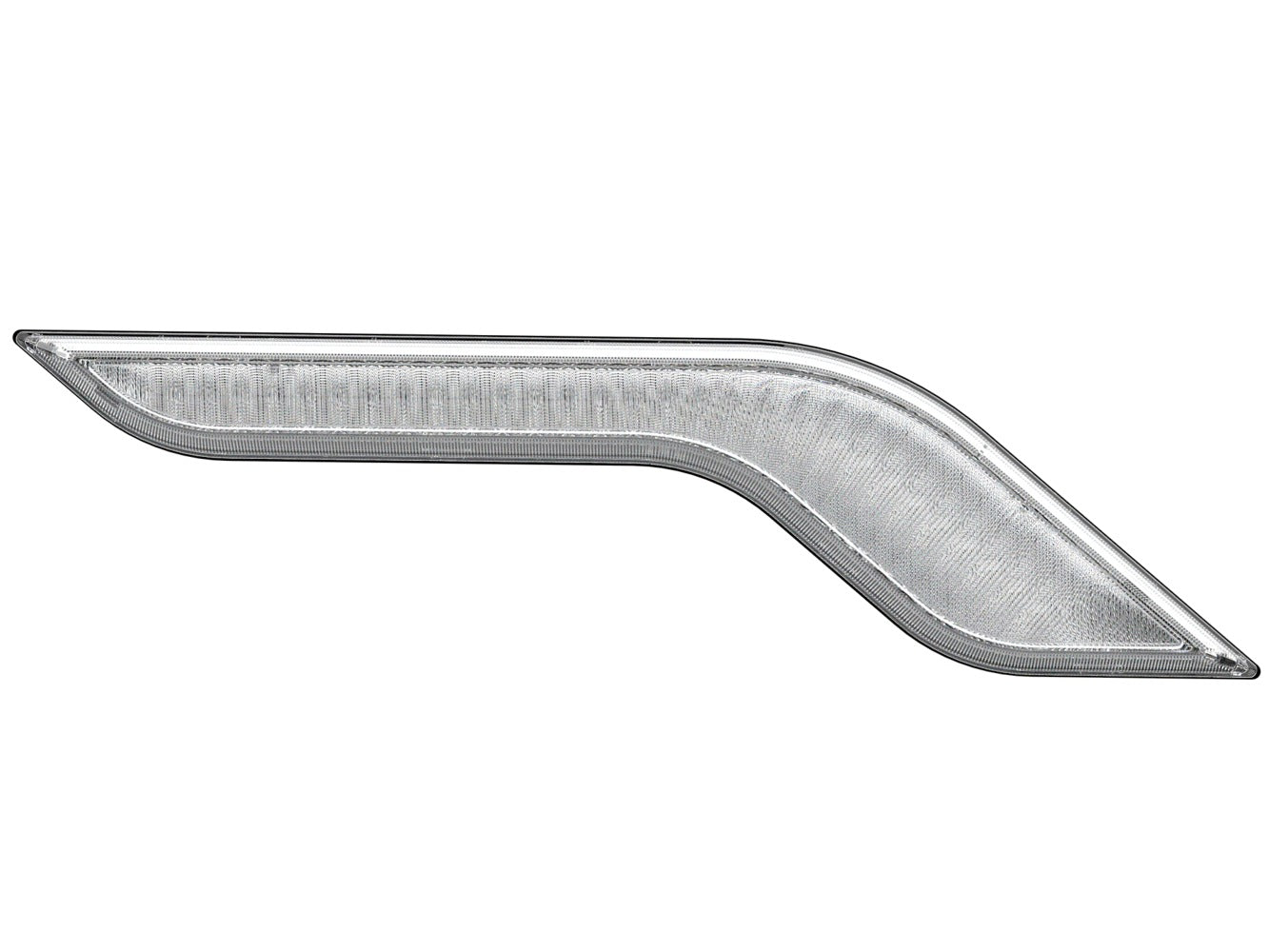

Position Light - Shapeline Style Wing - LED - 24/12V

Position Light - Shapeline Style Wing - LED - 24/12V - Glued/mounting - Lens Colour: Crystal clear - LED colour: White - Plug: AMP - Right Front - Quantity: 30

HELLA Shapeline. The variety of shapes and different combination options coupled with a technically optimised product design make the Shapeline luminaire range an innovation in the field of vehicle lighting! Whether at the front, side or rear of the vehicle, any vehicle series - whether small or large - can be given an individual and, above all, consistent appearance via an individual composition and arrangement of the lights. In addition to innovative technology and the well-known high HELLA quality, the variety of shapes of the Shapeline luminaires offers you almost limitless design freedom.

Flexible design with the classic straight Shapeline Tech Design and the curved dynamic Shapeline Style Design
Wide range of functions thanks to numerous LED lighting functions that can be combined in different, individual ways
High recognition value thanks to unique yet consistent light signature
LED technology ensures long service life and energy efficiency
Simple and safe installation

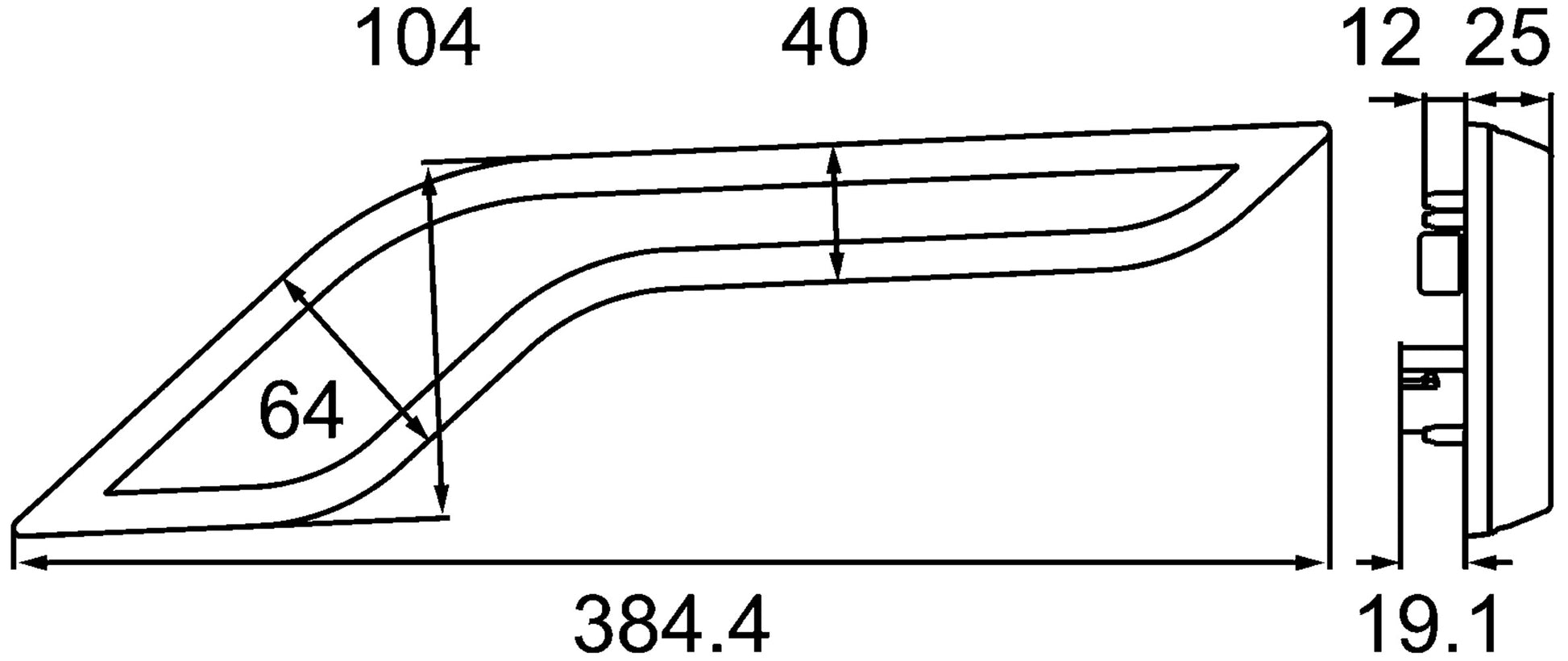

Length: 384mm - Width: 104mm - Height: 44mm - Lamp Type: LED - Number of LEDs: 30
Light functions: 1 - with position light (LED)

Item Attributes:
Mounting Type: mounting / Glued
Fastening Type: for horizontal fastening
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Fitting Position: Right Front
Height: 44 mm
Width: 104 mm
Length: 384 mm
Light Function: with position light (LED)
Light functions: 1
Plug: AMP
Prot.type (IP Code): IPX9K / IP6K7
Appr. stamp: ECE-R7 / SAE
Registration Type: ADR/ GGVS Checked
Number of LEDs: 30
LED colour: White
Housing Colour: Black
Lens Colour: Crystal clear
Power consumption: 9.5 W
Design by: Wing
Quantity: 30
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!
