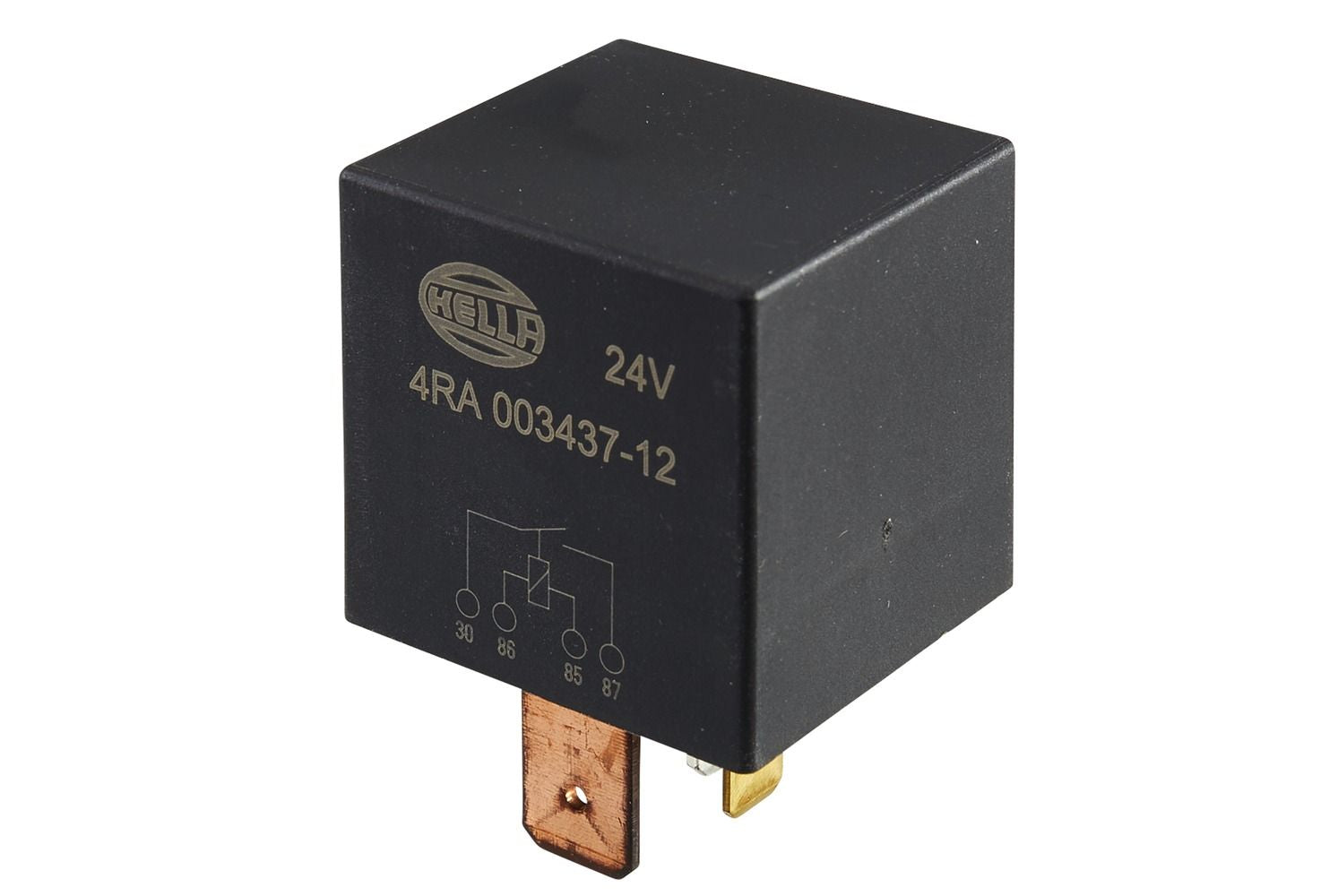

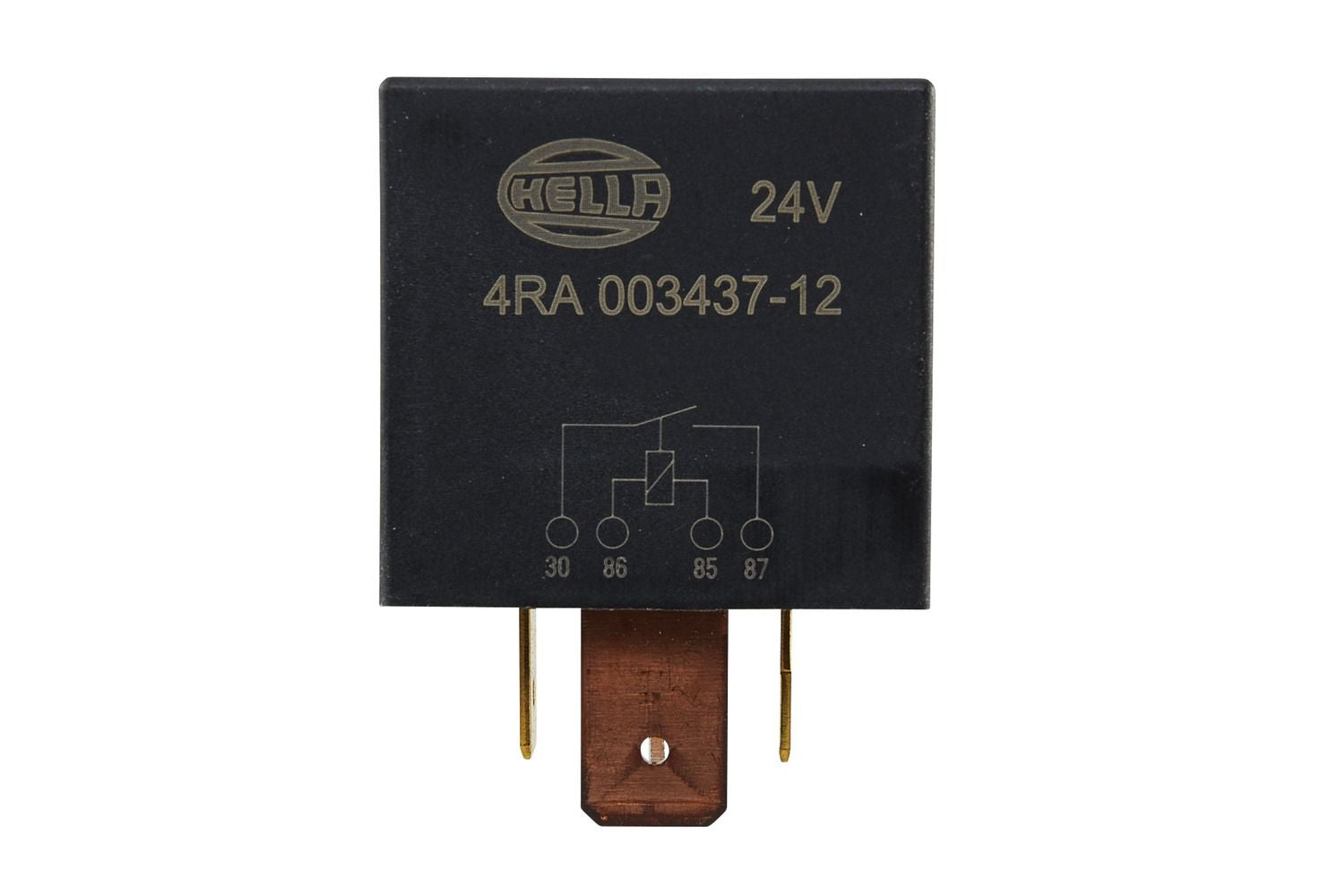

Relay, main current - 24V - 4-pin connector - S1 - B3

Relay, main current - 24V - 4-pin connector - Wiring Diagramme: S1 - Plug: B3 - High Performance Contact - Colour: Black - without holder

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades. The areas of application are varied and include engine control units, headlight cleaning systems, starters, fuel pumps, fan motors, horns and fanfares. HELLA is also certified in various relevant areas, such as DIN EN ISO 9001:2008, ISO / TS 6949:2009, ISO 14001. HELLA relays also comply with the standards of ROHS (2002 / 95 / EC) and REACh. They are available in 12 V and 24 V.

High power relay - normally open relay 24 V, 4-pole, without holder
Rated switching current: min. 25 A, max. 60 A (at 80 °C ambient temperature)
Number of gear changes: min. 50,000
Temp. Range: 80°C
Ohmic Load: 60A - Inductive Load: 50A - Capacitive Load: 25A - Capacity at 24V: 60A
Prot.type (IP Code): 54

Item Attributes:
Supplementary Article/Supplementary Info: without holder
Prot.type (IP Code): 54
Voltage: 24 V
Capacity at 24V: 60A
Colour: Black
Inductive Load: 50 A
Capacitive Load: 25 A
Ohmic Load: 60 A

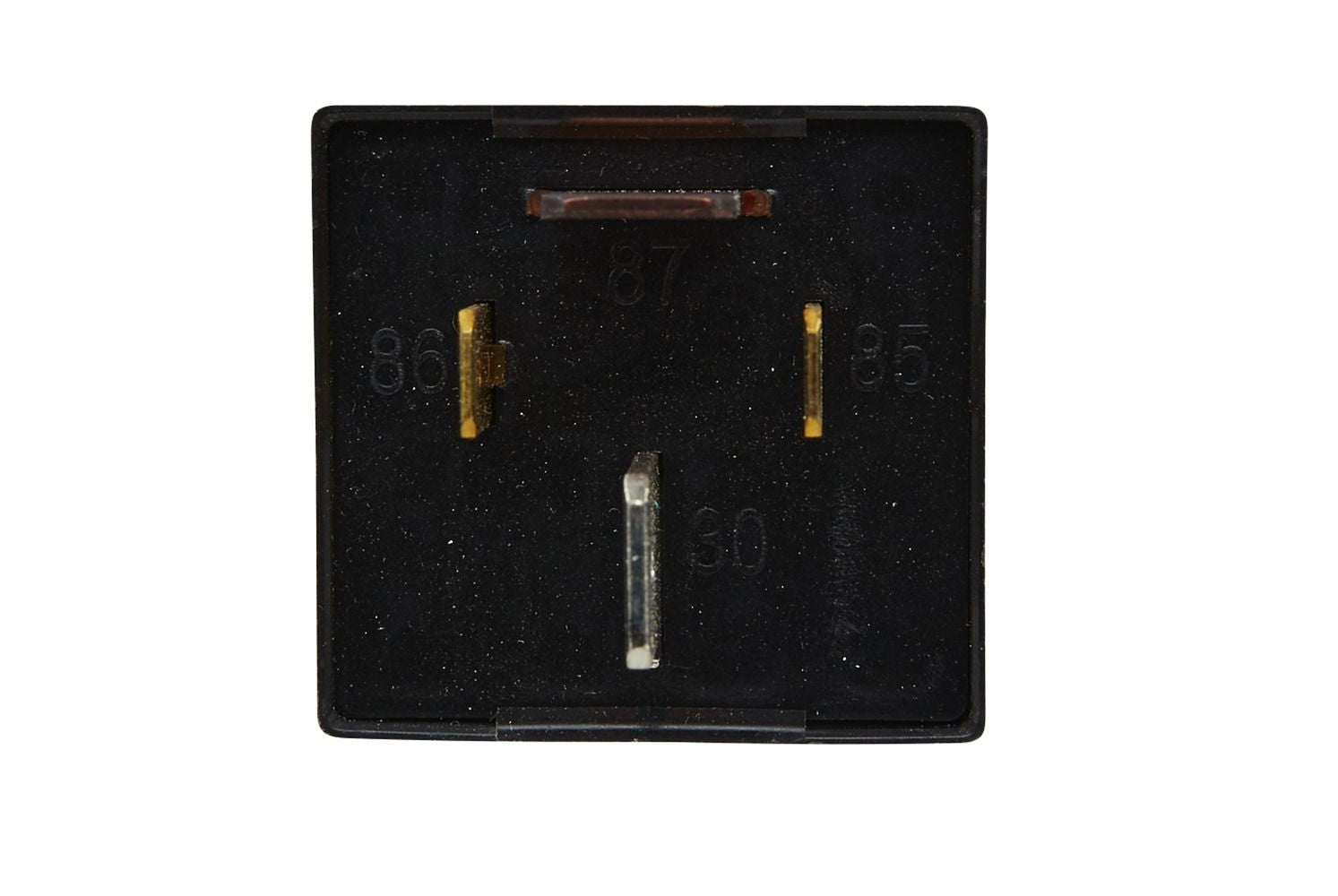

Number of pins: 4 -pin connector
Wiring Diagramme: S1
Combi Switch Function: High Performance Contact
Plug: B3
Temp. Range: 80 °C
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!
