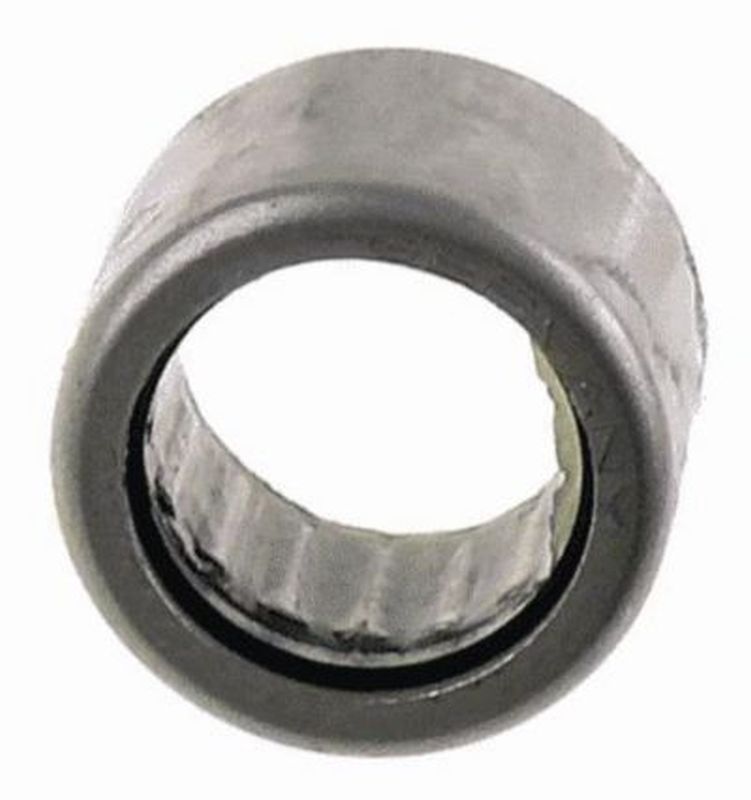

SACHS Clutch Pilot Bearing for Audi/VW 1863869001

Pilot Bearing, clutch

The pilot bearing, also referred to as the guide bearing, is predominantly responsible for the functioning of the clutch within a vehicle. As a ball bearing, it guides the transmission input shaft and is thus predominantly responsible for the functioning of the clutch. If wear results in an angular offset, the shaft is no longer properly supported which may lead to clutch defects.

• Guides the transmission input shaft
• Pilot bearing should always be inspected when replacing
• Available as either ball bearing or needle bearing

Diameter [mm]: 21
Outer diameter [mm]: 21
Inner diameter [mm]: 15
Width [mm]: 15
Bearing Type: Needle Bearing

Replaces following reference(s):
AUDI: 0261053131
AUDI: 056105313C
SEAT: 0261053131
SEAT: 056105313C
SKODA: 056105313C
VW: 0261053131
VW: 056105313C
LuK: 410000910
SACHS: 021863869001
HAVAM: AT1860
JAPCAR: 394944
INA: F85265
