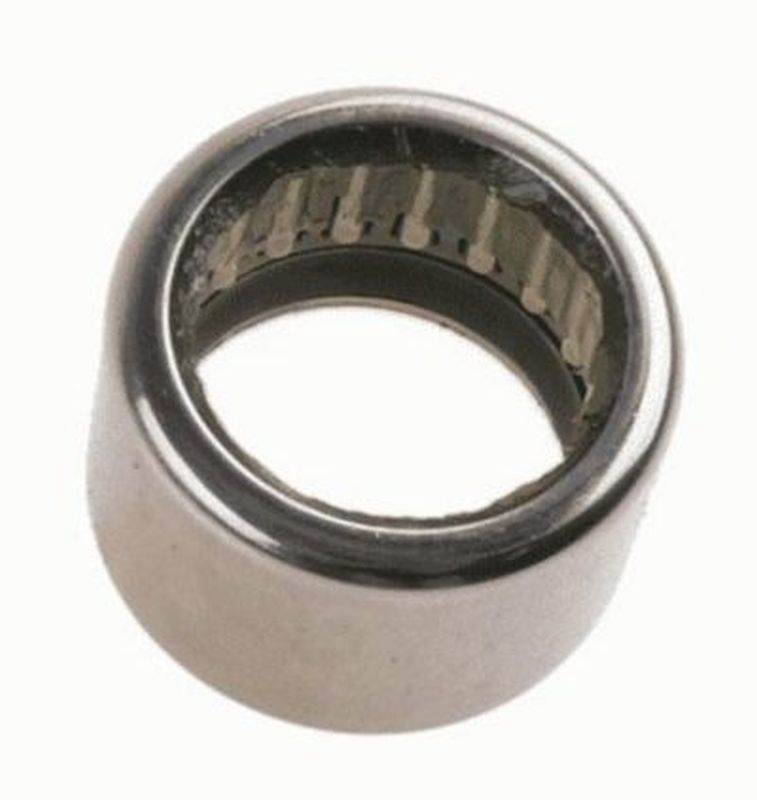

SACHS Clutch Pilot Bearing for Audi/VW 1863869002

Pilot Bearing, clutch

The pilot bearing, also referred to as the guide bearing, is predominantly responsible for the functioning of the clutch within a vehicle. As a ball bearing, it guides the transmission input shaft and is thus predominantly responsible for the functioning of the clutch. If wear results in an angular offset, the shaft is no longer properly supported which may lead to clutch defects.

• Guides the transmission input shaft
• Pilot bearing should always be inspected when replacing
• Available as either ball bearing or needle bearing

Diameter [mm]: 24
Outer diameter [mm]: 24
Inner diameter [mm]: 18
Width [mm]: 16
Bearing Type: Needle Bearing

Replaces following reference(s):
AUDI: 046105313D
AUDI: 060105313B
AUDI: 060105313A
VW: 060105313B
VW: 046105313D
VW: 060105313A
LuK: 410004811
LuK: 410000811
LuK: 410000810
SACHS: 021863869002
HAVAM: AT0006
JAPCAR: 394976
INA: F85706
INA: F205070
