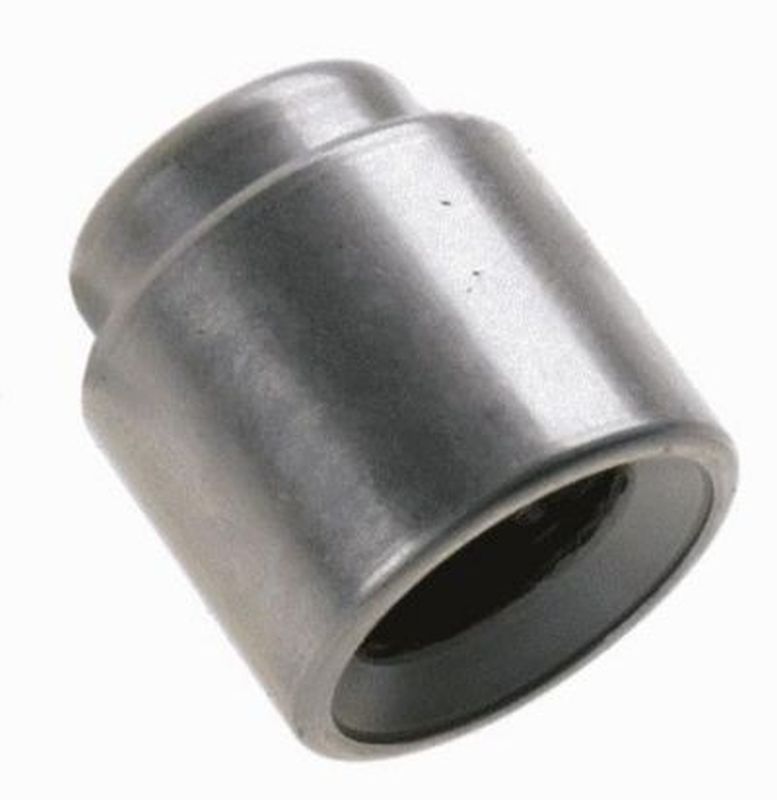

SACHS Clutch Pilot Bearing for Audi/VW 1863869005

Pilot Bearing, clutch

The pilot bearing, also referred to as the guide bearing, is predominantly responsible for the functioning of the clutch within a vehicle. As a ball bearing, it guides the transmission input shaft and is thus predominantly responsible for the functioning of the clutch. If wear results in an angular offset, the shaft is no longer properly supported which may lead to clutch defects.

• Guides the transmission input shaft
• Pilot bearing should always be inspected when replacing
• Available as either ball bearing or needle bearing

Diameter [mm]: 24
Outer diameter [mm]: 24
Inner diameter [mm]: 15
Width [mm]: 26
Bearing Type: Needle Bearing

Replaces following reference(s):
AUDI: 034105313A
AUDI: 034141313A
PORSCHE: 034105313A
SKODA: 034105313A
VW: 034141313A
VW: 034105313A
LuK: 410001510
SACHS: 021863869005
HAVAM: AT1863
INA: F2122852
INA: F212285
