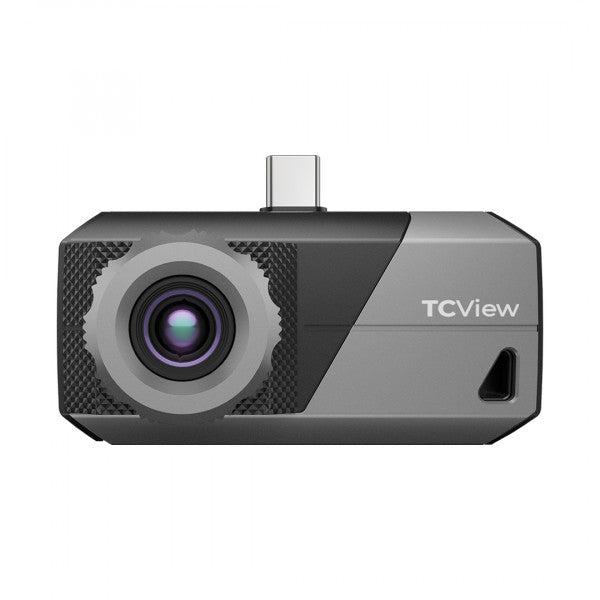

TOPDON TS001 Thermal Imaging Camera for Android Devices TS001

The TOPDON TS001 is a compact and high-performance thermal imaging tool built for professionals who need precise heat detection in automotive diagnostics, electrical systems, building inspections, and more. With a 256×192 infrared resolution and a fast 25 Hz refresh rate, the TS001 delivers sharp and fluid thermal images. Its 9 mm adjustable-focus lens allows users to fine-tune their view for both close-up and long-distance measurements—from just 10 cm up to 500 m. The device accurately measures temperatures ranging from −20 °C to 550 °C, with a precision of 0.1 °C and an accuracy of ±3 °C or ±3%, making it suitable for identifying thermal inconsistencies or hotspots with confidence. Compact and lightweight, the TS001 connects easily to Android smartphones or Windows PCs via its included USB-C cable. It works with the free TOPDON app and TCView software, offering real-time image capture, waveform analysis, and customizable temperature alarms. Whether you're pinpointing electrical issues, analyzing HVAC systems, or verifying thermal efficiency, the TS001 combines portability, clarity, and advanced performance in a single plug-and-play device.

• 256×192 IR resolution
• 25 Hz refresh rate
• Adjustable 9 mm lens
• 0.1–500 m range
• −20 °C to 550 °C
• ±3 °C or ±3% accuracy
• 0.1 °C resolution
• Android & Windows compatible
• Compact & lightweight
• Includes app + PC software

• IR Resolution: 256 × 192 pixels Visible Light Lens: None (TS001 only IR, no visible camera) Frame Rate: 25 Hz Focal Length: 9 mm adjustable Temperature Range: −20 °C to 550 °C Accuracy: ±3 °C or ±3% Temperature Resolution: 0.1 °C NETD: < 40 mK Operating Systems: Android and Windows Device Weight: ~45 g Device Size: approx. 70 × 28 × 44 mm Extension Cable: 50 cm USB cable included Operating Conditions: Designed for mobile or laptop use via app
