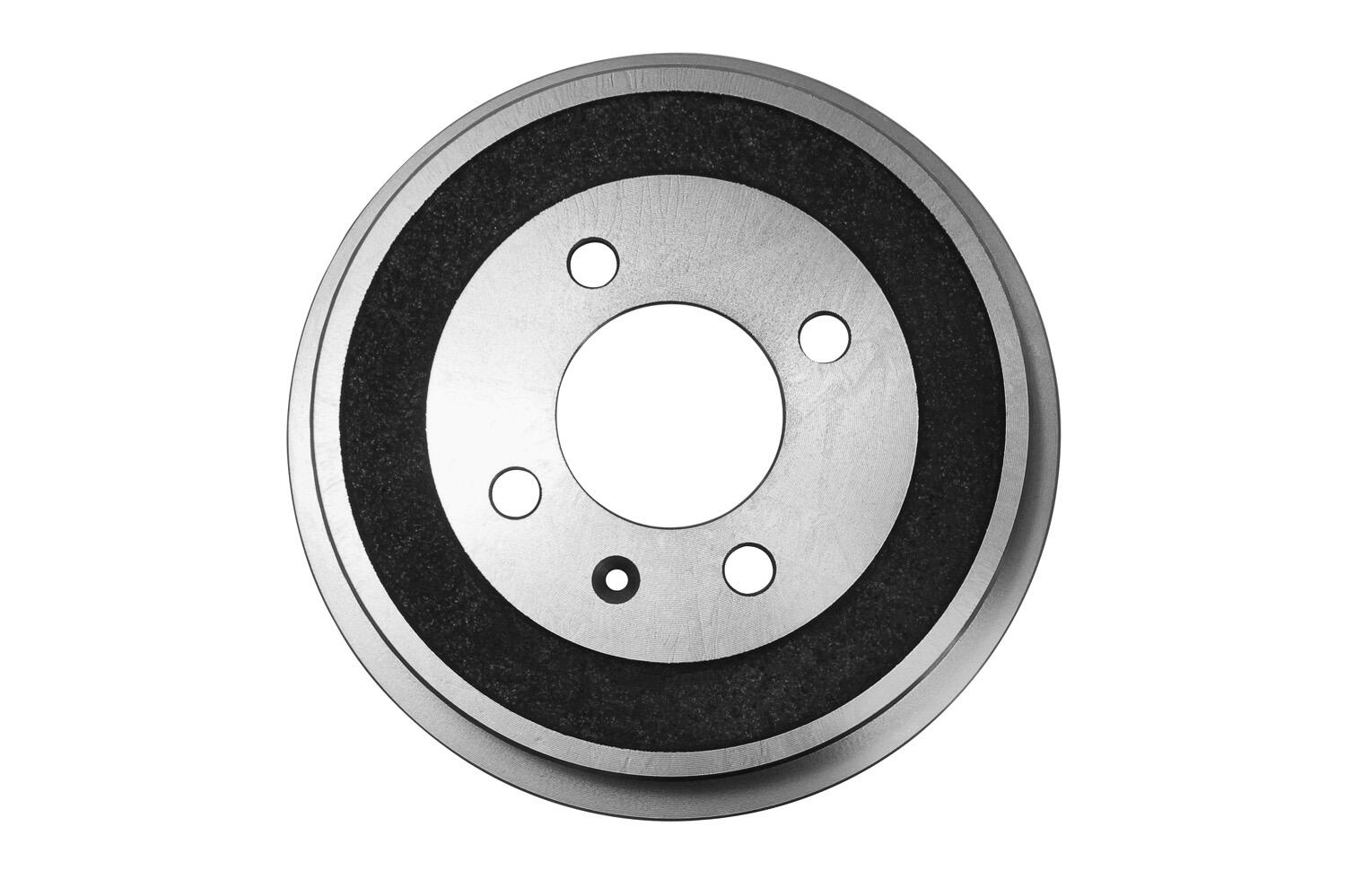

VAICO Brake Drum V10-60001

VAICO V10-60001 - Brake Drum

Drum diameter [mm]: 200,0
Total Br. Drum Height [mm]: 52,5
Max.skimmed drum measure [mm]: 181,5
Number of Holes: 4
Mounting Diameter [mm]: 65
Bore Ø [mm]: 14
Fitting Position: Rear Axle
Outer brake drum diameter [mm]: 211,5
Inner Brake Drum Height [mm]: 50
Pitch Circle Ø [mm]: 100
Weight [kg]: 4,5

Replaces OEM reference(s):
AUDI: 1S0609617, AUDI: 6X0609617A, SEAT: 6X0609617, SEAT: 6X0609617A, SKODA: 1S0609617, SKODA: 6X0609617, SKODA: 6X0609617A, VAG: 1S0609617, VAG: 6X0609617, VAG: 6X0609617A, VW: 1S0609617, VW: 6X0609617, VW: 6X0609617A

Replaces aftermarket reference(s):
A.B.S.: 2706-S, A.B.S.: 2706-S, A.B.S.: 2767-S, AIC: 54021, AP: 55280, AP: 55281, ASHIKA: 56-00-0902, ASHIKA: 56-00-0902C, ASHIKA: 56-00-0912, ASHIKA: 56-00-0912C, ATE: 24.0218-0036.1, ATE: 24.0220-0032.1, BENDIX: 329129B, BENDIX: 329706B, BLUE PRINT: ADBP470044, BOSCH: 0 986 477 105, BOSCH: 0 986 477 106, Brake ENGINEERING: DR962358, Brake ENGINEERING: DR962382, BRECO: BT 9383, BRECO: BT 9384, BREMBO: 14.9383.10, BREMBO: 14.9384.10, CIFAM: 700-218, CIFAM: 700-219, DELPHI: BF409, DELPHI: BF410, DELPHI: BF549, FEBI BILSTEIN: 24032, FENOX: TO216084, FENOX: TO216085, FIRST LINE: FBR692, FIRST LINE: FBR982, FTE: BT549, HELLA: 8DT 355 301-561, HELLA: 8DT 355 301-571, HELLA PAGID: 8DT 355 301-561, HELLA PAGID: 8DT 355 301-571, JAPANPARTS: TA-0902, JAPANPARTS: TA-0902C, JAPANPARTS: TA0902JM, JAPANPARTS: TA-0912, JAPANPARTS: TA-0912C, JAPKO: 560902, JAPKO: 560912, JAPKO: 560902C, JAPKO: 560912C, JP GROUP: 1163501600, JURID: 329706J, KAGER: 36-0369, KAWE: 7D0440, KAWE: 7D0441, LPR: 7D0440, LPR: 7D0441, METELLI: 18-0219, METZGER: BT 733, MEYLE: 115 523 1049, MGA: T7524, National: NDR 322, National: NDR 323, NK: 254724, NK: 254725, OPTIMAL: BT-1410, OPTIMAL: BT-2220, PAGID: 62932, PAGID: 62933, PEX: 15.0104, PEX: 15.0105, QH Benelux: 66389, QH Benelux: HP66588, QUINTON HAZELL: BDR548, QUINTON HAZELL: BDR549, QUINTON HAZELL: BDR592, REMSA: 7142.00, REMSA: 7143.00, ROADHOUSE: 7142.00, ROADHOUSE: 7143.00, sbs: 1825254724, sbs: 1825254725, ST-TEMPLIN: 01.04.06.108988, SWAG: 30 92 4032, TEXTAR: 94022800, TOPRAN: 110 427, TRISCAN: 8120 29220, TRISCAN: 8120 29220C, TRISCAN: 8120 29221, TRISCAN: 8120 29221C, TRW: DB4259, TRW: DB4260, VALEO: 237073, VALEO: 237096, WOKING: B7142.00, WOKING: B7143.00, Zebra_International: 66389, ZIMMERMANN: 600.1963.00, ZIMMERMANN: 600.1964.00
