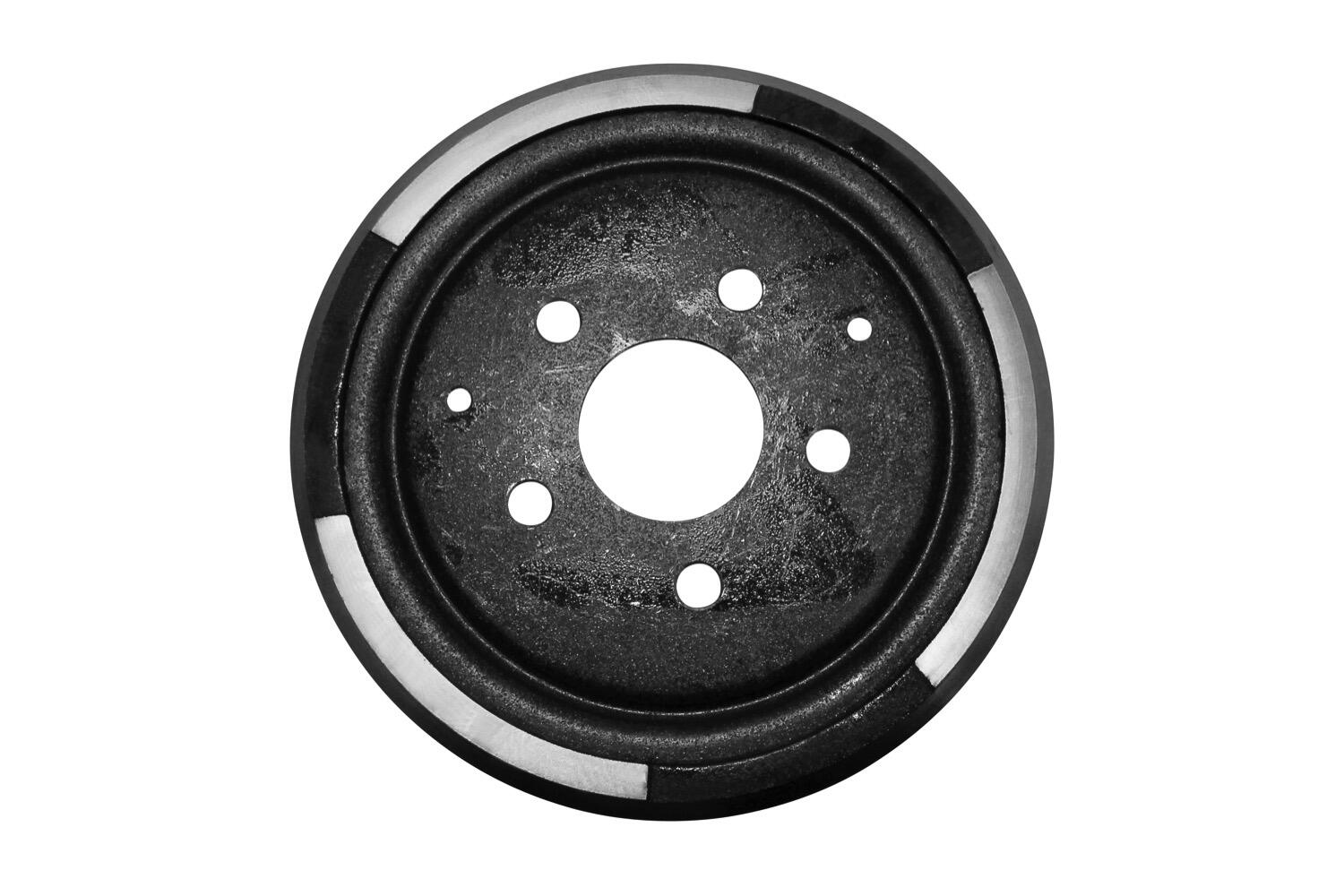

VAICO Brake Drum V10-60003

VAICO V10-60003 - Brake Drum

Bore Ø [mm]: 15,3
Drum diameter [mm]: 252,0
Outer brake drum diameter [mm]: 285,5
Max.skimmed drum measure [mm]: 253,5
Inner Brake Drum Height [mm]: 61
Total Br. Drum Height [mm]: 78
Number of Holes: 5
Pitch Circle Ø [mm]: 112
Mounting Diameter [mm]: 65
Fitting Position: Rear Axle
Weight [kg]: 6,82

Replaces OEM reference(s):
AUDI: 251609615, SEAT: 251609615, SKODA: 251609615, VAG: 251609615, VW: 251609615

Replaces aftermarket reference(s):
A.B.S.: 7170-S, A.B.S.: 7170-S, AIC: 53665, AP: 55121, ATE: 24.0225-2002.2, BECK/ARNLEY: 083-3094, BENDIX: 329131B, BOSCH: 0 986 477 033, Brake ENGINEERING: DR960230, BRECO: BT 5495, BREMBO: 14.5495.10, CIFAM: 700-194, DELPHI: BF184, FEBI BILSTEIN: 14062, FENOX: TO216166, FIRST LINE: FBR696, FTE: BT242, HELLA PAGID: 8DT 355 301-641, JP GROUP: 609215001, JURID: 329131J, KAGER: 36-0090, KAWE: 7D0236, LPR: 7D0236, MEYLE: 115 523 1011, MGA: T7519, NK: 264706, PAGID: 63906, PEX: 15.0089, QH Benelux: 66231, QUINTON HAZELL: BDR242, QUINTON HAZELL: BTF242, REMSA: 7111.00, ROADHOUSE: 7111.00, sbs: 1825264706, SWAG: 32 91 4062, TEXTAR: 94008300, TEXTAR: 94048300, TOPRAN: 103 281, TRISCAN: 8120 29209, TRISCAN: 8120 29209C, TRW: DB4053, WOKING: B7111.00, Zebra_International: 66231, ZIMMERMANN: 600.1952.00
