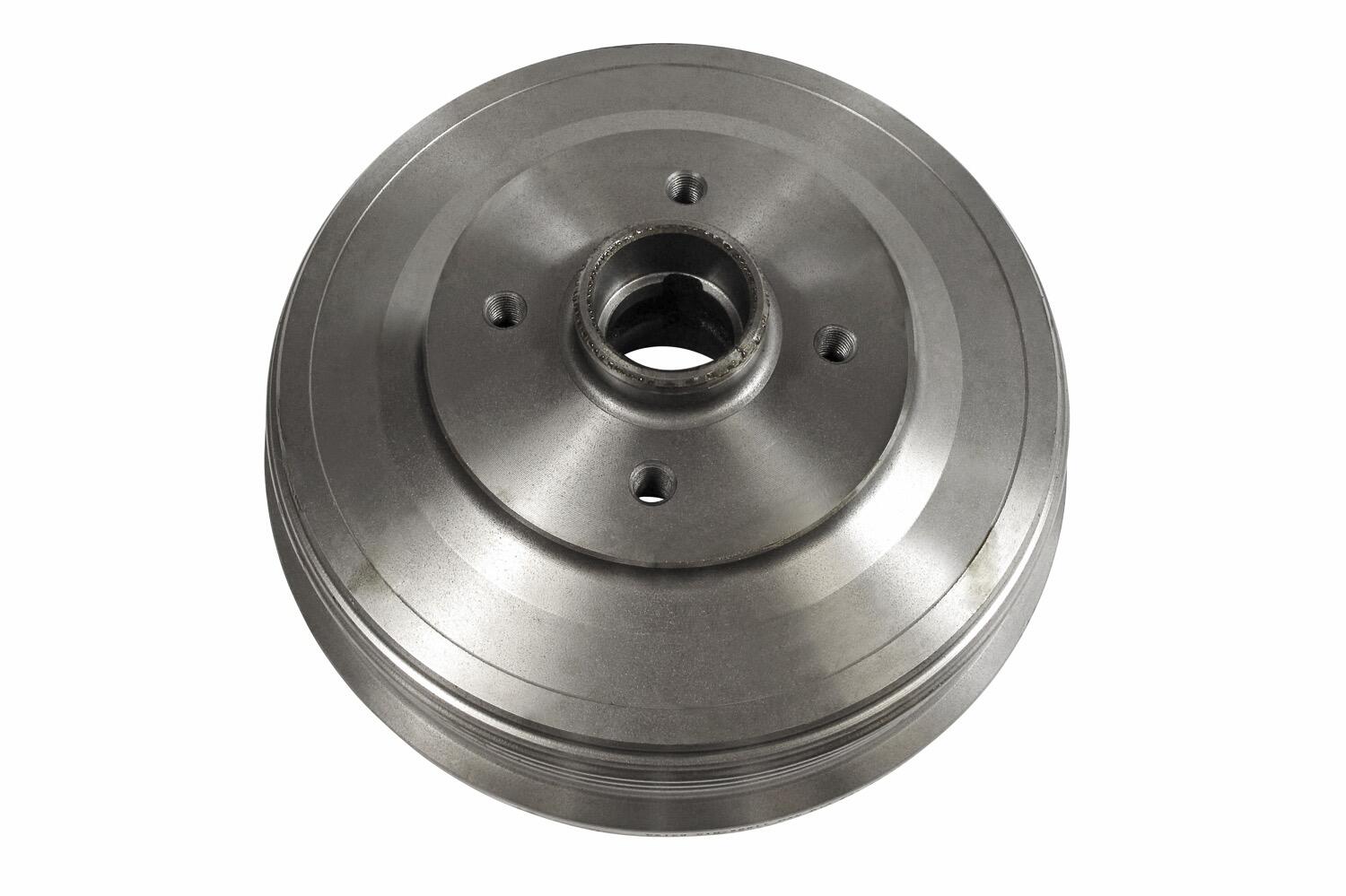

VAICO Brake Drum V10-60011

VAICO V10-60011 - Brake Drum

Drum diameter [mm]: 230,0
Max.skimmed drum measure [mm]: 231
Inner Brake Drum Height [mm]: 51
Total Br. Drum Height [mm]: 90
Number of Holes: 4
Mounting Diameter [mm]: 52
Outer brake drum diameter [mm]: 275
Pitch Circle Ø [mm]: 100
Supplementary Article/Info 2: without wheel bearing
Inner Diameter 2 [mm]: 45,3
Thread Size: M 12x1,5
Fitting Position: Rear Axle
Weight [kg]: 7,9

Replaces OEM reference(s):
AUDI: 6K9501615, SEAT: 6K9501615, SKODA: 6K9501615, VAG: 6K9501615, VW: 6K9501615

Replaces aftermarket reference(s):
A.B.S.: 2608-S, A.B.S.: 2608-S, AP: 55232, ASHIKA: 56-00-0908, ASHIKA: 56-00-0908C, ATE: 24.0223-0015.1, BENDIX: 329733B, BOSCH: 0 986 477 178, BOSCH: 0 986 477 179, Brake ENGINEERING: DR962255, BRECO: BT 7243, BREMBO: 14.7243.10, CIFAM: 700-208, CIFAM: 700-208K, DELPHI: BF430, FENOX: TO216165, FIRST LINE: FBR991, FTE: BT355, HELLA: 8DT 355 301-351, HELLA PAGID: 8DT 355 301-351, JAPANPARTS: TA-0908, JAPANPARTS: TA-0908C, JAPANPARTS: TA0908JM, JAPKO: 560908, JAPKO: 560908C, JP GROUP: 1163501700, JURID: 329733J, KAWE: 7D0431, LPR: 7D0431, METELLI: 18-0208, METZGER: BT 741, MEYLE: 115 523 1001, MINTEX: MBD237, National: NDR 252, NK: 252316, NK: 252318, NK: 252319, OPTIMAL: BT-1460, PAGID: 62911, PEX: 15.0099, QH Benelux: 66397, QH Benelux: HP66397, QUINTON HAZELL: BDR355, sbs: 1825252316, sbs: 1825252318, sbs: 1825252319, ST-TEMPLIN: 01.04.06.121254, TEXTAR: 94018900, TOPRAN: 112 138, TRISCAN: 8120 29219, TRW: DB4289, VAICO: DB428910-60011, VALEO: 237086, Zebra_International: 66397
