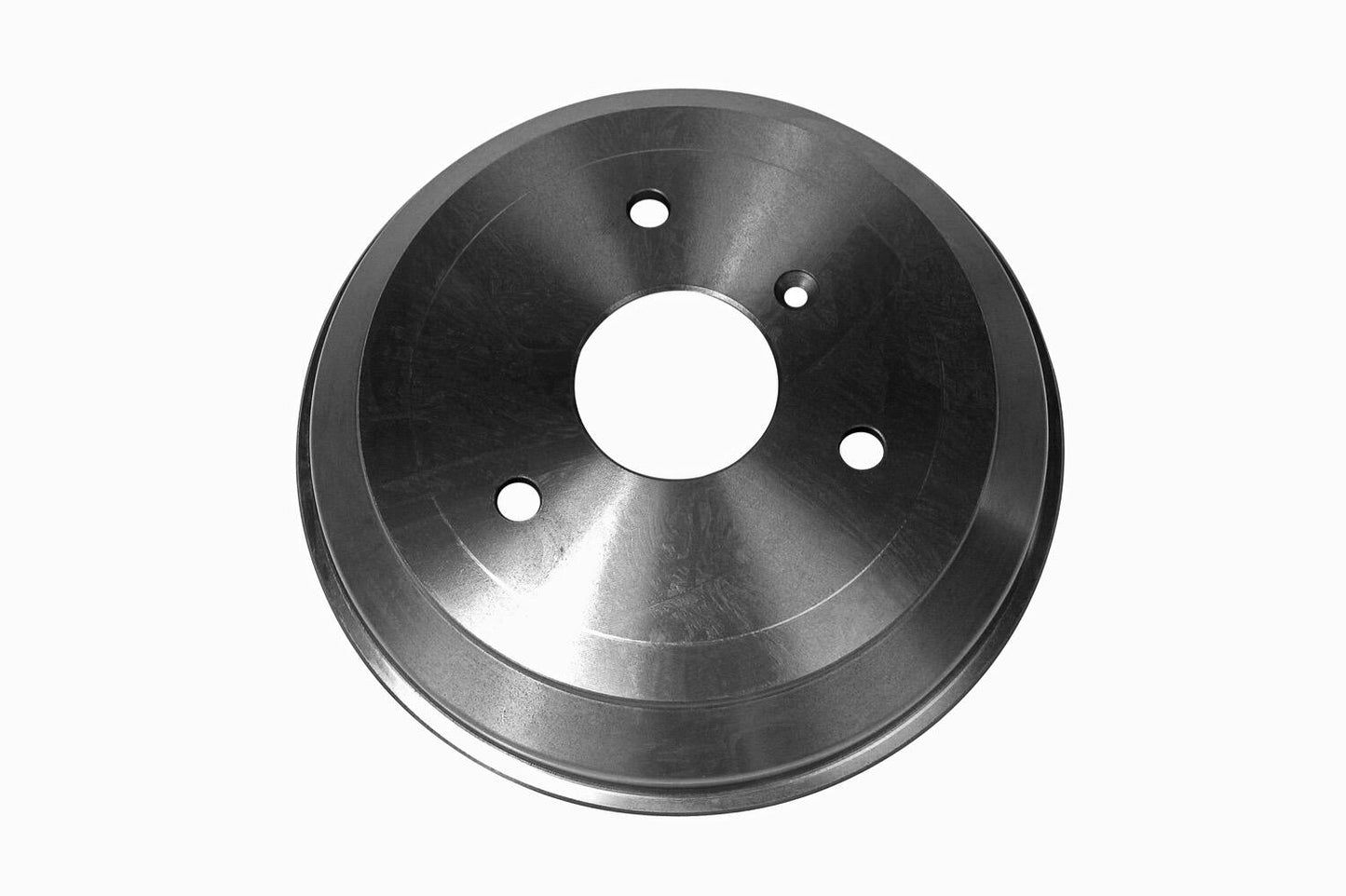

VAICO V30-60001 - Brake Drum
Supplementary Article/Info 2: without bolts/screws
Hole Arrangement/Number: 43558
Bore Ø [mm]: 12,8
Number of Holes: 3
Drum diameter [mm]: 203,2
Max.skimmed drum measure [mm]: 204,5
Inner Brake Drum Height [mm]: 38,5
Pitch Circle Ø [mm]: 112
Mounting Diameter [mm]: 58
Fitting Position: Rear Axle
Outer brake drum diameter [mm]: 235
Total Br. Drum Height [mm]: 59,3
Weight [kg]: 4,05
Replaces OEM reference(s):
SMART: 4514230001, SMART: 0004329V001000000, SMART: 0004329V003000000, SMART: 0004329V004000000, SMART: 0004329V005000000, SMART: A4514230001, SMART: A4514230001, SMART: Q0004329V005000000
Replaces aftermarket reference(s):
A.B.S.: 2747-S, ASHIKA: 56-0M-M00C, ASHIKA: 56-0M-M01, ASHIKA: 56-0M-M01C, ATE: 24.0220-3027.1, BECK/ARNLEY: 083-3038, BOSCH: 0 986 477 103, DELPHI: BF465, FEBI BILSTEIN: 44295, HELLA: 8DT 355 301-581, HELLA: 8DT 355 301-851, HELLA PAGID: 8DT 355 301-581, HELLA PAGID: 8DT 355 301-851, HERTH+BUSS JAKOPARTS: J3400800, JAPANPARTS: TA-M00C, JAPANPARTS: TA-M01, JAPANPARTS: TA-M01C, JAPKO: 56M00C, JAPKO: 56M01, JAPKO: 56M01C, METZGER: BT 1053, MEYLE: 015 523 2105, MINTEX: MBD336, NK: 253303, OPTIMAL: BT-0020, Raybestos (US): 9785R, SWAG: 12 94 4295, TEXTAR: 94022400, TEXTAR: 94035600, TOPRAN: 407 935, TRISCAN: 8120 23205, TRISCAN: 8120 23205C, TRW: DB1313, VALEO: 237035, ZIMMERMANN: 405.4101.20
