Description

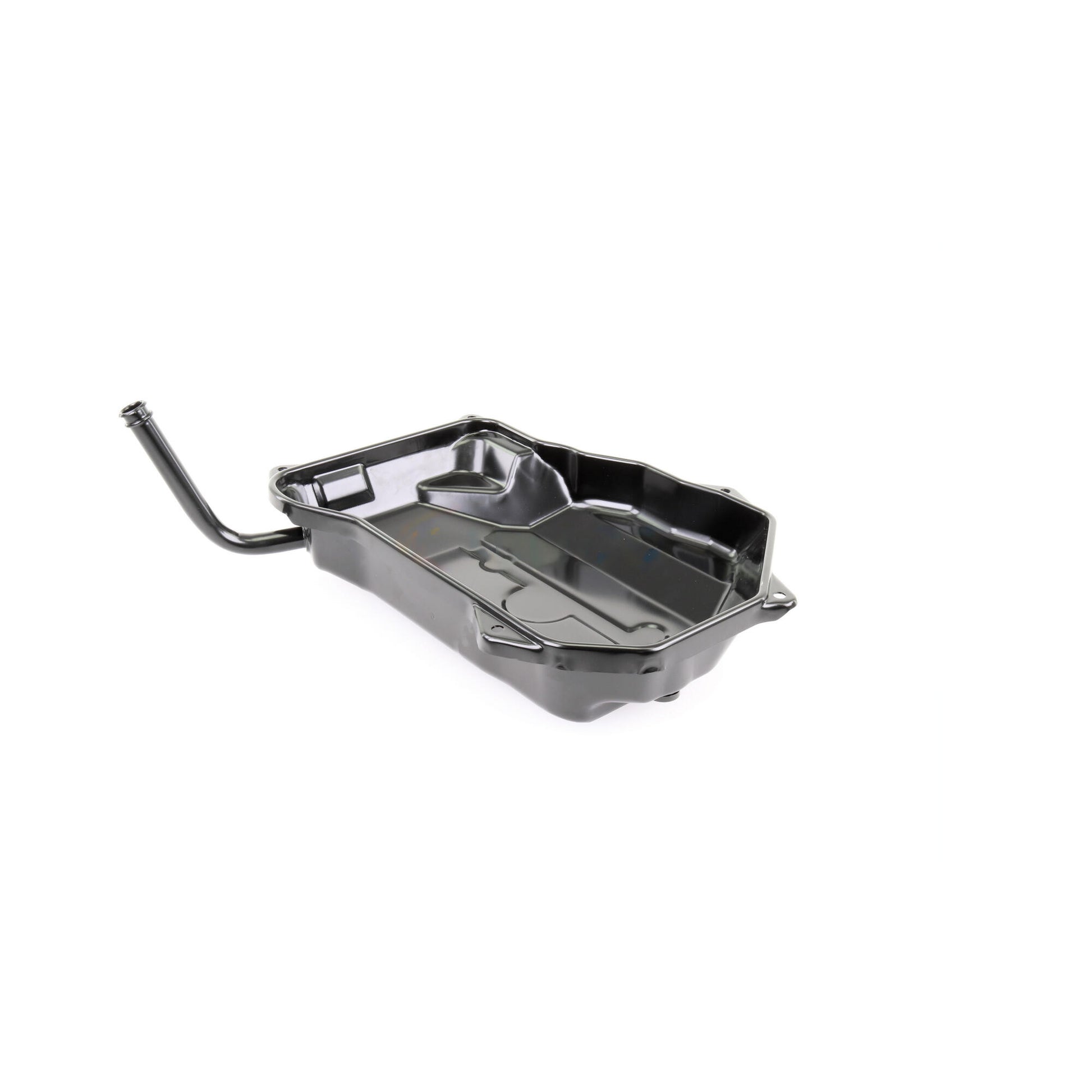

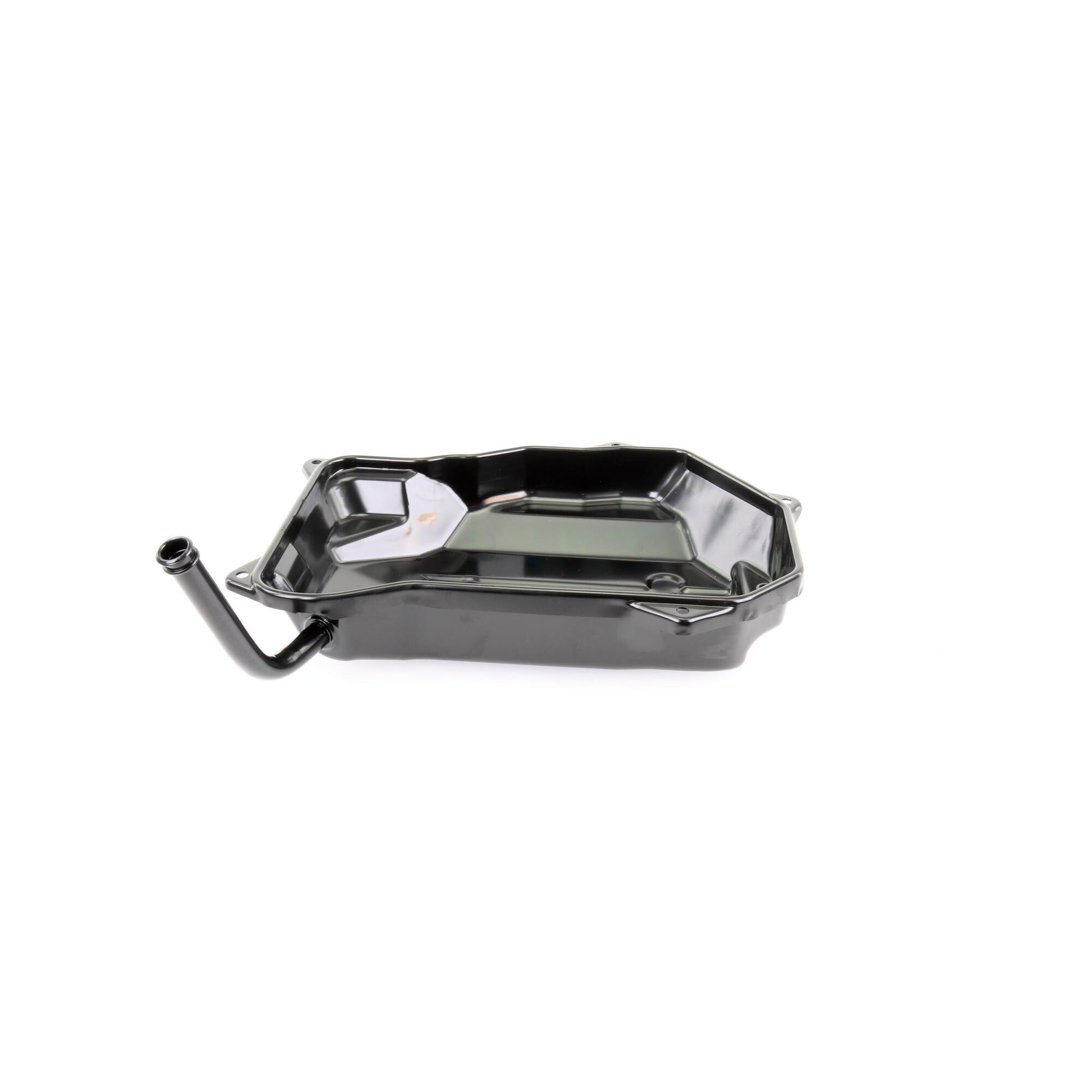

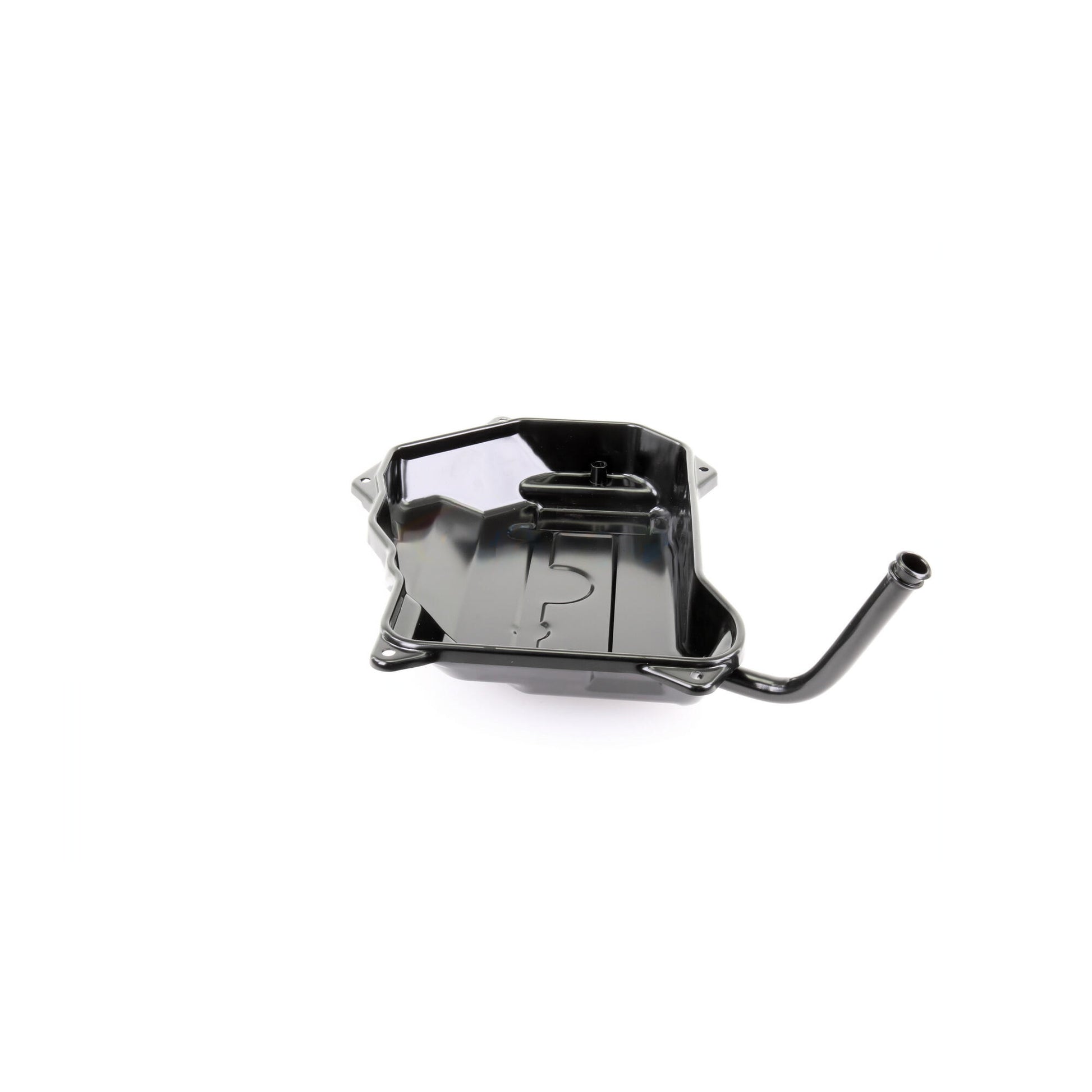

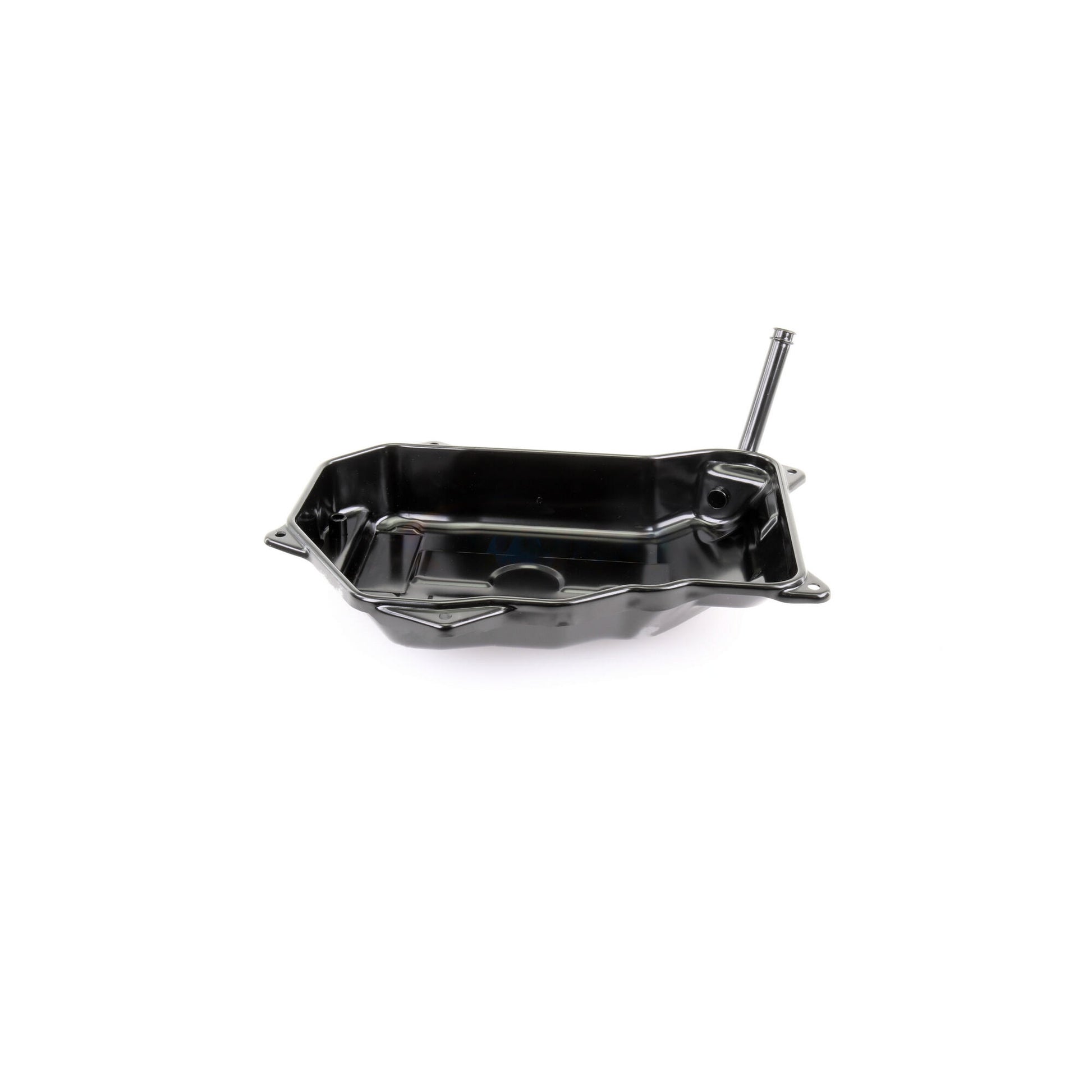

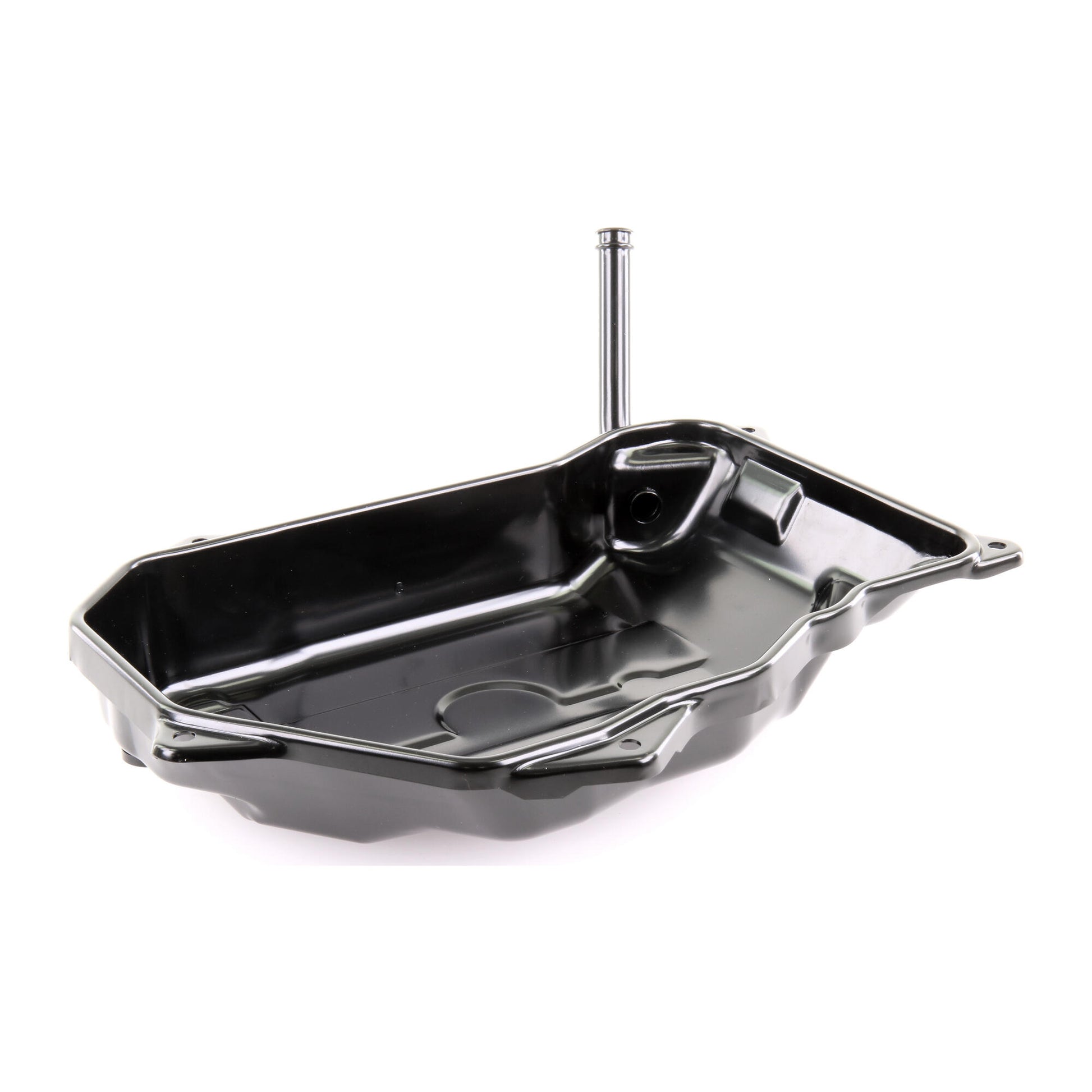

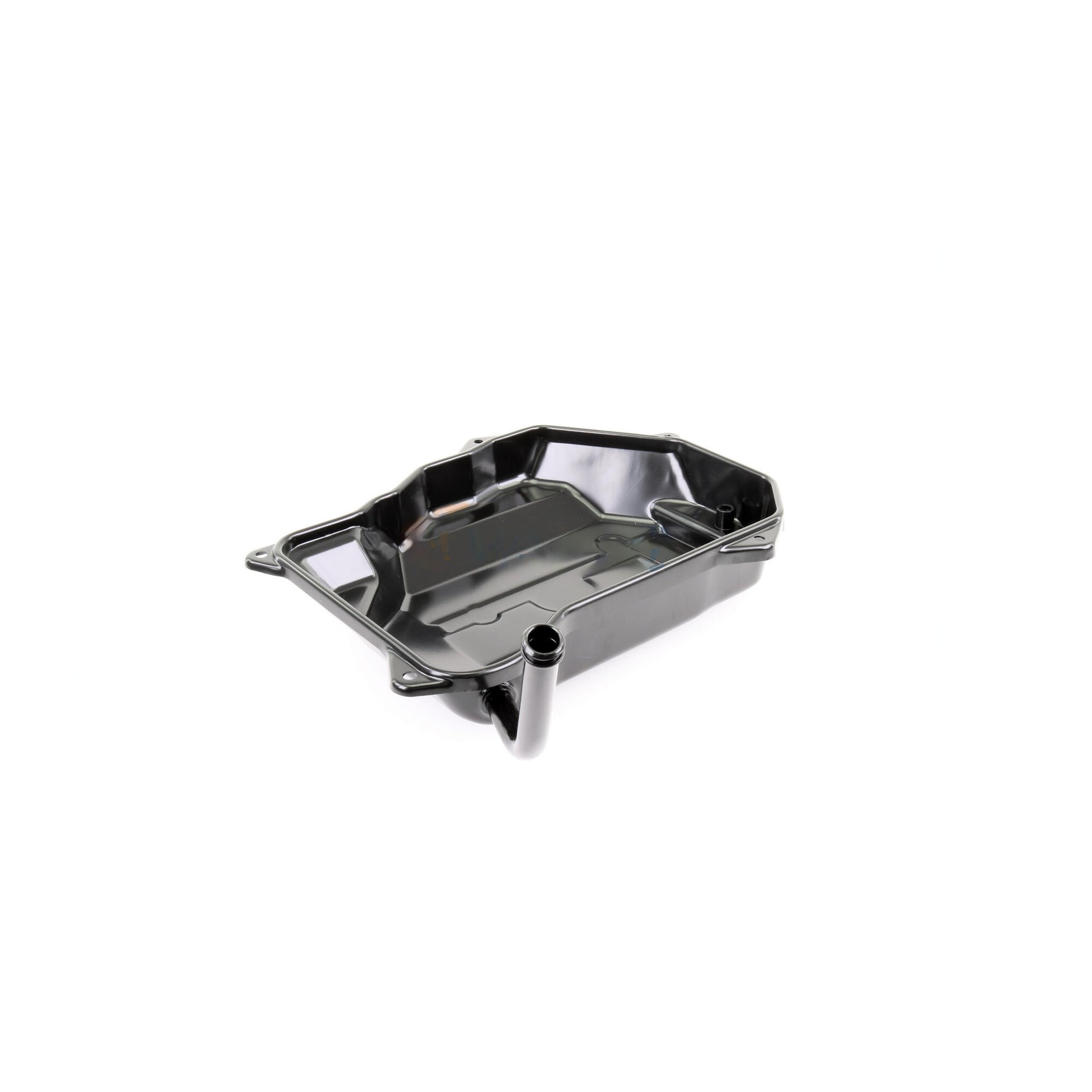

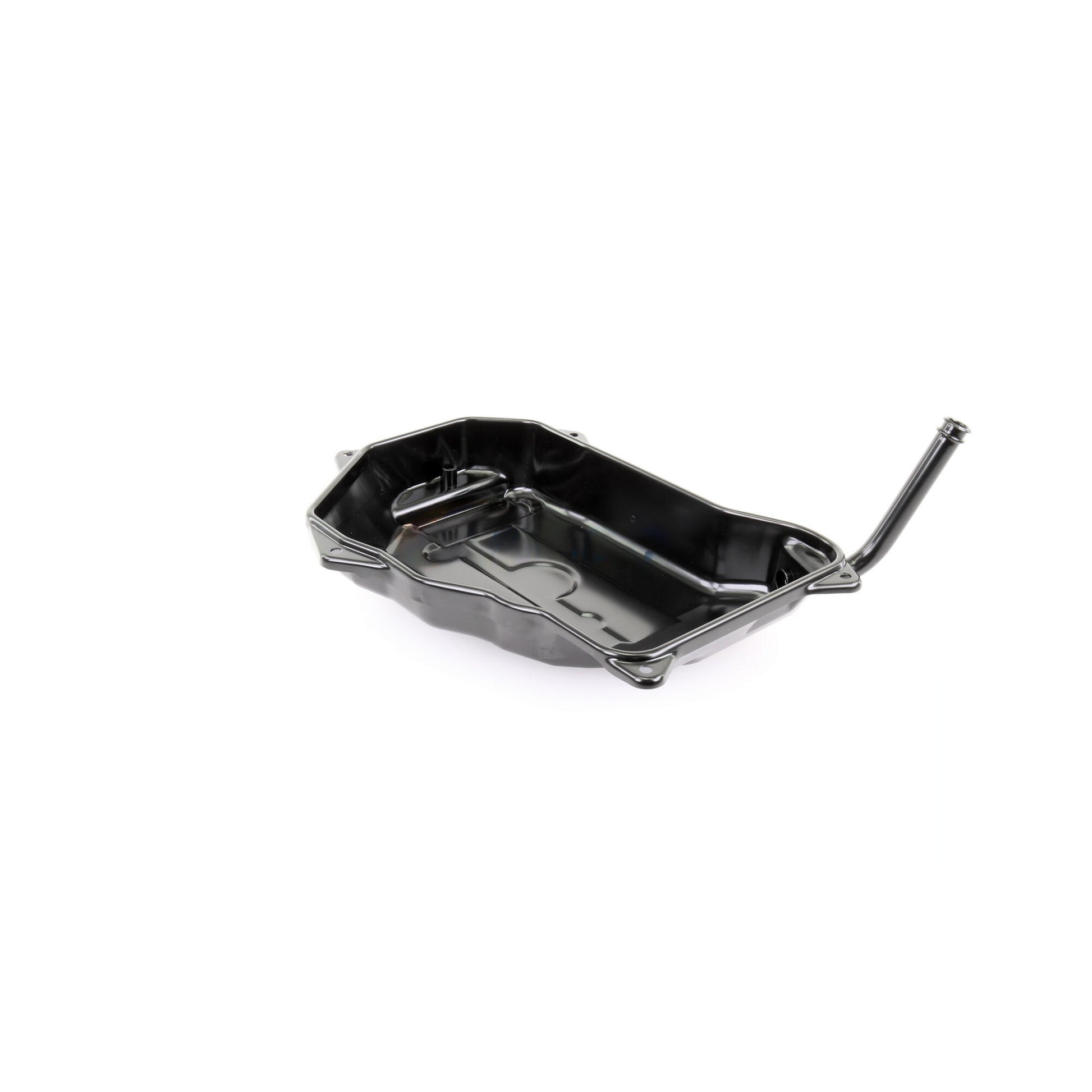

VAICO V10-3494 - Oil sump, automatic transmission
Supplementary Article/Supplementary Info: without oil drain plug
Supplementary Article/Info 2: without oil pan gasket
Section: Lower Section
Supplementary Article/Supplementary Info: Without gasket/seal
Surface: Powder coated
Oil Pan Material: Sheet Steel
Observe the vehicle manufacturer specifications
Length [mm]: 360
Width [mm]: 260,0
Height [mm]: 65
Observe system fill quantity
Transmission Type: 4-Speed Automatic Transmission
Supplementary Article/Info 2: without seal ring
Weight [kg]: 1,561
Fitting Position: near transmission housing
Replaces OEM reference(s):
AUDI: 01N321359, SEAT: 01N321359, SEAT: 1N321359, SKODA: 01N321359, SKODA: 1N321359, VAG: 01N321359, VAG: 1N321359, VW: 01N321359
Replaces aftermarket reference(s):
ABAKUS: 100-00-071, AIC: 55557, KLOKKERHOLM: 0018478, METZGER: 7990007, OSSCA: 03970, TOPRAN: 116 354
