Description

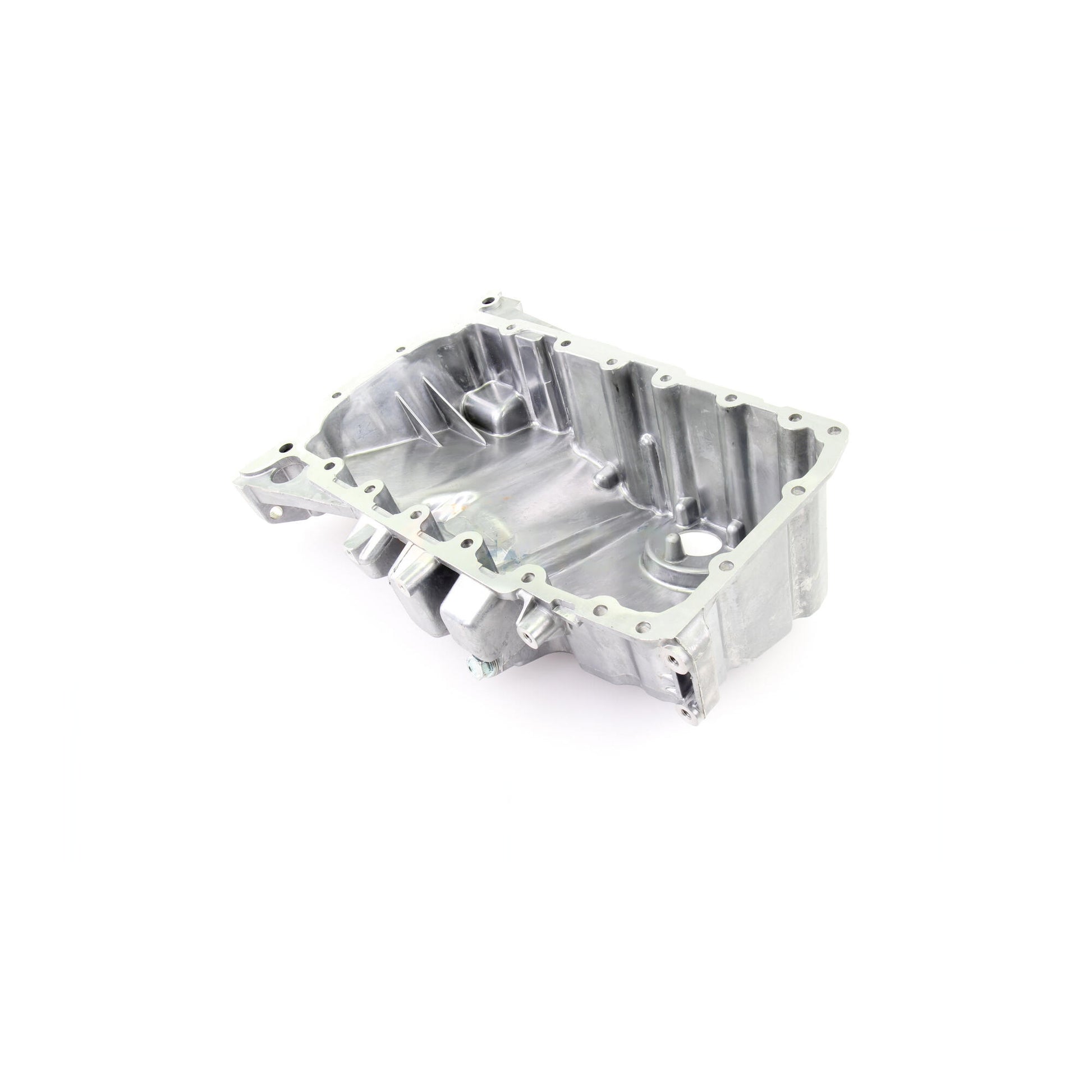

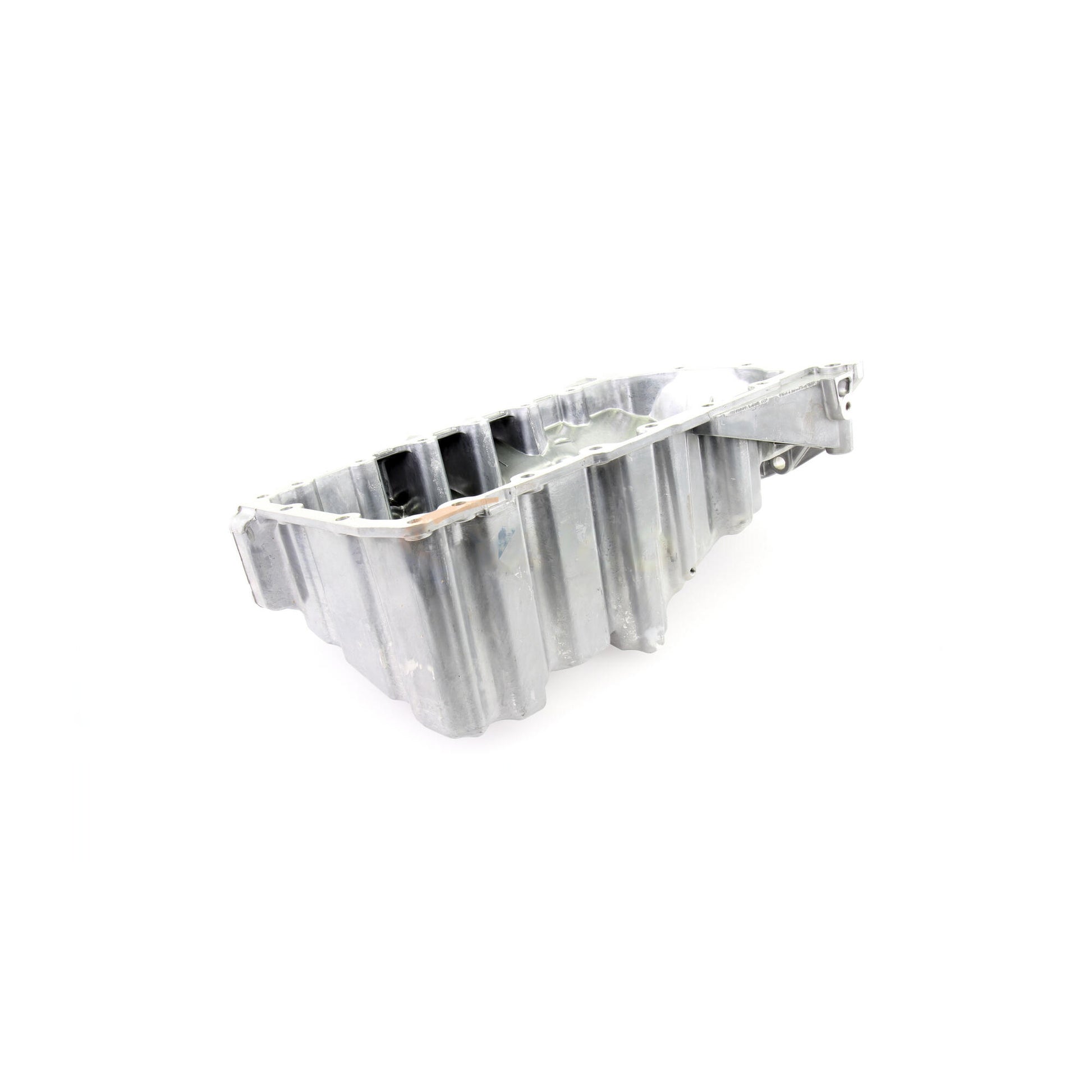

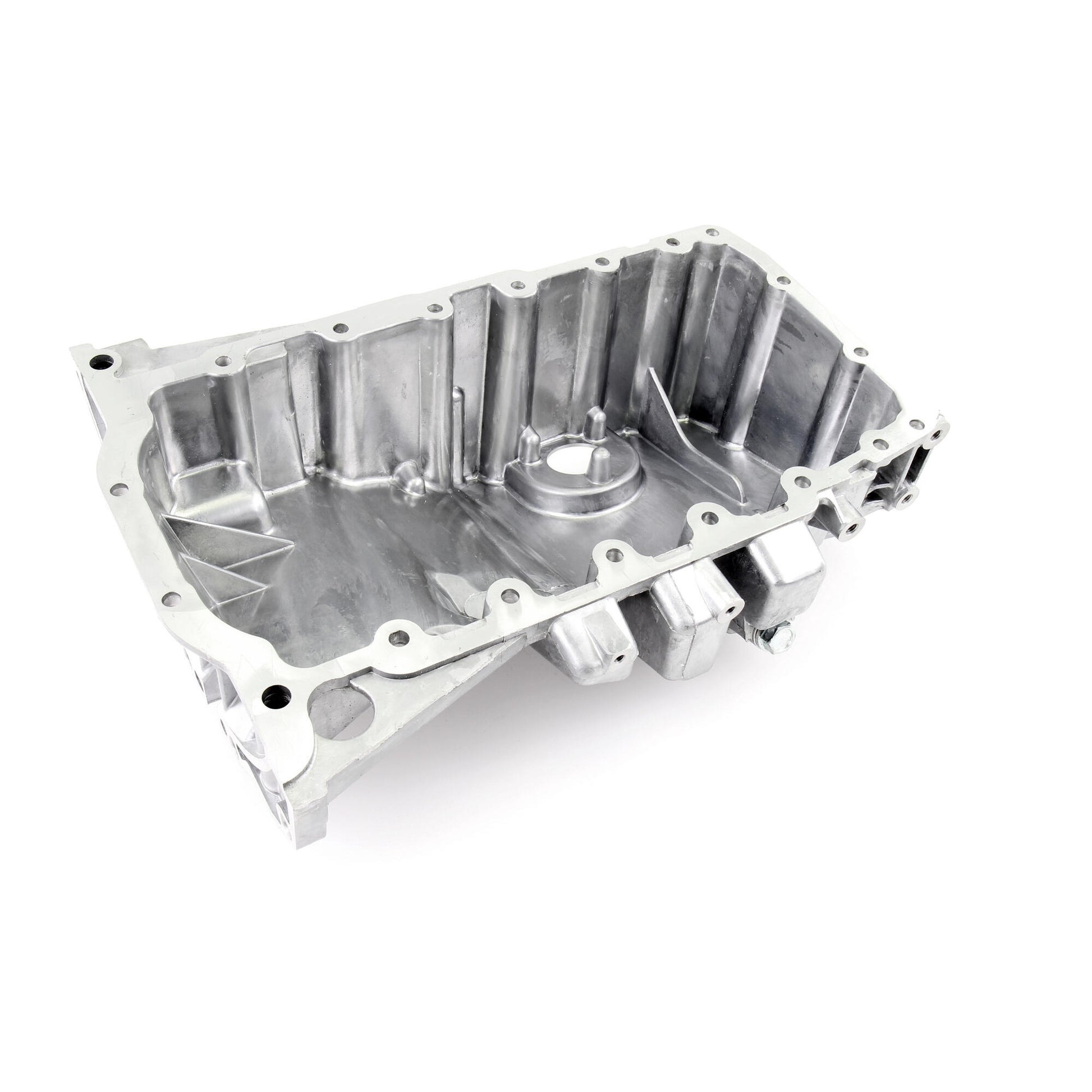

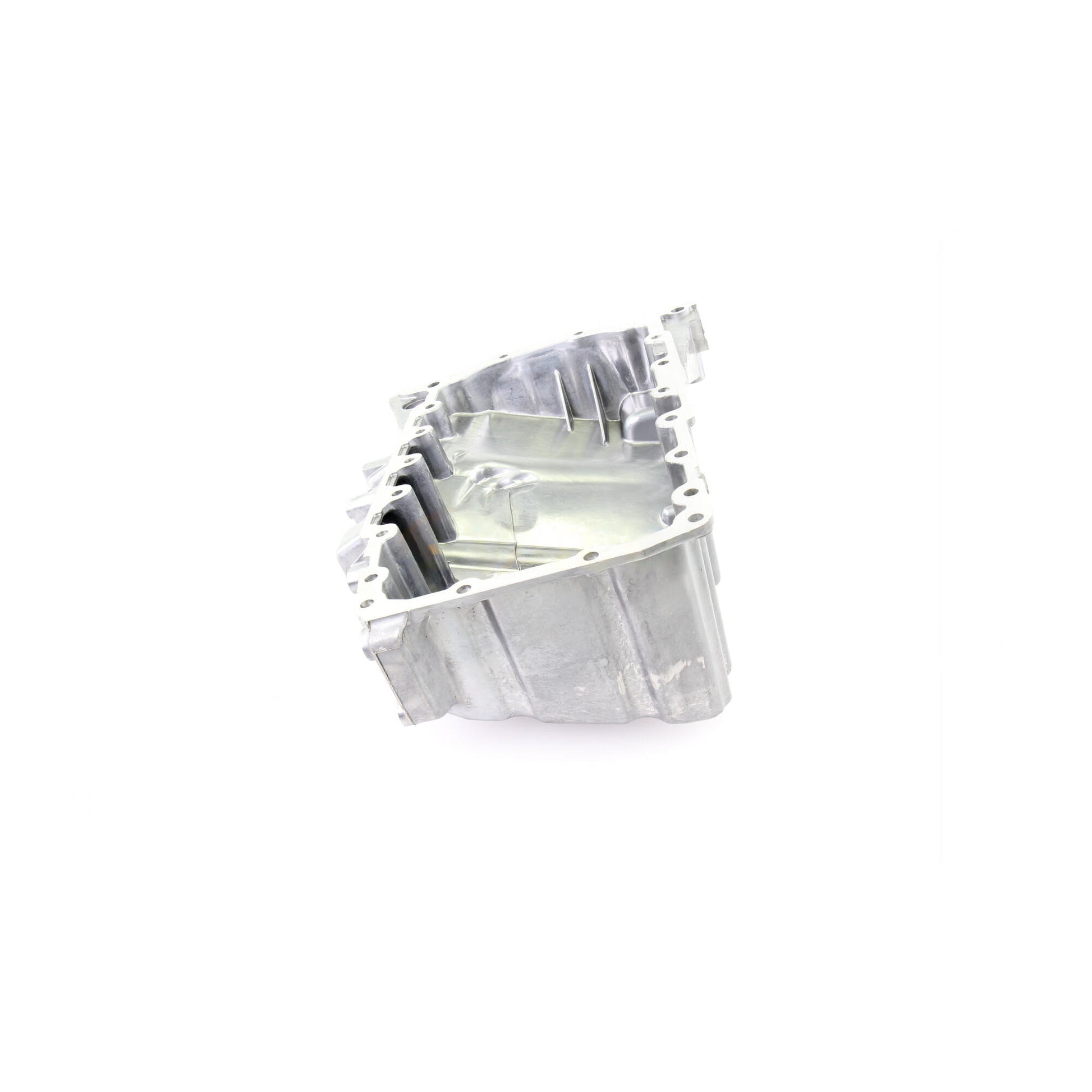

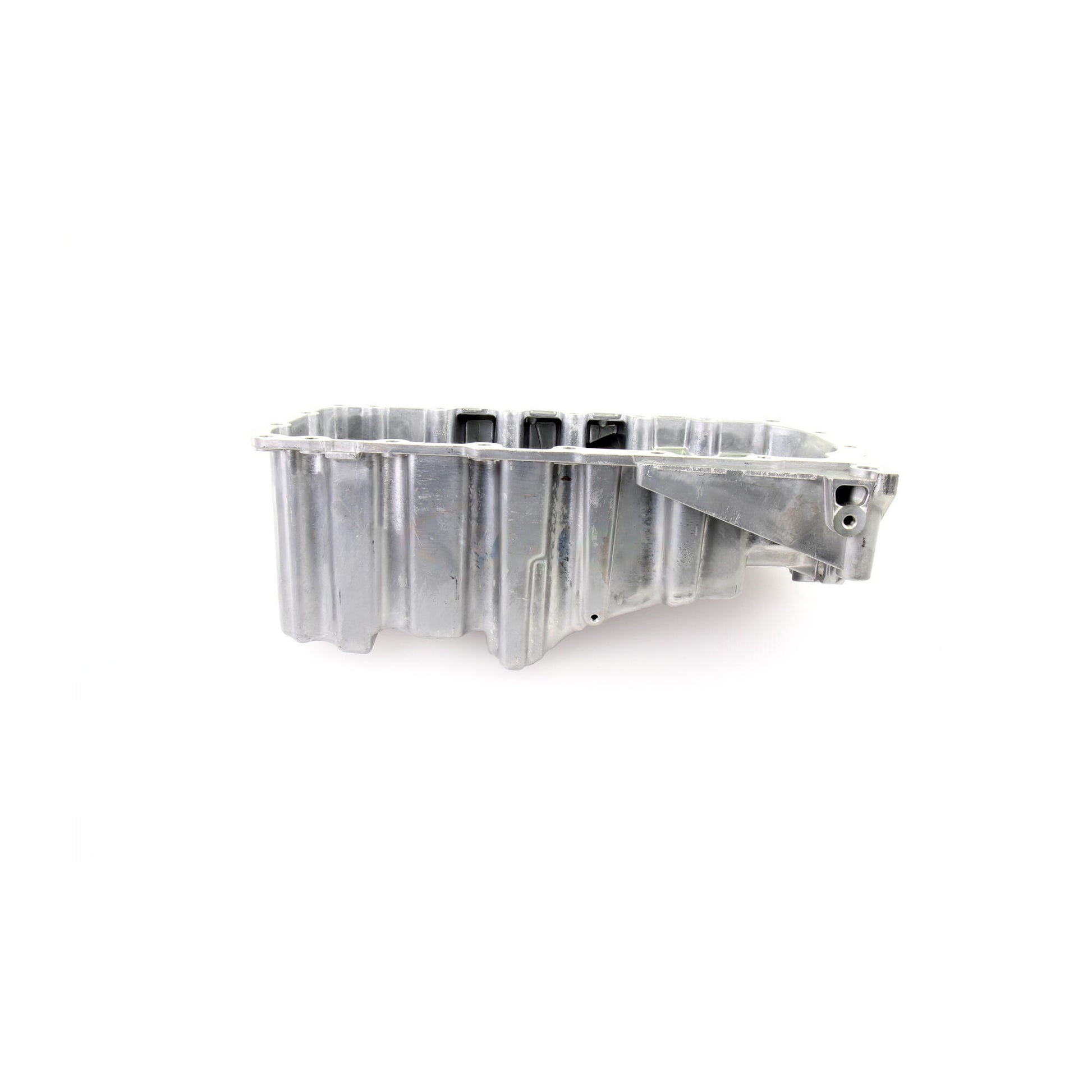

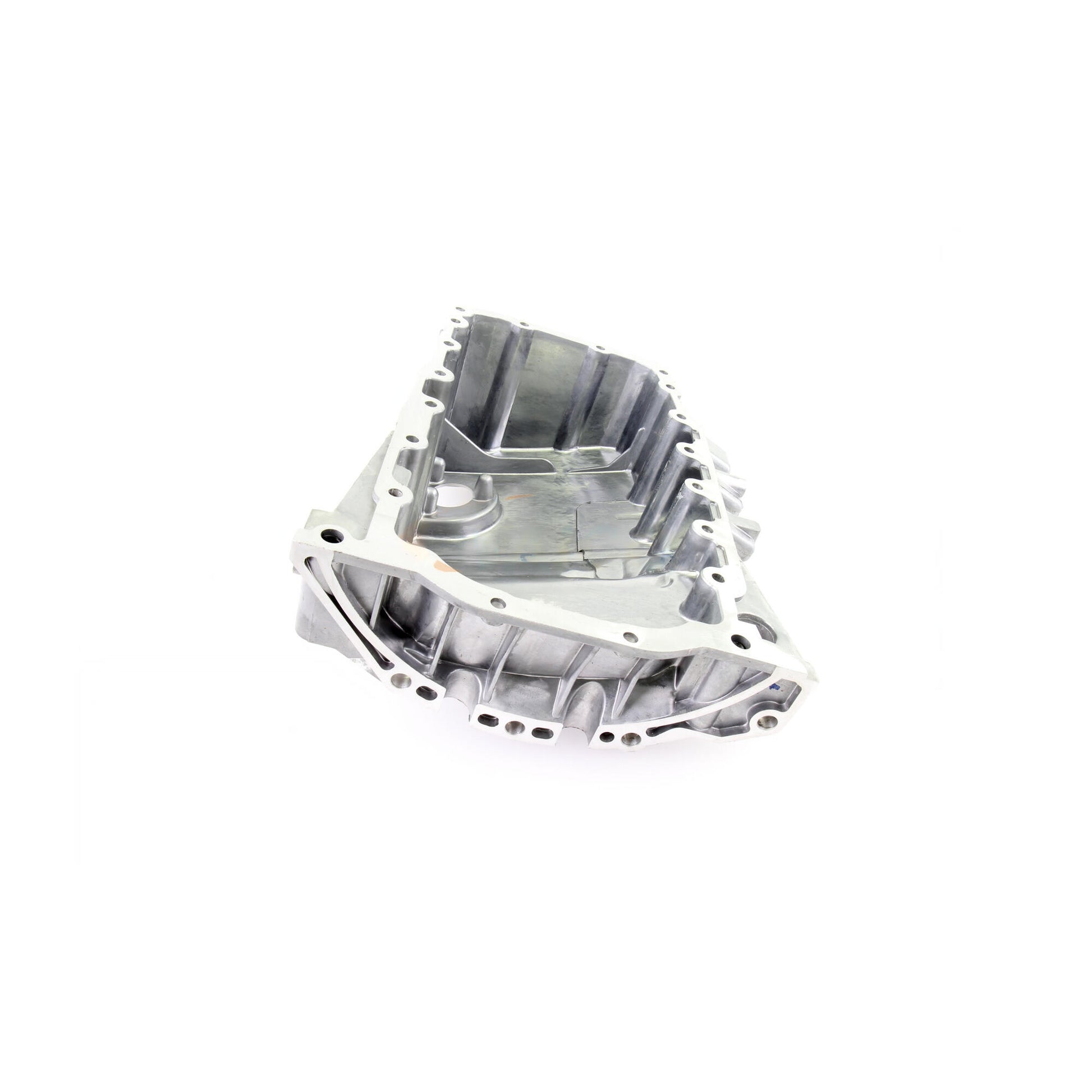

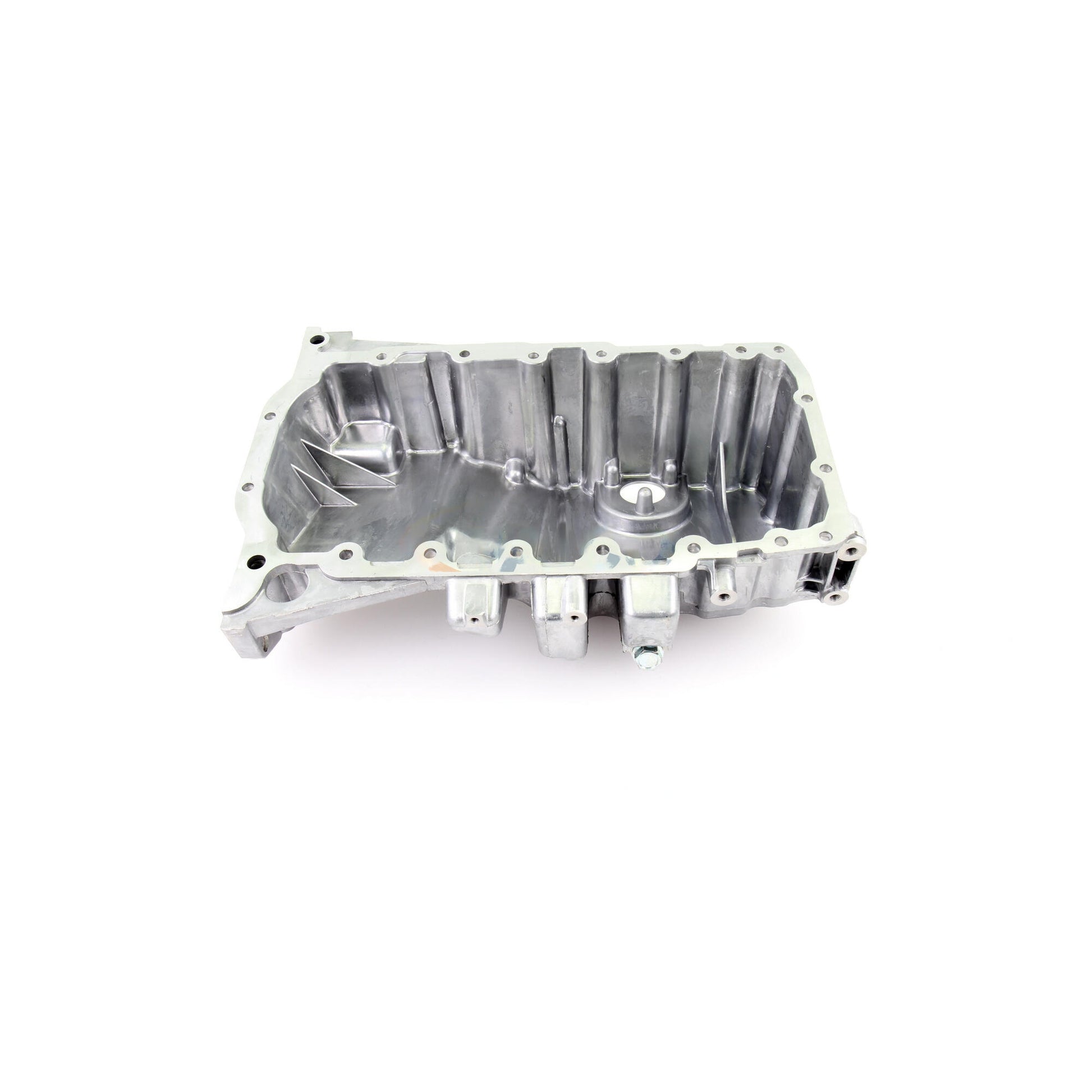

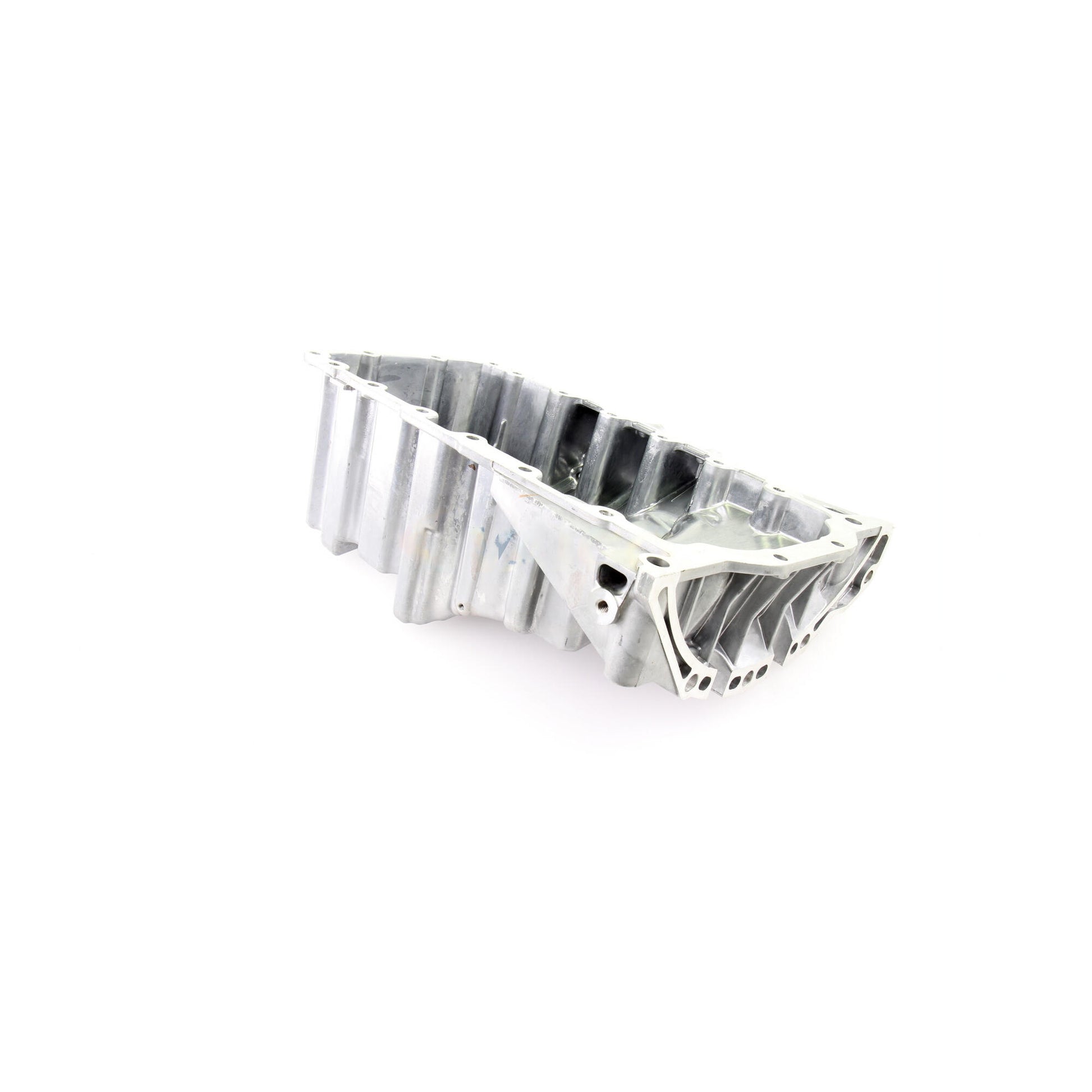

VAICO V10-3857 - Oil sump
Length [mm]: 414
Height [mm]: 157
Width [mm]: 310,0
Section: Lower Section
Oil Pan Material: Aluminium
Supplementary Article/Info 2: with seal ring
Supplementary Article/Info 2: with bore for oil-level sensor
Supplementary Article/Info 2: without oil pan gasket
Observe the vehicle manufacturer specifications
Observe system fill quantity
Supplementary Article/Supplementary Info: with oil drain plug
See accessories list for additionally required parts
Weight [kg]: 3,3602
Replaces OEM reference(s):
AUDI: 03G103603AH, AUDI: 03G103603J, SEAT: 03G103603AH, SEAT: 03G103603J, SEAT: 3G103603AH, SEAT: 3G103603J, SKODA: 03G103603AH, SKODA: 03G103603J, SKODA: 3G103603AH, SKODA: 3G103603J, VAG: 03G103603AH, VAG: 03G103603J, VAG: 3G103603AH, VAG: 3G103603J, VW: 03G103603AH, VW: 03G103603AJ, VW: 03G103603J, VW: 3G103603B
Replaces aftermarket reference(s):
BBR Automotive: 001-10-25177, BGA: SP0120, BLIC: 0216-00-0019474P, FAI AutoParts: PAN050, KLOKKERHOLM: 0019474, METZGER: 7990126, TOPRAN: 115 718, VAN WEZEL: 0326070
