Description

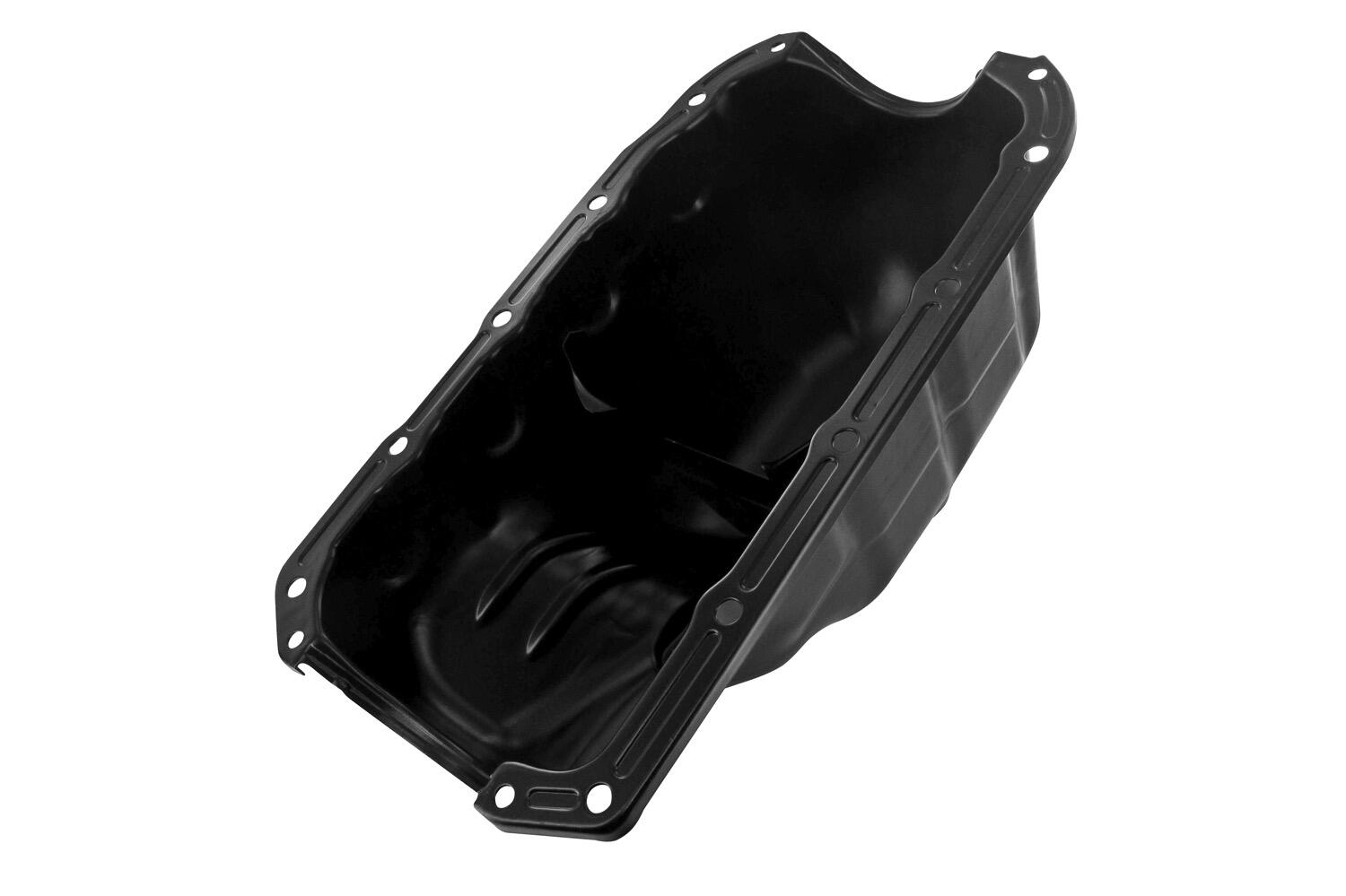

VAICO V24-0316 - Oil sump
Number of bores: 14
Supplementary Article/Info 2: without seal ring
Length [mm]: 390
Section: Lower Section
Fitting Position: Oil Pan
Supplementary Article/Supplementary Info: with oil drain plug
See accessories list for additionally required parts
Height [mm]: 200
Oil Pan Material: Sheet Steel
Width [mm]: 222,0
Surface: Powder coated
Bolt Ø [mm]: 8
Supplementary Article/Info 2: without oil pan gasket
Observe the vehicle manufacturer specifications
Observe system fill quantity
Weight [kg]: 2,3602
Replaces OEM reference(s):
ALFA ROMEO: 46543513, ALFA ROMEO: 55200418, FIAT: 0000046543513, FIAT: 46543513, FIAT: 0000046747597, FIAT: 46747597, FIAT: 55200418, FIAT / LANCIA: 0046543513, FIAT / LANCIA: 46543513, FIAT / LANCIA: 46747597, FORD: 1543869, FORD: 46747597, FORD: 55200418, LANCIA: 46747597, LANCIA: 55200418, OPEL: 55200418, OPEL: 9S516695AA, SUZUKI: 652326, VAUXHALL: 0652326
Replaces aftermarket reference(s):
AIC: 54711, BGA: SP2204, FARE SA: 10750, FEBI BILSTEIN: 37580, KLOKKERHOLM: 2022474, METZGER: 7990025, SWAG: 70 93 7580, TOPRAN: 600 361
