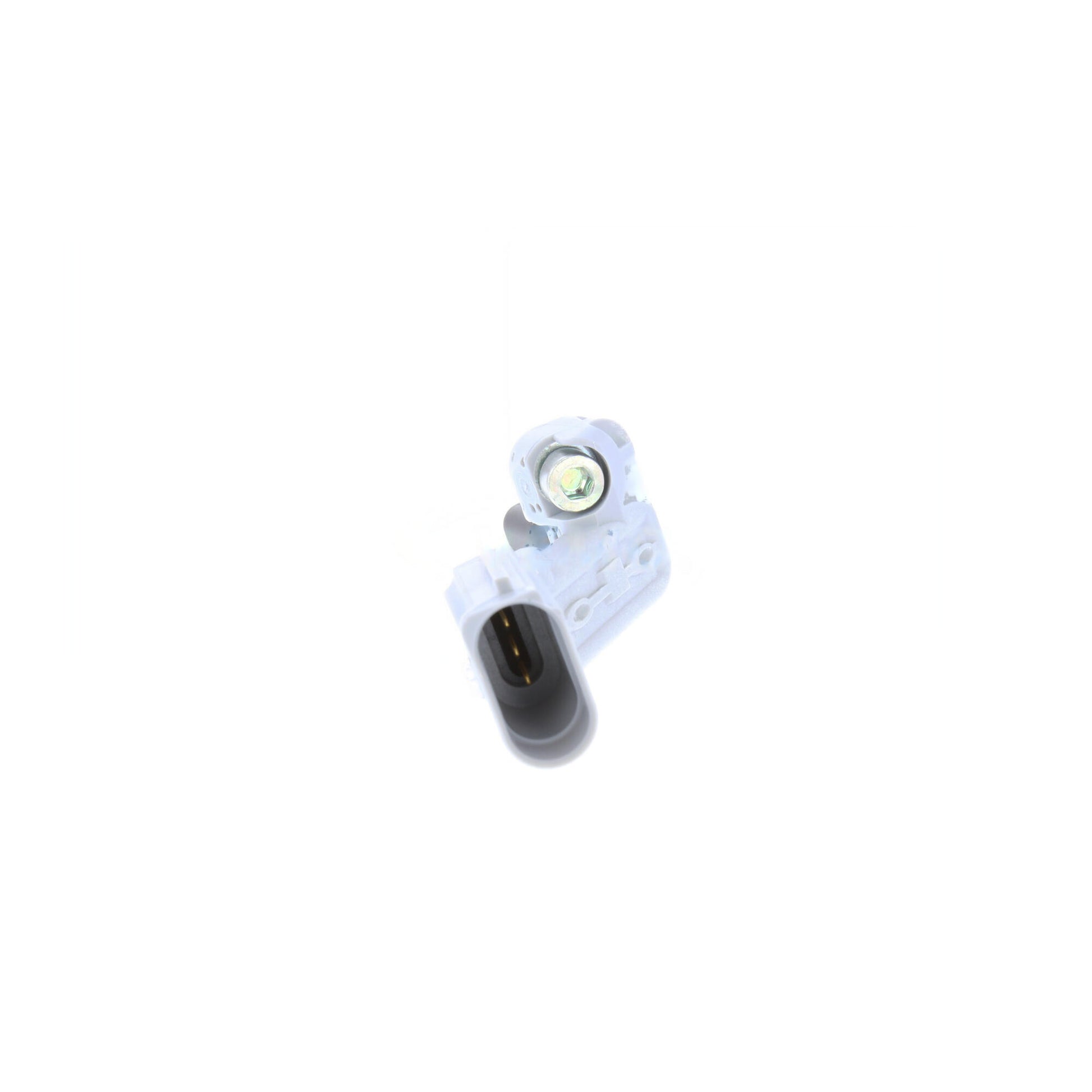

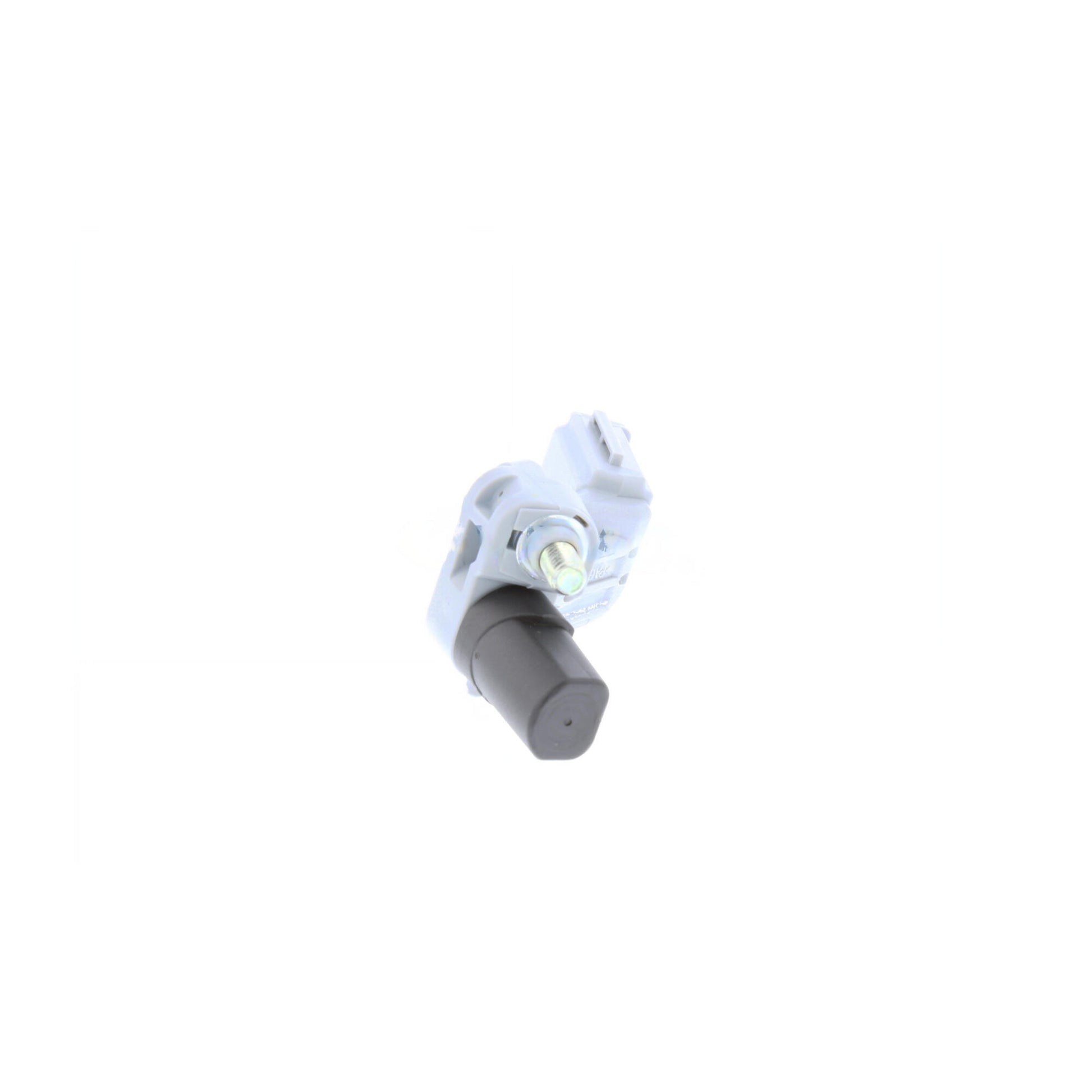

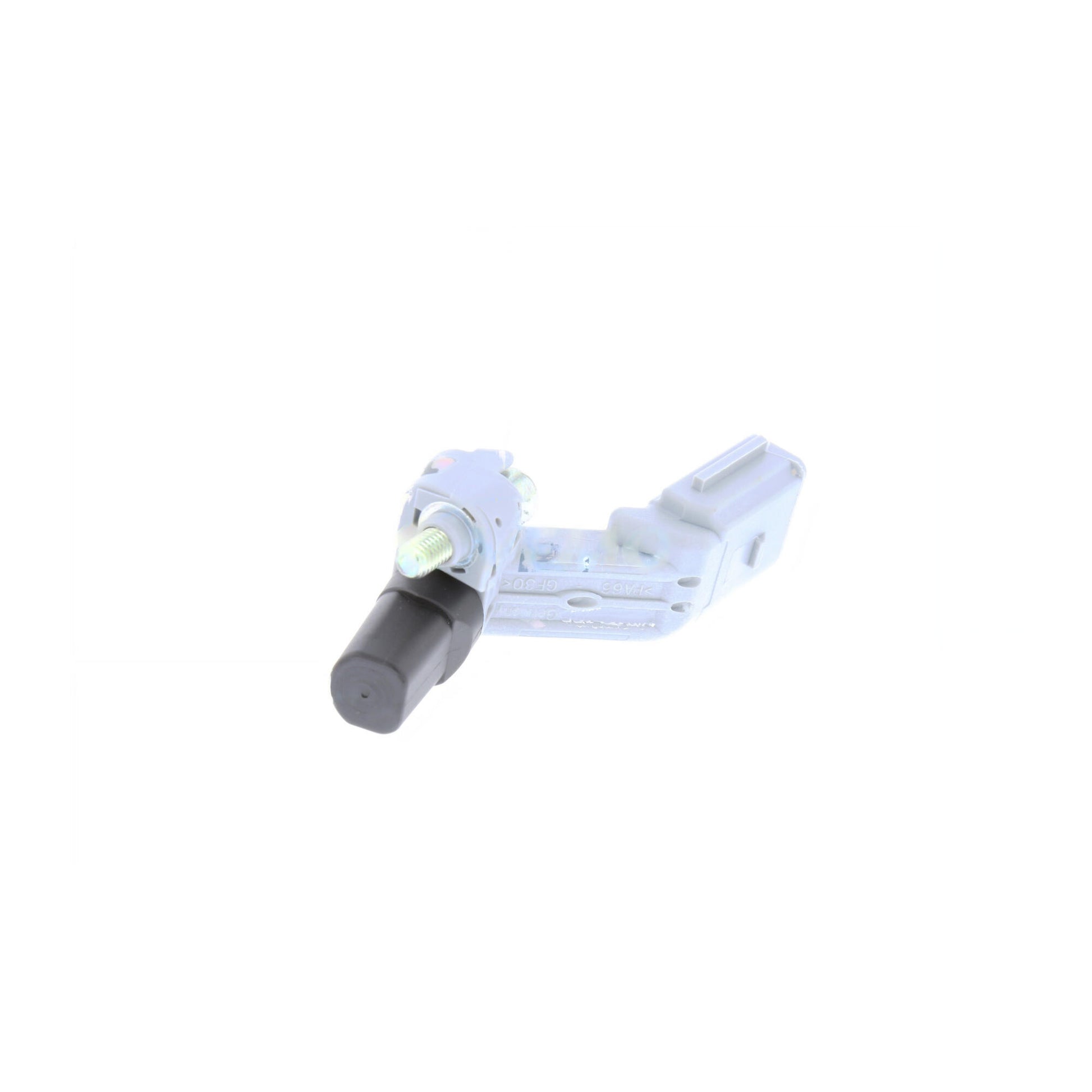

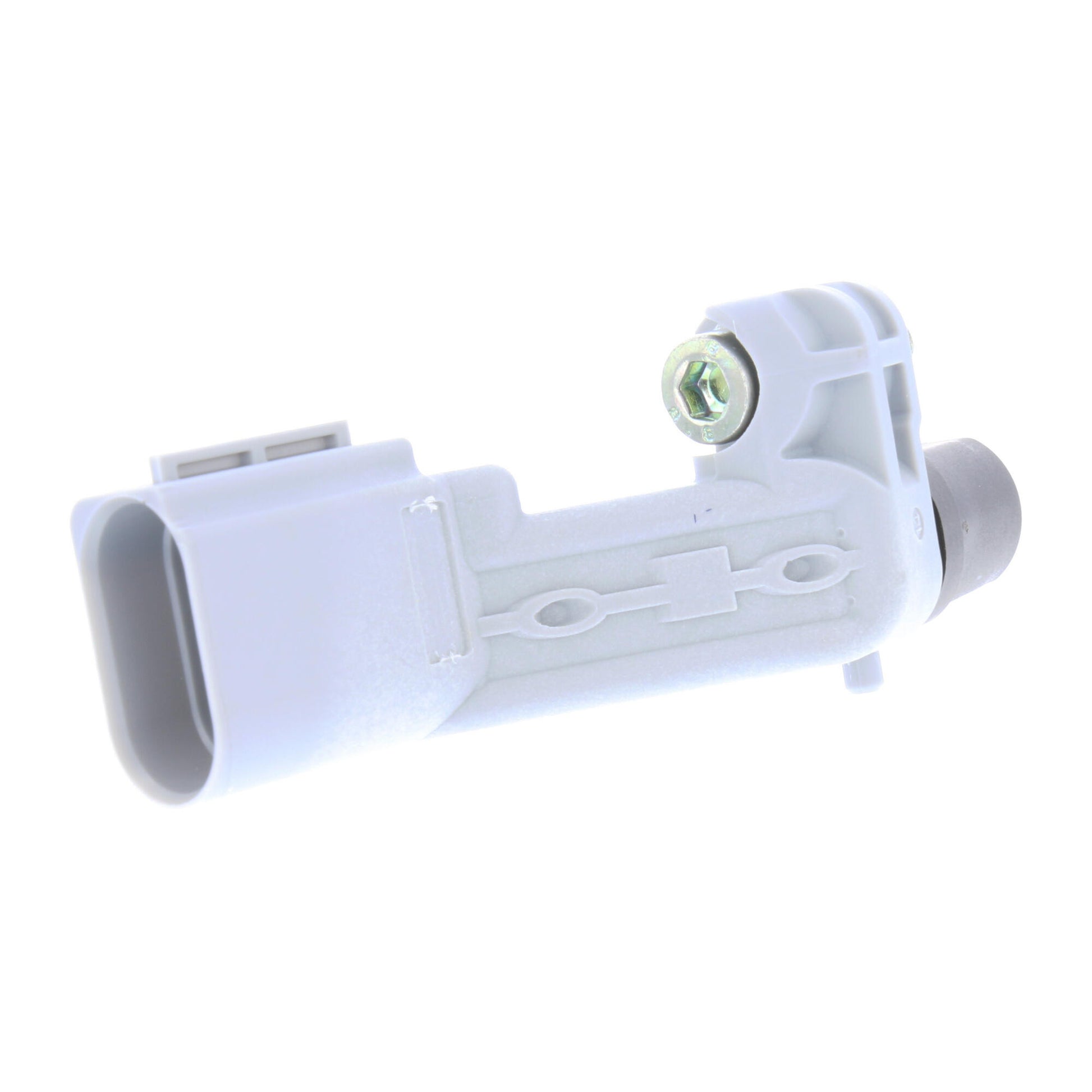

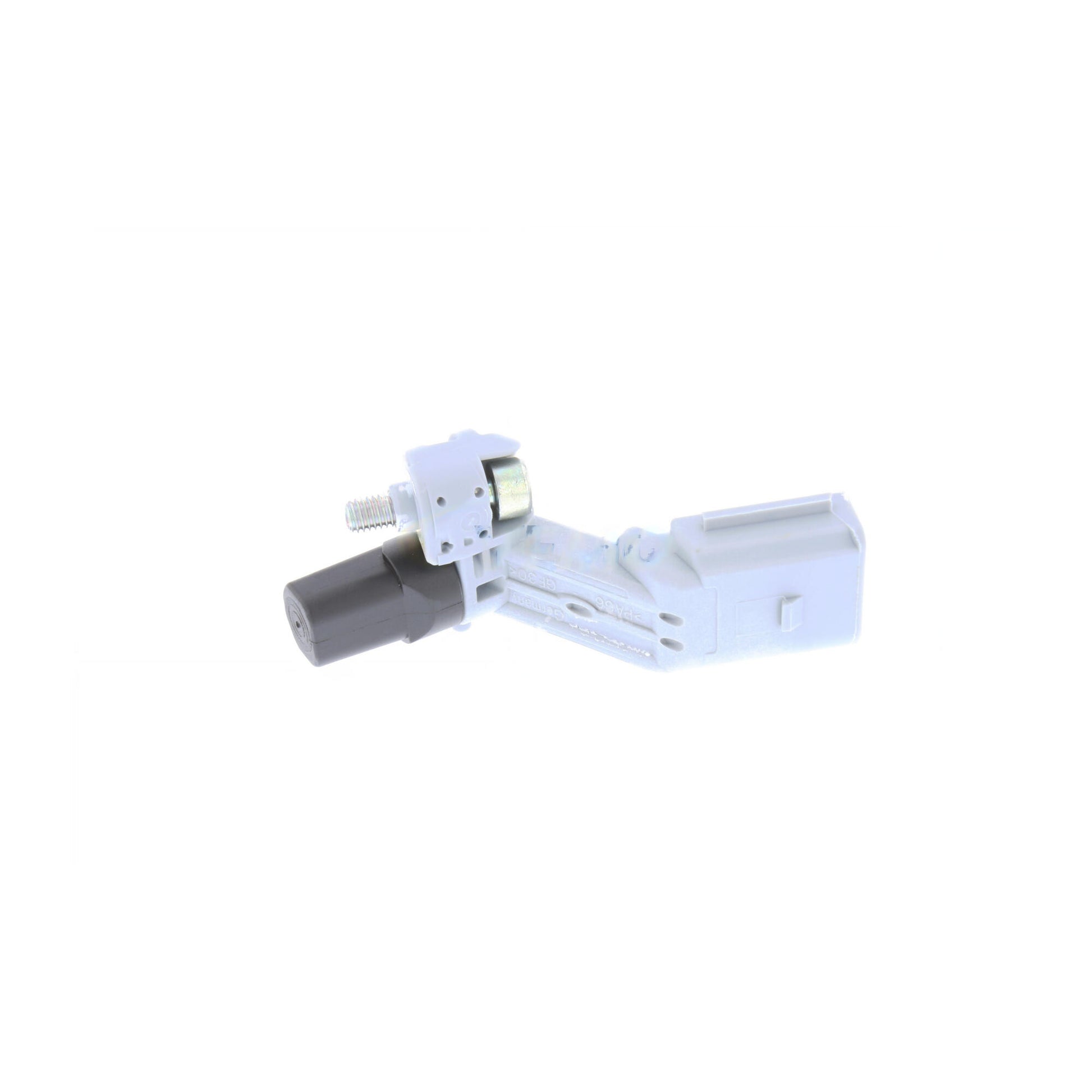

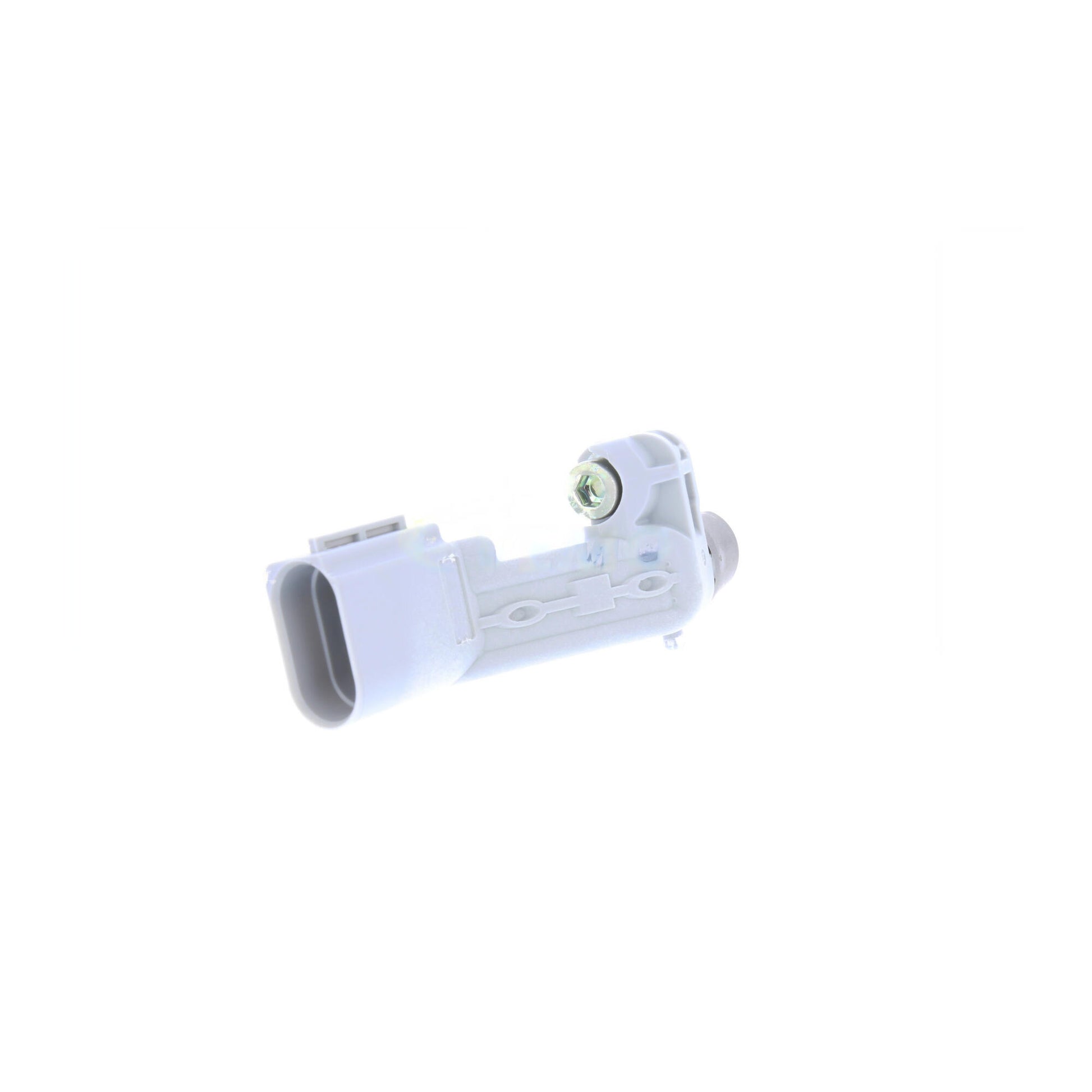

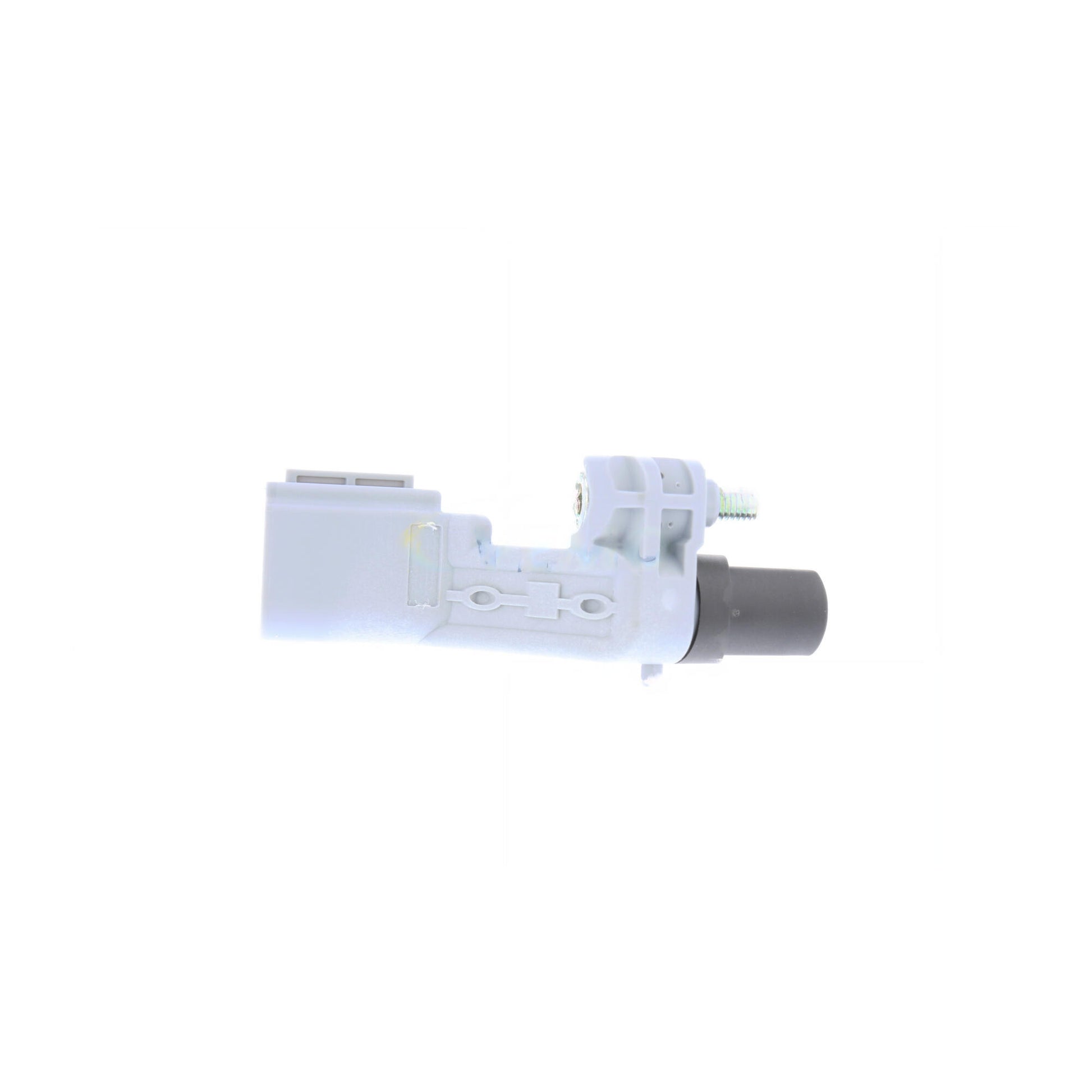

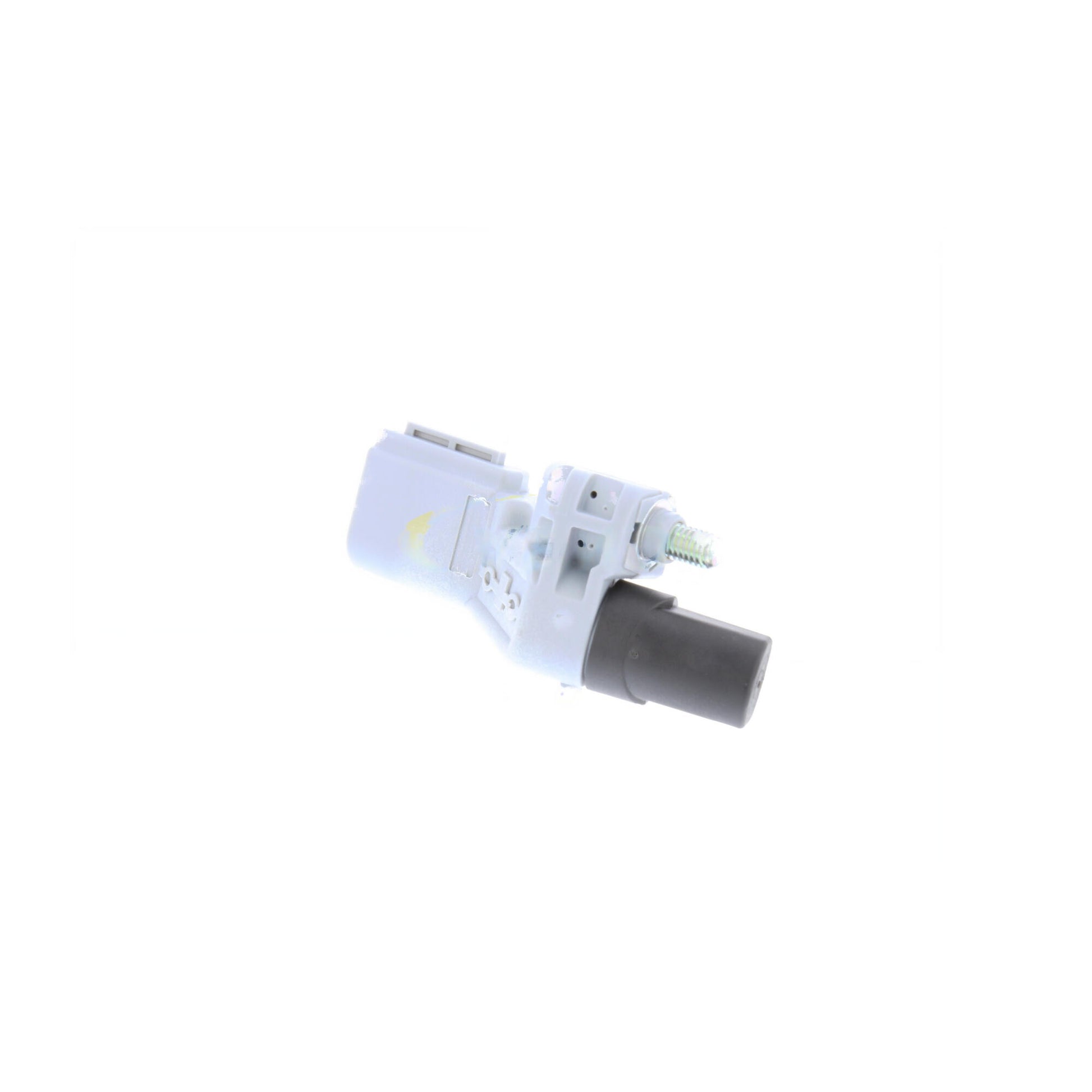

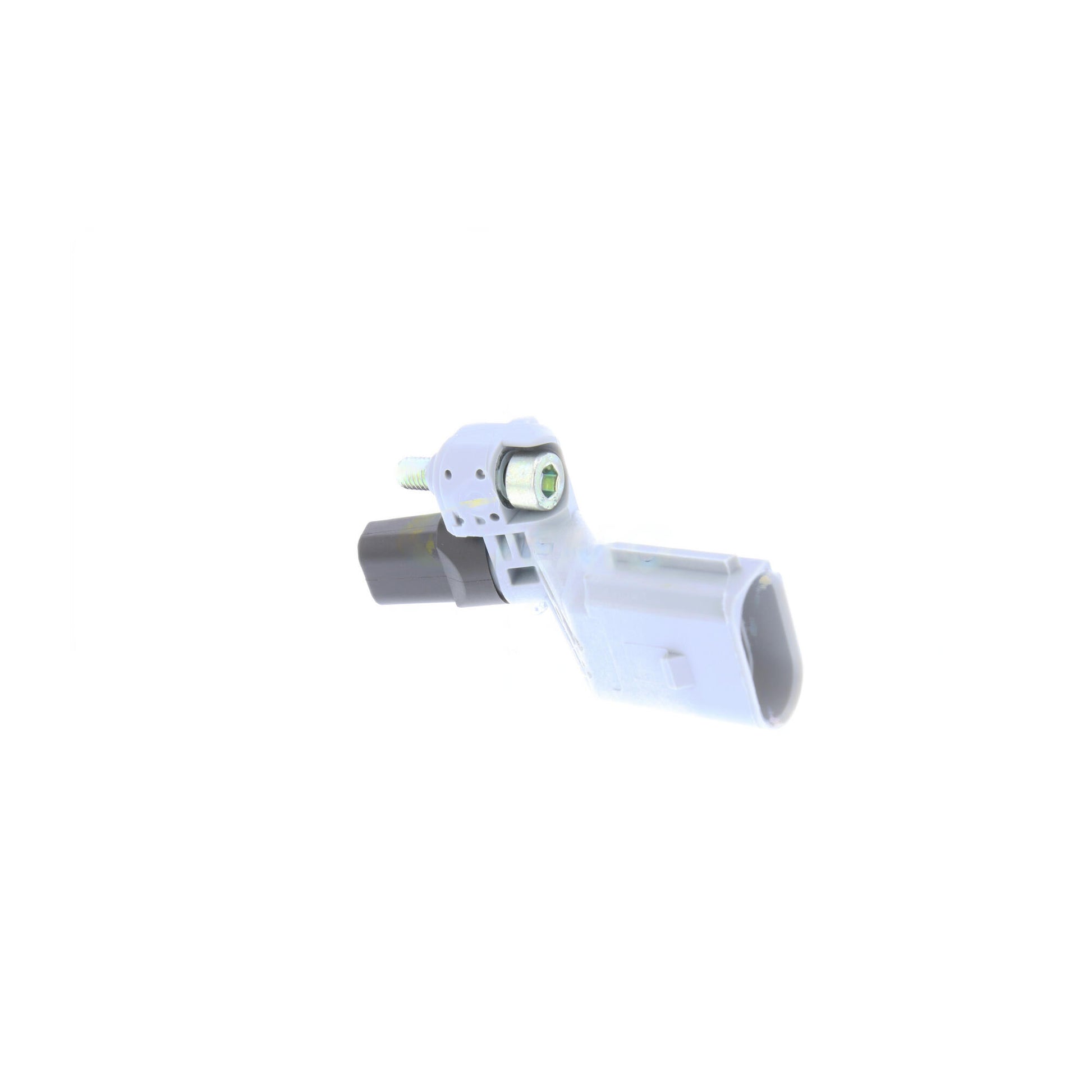

VEMO V10-72-1109 - sensor, crankshaft pulse
For OE number: 03C 906 433 E
Width [mm]: 30
Height [mm]: 28
Length [mm]: 80
Weight [kg]: 0,025
Number of pins: 3
Supplementary Article/Info 2: For crankshaft
Required quantity: 1
Sensor Type: Hall Sensor
Number of connectors: 3
Rated Voltage [V]: 12
Fitting Depth [mm]: 20
Supplementary Article/Info 2: with screw
Supplementary Article/Info 2: without cable

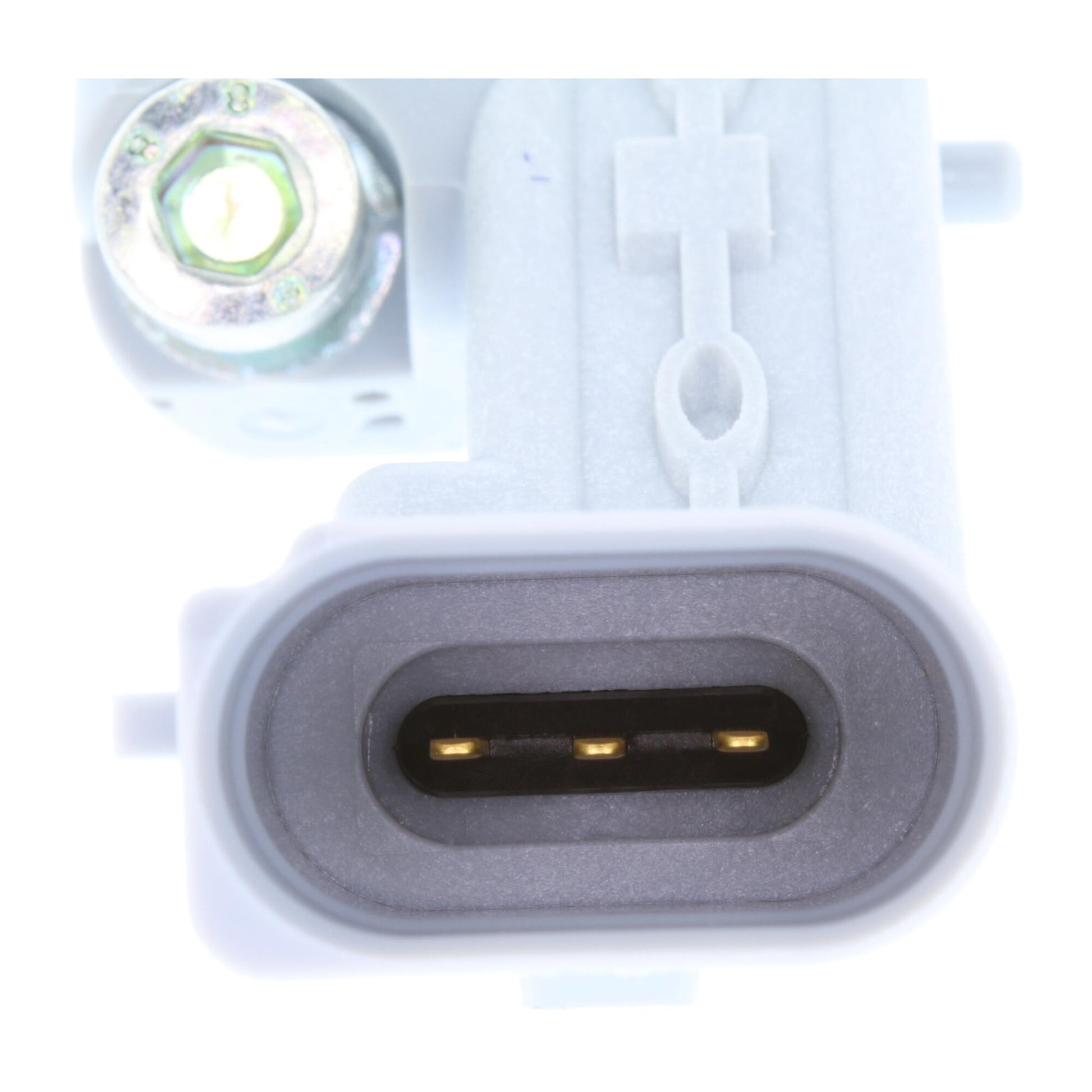

Connector Shape: D Shape
Replaces OEM reference(s):
AUDI: 032906433, AUDI: 32906433, AUDI: 32906433, AUDI: 032906433A, AUDI: 032906433B, AUDI: 036906433C, AUDI: 036906433D, AUDI: 03C906433A, AUDI: 03C906433B, AUDI: 03C906433C, AUDI: 03C906433E, AUDI: 045906433B, AUDI: 32906433A, AUDI: 32906433B, AUDI: 36906433C, AUDI: 36906433D, AUDI: 3C906433A, AUDI: 3C906433B, AUDI: 3C906433C, AUDI: 3C906433E, AUDI: 45906433B, SEAT: 032103170, SEAT: 032906433, SEAT: 32906433, SEAT: 032103170A, SEAT: 032103170B, SEAT: 032906433A, SEAT: 032906433B, SEAT: 036906433C, SEAT: 036906433D, SEAT: 03C906433A, SEAT: 03C906433B, SEAT: 03C906433C, SEAT: 03C906433E, SEAT: 045906433B, SEAT: 32906433A, SEAT: 32906433B, SEAT: 36906433C, SEAT: 36906433D, SEAT: 3C906433A, SEAT: 3C906433B, SEAT: 3C906433C, SEAT: 3C906433E, SEAT: 3C906433E, SEAT: 45906433B, SKODA: 032103170, SKODA: 032906433, SKODA: 32906433, SKODA: 032103170A, SKODA: 032103170B, SKODA: 032906433A, SKODA: 032906433B, SKODA: 036906433C, SKODA: 036906433D, SKODA: 03C906433A, SKODA: 03C906433B, SKODA: 03C906433C, SKODA: 03C906433E, SKODA: 045906433B, SKODA: 32906433A, SKODA: 32906433B, SKODA: 36906433C, SKODA: 36906433D, SKODA: 3C906433A, SKODA: 3C906433B, SKODA: 3C906433C, SKODA: 3C906433E, SKODA: 3C906433E, SKODA: 45906433B, VAG: 032906433, VAG: 32906433, VAG: 32906433, VAG: 032906433A, VAG: 032906433B, VAG: 036906433C, VAG: 036906433D, VAG: 03C906433A, VAG: 03C906433B, VAG: 03C906433C, VAG: 03C906433E, VAG: 045906433B, VAG: 32906433B, VAG: 32906433B, VAG: 36906433C, VAG: 36906433C, VAG: 36906433D, VAG: 36906433D, VAG: 3C906433A, VAG: 3C906433B, VAG: 3C906433C, VAG: 3C906433E, VAG: 45906433B, VW: 032103170, VW: 32103170, VW: 32103170, VW: 032906433, VW: 32906433, VW: 032103170A, VW: 032103170B, VW: 032906433A, VW: 032906433B, VW: 036906433C, VW: 03C906433A, VW: 03C906433B, VW: 03C906433C, VW: 03C906433E, VW: 045906433B, VW: 32103170A, VW: 32103170A, VW: 32103170B, VW: 32103170B, VW: 32906433A, VW: 32906433A, VW: 32906433B, VW: 32906433B, VW: 36906433C, VW: 36906433C, VW: 36906433D, VW: 3C906433A, VW: 3C906433B, VW: 3C906433C, VW: 3C906433E, VW: 45906433B
Replaces aftermarket reference(s):
AIC: 56549, AIRTEX: 5S12040, AUTEX: 903023, Autopart Intern.(US): 1802-484887, BBT: CSS322, BECK/ARNLEY: 180-0727, BOSCH: 0 986 280 435, BREMI: 60206, BUGIAD: BSP24936, CALORSTAT by Vernet: CS0347, CONTINENTAL/VDO: 2803550249302, DELPHI: SS11170, EFI AUTOMOTIVE: 144559, ERA: 550479, ERA: 550479A, FACET: 9.0598, FAE: 79174, FEBI BILSTEIN: 37317, HC-Cargo: 150707, HEADLINE: ESC00689, HELLA: 6PU 009 167-131, HERTH+BUSS ELPARTS: 70610606, HITACHI: 138080, HITACHI: 138080, HOFFER: 7517453, INTERMOTOR: 19259, LUCAS: SEB1974, MAGNETI MARELLI: 064848155010, MEAT & DORIA: 87453, MEAT & DORIA: 87458, METZGER: 0902178, MEYLE: 114 810 0010, NGK: 81235, OPTIMAL: 07-S182, OPTIMAL: 08-S040, PEX: 146CRK00042, PREXAparts: P101075, SIDAT: 83.384, SWAG: 30 93 7317, TOPRAN: 116 164, TRISCAN: 8855 29109, TRUCKTEC AUTOMOTIVE: 07.17.167, VALEO: 255502, VALEO: 366428, VEMO: V10-72-1109, Wells (US): SU13461
