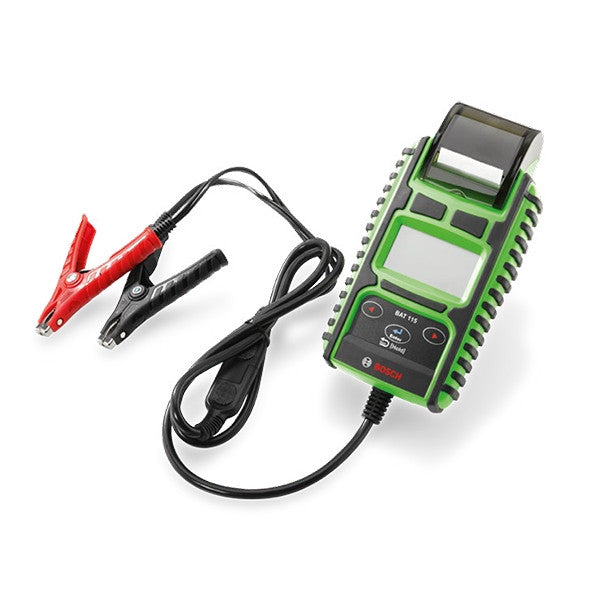

BAT 115 Battery Tester

BAT 115 Battery Tester

Offering a wide-range of testing norms, such as EN, EN2, DIN, SAE, IEC, JIS and MCA, the versatile BAT 115 battery tester tests 6 V and 12 V batteries from 40 - 2000 CCA, including lead-acid, EFB, Gel and AGM (flat and spiral) using a micro-load test for proven accurate results while also offering the ability to test 12 V and 24 V charging systems with a diode/ripple test.

• Micro-load test procedure: Produces fast and reliable measurement results
• Large LCD screen: For clear, legible results which can be referenced quickly
• EN, EN2, DIN, SAE, IEC, JIS and MCA testing norms: For versatile testing of 6 V and 12 V batteries, and the 12 V and 24 V starter charging systems
• Guided menus in 25 languages with 3-button operation: Easy and intuitive to use
• Integrated printer presenting state of health and state of charge percentage: Provides the customer with clear and easy to understand graphical printouts for their records
• 1.8 meter testing cable: For excellent coverage around the vehicle in the workshop
• Only 1100 g with robust housing: Provides easy handling and durability for daily use
• Detachable test clamps: For service or replacement
• Supports testing of starting and charging systems

• Battery nominal voltage: 6 V / 12 V
• Application: Passenger car, light commercial vehicle, motorcycle, marine
• Battery types: Lead-acid, EFB, Gel & AGM (flat and spiral)
• Test standards: EN, EN2, DIN, SAE, IEC, JIS, MCA
• Battery size (in acc. with CCA): 40 – 2000 A
• Printer: Integrated thermal printer
• Starting/charging system test 12 V / 24 V
• Number of Menu languages: 25 languages
• Dimensions (W x H x D): approx. 250 x 130 x 60mm
• Weight approx.: 1100 g
• Operating temperature: 0 – 40 degree(C)
