Description

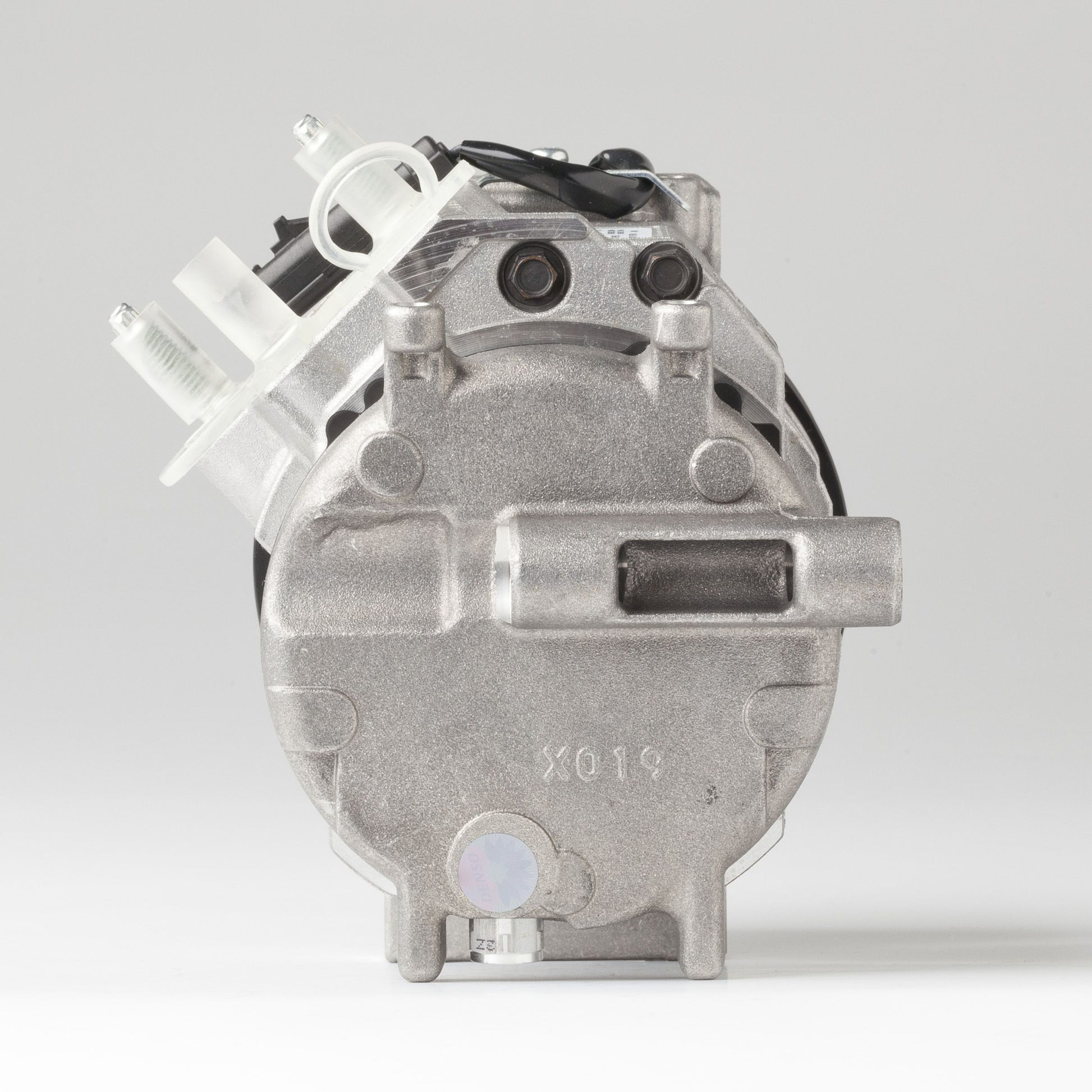

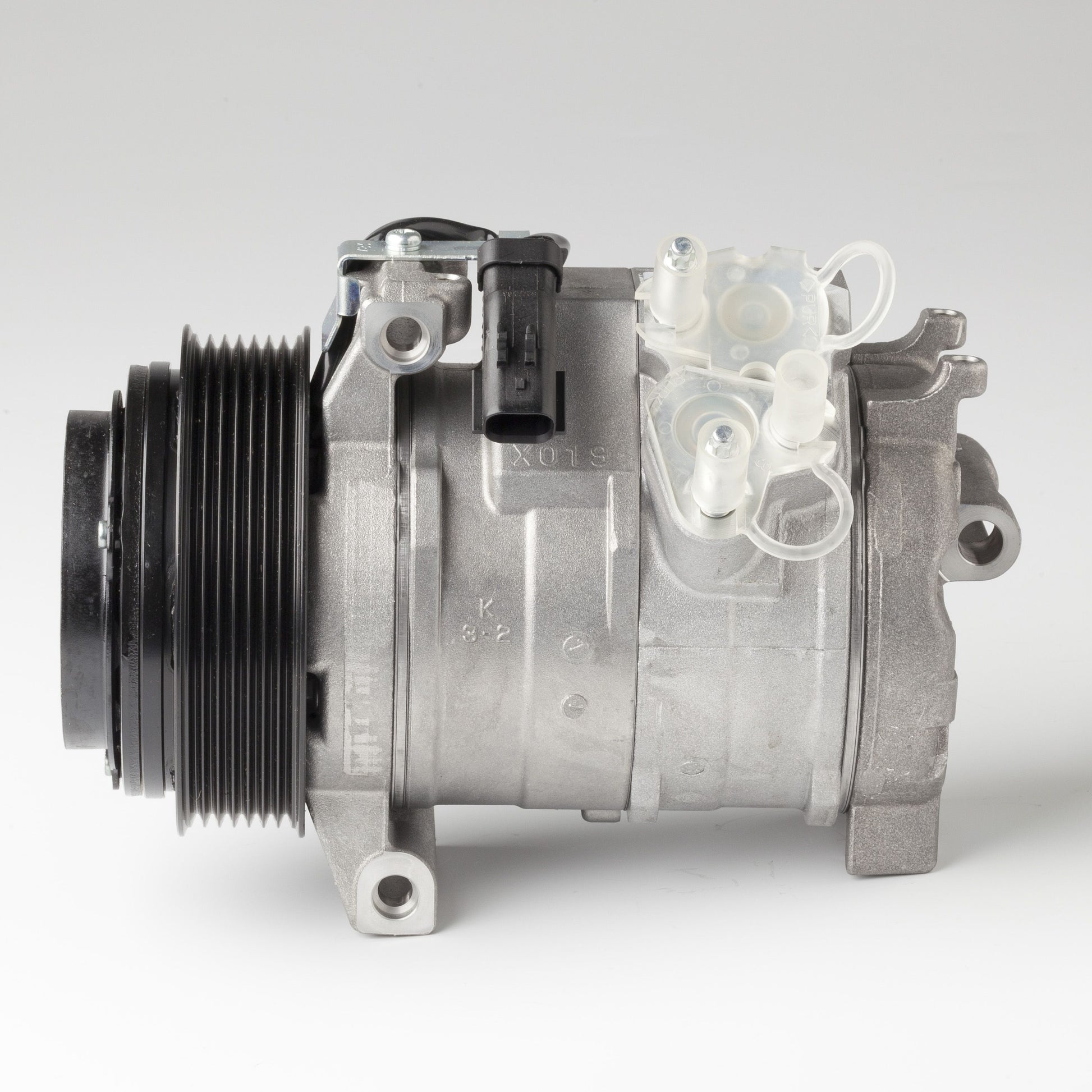

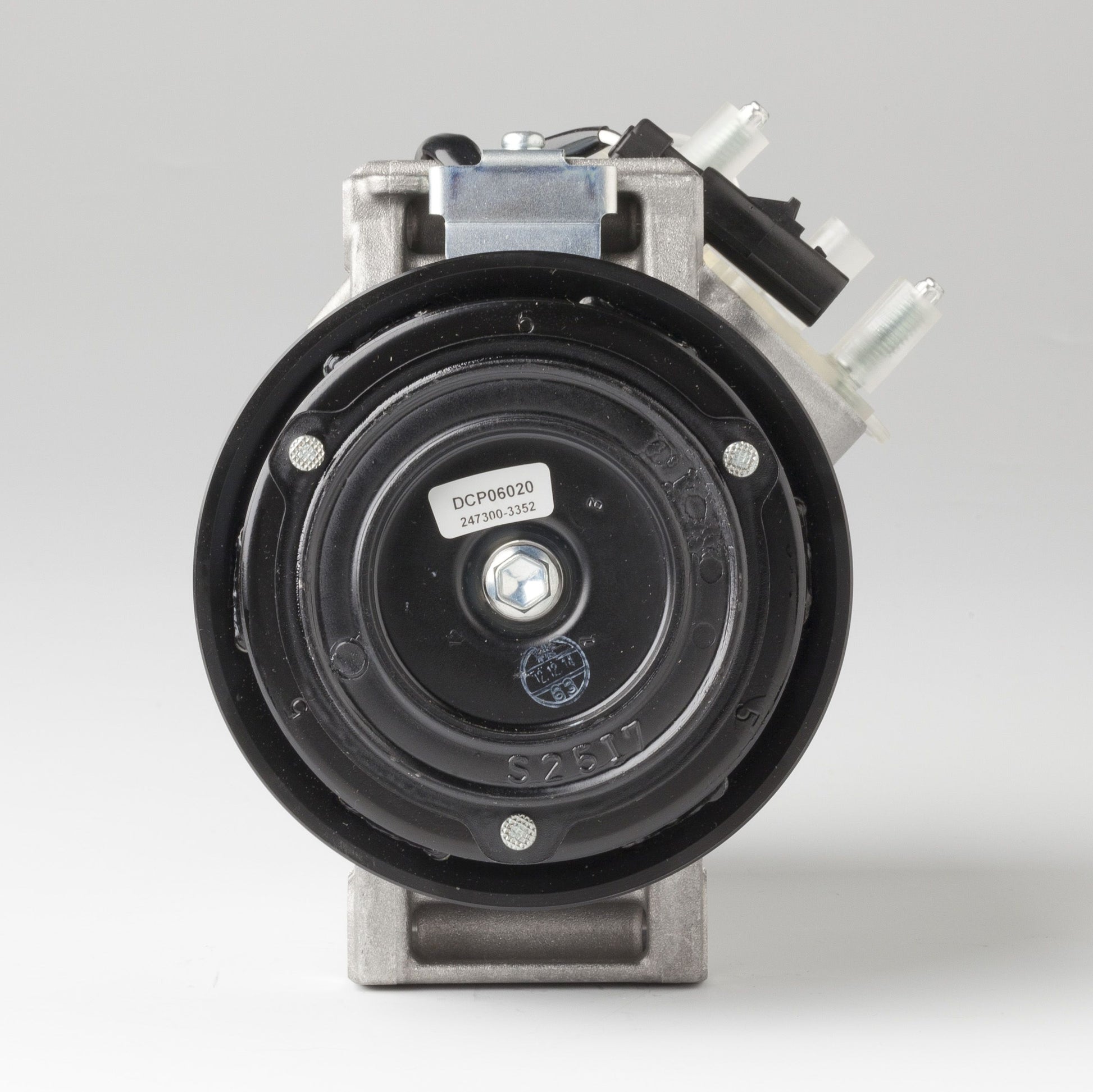

Compressor, Air Conditioner
- Compressor Type: 10S17C
- DNTS short code: 437100-8680
- Filled: Filled
- Gross Weight (g): 7710
- Height Incl Packaging (mm): 290
- Indication Reman Part: New
- Inlet Ø: 18.3
- Length Incl Packaging (mm): 320
- Mounting Type: Bolted
- Net Weight (g): 6900
- Number of grooves: 7
- Number of ribs: 7
- OE Manufacturer: CHRYSLER
- OE Number: 55116835AF
- Oil Quantity: 140
- Oil Type: ND-Oil 8
- Oil Type 2: ND-8
- Outlet Ø: 15.4
- Pulley Diameter(mm): 120
- Quality: DENSO
- Refrigerant Type: R134a
- Supplementary Article Info 2: with magnetic clutch
- Voltage (V): 12
- Width Incl Packaging (mm): 220
Replaces OEM reference(s):
CHRYSLER: 55116835AC, CHRYSLER: 55116835AD, CHRYSLER: 55116835AE, CHRYSLER: 55116835AF, CHRYSLER: 5511683AE, Denso: 44718068903D
Replaces aftermarket reference(s):
AVA COOLING SYSTEMS: CRK131, DENSO: 2473003350, DENSO: 2473003352, DENSO: 4371008680, DENSO: 4471806890, DENSO: 4472205600, DENSO: 4472205605, DENSO: 247300-3350, DENSO: 247300-3352, DENSO: 437100-8680, DENSO: 447180-6890, DENSO: 447220-5600, DENSO: 447220-5605, ELSTOCK: 510904, ELSTOCK: 51-0904
