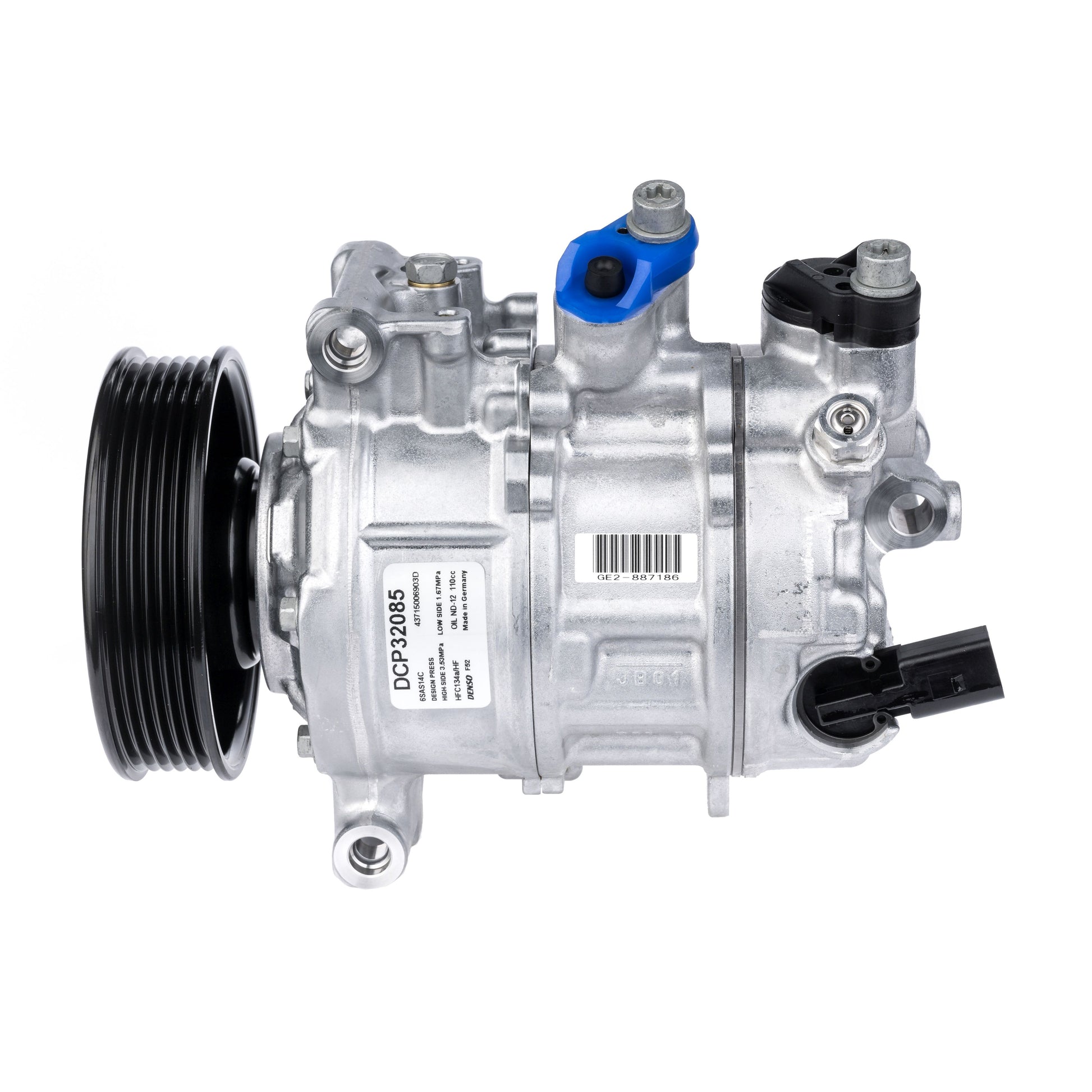

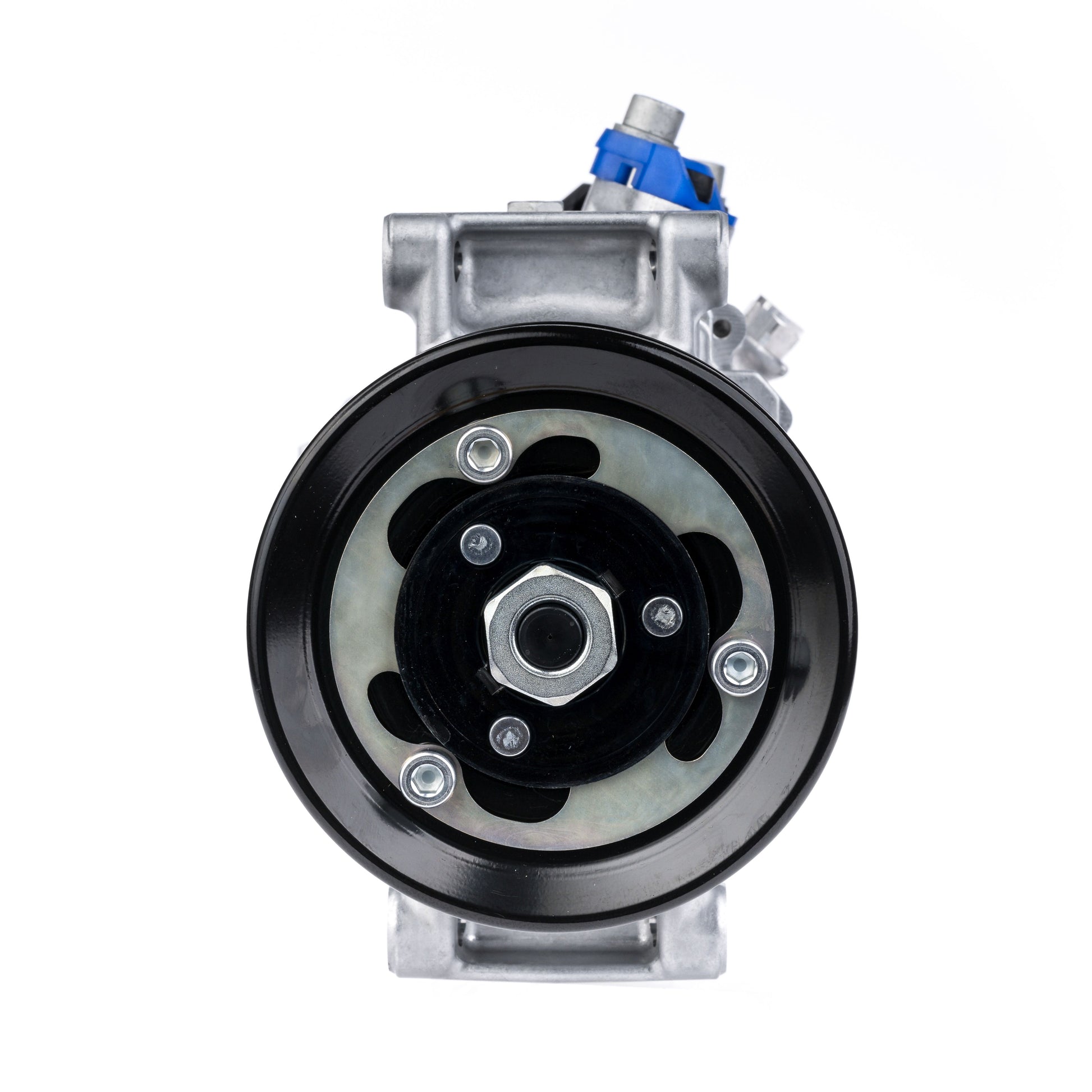

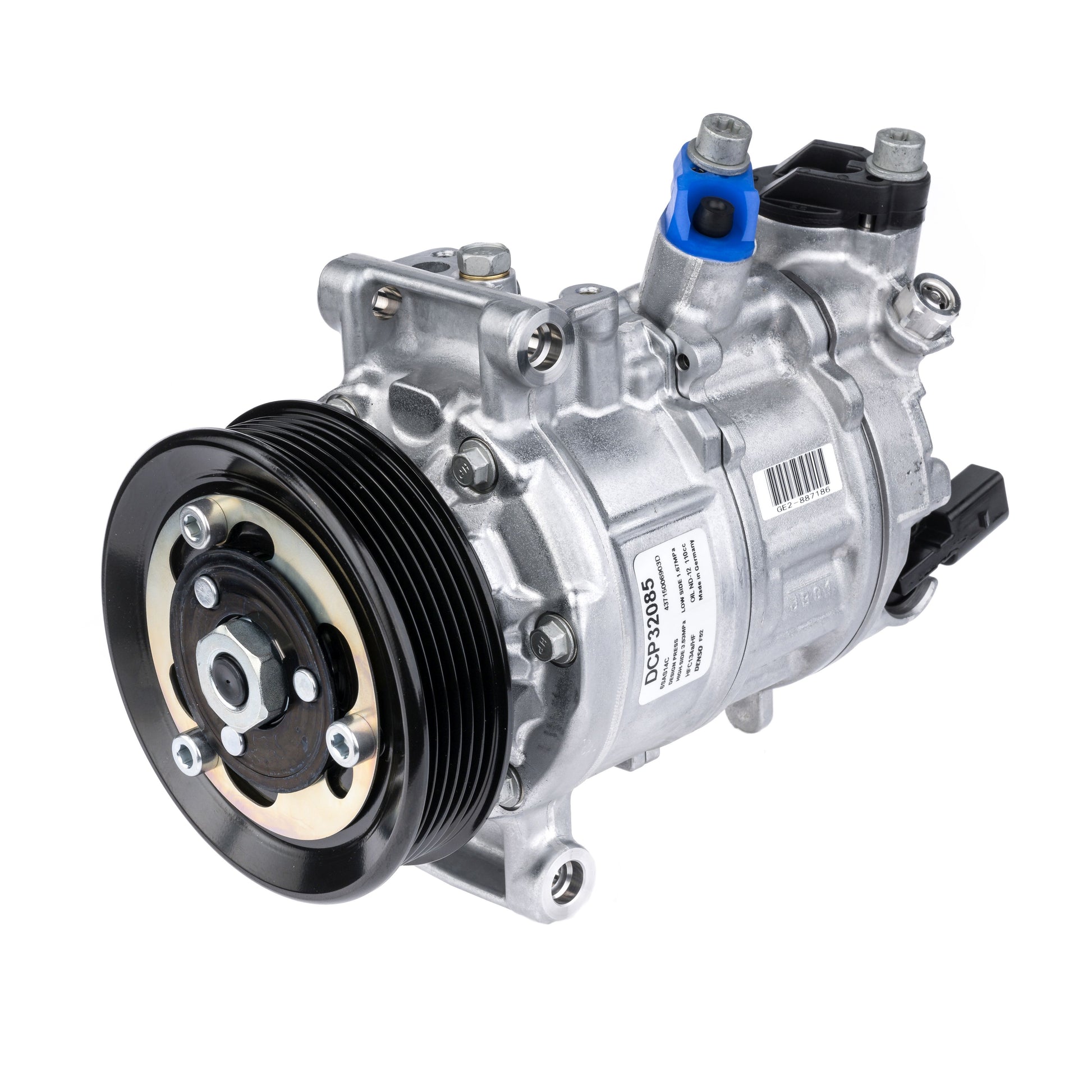

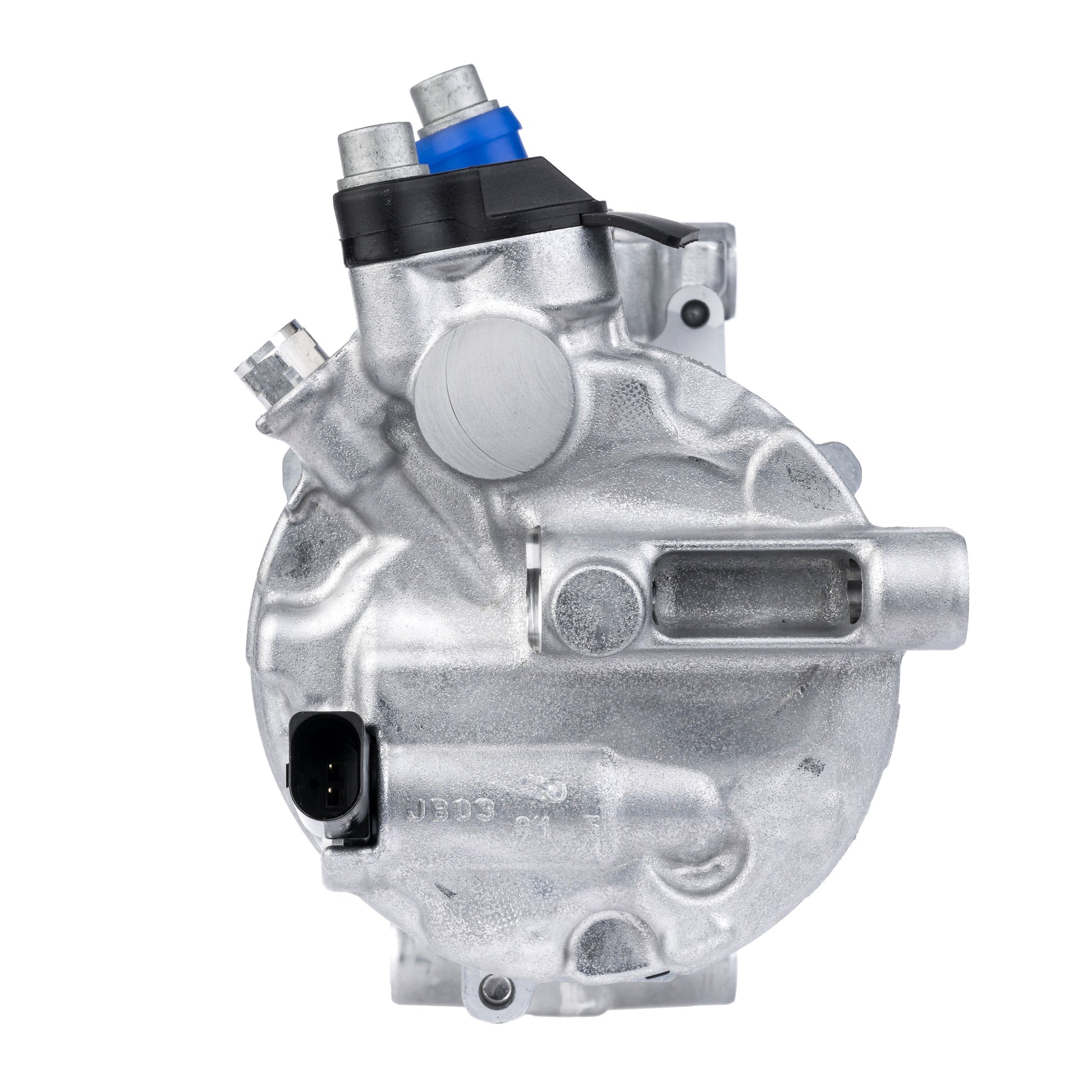

Denso Aircon Compressor DCP32085
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Compressor, Air Conditioner
- Compressor Type: 6SES14C
- Filled: Filled
- Gross Weight (g): 5170
- Height Incl Packaging (mm): 290
- Indication Reman Part: New
- Length Incl Packaging (mm): 320
- Mounting Type: Bolted
- Net Weight (g): 4360
- Number of grooves: 6
- Number of ribs: 6
- OE Manufacturer: VW-Group
- OE Number: 5Q0820803P
- Oil Quantity: 80
- Oil Type: ND-Oil 8
- Oil Type 2: ND-8
- Pulley Diameter(mm): 110
- Pulley type: DL-Pulley
- Quality: DENSO
- Refrigerant Type: R134a
- Voltage (V): 12
- Width Incl Packaging (mm): 220
Replaces OEM reference(s):
AUDI: 5Q0820803P, SEAT: 5Q0820803P, SKODA: 5Q0820803P, VW: 5Q0820803P
Replaces aftermarket reference(s):
DENSO: 4371500690, DENSO: 4471508640, DENSO: 437150-0690, DENSO: 447150-8640
