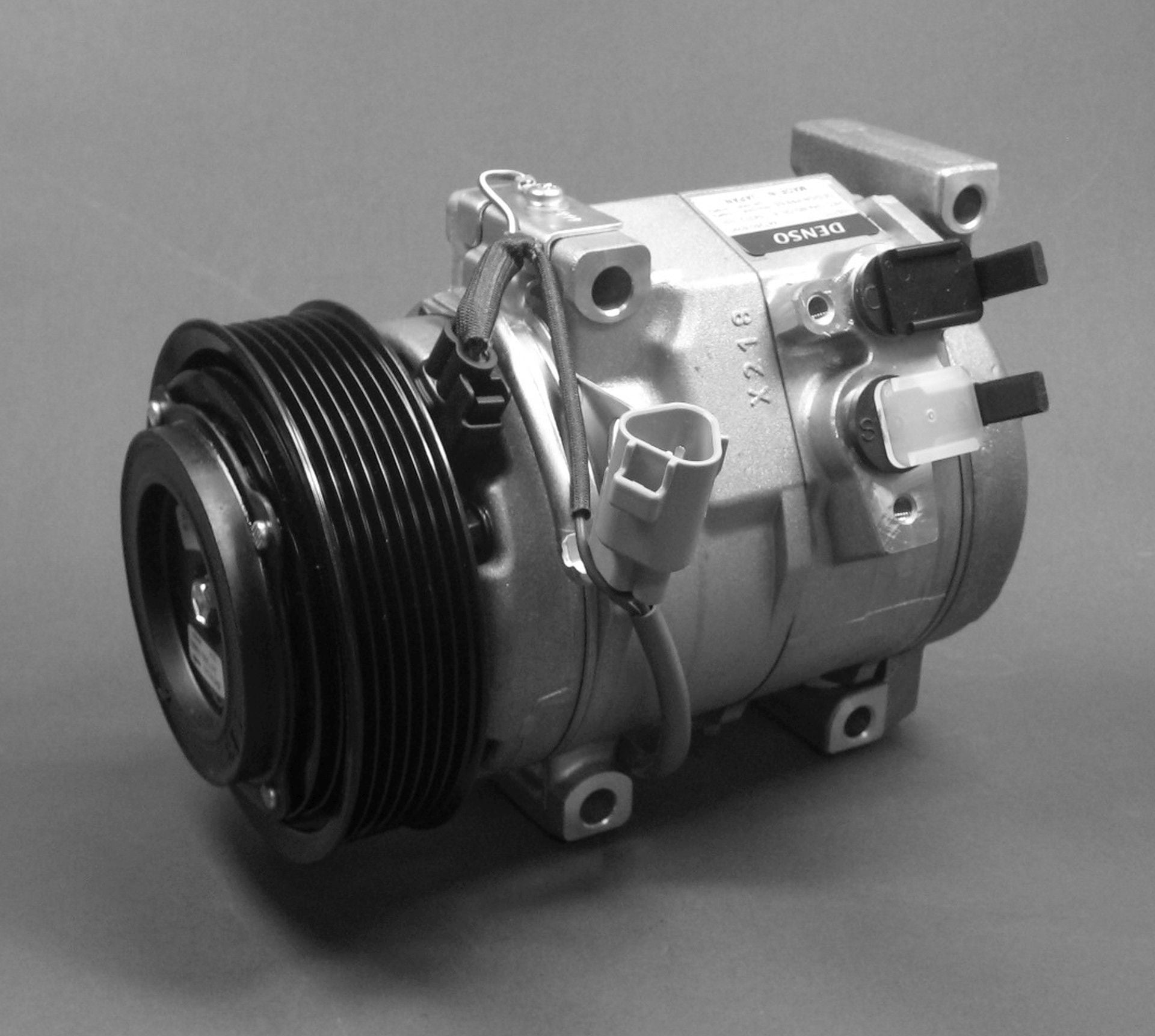

Denso Aircon Compressor DCP50080

Compressor, Air Conditioner

• Clutch Type: LC45
• Compressor Type: 10S17C
• DNTS short code: 447180-8900
• Filled: Filled
• Gross Weight (g): 6860
• Height Incl Packaging (mm): 290
• Indication Reman Part: New
• Inlet Ø: 18.3
• Length Incl Packaging (mm): 320
• Mounting Type: Bolted
• Net Weight (g): 6050
• Number of grooves: 7
• Number of ribs: 7
• OE Manufacturer: TOYOTA
• OE Number: 88310-28550
• Oil Quantity: 195
• Oil Type: ND-Oil 8
• Oil Type 2: ND-8
• Outlet Ø: 15.5
• Pulley Diameter(mm): 120
• Quality: DENSO
• Refrigerant Type: R134a
• Supplementary Article Info 2: with magnetic clutch
• Voltage (V): 12
• Width Incl Packaging (mm): 220

Replaces OEM reference(s):
Denso: 44718089003D, TOYOTA: 8831028550, TOYOTA: 8832028410, TOYOTA: 8841035400, TOYOTA: 88310-28550, TOYOTA: 88320-28410, TOYOTA: 88410-35400

Replaces aftermarket reference(s):
AVA COOLING SYSTEMS: TOK612, DENSO: 2473001950, DENSO: 4471808900, DENSO: 4472608090, DENSO: 247300-1950, DENSO: 447180-8900, DENSO: 447260-8090, ELSTOCK: 510775, ELSTOCK: 51-0775, NISSENS: 890332, NRF: 32640, NRF: 32640G
