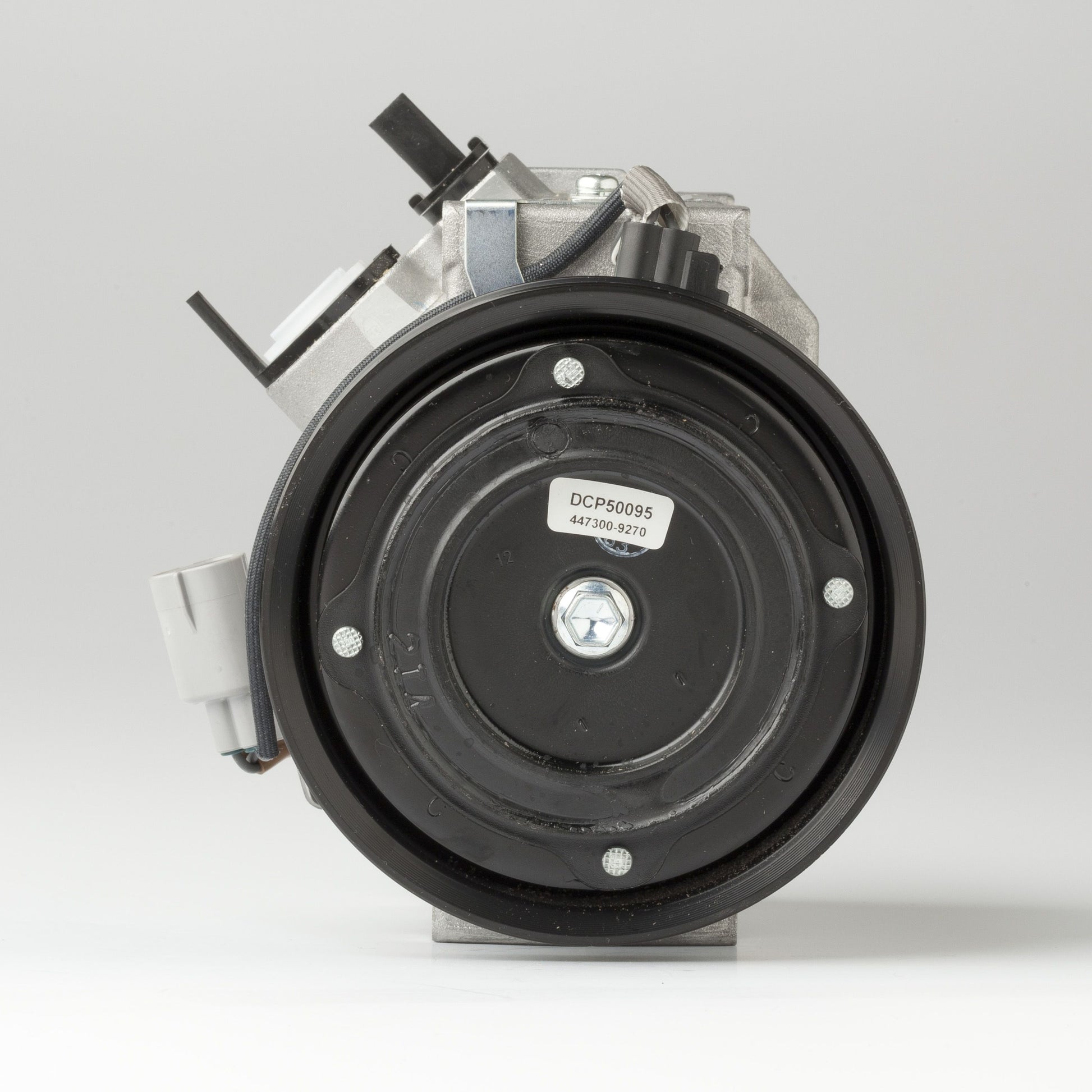

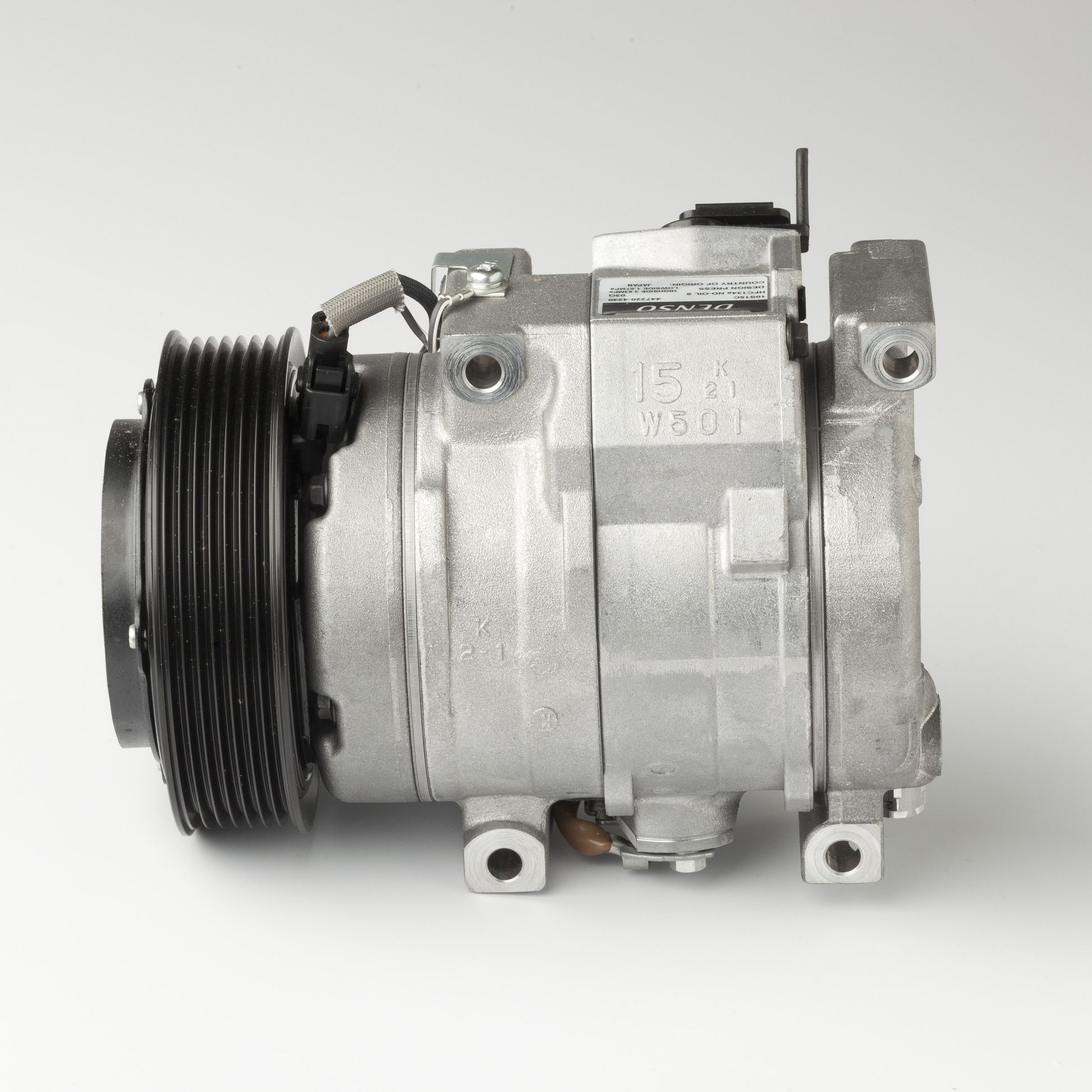

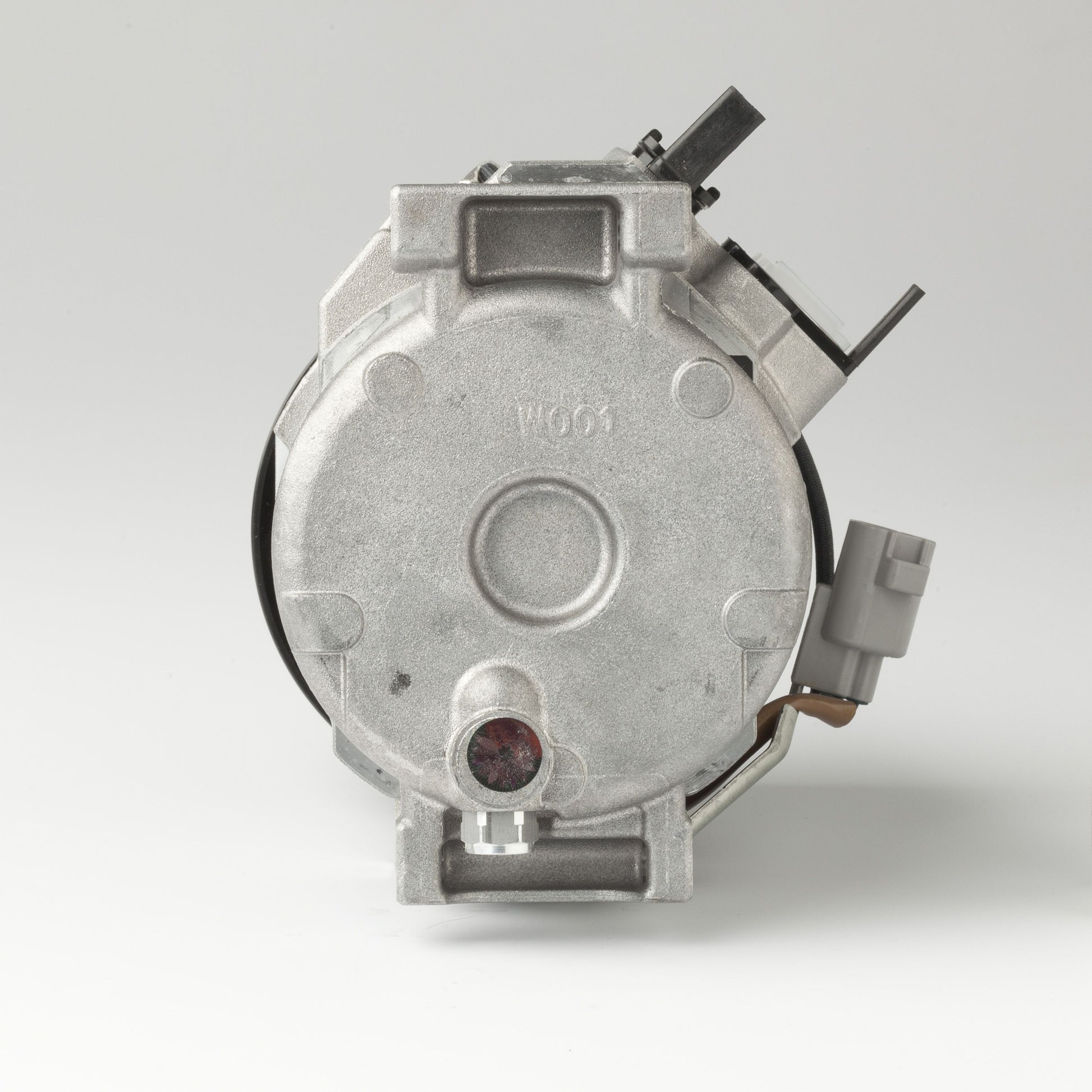

Denso Aircon Compressor DCP50095
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Compressor, Air Conditioner
- Compressor Type: 10S15C
- DNTS short code: 447170-9510
- Filled: Filled
- Gross Weight (g): 6620
- Height Incl Packaging (mm): 290
- Indication Reman Part: New
- Length Incl Packaging (mm): 320
- Mounting Type: Bolted
- Net Weight (g): 5810
- Number of grooves: 7
- Number of ribs: 7
- OE Manufacturer: TOYOTA
- OE Number: 88310-25220
- Oil Quantity: 120
- Oil Type: ND-Oil 8
- Oil Type 2: ND-8
- Pulley Diameter(mm): 120
- Quality: DENSO
- Refrigerant Type: R134a
- Supplementary Article Info 2: with magnetic clutch
- Voltage (V): 12
- Width Incl Packaging (mm): 220
Replaces OEM reference(s):
Denso: 44717095103D, Denso: 4471709510AM, TOYOTA: 8831025220, TOYOTA: 8832025110, TOYOTA: 8841028200, TOYOTA: 88310-25220, TOYOTA: 88320-25110, TOYOTA: 88410-28200
Replaces aftermarket reference(s):
AVA COOLING SYSTEMS: TOK724, DENSO: 4471709510, DENSO: 4472204240, DENSO: 4472204242, DENSO: 4473009270, DENSO: 4473009271, DENSO: 447170-9510, DENSO: 447220-4240, DENSO: 447220-4242, DENSO: 447300-9270, DENSO: 447300-9271, ELSTOCK: 510216, ELSTOCK: 51-0216, FRIGAIR: 92030217, FRIGAIR: 93030217
