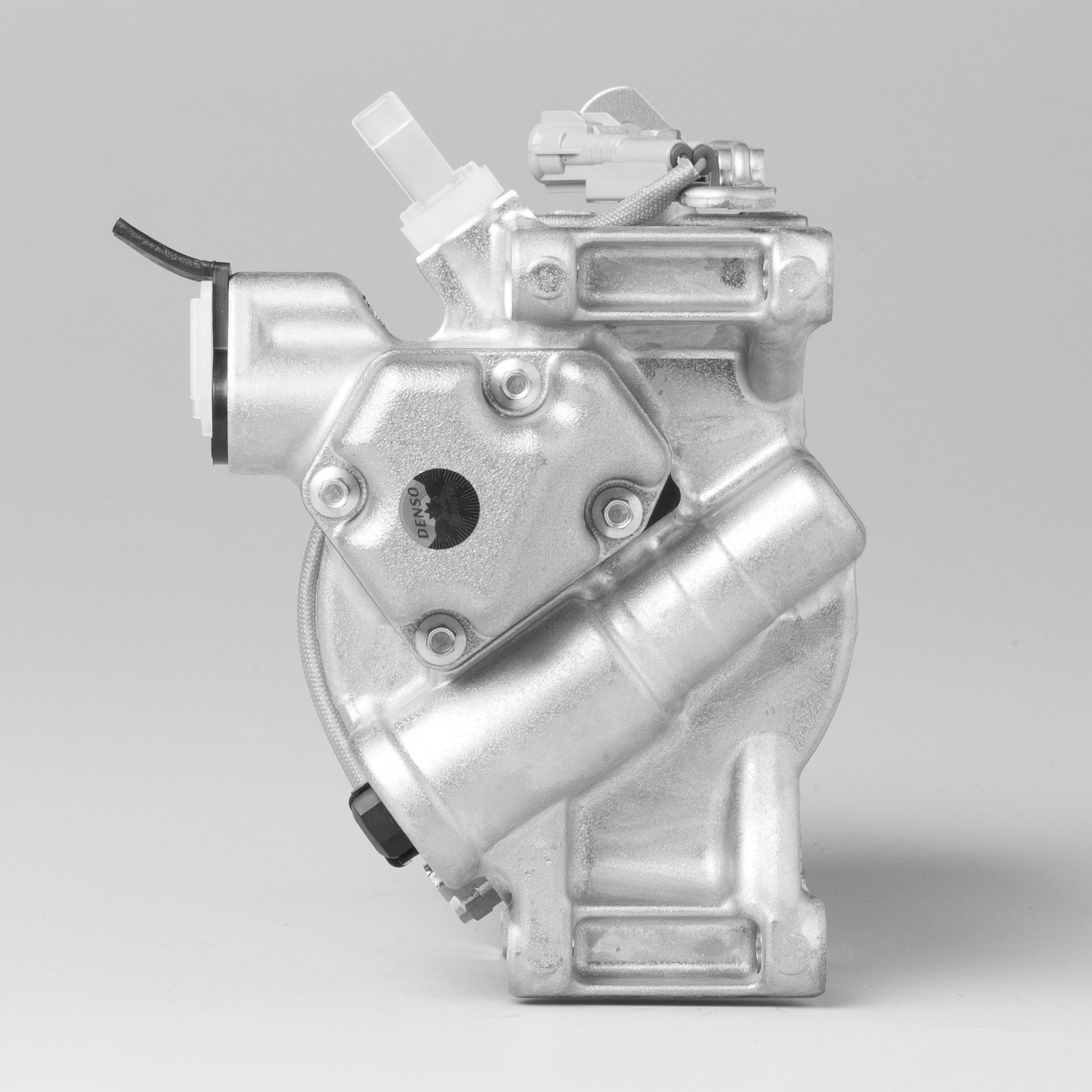

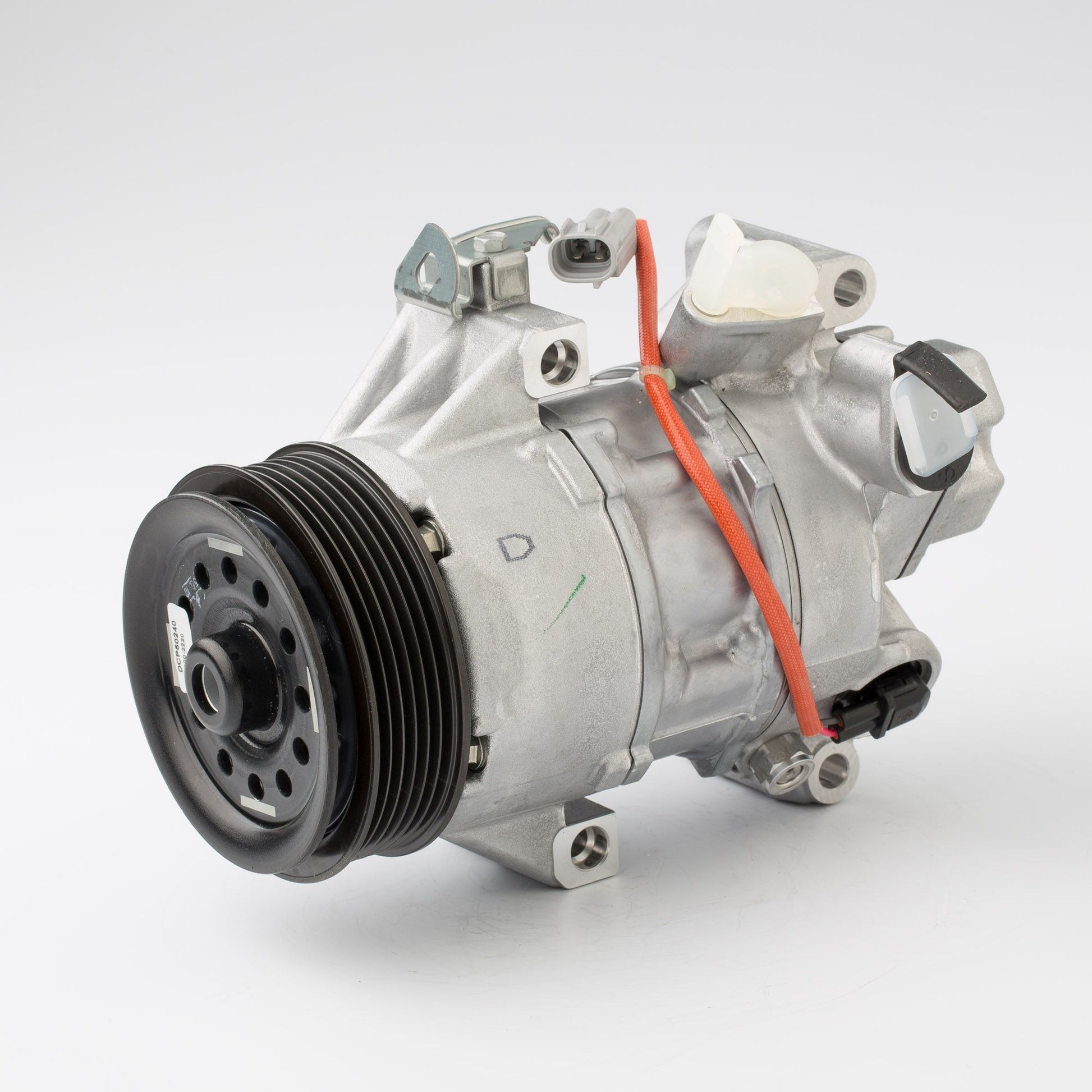

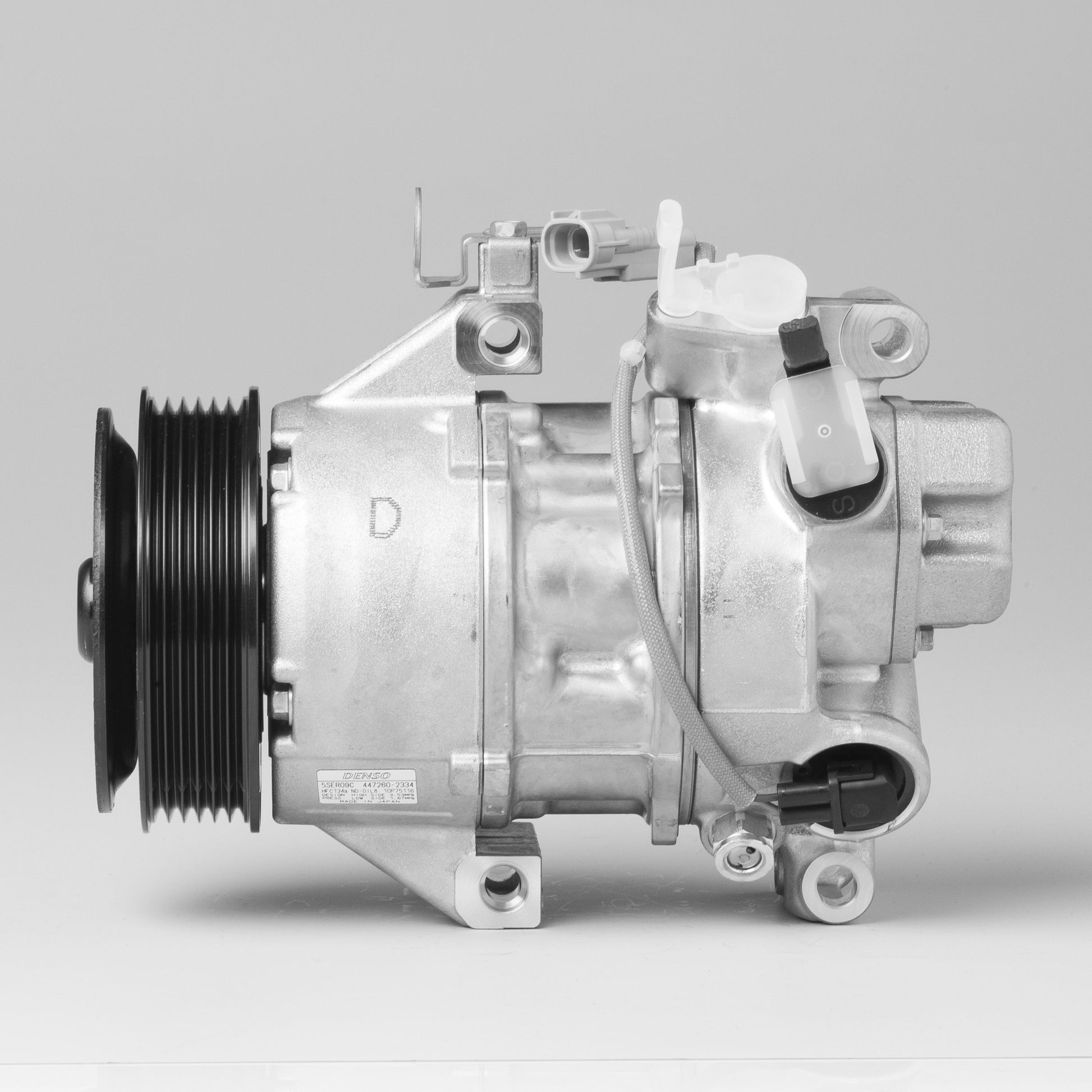

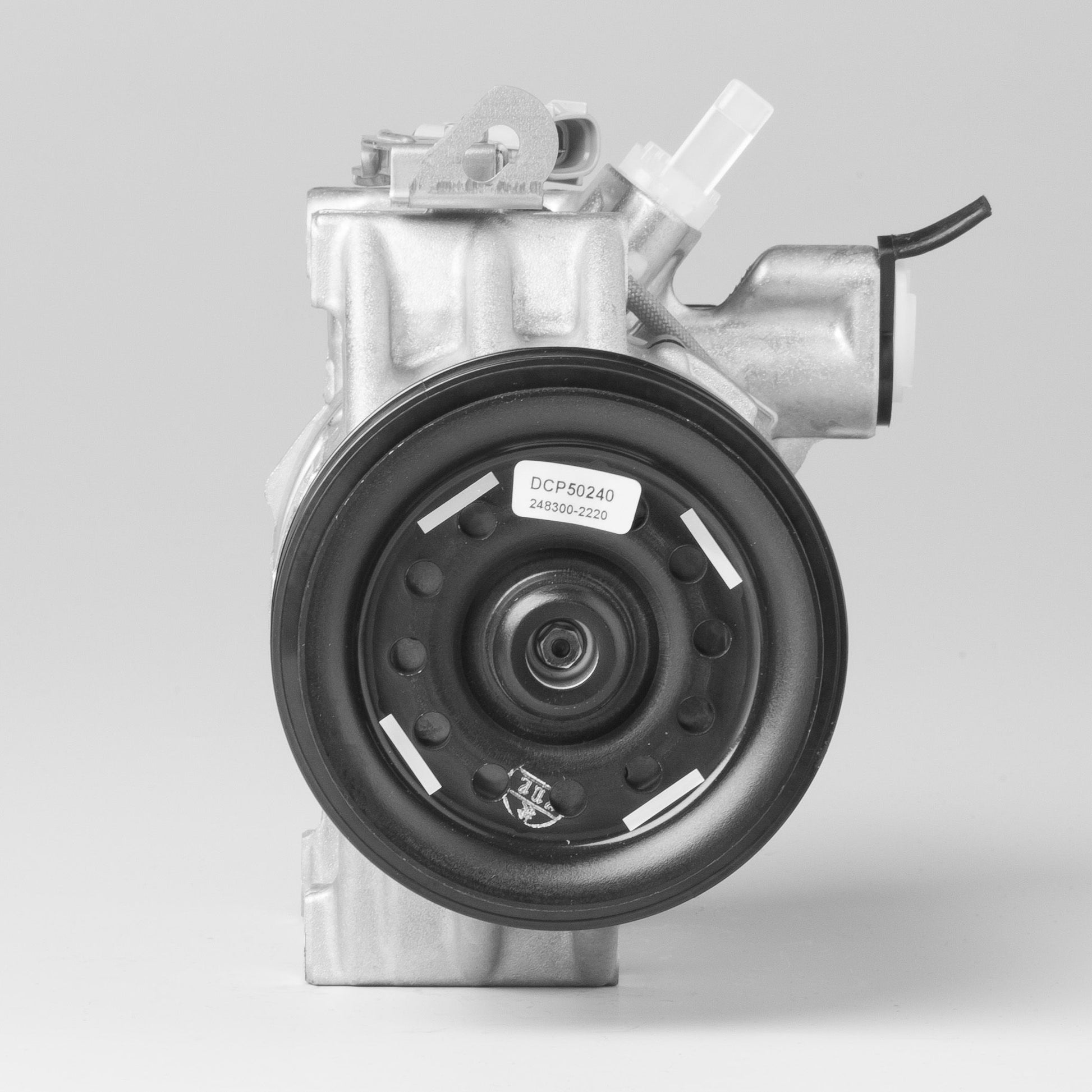

Compressor, Air Conditioner
- Clutch Type: B-PCW
- Compressor Type: 5SER09C
- DNTS short code: 447190-5220
- Filled: Filled
- Gross Weight (g): 4380
- Height Incl Packaging (mm): 290
- Indication Reman Part: New
- Inlet Ø: 18.3
- Length Incl Packaging (mm): 320
- Mounting Type: Bolted
- Net Weight (g): 3570
- Number of grooves: 6
- Number of ribs: 6
- OE Manufacturer: TOYOTA
- OE Number: 88310-0D230 ; 88310-52590
- Oil Quantity: 60
- Oil Type: ND-Oil 8
- Oil Type 2: ND-8
- Outlet Ø: 15.5
- Pulley Diameter(mm): 100
- Pulley type: DL-Pulley
- Quality: DENSO
- Refrigerant Type: R134a
- Width Incl Packaging (mm): 220
Replaces OEM reference(s):
Denso: 44715003503D, TOYOTA: 8831052590, TOYOTA: 8831052591, TOYOTA: 8831052592, TOYOTA: 883100D230, TOYOTA: 88310-0D230, TOYOTA: 883100D231, TOYOTA: 88310-0D231, TOYOTA: 883100D232, TOYOTA: 88310-0D232, TOYOTA: 88310-52590, TOYOTA: 88310-52591, TOYOTA: 88310-52592
Replaces aftermarket reference(s):
AVA COOLING SYSTEMS: TOK618, BEHR HELLA SERVICE: 8FK 351 125-201, BEHR HELLA SERVICE: 8FK 351 125-701, BEHR HELLA SERVICE: 8FK351125201, BEHR HELLA SERVICE: 8FK351125701, DENSO: 2483001310, DENSO: 2483002220, DENSO: 4471500330, DENSO: 4471500350, DENSO: 4471501640, DENSO: 4471905220, DENSO: 4471909180, DENSO: 4472600950, DENSO: 4472601500, DENSO: 4472601780, DENSO: 4472602330, DENSO: 248300-1310, DENSO: 248300-2220, DENSO: 447150-0330, DENSO: 447150-0350, DENSO: 447150-1640, DENSO: 447190-5220, DENSO: 447190-9180, DENSO: 447260-0950, DENSO: 447260-1500, DENSO: 447260-1780, DENSO: 447260-2330, ELSTOCK: 510707, ELSTOCK: 51-0707, FRIGAIR: 92030247, MAHLE: 72440482, MAHLE: ACP 43, MAHLE: ACP 43 000P, MAHLE: ACP 43 000S, MAHLE: ACP43, MAHLE: ACP43000P, MAHLE: ACP43000S, NISSENS: 89443, NRF: 32736G, WAECO: 8880120465
