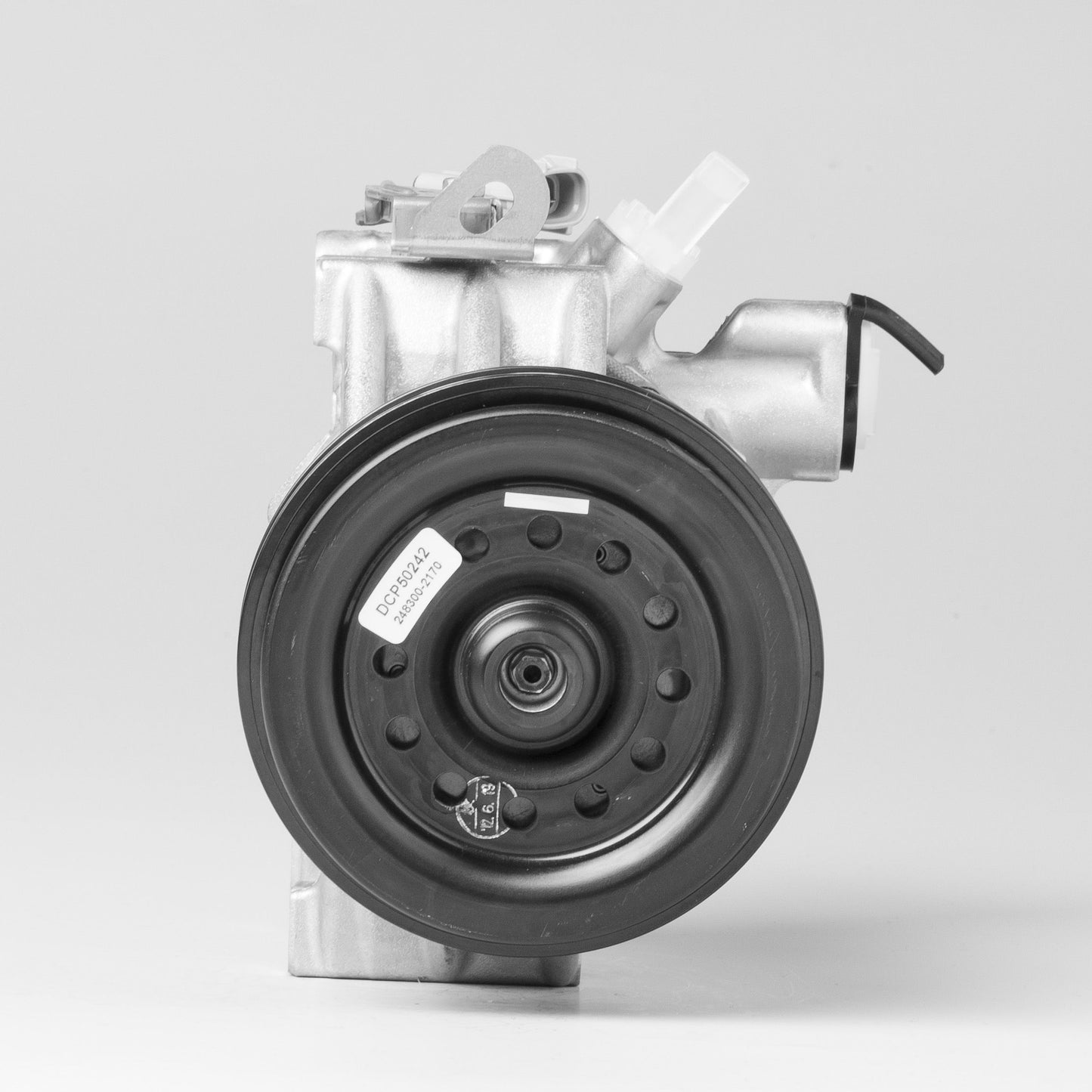

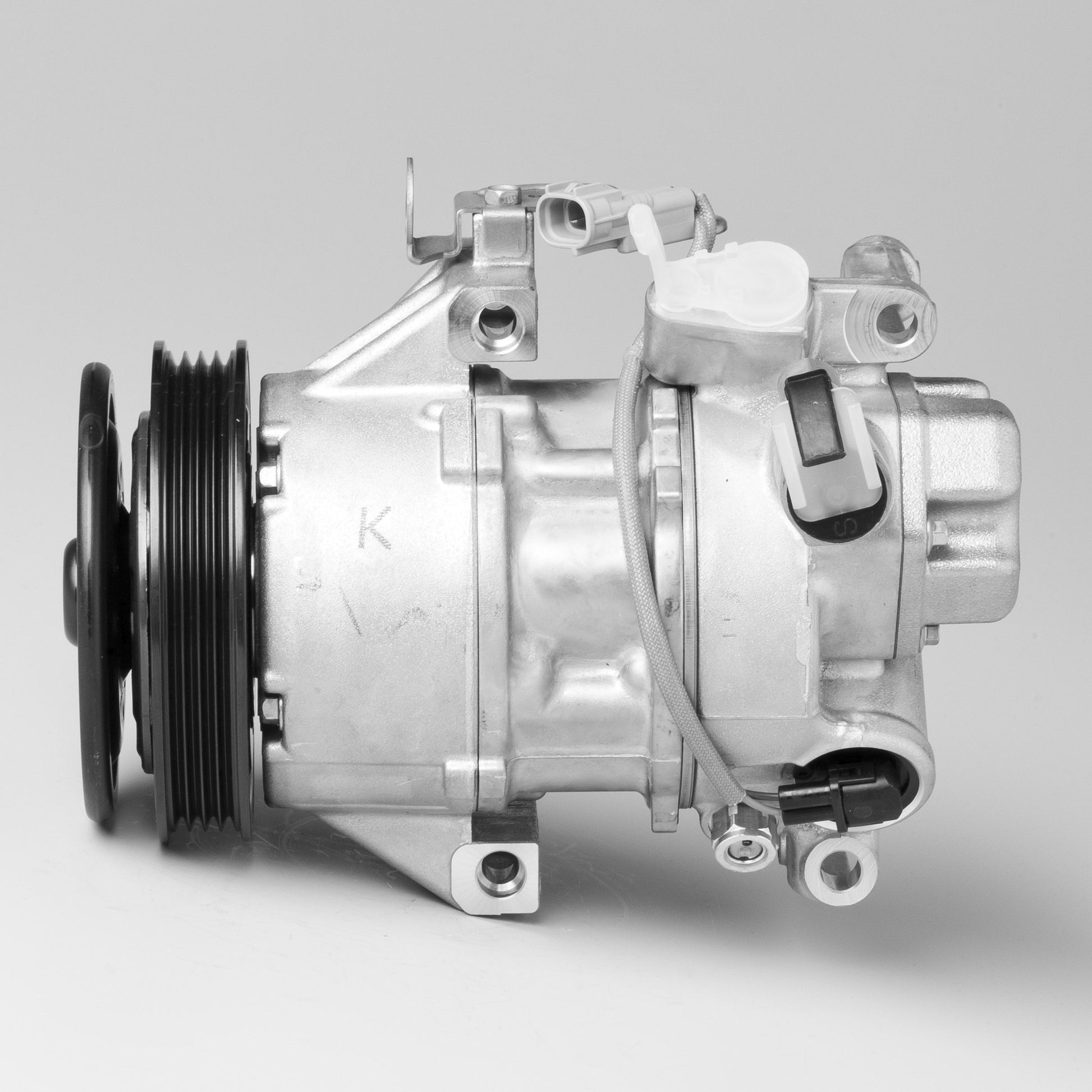

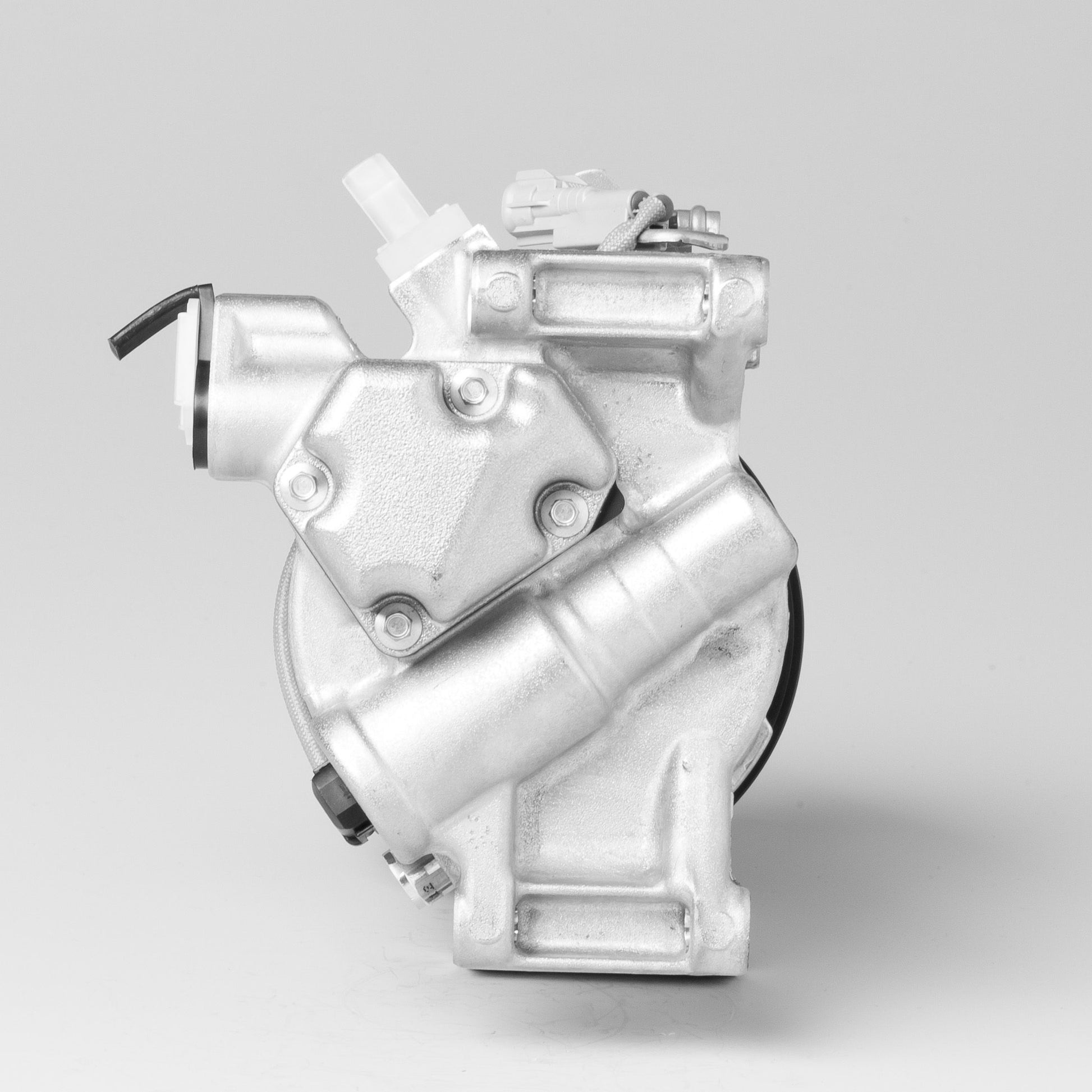

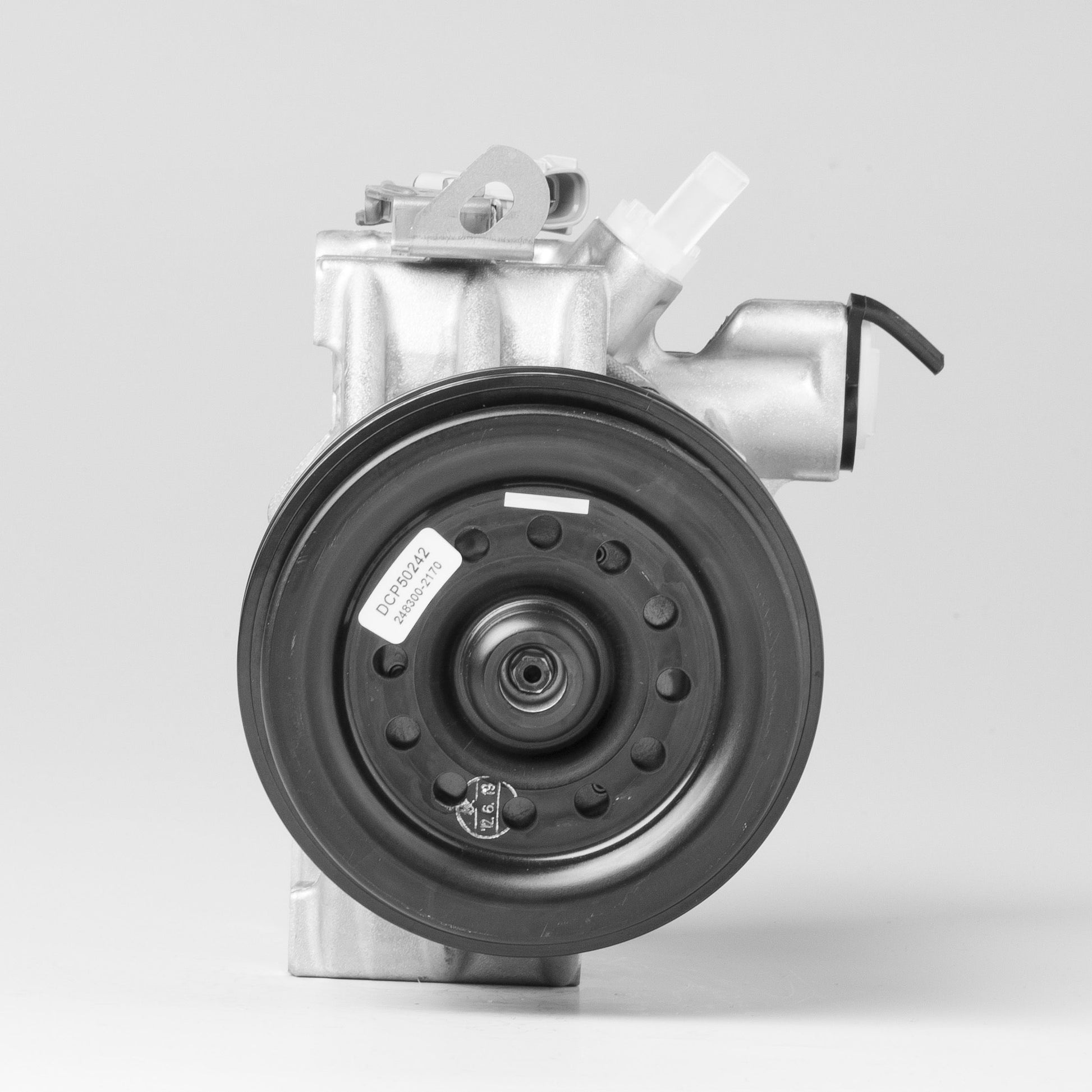

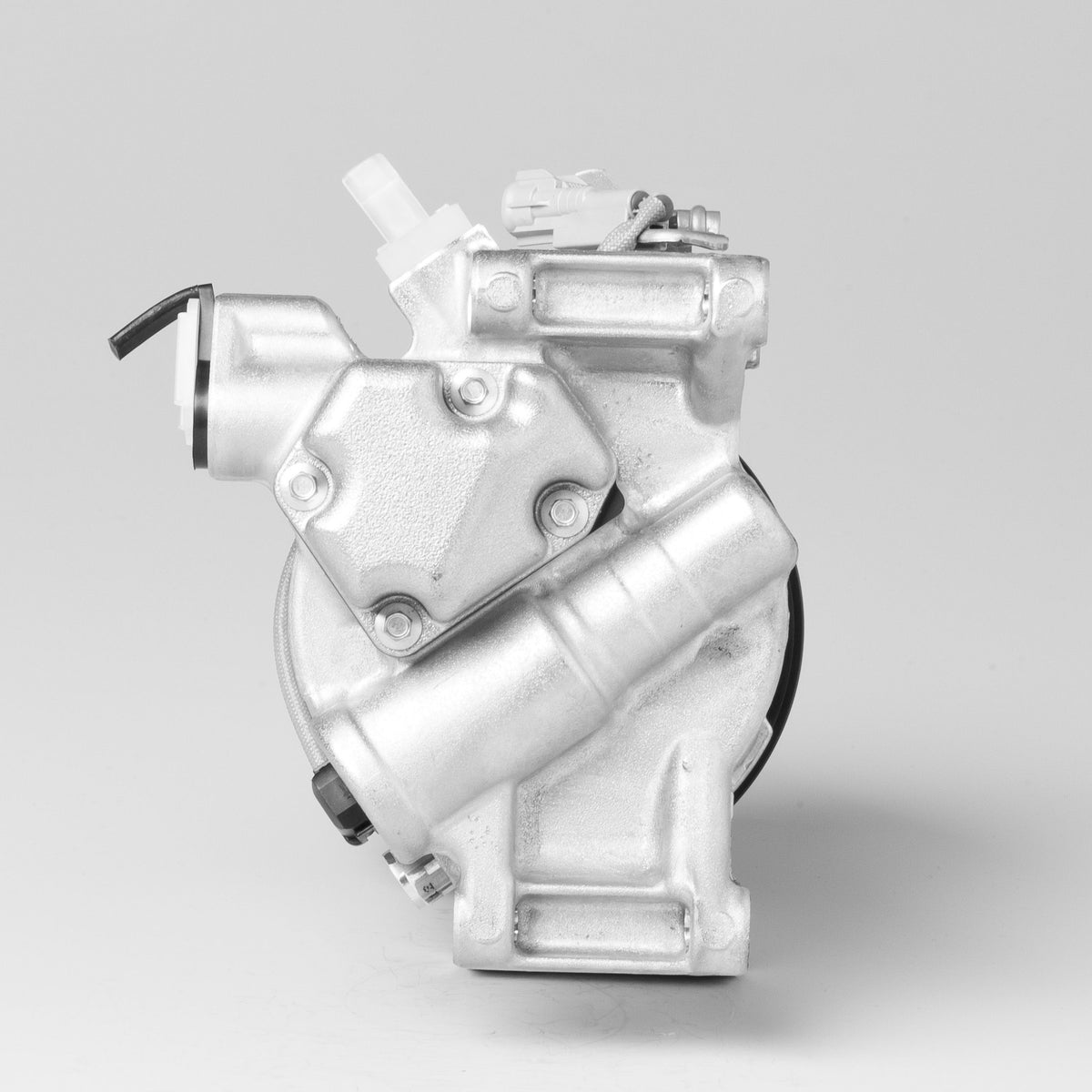

Denso Aircon Compressor DCP50242

Compressor, Air Conditioner

• Clutch Type: B-PCW
• Compressor Type: 5SER09C
• DNTS short code: 447150-0310
• Filled: Filled
• Gross Weight (g): 4515
• Height Incl Packaging (mm): 290
• Indication Reman Part: New
• Inlet Ø: 18.3
• Length Incl Packaging (mm): 320
• Mounting Type: Bolted
• Net Weight (g): 3705
• Number of grooves: 4
• Number of ribs: 4
• OE Manufacturer: TOYOTA
• OE Number: 88310-2B720 ; 88310-52551
• Oil Quantity: 60
• Oil Type: ND-Oil 8
• Oil Type 2: ND-8
• Outlet Ø: 15.5
• Pulley Diameter(mm): 110
• Pulley type: DL-Pulley
• Quality: DENSO
• Refrigerant Type: R134a
• Width Incl Packaging (mm): 220

Replaces OEM reference(s):
Denso: 44715010803D, TOYOTA: 883102B720, TOYOTA: 88310-2B720, TOYOTA: 883102B721, TOYOTA: 88310-2B721

Replaces aftermarket reference(s):
AVA COOLING SYSTEMS: TOK629, DENSO: 2483002170, DENSO: 4471500310, DENSO: 4471501080, DENSO: 4472601500, DENSO: 4472601506, DENSO: 4472601581, DENSO: 4472602330, DENSO: 248300-2170, DENSO: 447150-0310, DENSO: 447150-1080, DENSO: 447260-1500, DENSO: 447260-1506, DENSO: 447260-1581, DENSO: 447260-2330, NISSENS: 890145
