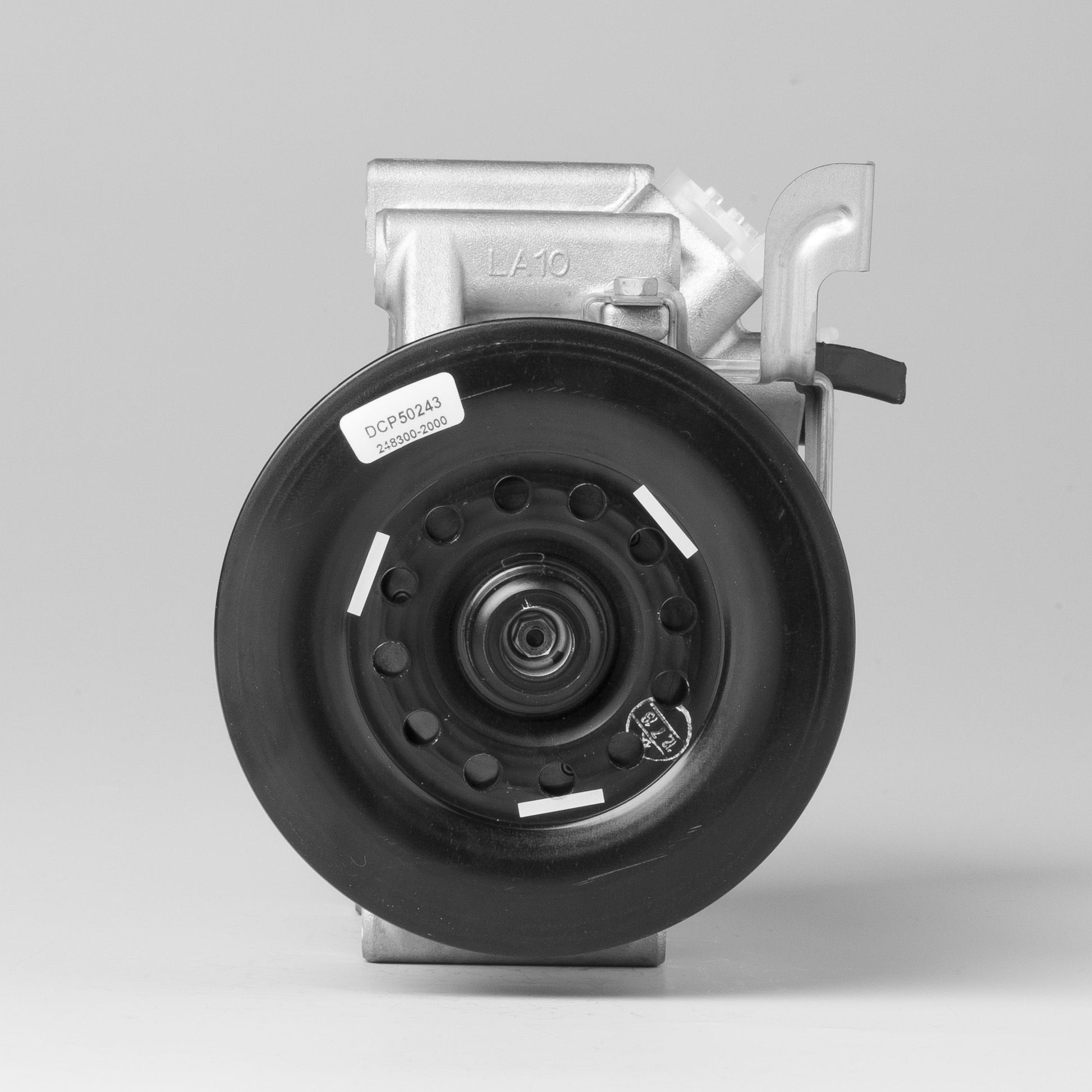

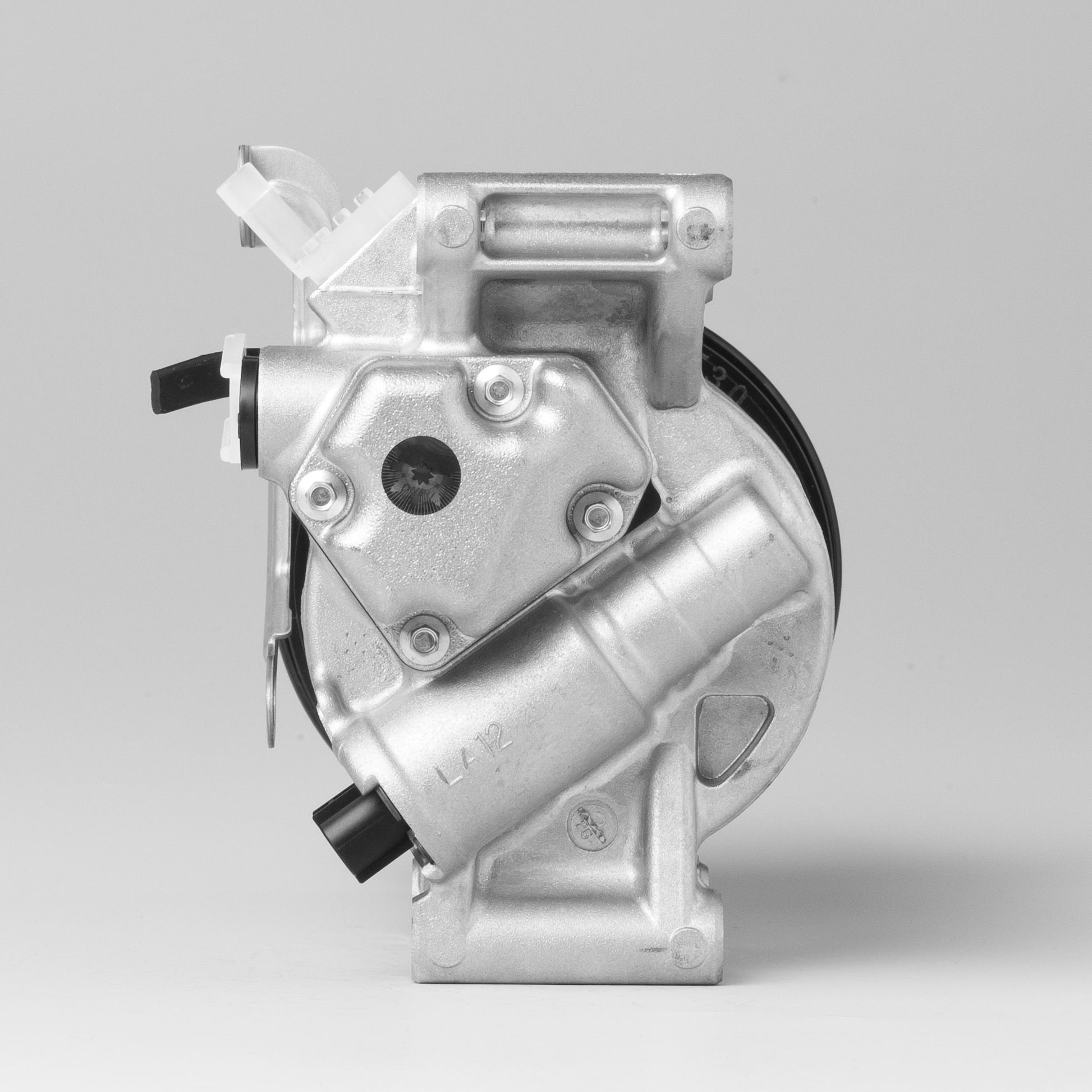

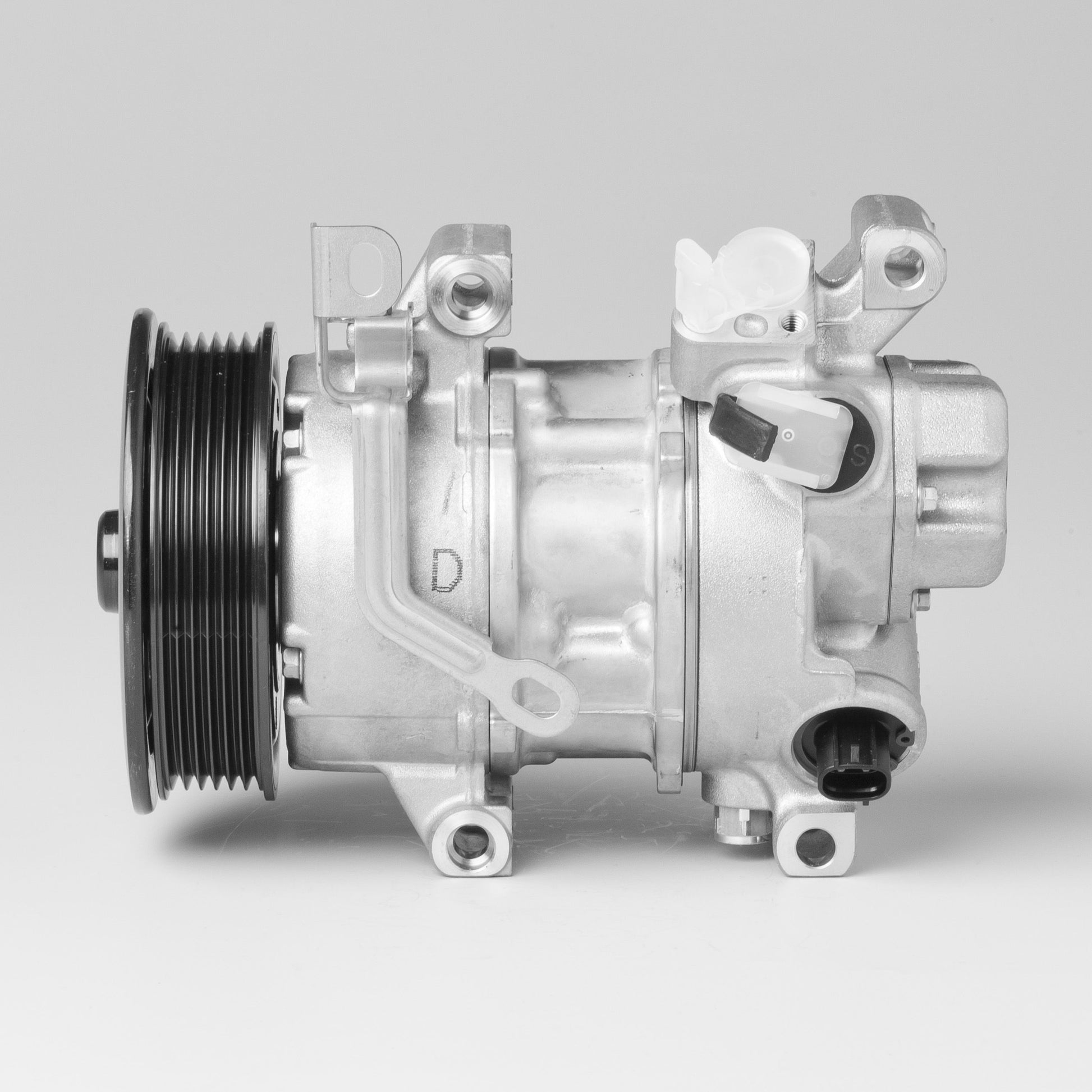

Denso Aircon Compressor DCP50243

Compressor, Air Conditioner

• Clutch Type: B-PCW
• Compressor Type: 5SER09C
• DNTS short code: 447150-0320
• Filled: Filled
• Gross Weight (g): 4660
• Height Incl Packaging (mm): 290
• Indication Reman Part: New
• Inlet Ø: 18.3
• Length Incl Packaging (mm): 320
• Mounting Type: Bolted
• Net Weight (g): 3850
• Number of grooves: 6
• Number of ribs: 6
• OE Manufacturer: TOYOTA
• OE Number: 8831052601
• Oil Quantity: 60
• Oil Type: ND-Oil 8
• Oil Type 2: ND-8
• Outlet Ø: 15.5
• Pulley Diameter(mm): 110
• Pulley type: DL-Pulley
• Quality: DENSO
• Refrigerant Type: R134a
• Width Incl Packaging (mm): 220

Replaces OEM reference(s):
Denso: 44715003203D, TOYOTA: 8831052600, TOYOTA: 8831052601, TOYOTA: 88310-52600, TOYOTA: 88310-52601

Replaces aftermarket reference(s):
AVA COOLING SYSTEMS: TOK622, DENSO: 2483002000, DENSO: 4471500320, DENSO: 4471908090, DENSO: 4471908092, DENSO: 4472601770, DENSO: 4472601772, DENSO: 4472602320, DENSO: 248300-2000, DENSO: 447150-0320, DENSO: 447190-8090, DENSO: 447190-8092, DENSO: 447260-1770, DENSO: 447260-1772, DENSO: 447260-2320, ELSTOCK: 510837, ELSTOCK: 51-0837, NISSENS: 89528
