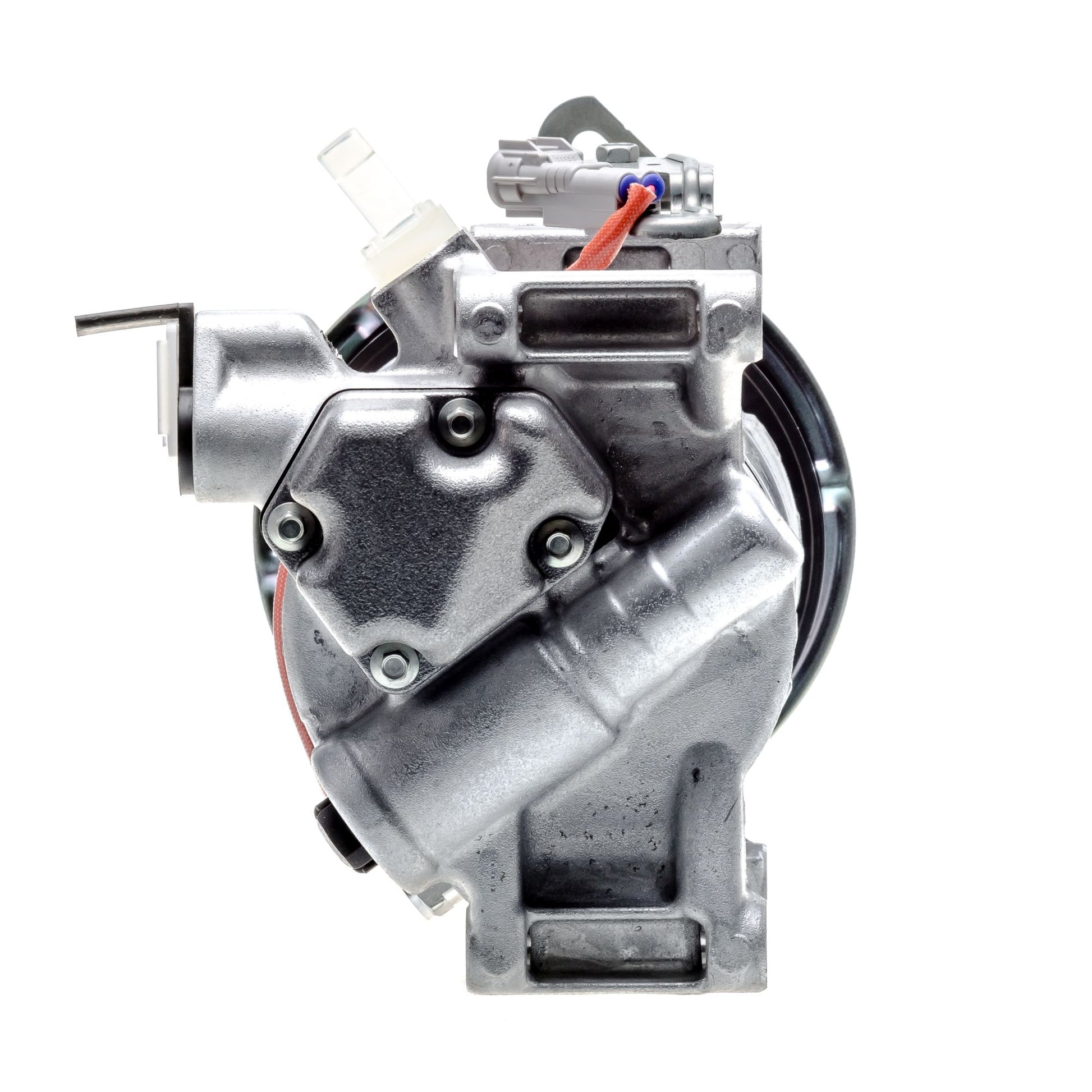

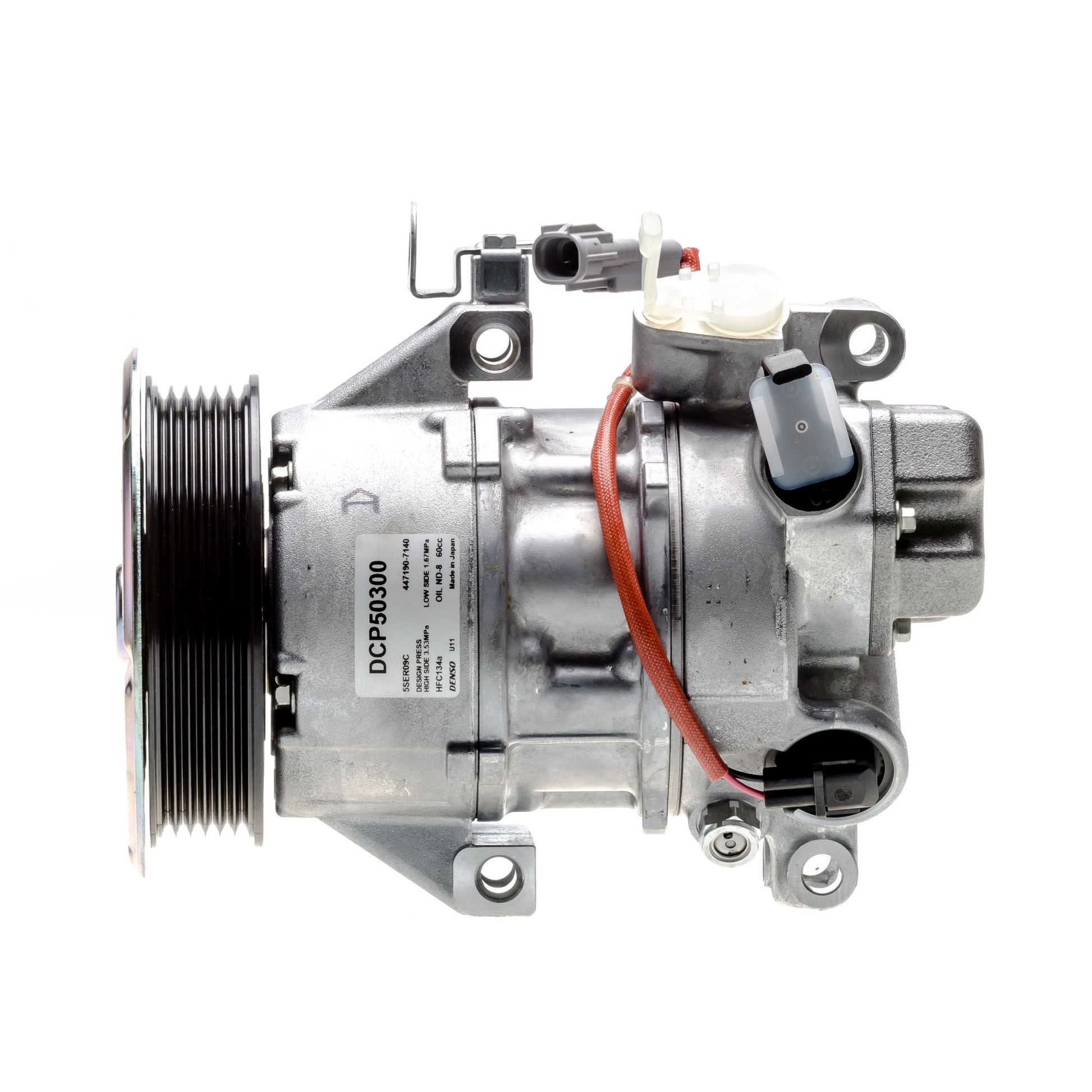

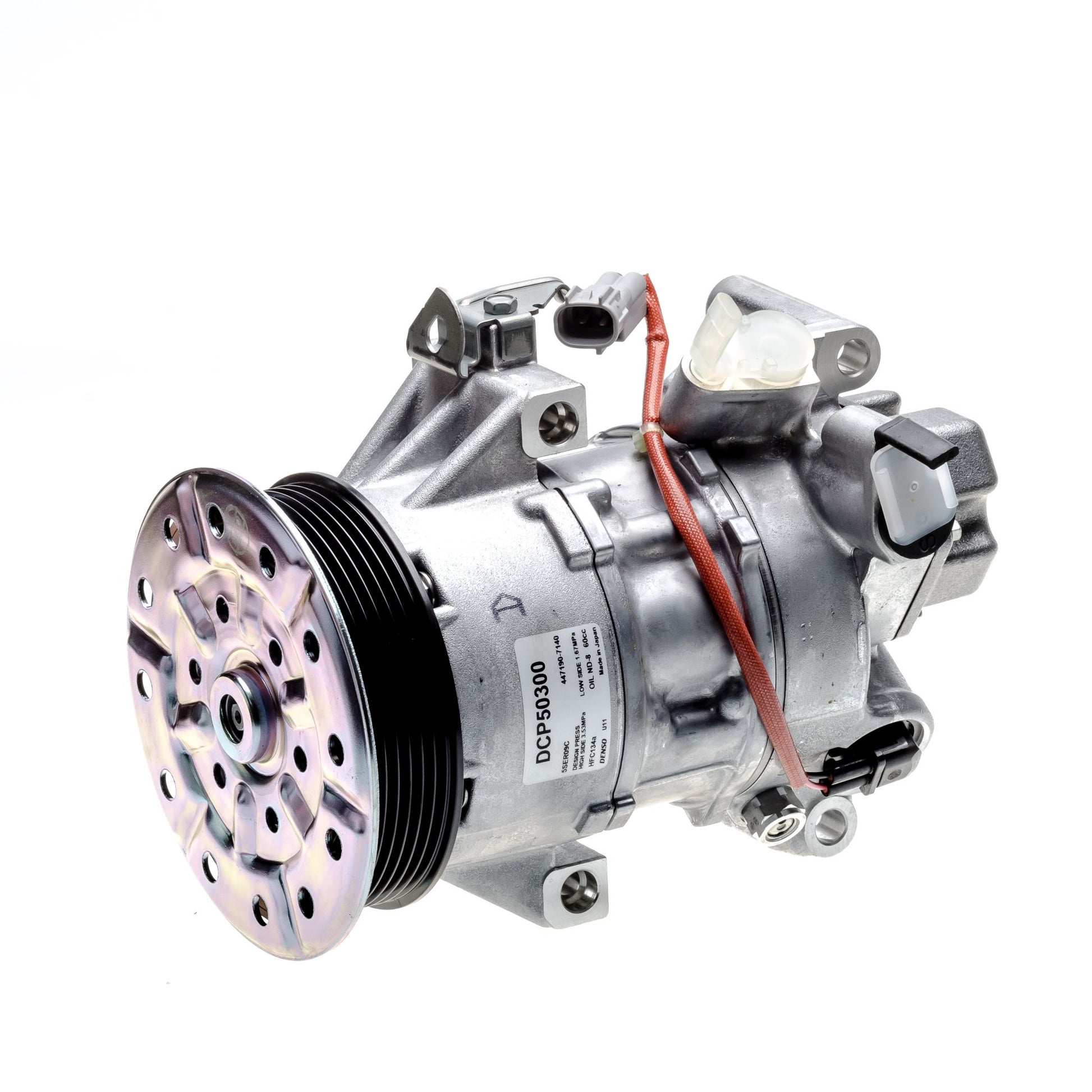

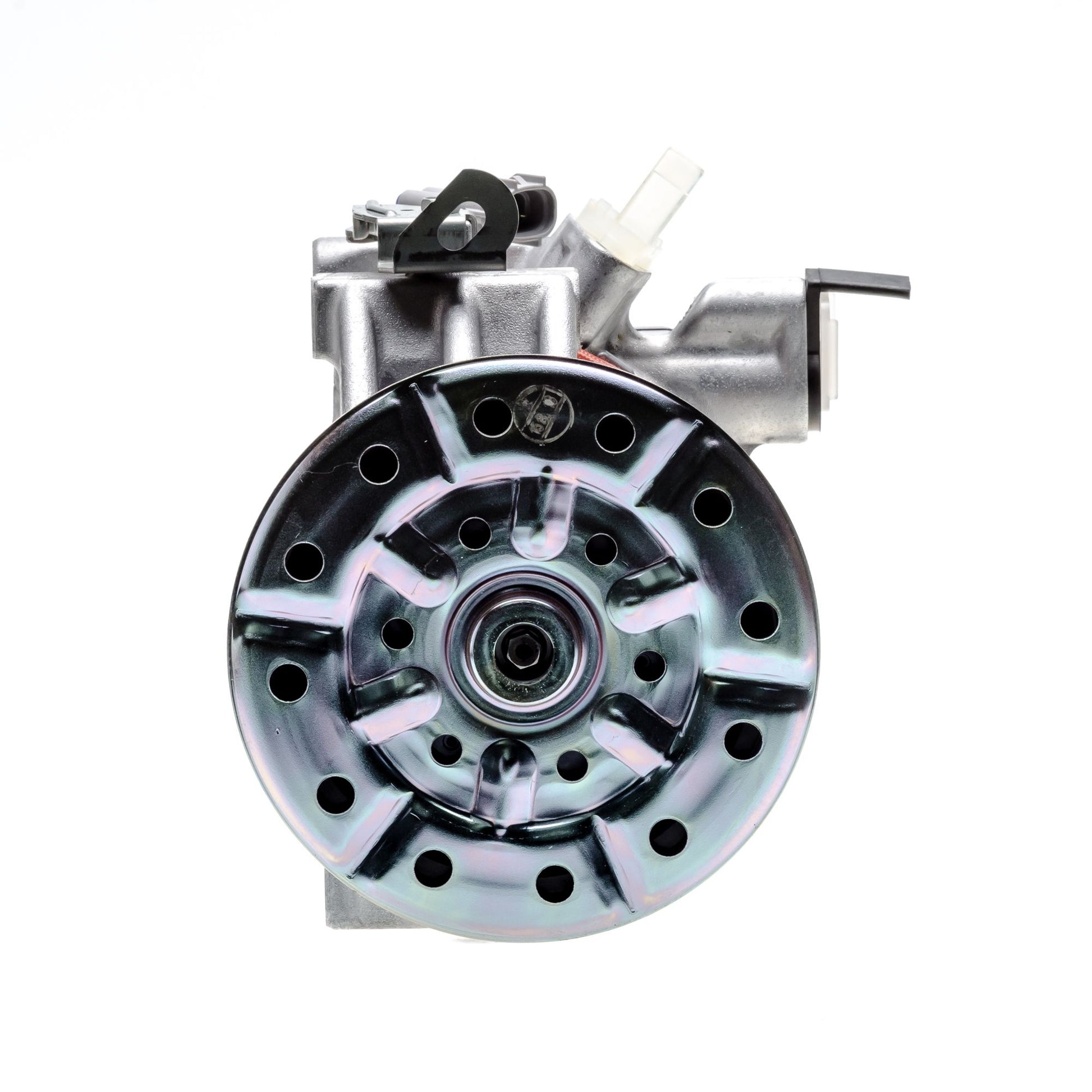

Denso Aircon Compressor DCP50300
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Compressor, Air Conditioner
- Clutch Type: B-PCW
- Compressor Type: 5SER09C
- DNTS short code: 447190-7140
- Filled: Filled
- Gross Weight (g): 5130
- Height Incl Packaging (mm): 290
- Indication Reman Part: New
- Inlet Ø: 18.3
- Length Incl Packaging (mm): 320
- Mounting Type: Bolted
- Net Weight (g): 4320
- Number of grooves: 6
- Number of ribs: 6
- OE Manufacturer: TOYOTA
- OE Number: 88310-02390 ; 88310-1A680
- Oil Quantity: 60
- Oil Type: ND-Oil 8
- Oil Type 2: ND-8
- Outlet Ø: 15.5
- Pulley Diameter(mm): 110
- Pulley type: DL-Pulley
- Quality: DENSO
- Refrigerant Type: R134a
- Width Incl Packaging (mm): 220
Replaces OEM reference(s):
Denso: 44719071403D, TOYOTA: 8831002390, TOYOTA: 88310-02390, TOYOTA: 883101A680, TOYOTA: 88310-1A680
Replaces aftermarket reference(s):
AVA COOLING SYSTEMS: TOK626, DENSO: 2483001590, DENSO: 4471907140, DENSO: 4472601500, DENSO: 4472602330, DENSO: 248300-1590, DENSO: 447190-7140, DENSO: 447260-1500, DENSO: 447260-2330, ELSTOCK: 510707, ELSTOCK: 51-0707, FRIGAIR: 92030247
Not sure this is the correct part?
Send your registration, VIN or the number from your existing part. We’ll use the product you are viewing as the reference for your enquiry.
