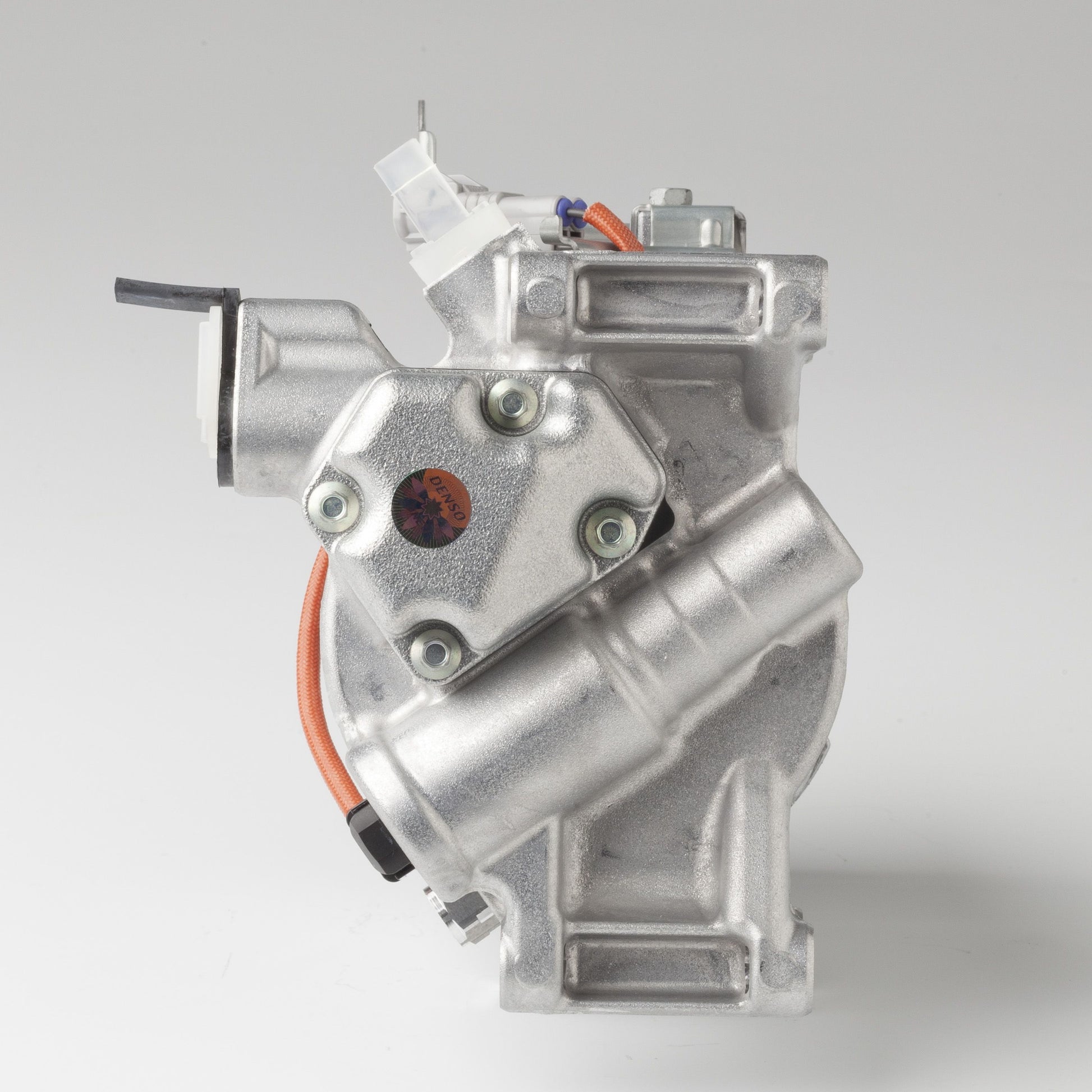

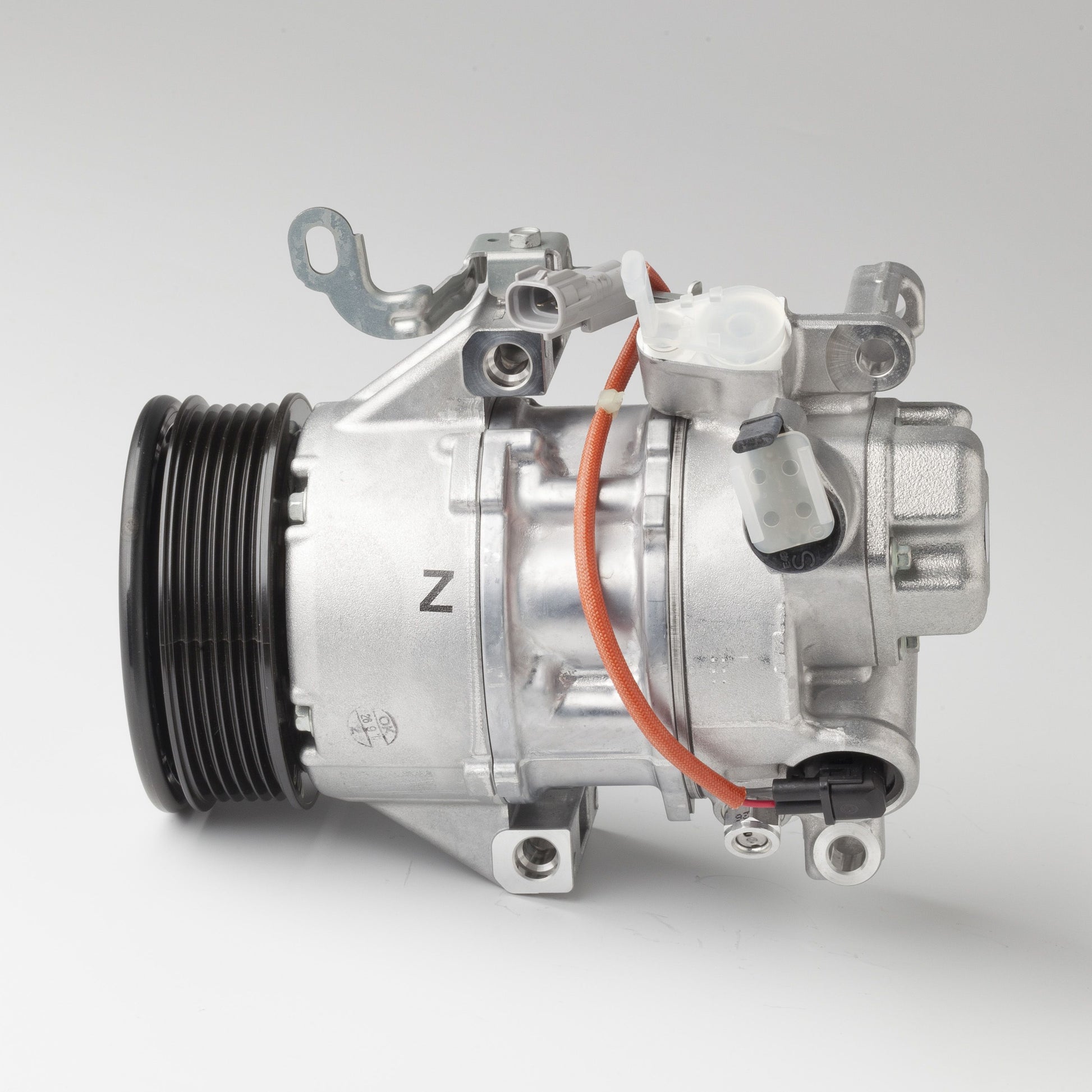

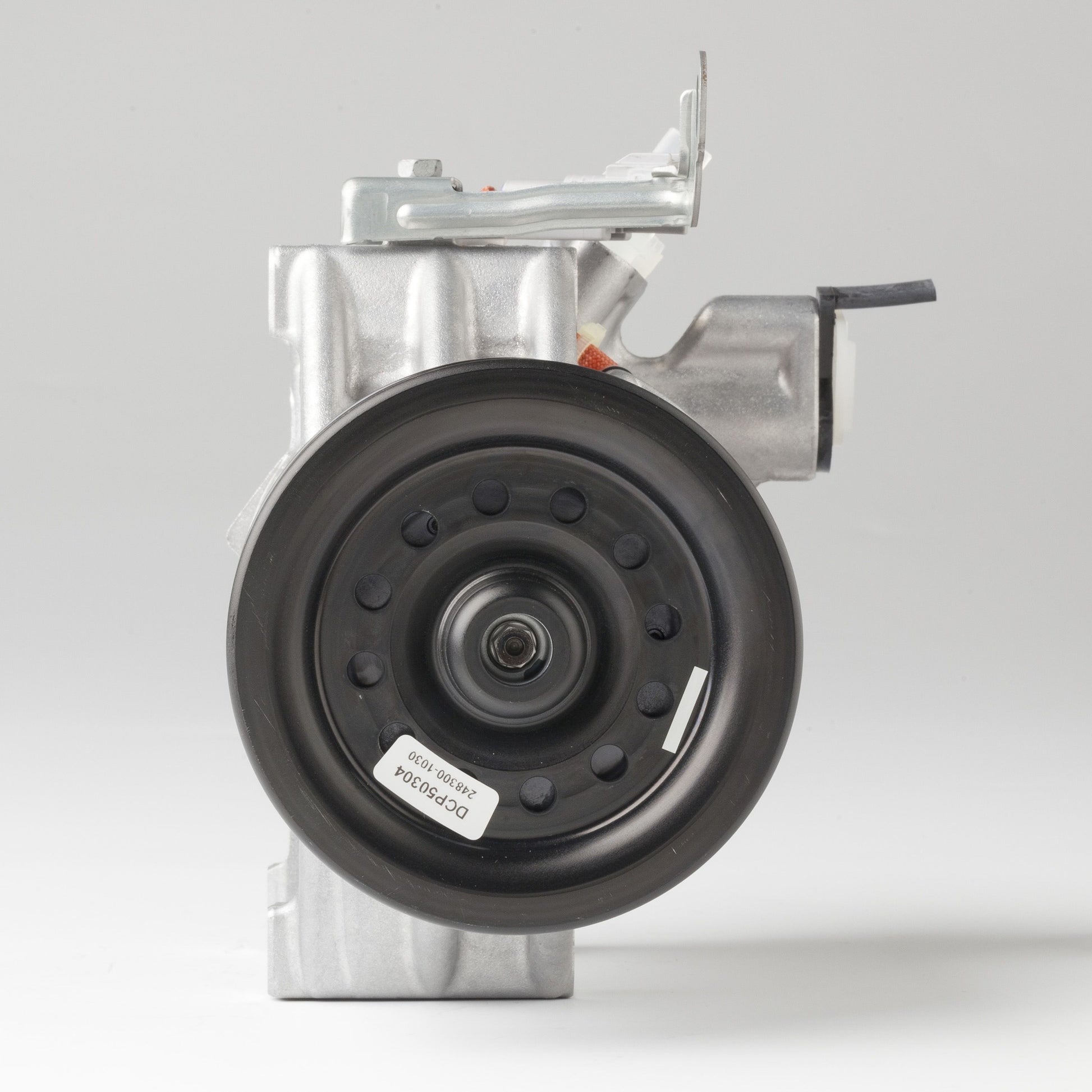

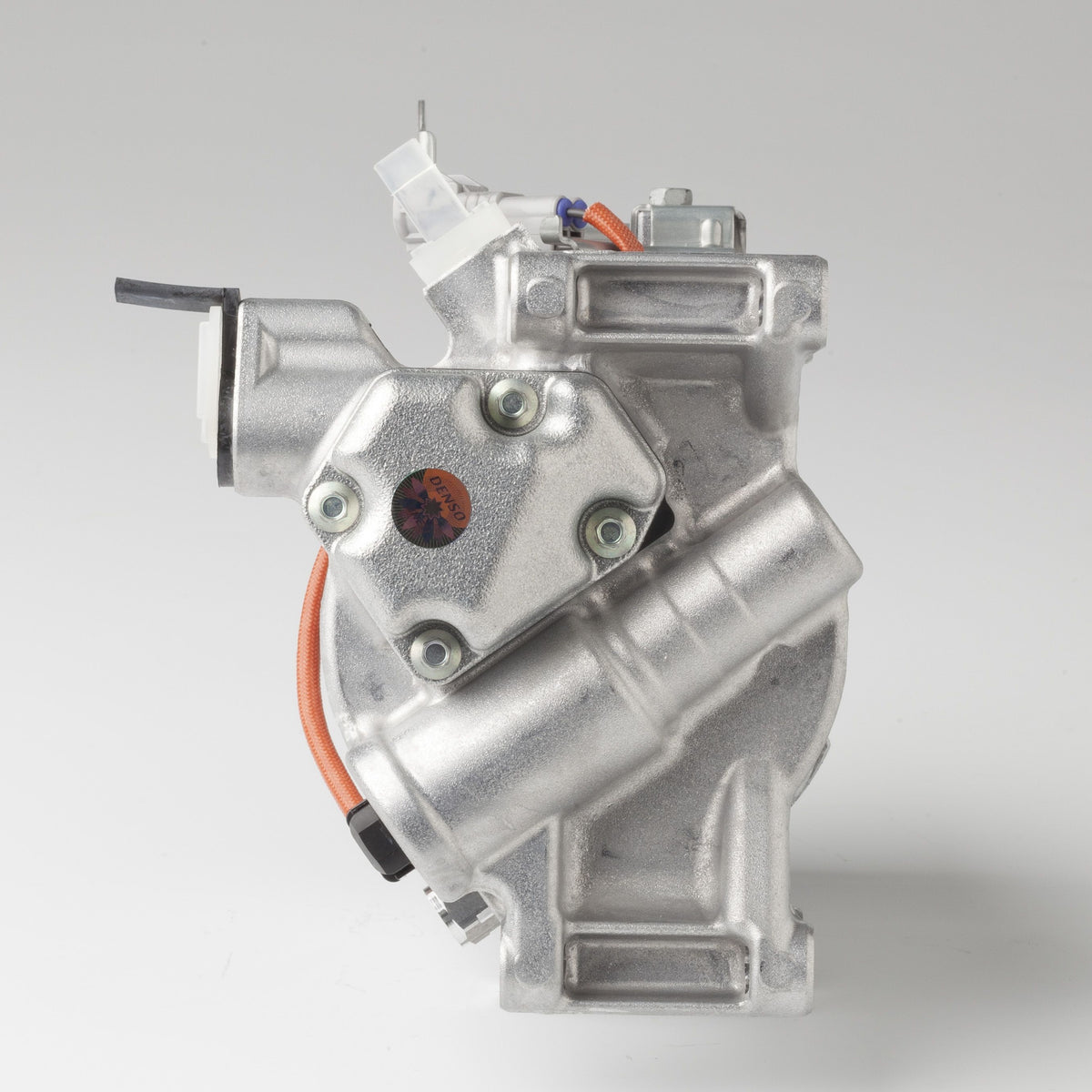

Denso Aircon Compressor DCP50304

Compressor, Air Conditioner

• Compressor Type: 5SER09C
• DNTS short code: 447150-1130
• Filled: Filled
• Gross Weight (g): 4475
• Height Incl Packaging (mm): 290
• Indication Reman Part: New
• Inlet Ø: 18.3
• Length Incl Packaging (mm): 320
• Mounting Type: Bolted
• Net Weight (g): 3665
• Number of grooves: 6
• Number of ribs: 6
• OE Manufacturer: TOYOTA
• OE Number: 883100D320
• Oil Quantity: 60
• Oil Type: ND-Oil 8
• Oil Type 2: ND-8
• Outlet Ø: 15.5
• Pulley Diameter(mm): 100
• Pulley type: DL-Pulley
• Quality: DENSO
• Refrigerant Type: R134a
• Width Incl Packaging (mm): 220

Replaces OEM reference(s):
Denso: 44715011303D, TOYOTA: 883100D320, TOYOTA: 88310-0D320, TOYOTA: 883101A800, TOYOTA: 88310-1A800

Replaces aftermarket reference(s):
AVA COOLING SYSTEMS: TOK681, DENSO: 2483001030, DENSO: 2483001032, DENSO: 4471501130, DENSO: 4472603310, DENSO: 4472603313, DENSO: 248300-1030, DENSO: 248300-1032, DENSO: 447150-1130, DENSO: 447260-3310, DENSO: 447260-3313, ELSTOCK: 510707, ELSTOCK: 51-0707, FRIGAIR: 92030247
