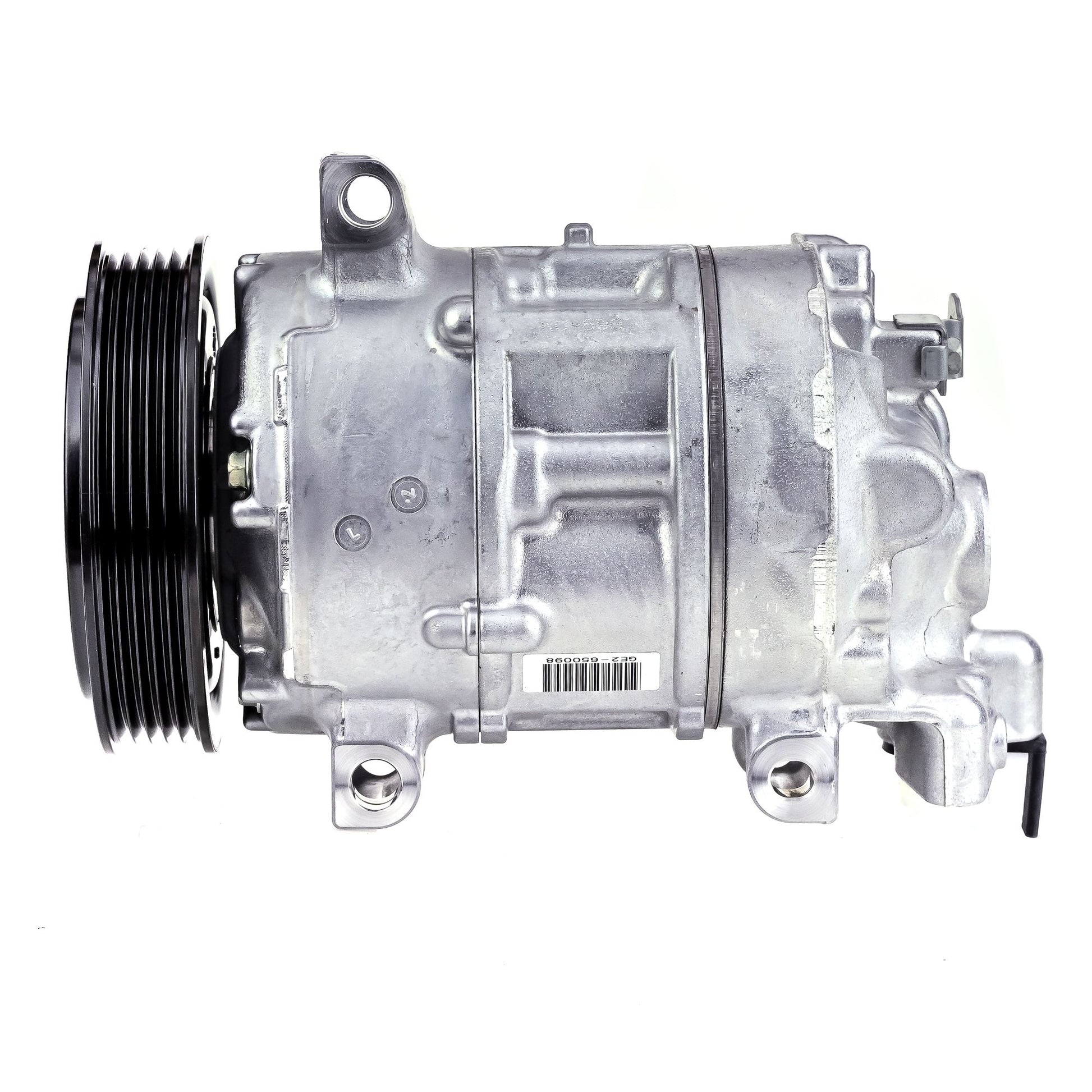

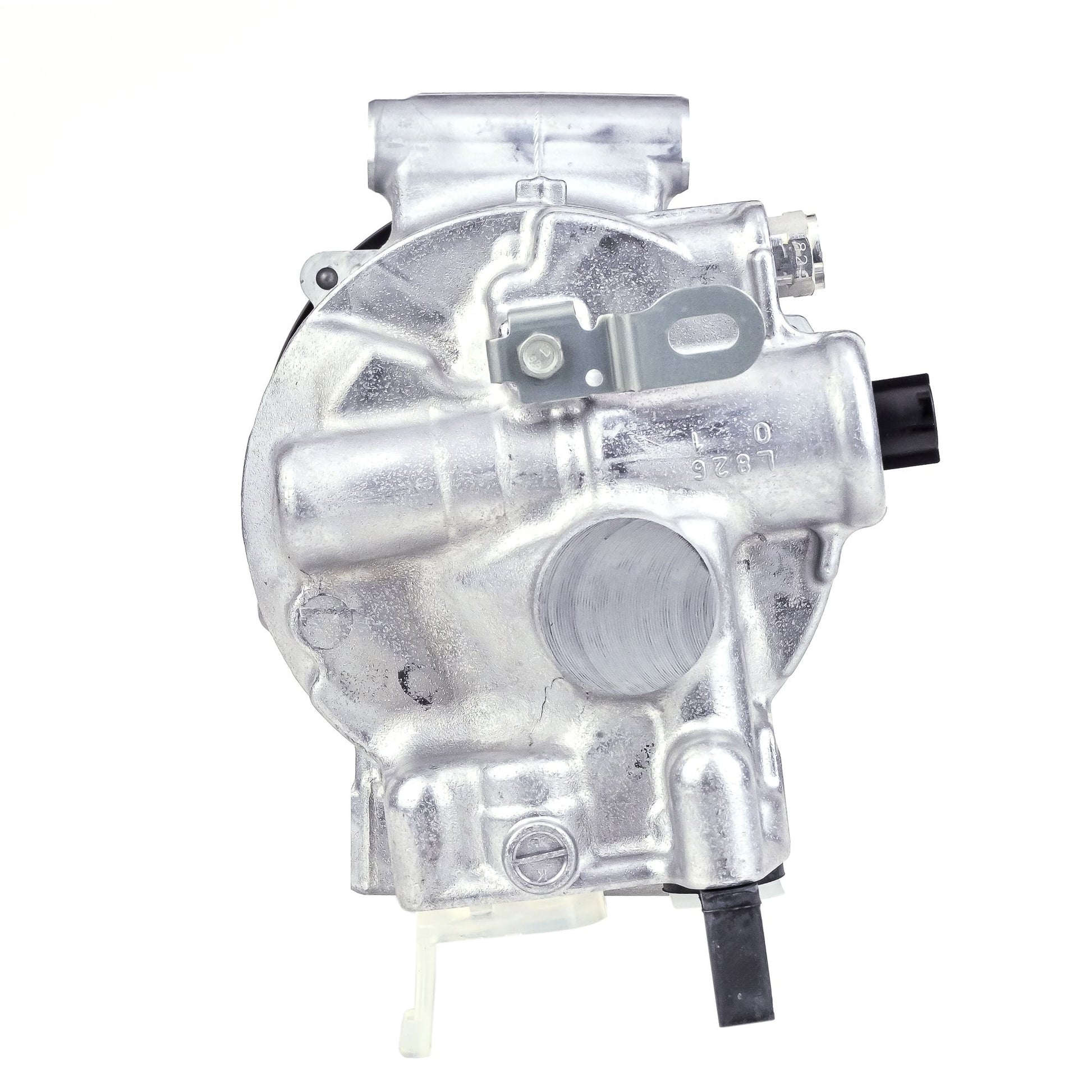

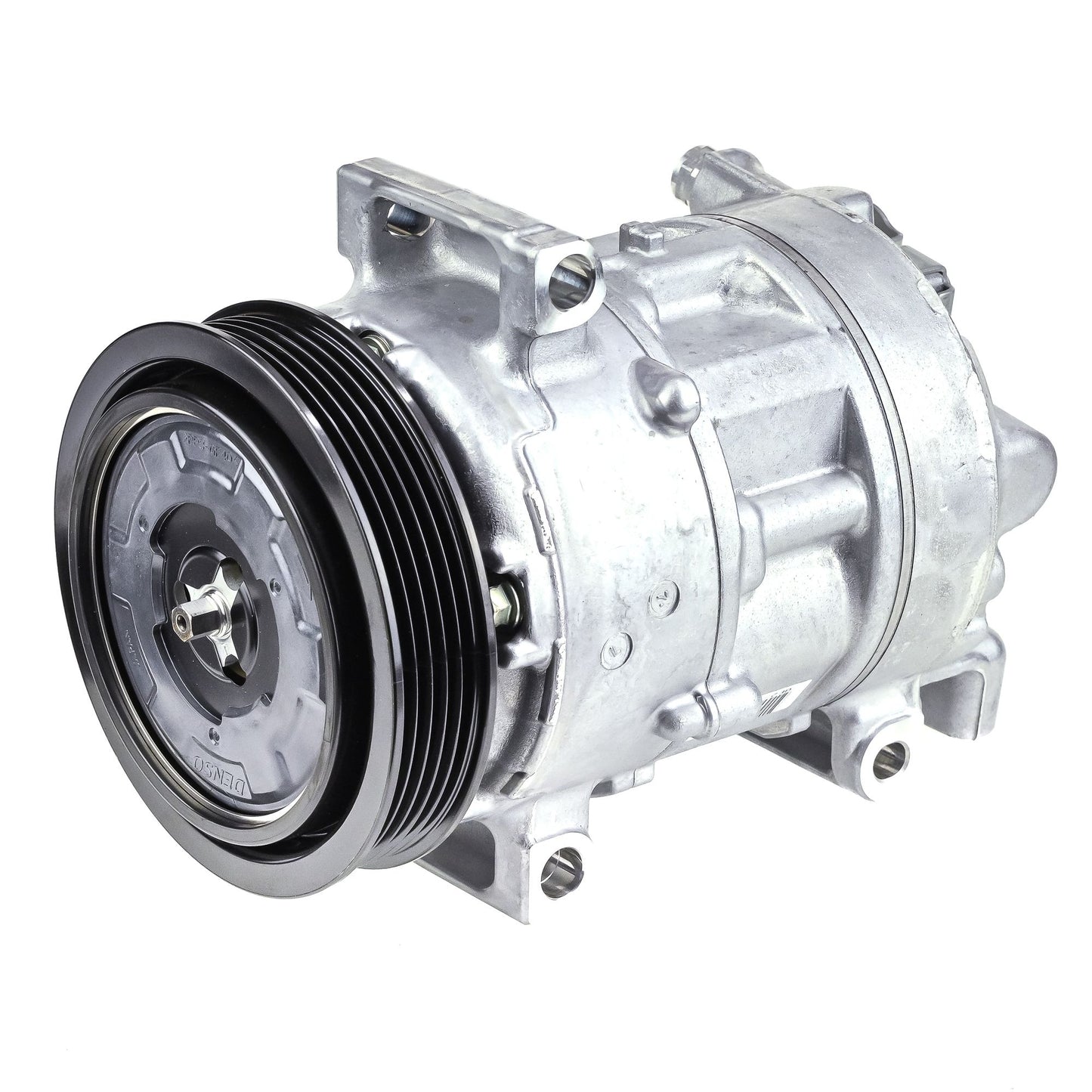

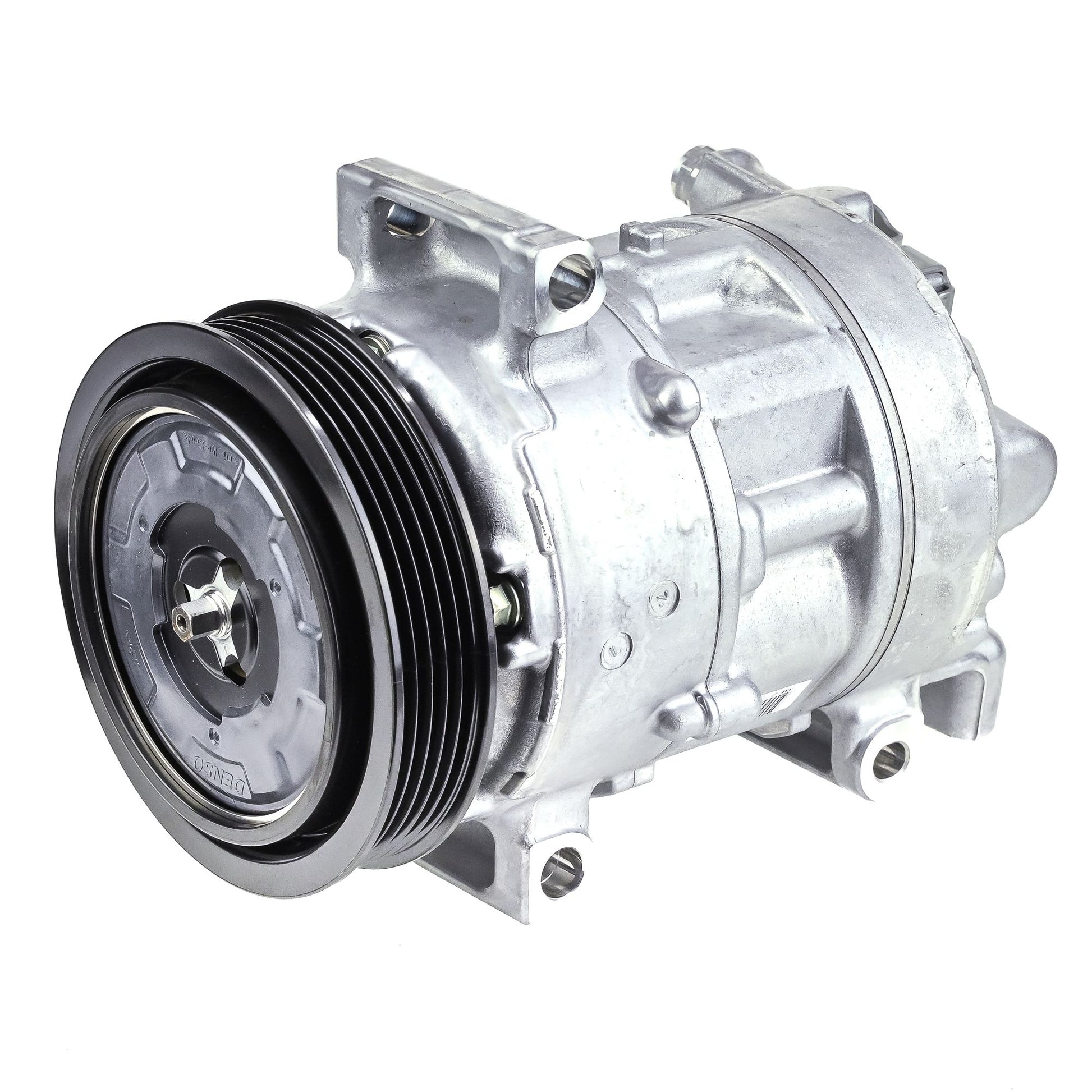

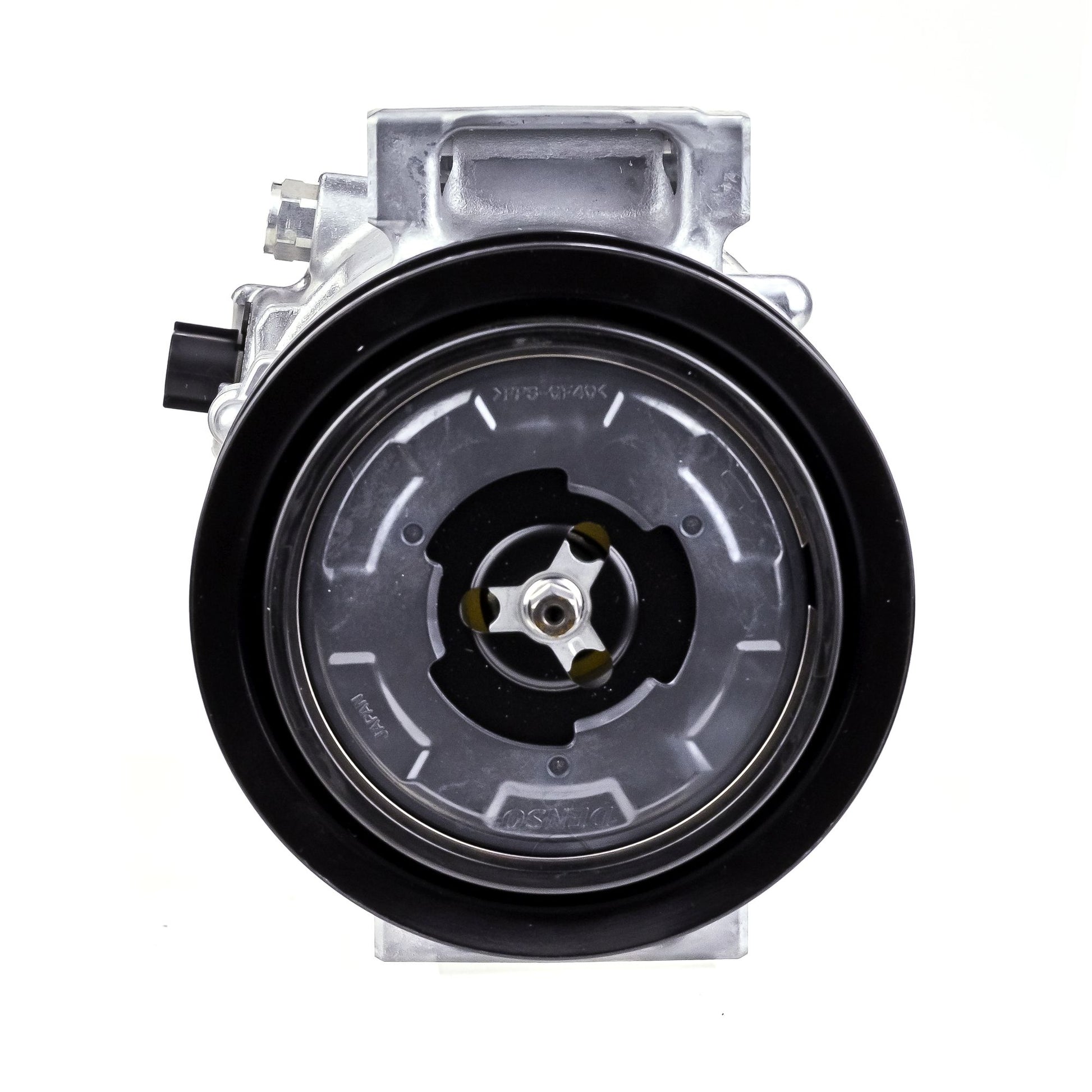

Denso Aircon Compressor DCP50314
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Compressor, Air Conditioner
- Compressor Type: 5SE12C
- DNTS short code: 447150-5190
- Filled: Filled
- Gross Weight (g): 4730
- Height Incl Packaging (mm): 290
- Indication Reman Part: New
- Length Incl Packaging (mm): 320
- Mounting Type: Bolted
- Net Weight (g): 3920
- Number of grooves: 5
- Number of ribs: 5
- OE Manufacturer: TOYOTA
- OE Number: 88310-0F050
- Oil Quantity: 90
- Oil Type: ND-Oil 8
- Oil Type 2: ND-8
- Pulley Diameter(mm): 113
- Pulley type: DL-Pulley
- Quality: DENSO
- Refrigerant Type: R134a
- Width Incl Packaging (mm): 220
Replaces OEM reference(s):
TOYOTA: 883100F050, TOYOTA: 88310-0F050
Replaces aftermarket reference(s):
DENSO: 2483003410, DENSO: 4471505190, DENSO: 4471507760, DENSO: 4472809280, DENSO: 248300-3410, DENSO: 447150-5190, DENSO: 447150-7760, DENSO: 447280-9280, ELSTOCK: 511096, ELSTOCK: 51-1096
