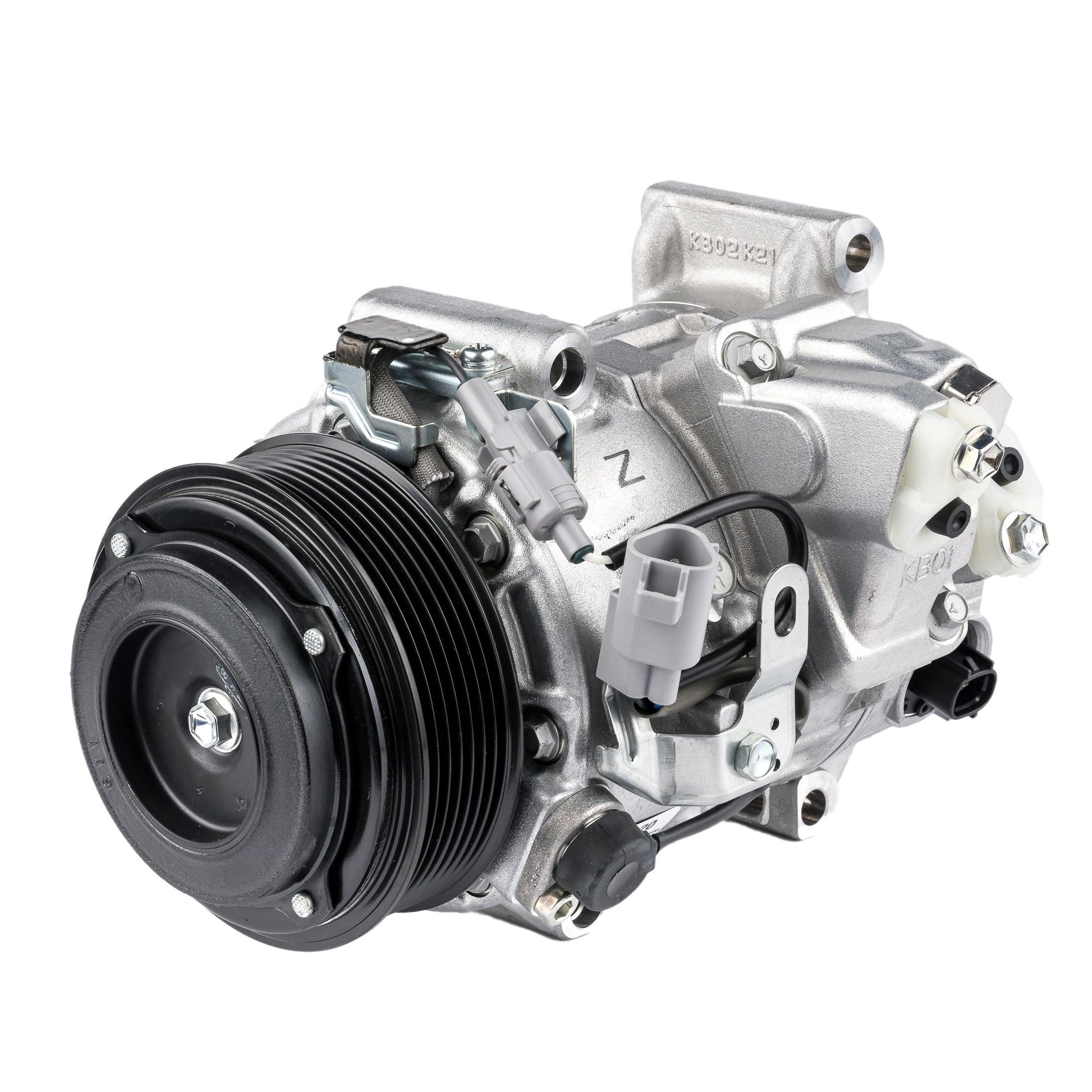

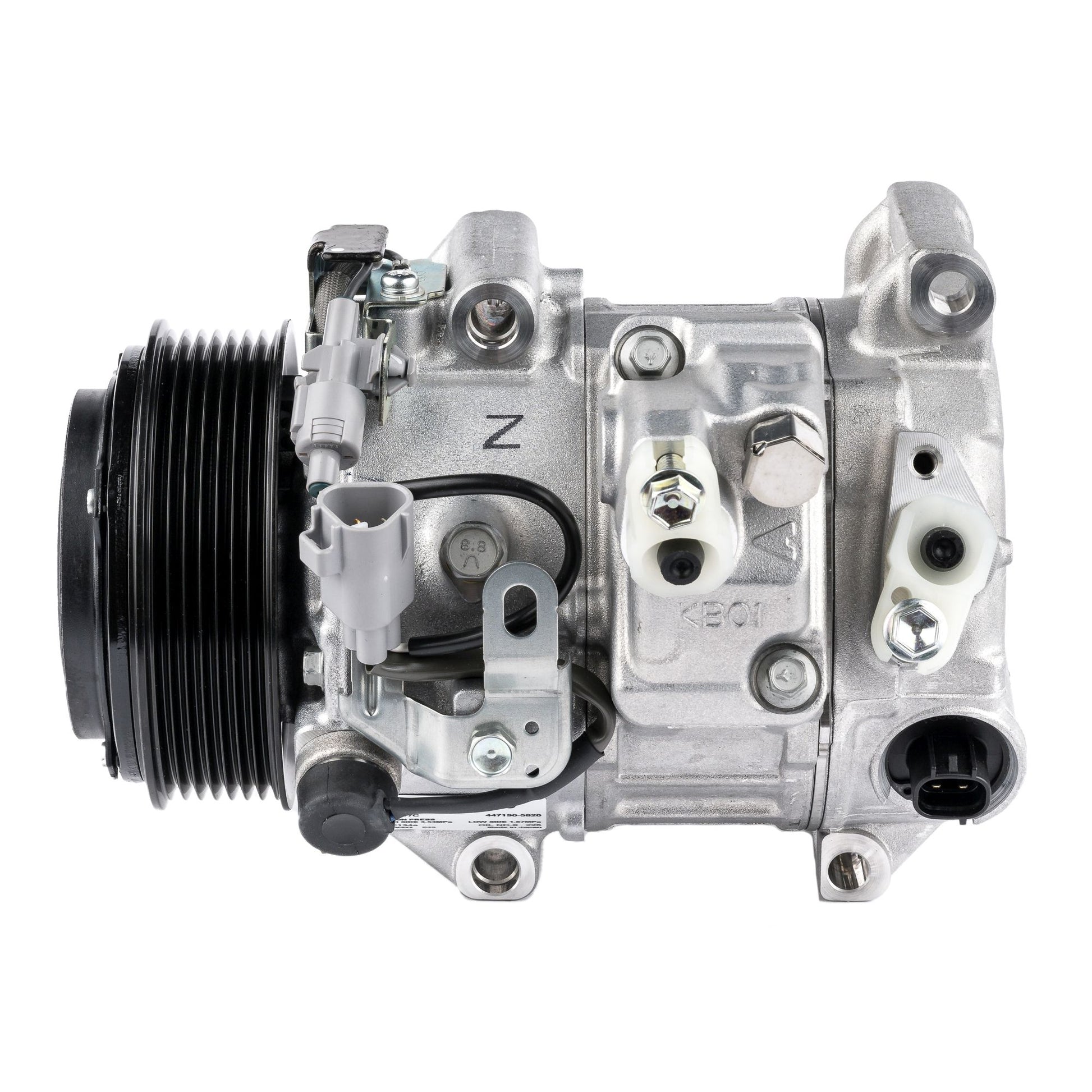

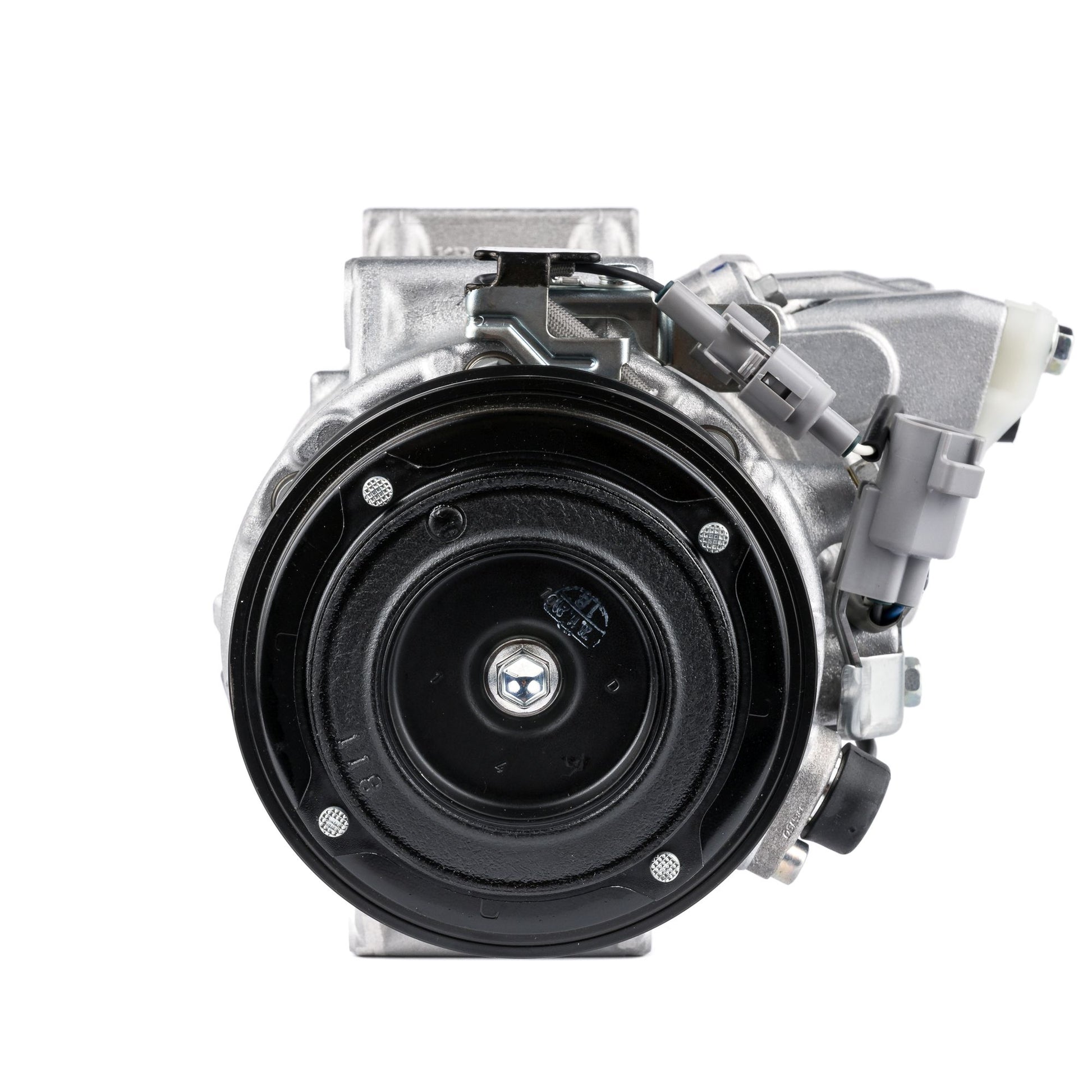

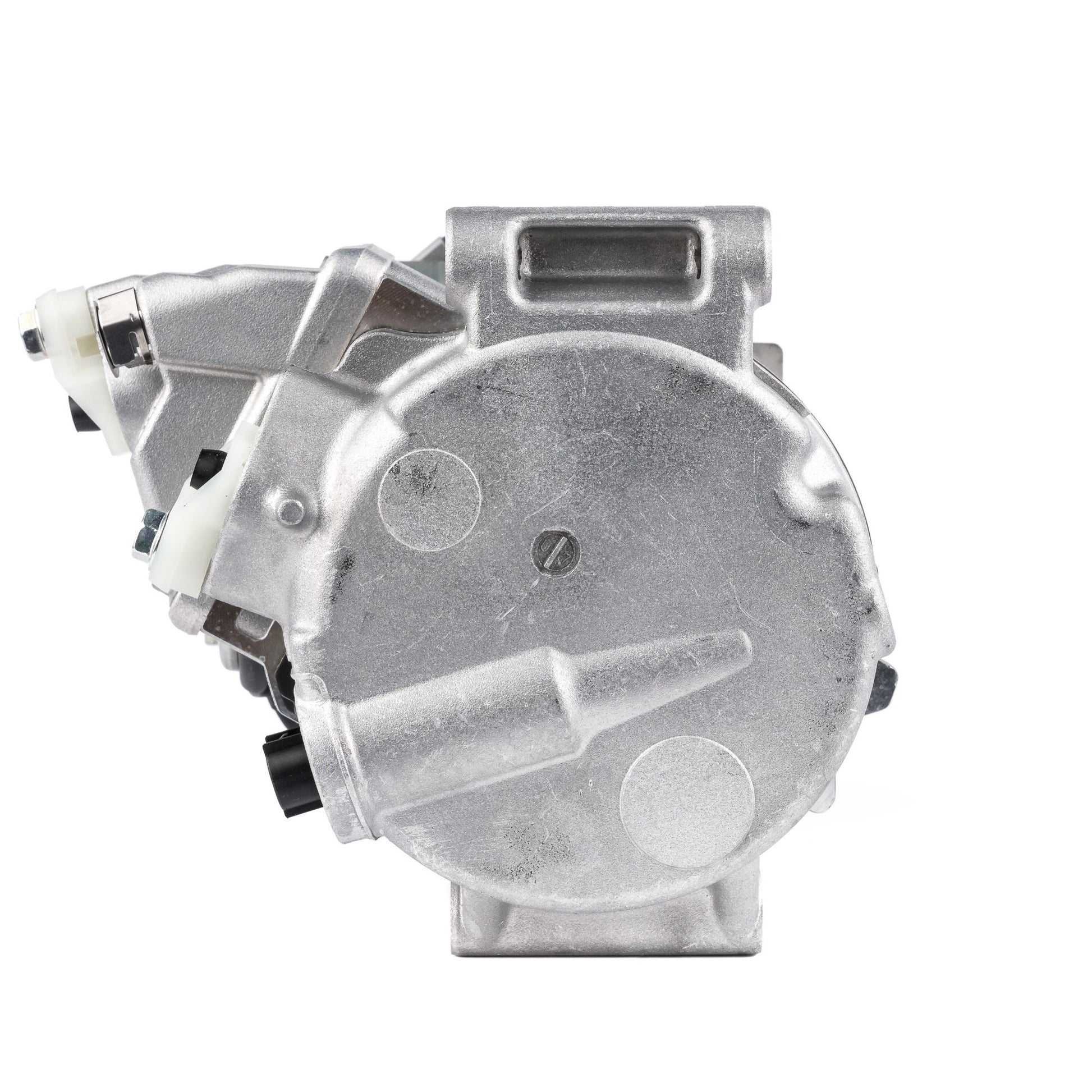

Denso Aircon Compressor DCP50320
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Compressor, Air Conditioner
- Compressor Type: 7SBH17C
- DNTS short code: 447190-5820
- Filled: Filled
- Gross Weight (g): 7510
- Height Incl Packaging (mm): 290
- Indication Reman Part: New
- Length Incl Packaging (mm): 320
- Mounting Type: Bolted
- Net Weight (g): 6800
- Number of grooves: 7
- Number of ribs: 7
- OE Manufacturer: TOYOTA
- OE Number: 8831028600
- Oil Quantity: 225
- Oil Type: ND-Oil 8
- Oil Type 2: ND-8
- Pulley Diameter(mm): 110
- Quality: DENSO
- Refrigerant Type: R134a
- Supplementary Article Info 2: with magnetic clutch
- Voltage (V): 12
- Width Incl Packaging (mm): 220
Replaces OEM reference(s):
TOYOTA: 8831028600, TOYOTA: 88310-28600
Replaces aftermarket reference(s):
DENSO: 4471905820, DENSO: 447190-5820
