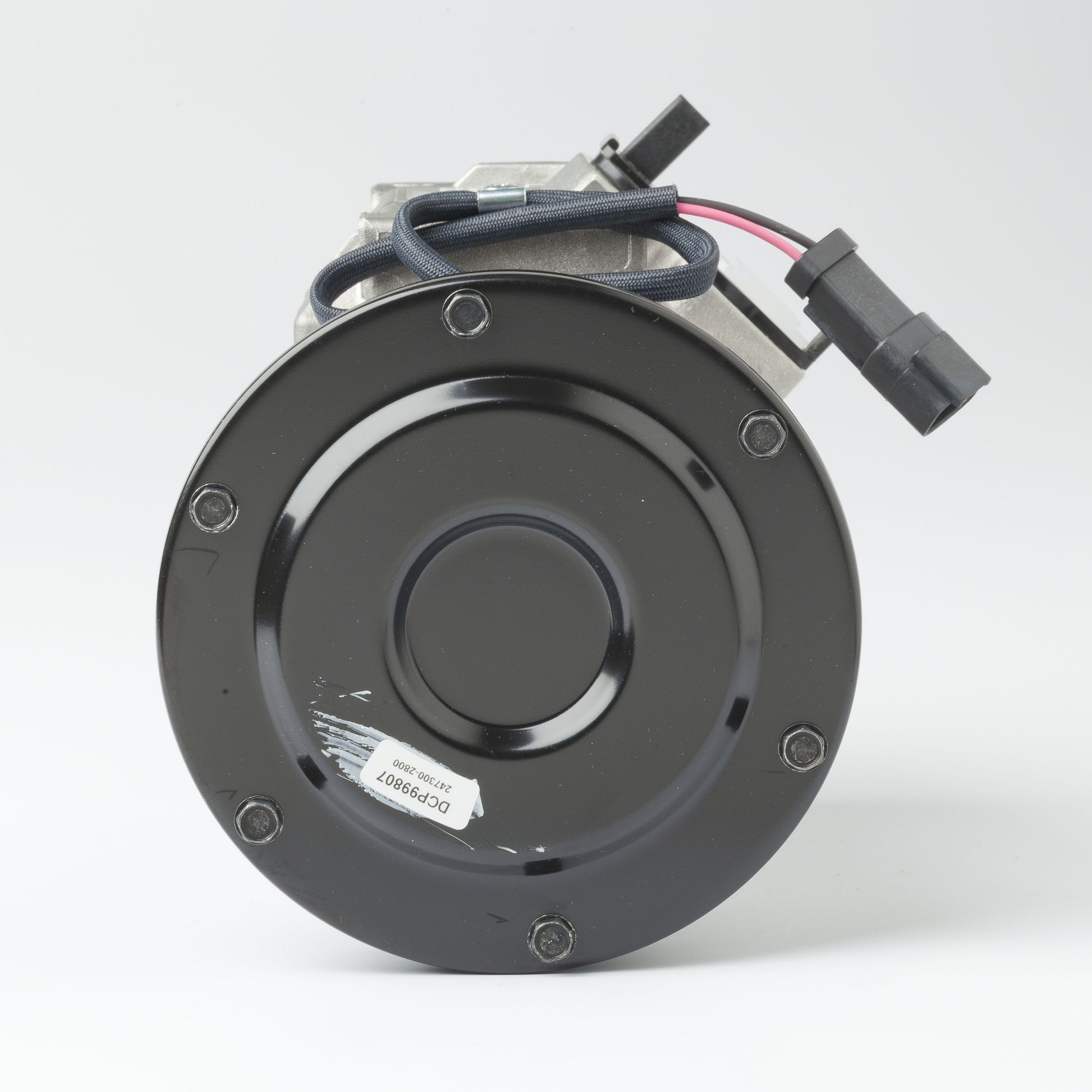

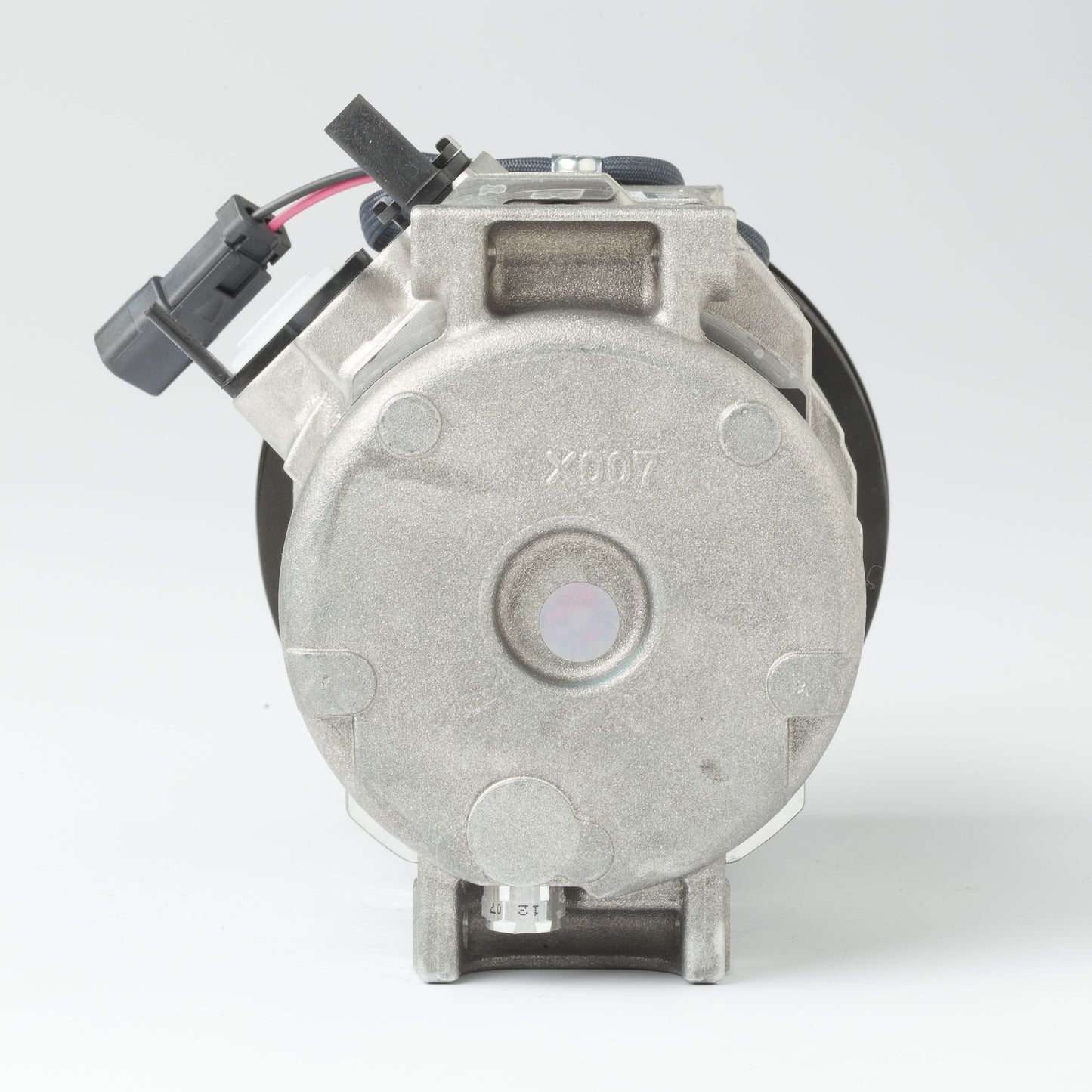

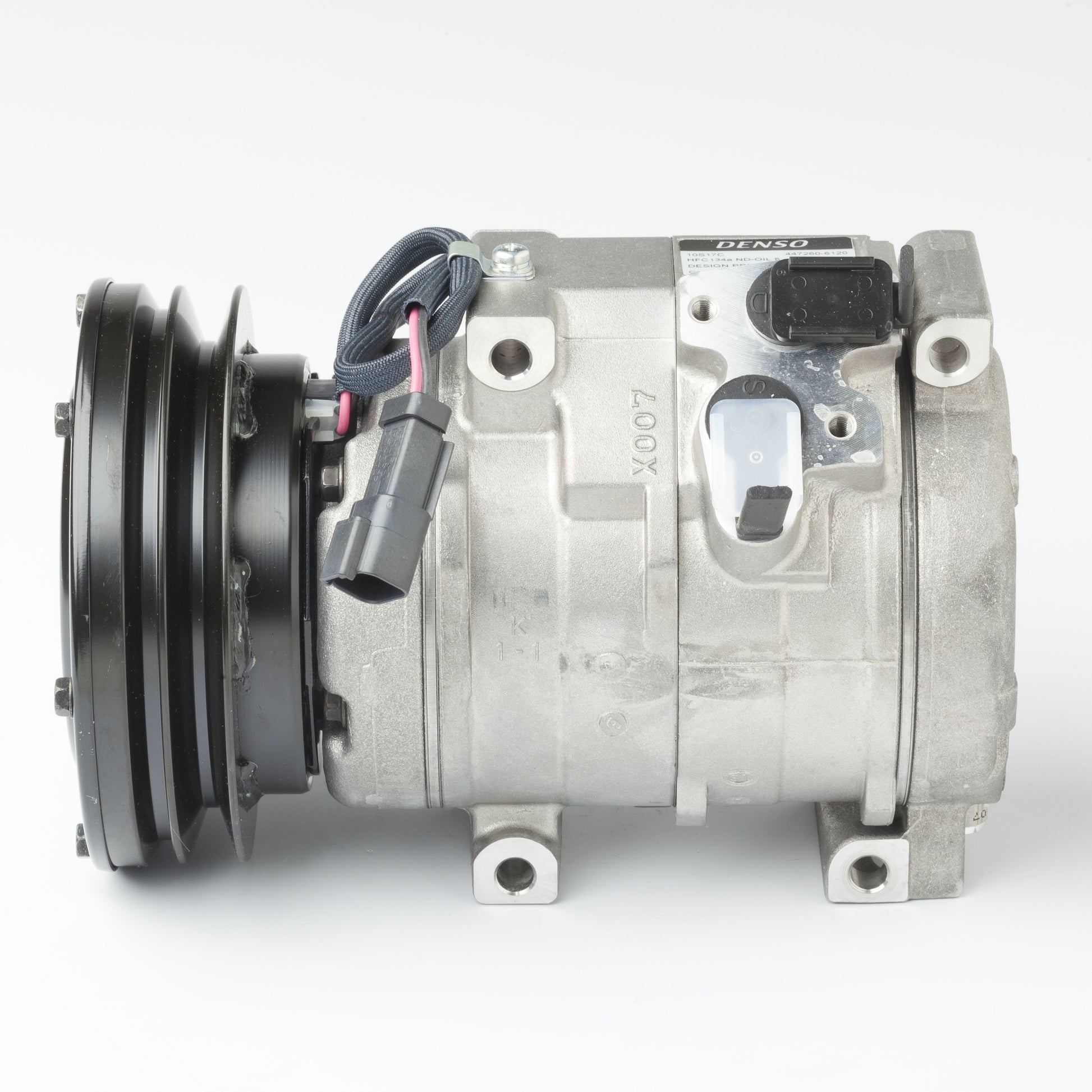

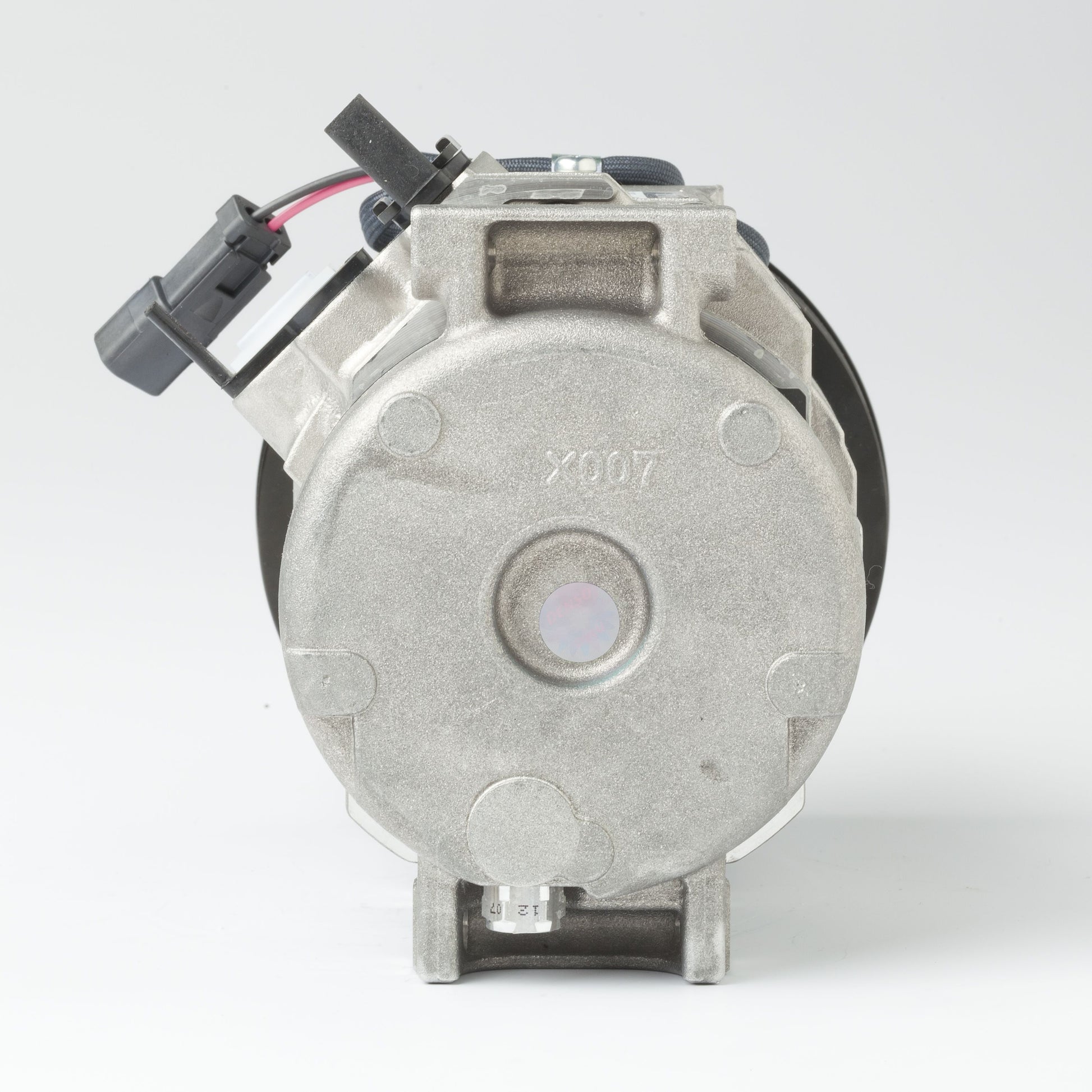

Denso Aircon Compressor DCP99807

Compressor, Air Conditioner

• Clutch Type: L50T
• Commercial & HD: YES
• Compressor Type: 10S17C
• DNTS short code: 447190-5130
• Filled: Filled
• Gross Weight (g): 7460
• Height Incl Packaging (mm): 290
• Indication Reman Part: New
• Length Incl Packaging (mm): 320
• Mounting Type: Bolted
• Net Weight (g): 6650
• Number of grooves: 1
• Number of ribs: 1
• OE Manufacturer: CATERPILLAR
• OE Number: 24577-81
• Oil Quantity: 160
• Oil Type: ND-Oil 8
• Oil Type 2: ND-8
• Pulley Diameter(mm): 133
• Quality: DENSO
• Refrigerant Type: R134a
• Special Purpose Vehicle: CV (commercial vehicles)
• Suitable for vehicle type: CV (commercial vehicles)
• Supplementary Article Info 2: with magnetic clutch
• Voltage (V): 24
• Width Incl Packaging (mm): 220

Replaces OEM reference(s):
CATERPILLAR: 2457781, CATERPILLAR: 24577-81, Denso: 43710050103D, Denso: 44719051303D

Replaces aftermarket reference(s):
AVA COOLING SYSTEMS: CPAK009, DASIS: 851760N, DENSO: 2473002800, DENSO: 4371005010, DENSO: 4471905130, DENSO: 4472203840, DENSO: 4472606120, DENSO: 247300-2800, DENSO: 437100-5010, DENSO: 447190-5130, DENSO: 447220-3840, DENSO: 447260-6120, FRIGAIR: 920.30266, FRIGAIR: 930.30266, FRIGAIR: 92030266, FRIGAIR: 93030266, PRASCO: CPAK009
