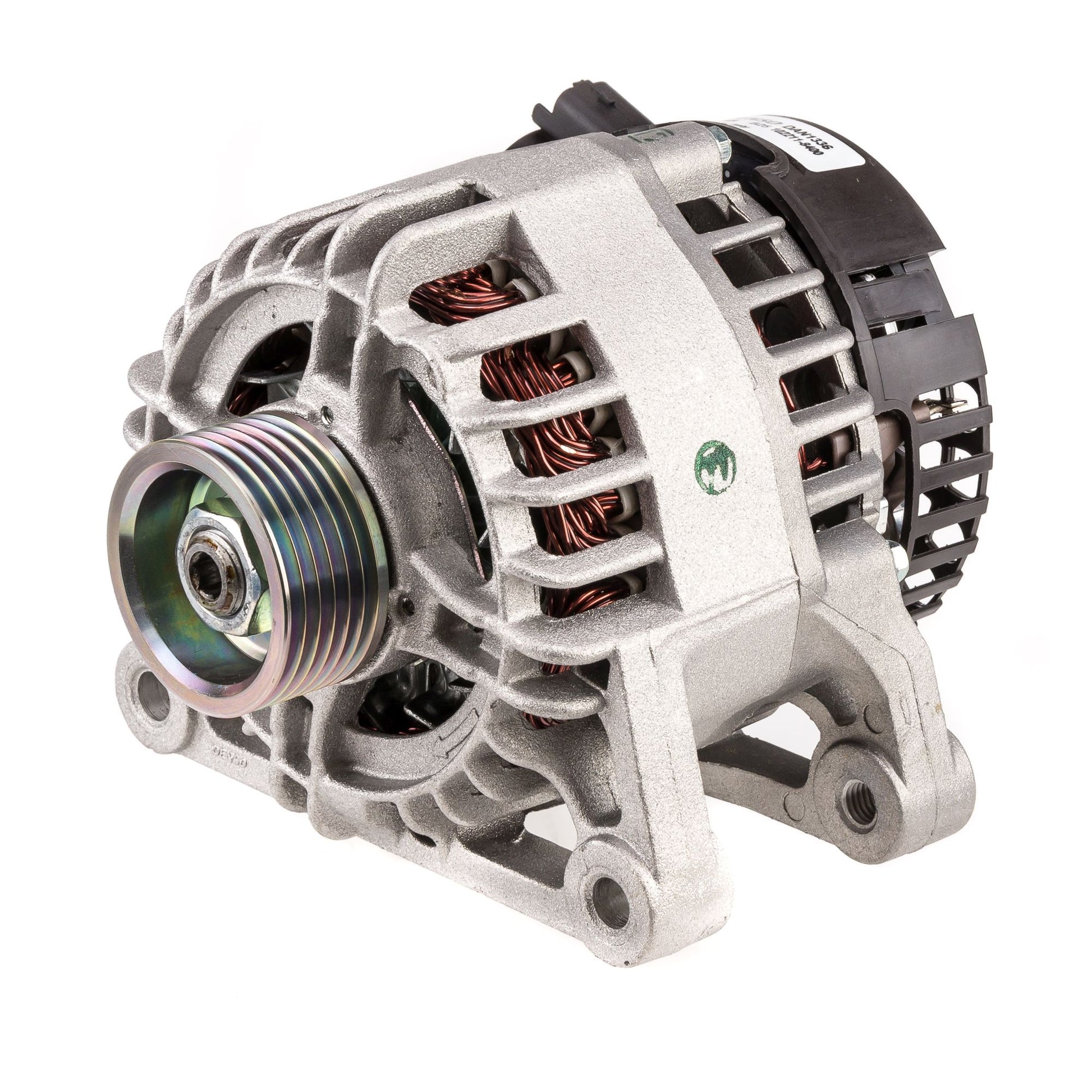

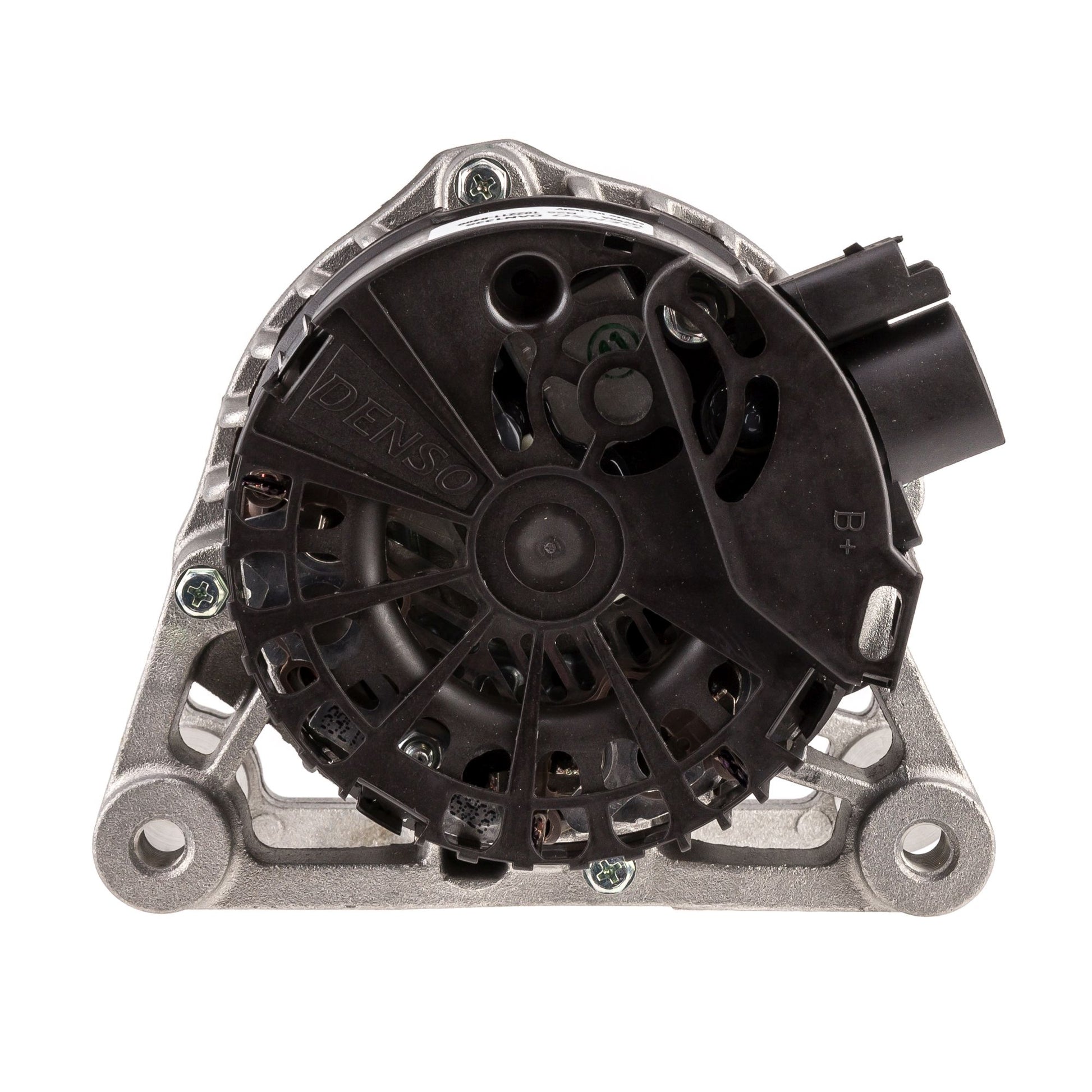

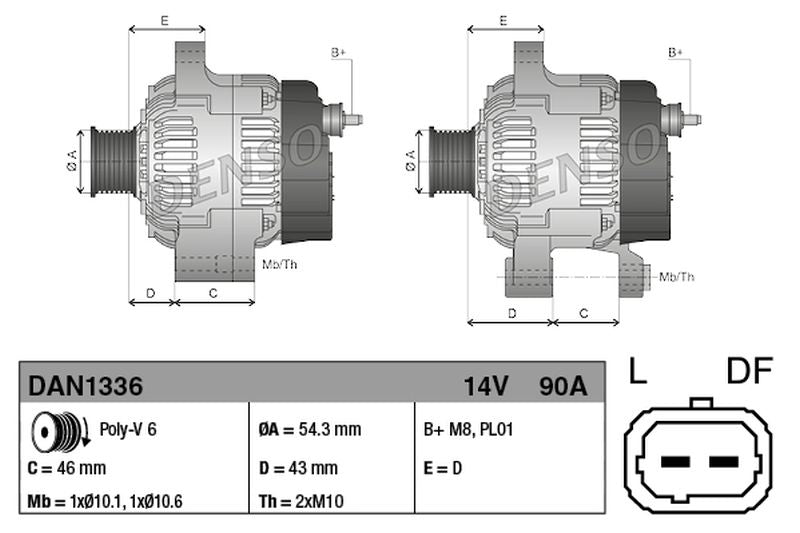

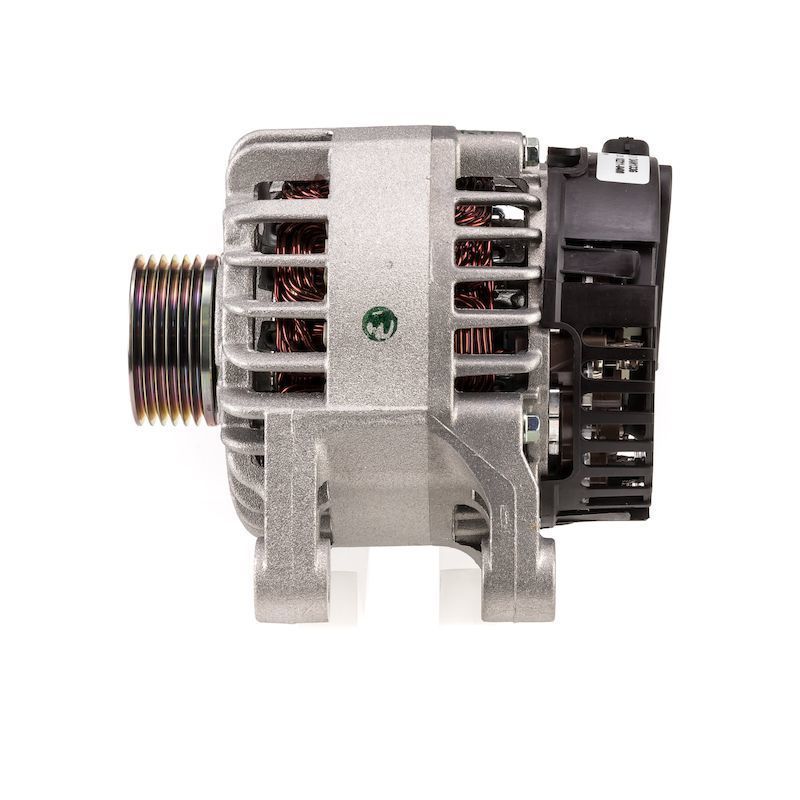

Denso Alternator DAN1336
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Alternator
- Alternator Charge Current (A): 90
- Belt Pulley Diameter (mm): 54.3
- Gross Weight (g): 5520
- Height Incl Packaging (mm): 180
- Indication Reman Part: New
- Length Incl Packaging (mm): 245
- MAM Section: Electrical
- Net Weight (g)_XC: 5100
- New part without deposit: Yes
- Number of ribs: 6
- Part Note (Text Mod): NOT Self-exciting (Uses standard Lamp connection)
- Pulleys: with multi-belt pulley
- Quality: DENSO
- Vehicle Main Current: for vehicles with 12V main current
- Voltage: 14
- Voltage (V): 14
- Width Incl Packaging (mm): 210
Replaces OEM reference(s):
CITROEN: 9633782580, CITROEN: 9636204480, CITROEN: 9638275580, CITROEN: 9638275780, CITROEN: 9638275880, CITROEN: 9638275980, CITROEN: 9641398480, CITROEN: 9641398680, CITROEN: 9642879980, CITROEN: 9642880080, CITROEN: 9642880180, CITROEN: 9649611480, CITROEN: 9649611580, CITROEN: 9656956080, CITROEN: 9656956380, CITROEN: 9665577580, CITROEN: 9665577780, CITROEN: 5702E8, CITROEN: 5702K1, CITROEN: 5702K2, CITROEN: 57055A, CITROEN: 57055B, CITROEN: 57055T, CITROEN: 5705AZ, CITROEN: 5705FC, CITROEN: 5705GN, CITROEN: 5705GP, CITROEN: 5705GQ, CITROEN: 5705KX, CITROEN: 5705KY, FIAT: 71747925, FIAT: 9638275380, FIAT: 9638275480, FIAT: 9642879980, FIAT: 9649611380, LANCIA: 9638275480, MITSUBISHI: A005TA6291, MITSUBISHI: A005TA6291ZE, MITSUBISHI: A005TA6291ZEB, MITSUBISHI: A005TA6291ZEC, MITSUBISHI: A005TA6291ZED, MITSUBISHI: A005TA6391, MITSUBISHI: A005TA6391A, MITSUBISHI: A005TA6391B, MITSUBISHI: A005TA6391C, PEUGEOT: 9633782580, PEUGEOT: 9636204480, PEUGEOT: 9638275580, PEUGEOT: 9638275780, PEUGEOT: 9638275880, PEUGEOT: 9638275980, PEUGEOT: 9641398480, PEUGEOT: 9641398680, PEUGEOT: 9642879980, PEUGEOT: 9642880080, PEUGEOT: 9642880180, PEUGEOT: 9649611480, PEUGEOT: 9649611580, PEUGEOT: 9656956080, PEUGEOT: 9656956380, PEUGEOT: 9665577580, PEUGEOT: 9665577780, PEUGEOT: 5702E8, PEUGEOT: 5702K1, PEUGEOT: 5702K2, PEUGEOT: 57055A, PEUGEOT: 57055B, PEUGEOT: 57055T, PEUGEOT: 5705AZ, PEUGEOT: 5705FC, PEUGEOT: 5705GN, PEUGEOT: 5705GP, PEUGEOT: 5705GQ, PEUGEOT: 5705KX, PEUGEOT: 5705KY
Replaces aftermarket reference(s):
BOSCH: 0986049370, BOSCH: 0986049410, BOSCH: 0986049700, BOSCH: 0 986 049 370, BOSCH: 0 986 049 410, BOSCH: 0 986 049 700, DENSO: 63321733, DENSO: 63321734, DENSO: 63341733, DENSO: 63341734, DENSO: 1022118400, DENSO: 102211-8400, ELSTOCK: 283772, ELSTOCK: 283816, ELSTOCK: 283949, ELSTOCK: 285715, ELSTOCK: 285716, ELSTOCK: 28-3772, ELSTOCK: 28-3816, ELSTOCK: 28-3949, ELSTOCK: 28-5715, ELSTOCK: 28-5716, HELLA: 8EL011711521, LUCAS ELECTRICAL: LRA01930, LUCAS ELECTRICAL: LRA03103, LUCAS ELECTRICAL: LRA03104, LUCAS ELECTRICAL: LRB00494, LUCAS ELECTRICAL: LRB00502, MAGNETI MARELLI: 063321734010, MAGNETI MARELLI: 063341734010, MAGNETI MARELLI: 063533483010, MAGNETI MARELLI: MAN1166, MAGNETI MARELLI: MAN2805, MAGNETI MARELLI: MAN963, REMY: DRA1313, VALEO: 437192, VALEO: 437193, VALEO: 437194, VALEO: 437355, VALEO: 437356, VALEO: 439691, VALEO: 439692, VALEO: 440277, VALEO: 440284, VALEO: 746018, VALEO: 746070, VALEO: 2542285, VALEO: 2542394, VALEO: 2542396, VALEO: 2542397, VALEO: 2542484, VALEO: 2542487, VALEO: 2542490, VALEO: 2542793, VALEO: 2542802, VALEO: 2542920, VALEO: 2542922, VALEO: 2607208, VALEO: 2607210, VALEO: 2542285A, VALEO: 2542394B, VALEO: 2542397B, VALEO: 2542484A, VALEO: 2542487A, VALEO: 2542490A, VALEO: 2542793A, VALEO: 2542802A, VALEO: 2542920A, VALEO: 2542922A, VALEO: 2607208C, VALEO: 2607210A, VALEO: 2607210C, VALEO: A11VI106, VALEO: A11VI99, VALEO: A13VI236, VALEO: A13VI276, VALEO: A13VI277, VALEO: A13VI277+, VALEO: SG10B022, VALEO: SG7S015, VALEO: SG8B021, VALEO: SG9B063, VALEO: SG9B066, VALEO: TG7S010, VALEO: TG7S014, VALEO: TG9B024, VALEO: TG9B064
Not sure this is the correct part?
Send your registration, VIN or the number from your existing part. We’ll use the product you are viewing as the reference for your enquiry.
