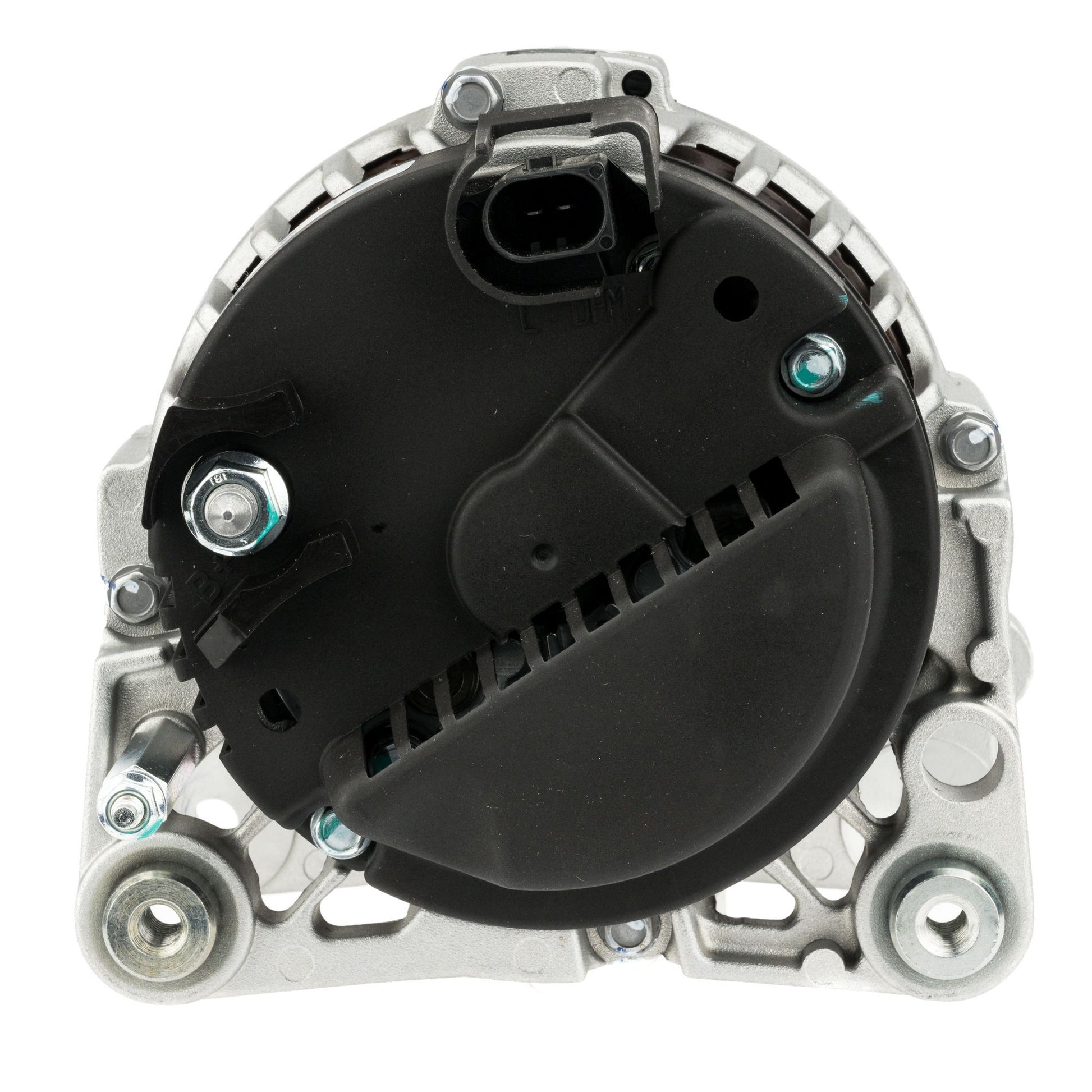

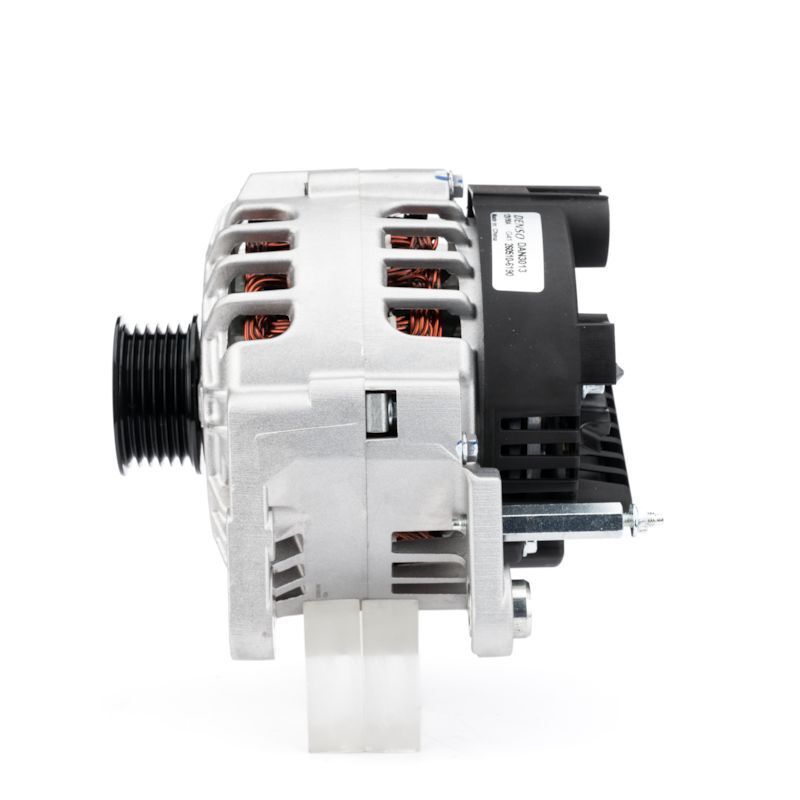

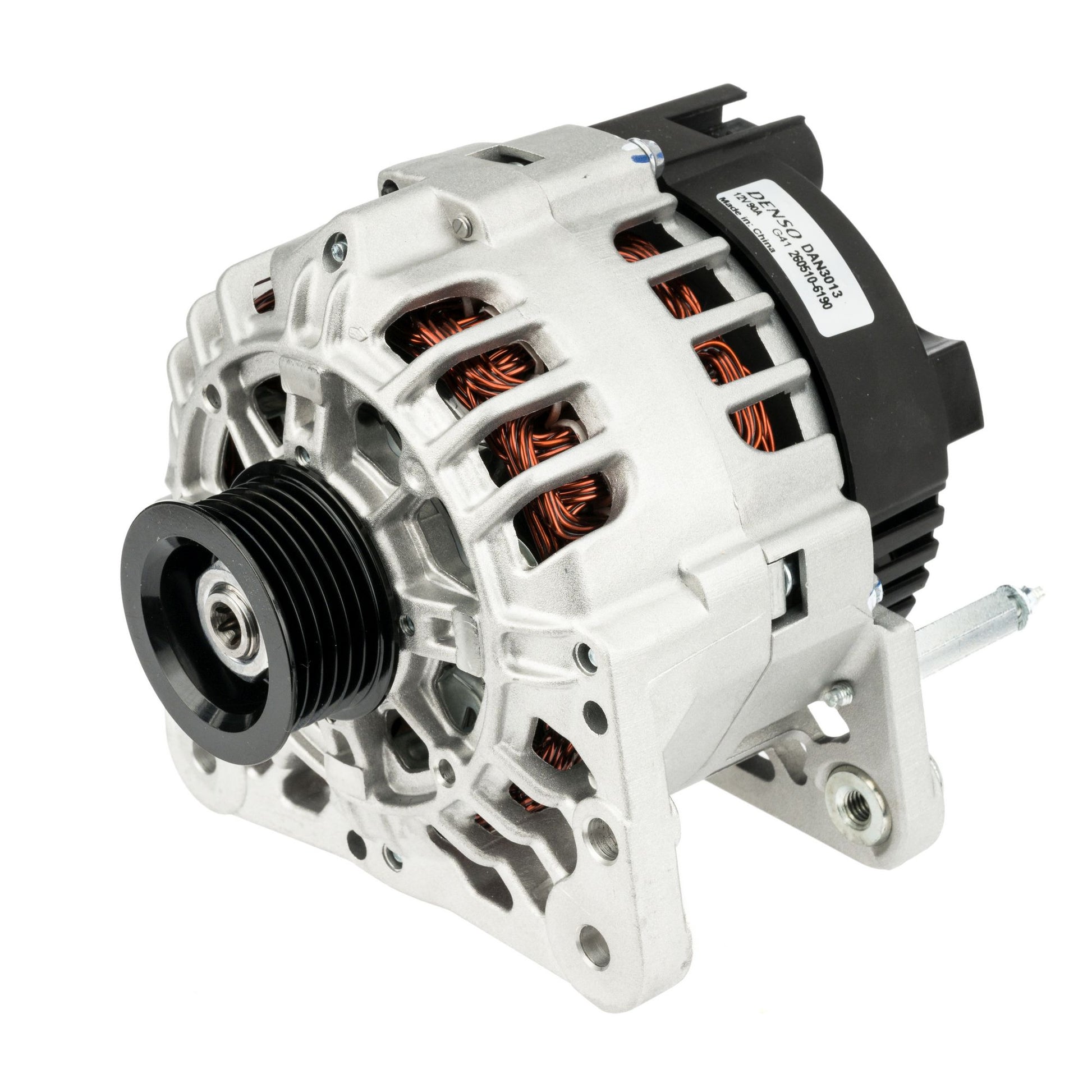

Denso Alternator DAN3013
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Alternator
- Alternator Charge Current (A): 90
- Belt Pulley Diameter (mm): 49
- Gross Weight (g): 5591
- Height Incl Packaging (mm): 180
- Indication Reman Part: New
- Length Incl Packaging (mm): 245
- MAM Section: Electrical
- Net Weight (g)_XC: 5171
- New part without deposit: Yes
- Number of ribs: 6
- Pulleys: with multi-belt pulley
- Quality: DENSO
- Vehicle Main Current: for vehicles with 12V main current
- Voltage: 14
- Voltage (V): 14
- Width Incl Packaging (mm): 210
Replaces OEM reference(s):
SEAT: 03D 903 025 H, SEAT: 03D 903 025 HX, SEAT: 03D 903 025 J, SEAT: 03D 903 025 JX, SEAT: 03D903025H, SEAT: 03D903025HX, SEAT: 03D903025J, SEAT: 03D903025JX, SKODA: 03D 903 025 H, SKODA: 03D 903 025 HX, SKODA: 03D 903 025 J, SKODA: 03D 903 025 JX, SKODA: 03D903025H, SKODA: 03D903025HX, SKODA: 03D903025J, SKODA: 03D903025JX, VW: 03D 903 025 H, VW: 03D 903 025 HX, VW: 03D 903 025 J, VW: 03D 903 025 JX, VW: 03D903025H, VW: 03D903025HX, VW: 03D903025J, VW: 03D903025JX
Replaces aftermarket reference(s):
BOSCH: 0986049101, BOSCH: 0 986 049 101, BOSCH: 1 986 A00 567, BOSCH: 1986A00567, DENSO: 2605106190, DENSO: 260510-6190, ELSTOCK: 285790, ELSTOCK: 28-5790, HELLA: 8EL 012 426-761, HELLA: 8EL012426761, LUCAS ELECTRICAL: LRA03178, VALEO: 200061, VALEO: 437444, VALEO: 439481, VALEO: SG9B057, WAI: 21602N
