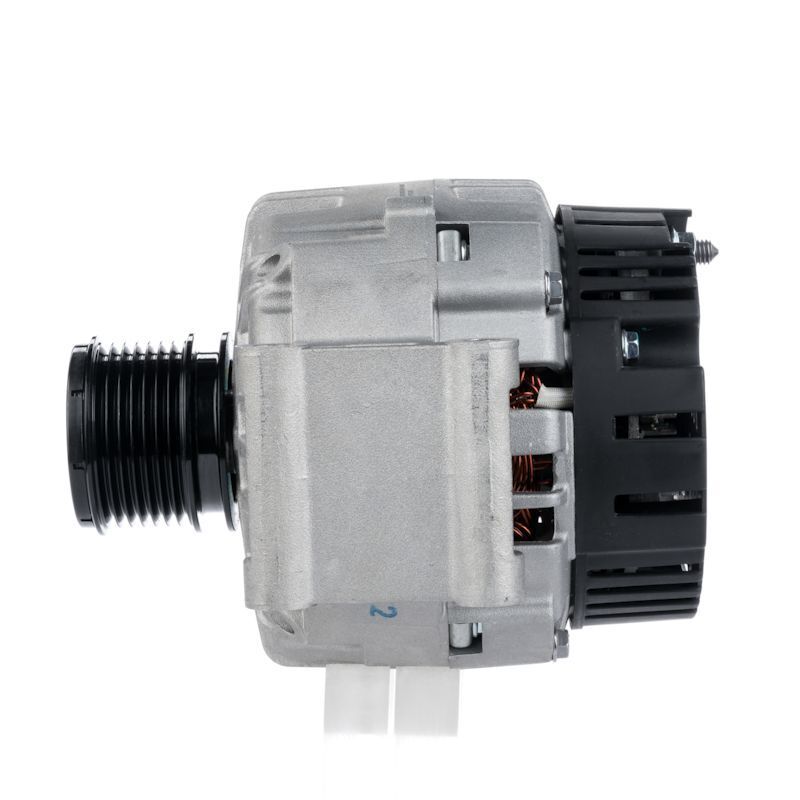

Denso Alternator DAN3016
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Alternator
- Alternator Charge Current (A): 120
- Belt Pulley Diameter (mm): 56
- Gross Weight (g): 7033
- Height Incl Packaging (mm): 180
- Indication Reman Part: New
- Length Incl Packaging (mm): 245
- MAM Section: Electrical
- Net Weight (g)_XC: 6613
- New part without deposit: Yes
- Number of ribs: 7
- Pulleys: with free-wheel belt pulley
- Quality: DENSO
- Vehicle Main Current: for vehicles with 12V main current
- Voltage: 14
- Voltage (V): 14
- Width Incl Packaging (mm): 210
Replaces OEM reference(s):
MERCEDES-BENZ: 2711540802, MERCEDES-BENZ: 2711540902, MERCEDES-BENZ: 271154080280, MERCEDES-BENZ: A2711540802, MERCEDES-BENZ: A271154080280, MERCEDES-BENZ: A2711540902
Replaces aftermarket reference(s):
BOSCH: 0124515198, BOSCH: 0986045380, BOSCH: 0986045387, BOSCH: 0986604538, BOSCH: 0 124 515 198, BOSCH: 0 986 045 380, BOSCH: 0 986 045 387, BOSCH: 0 986 604 538, DENSO: 2605106080, DENSO: 260510-6080, ELSTOCK: 284866, ELSTOCK: 28-4866, HELLA: 8EL 012 428-351, HELLA: 8EL012428351, LUCAS ELECTRICAL: LRA02362, VALEO: 200045, VALEO: 437430, VALEO: 439471, VALEO: SG12B062, WAI: 13954N
